Резервуар для хранения жидкого кислорода на

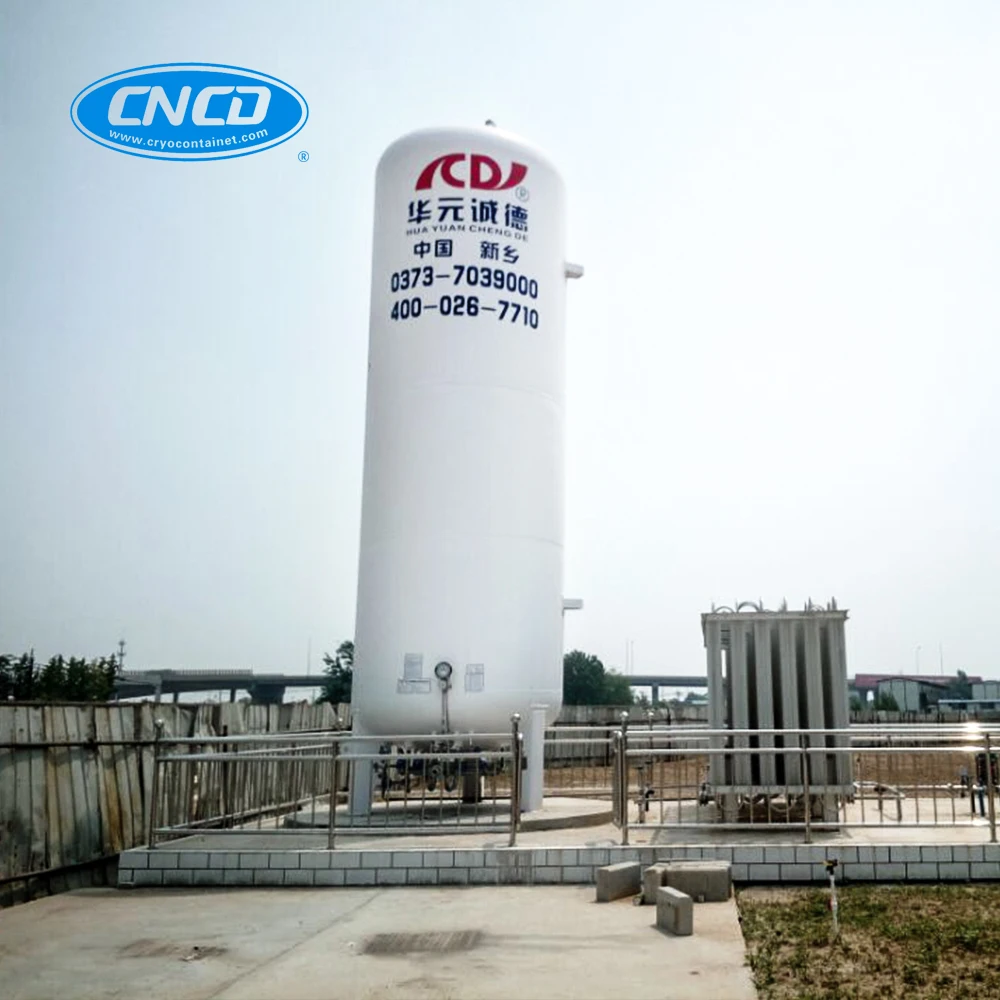

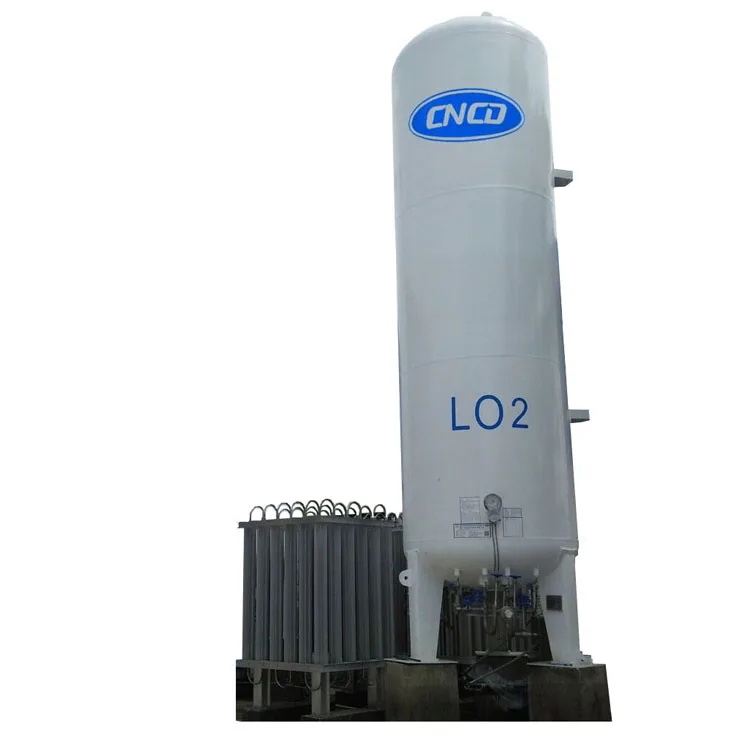

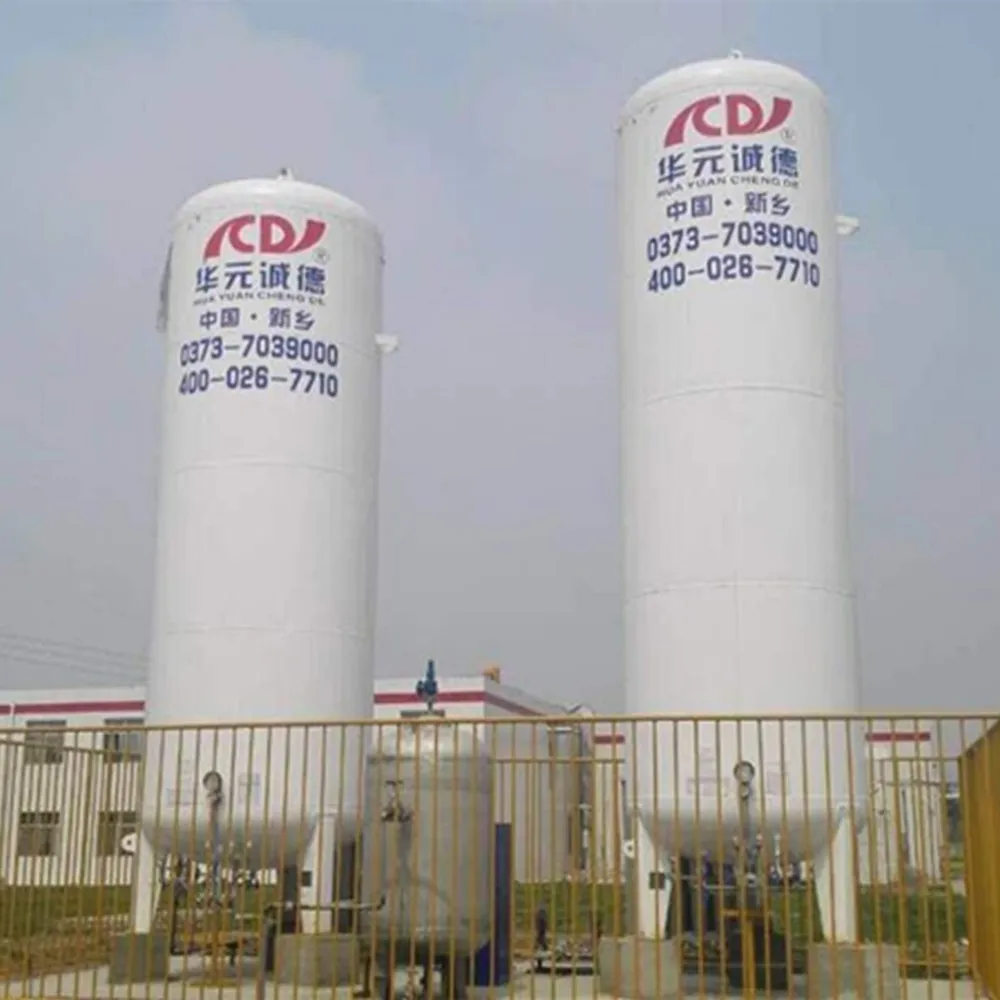

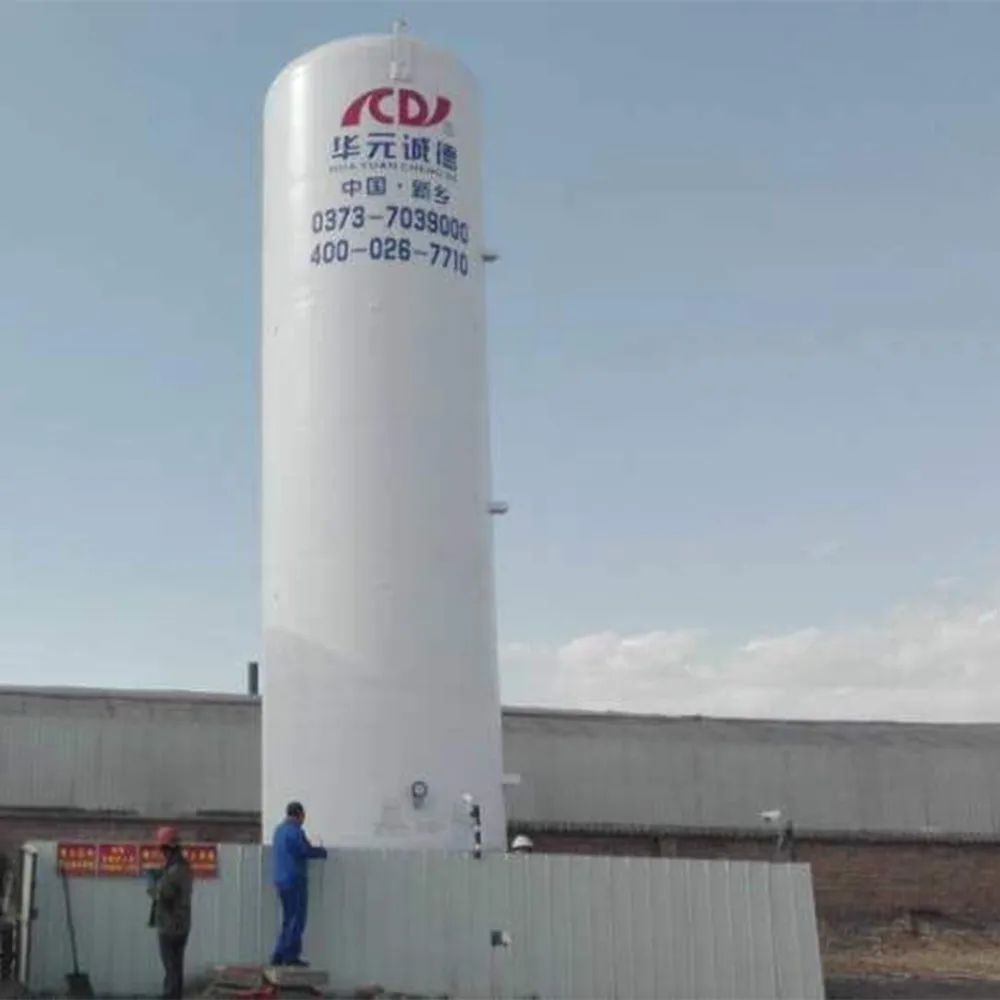

product picture of cryogenic tank

      Cryogenic liquid storage tanks is a series of products of producing first, second , third types of pressure vessel ,the products strictly in accordance with the GB150 "pressure vessels", GB18442-2011 stationary vacuum insulation cryogenic pressure vessel, and the fixed safety technicalsupervision type of pressure vessel to design,

manufacture,inspect and accept.

      Cryogenic liquid storage tanks is for double wall, vertical (horizontal) structure, adopt theuse of vacuum powder adiabatic, with the advantage of compact structure , low issuance date,small footprint,centralized control, safe,reliable, easy operation and maintenance.

                  1.Loading medium: LN2, LO2, LAr, etc.

                  2.Effective Volume: 2~150

                  3.Working pressure: 0.2~1.6

                  4 Cylinder design temperature: -196℃

                  5.Shell material:Outer jacket: Q245-R;Inner: S30408.

                  6.Insulation: Vacuum powder insulation

                  7.Filling rate: 0.95

                  8.Relief Valve: All valves are high grade Chinese valves.

                  9.Delivery date: Within 60 days after received pre-payment, or more shorter time.

                  10.Payment model: We can negotiate,we suggest TT,

                  11.Documents: Bill of Loading, Invoice, Packing list, Contract (3 originals).

(Specific cryogenic liquid storage with given pressure and effective volume can be manufactured as required)

         Our company gate                                                 Our workshop

     Xinxiang Chengde Energy Technology                  We have a strong technical team, can provide

     Equipment  Co., Ltd.was founded in 2002,             you with a complete set of scheme,  at the

     The company has been committed to the              same time can provide you with the best

     pressure vessels,Low-temperature cyogenic         quality and service, and the most competitive

     equipment and gas equipment in the field             price.

     of research,development,design, manufacture

     and installation.

     Our company have won the national low temperature testing center’s certification of product

models,brand-name products in Henan Province, Henan Provincial Science and technology high-

tech enterprises; achieved ISO9001 interna tional quality system certification, China Classification

Society certification and other awards.

     Our products throughout the country and export global 32 countries and regions in the world,

due to the reliable quality, perfect after-sales service, is well received by user.

1.Delivery time:In our factory,There more than 180 pcs tanks in stock.If customers need

Conventional models products,Usually we can ship products to customers within 15 days.

if your needed products we have not in stock usually we can ship to you within 60 days.

2.After-sales service:whenever our customers have question,after we received your question,

we will give you feedback within 24 hours.we can provide installation,comssioning and start-up

etc service for customers if you need.

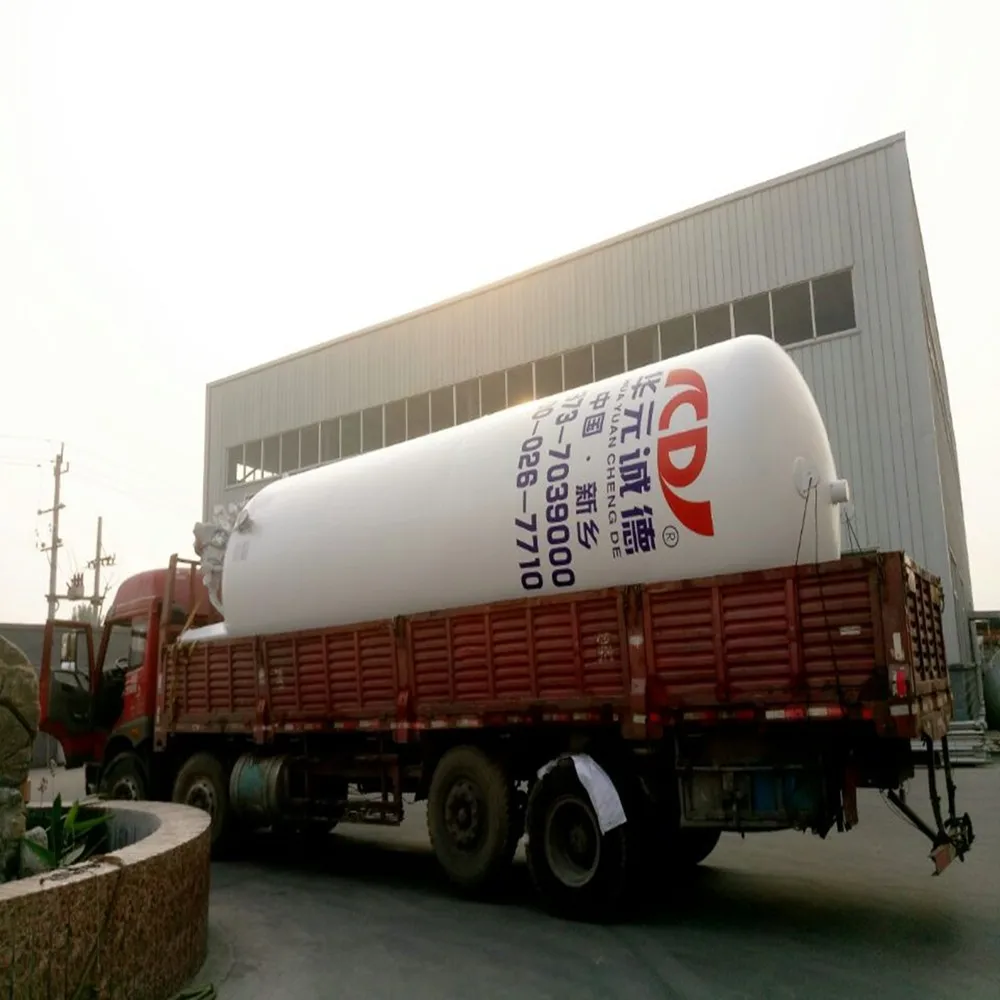

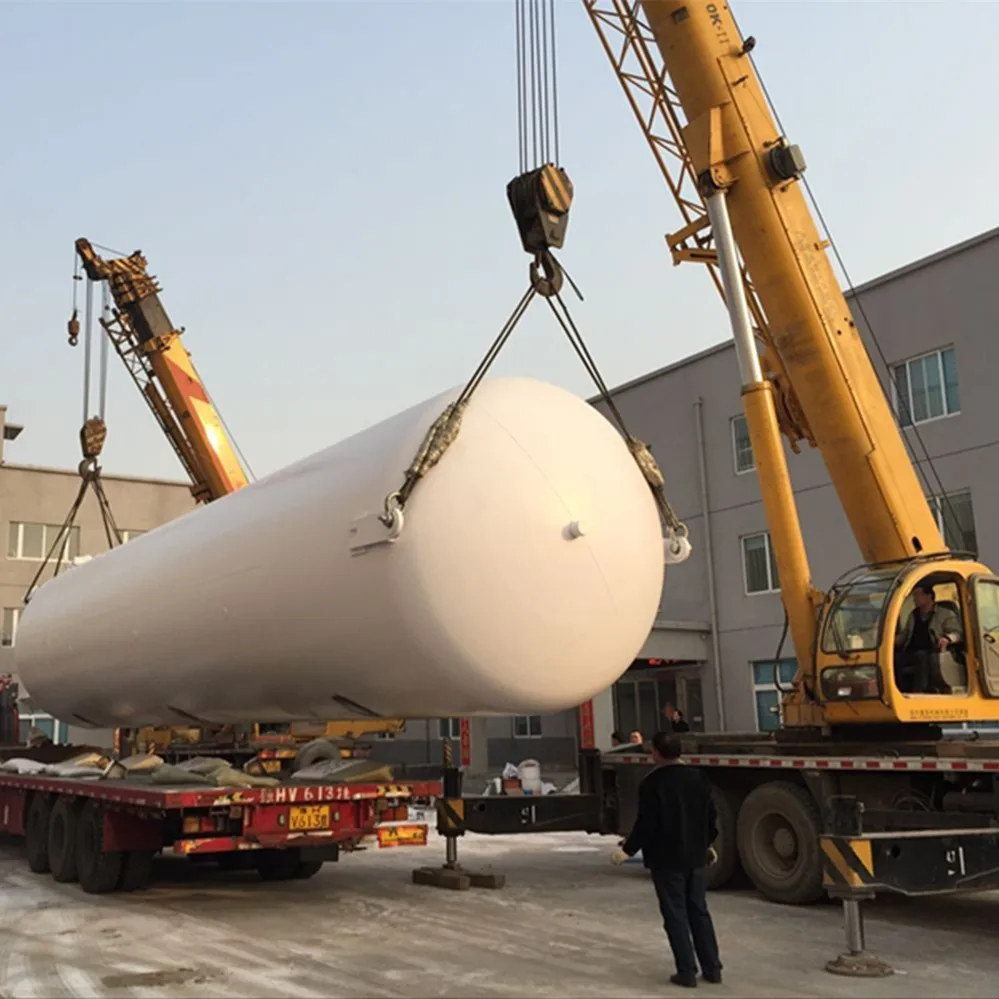

3.For packing:We can packing it according to customer requirements.For shipment:we have

agent forwarder,Can help customers find best freight cost

Related Products of cryogenic tank

Our company also produces Cryogenic LOX/LN2/LAr storage tank,Aerated barge (water stations),vaporizer,Large cryogenic liquid storage tank, LNG Refueling Station,LNG filling station pump skid,Oxygen, argon, nitrogen cryogenic liquid filling bottles of pump, liquid carbon dioxide pump,centrifugal cryogenic liquid pump,liquidnature gas pump for pump system,High-pressure liquid natural gas pump,cryogenic liquid flow pump,Steam heated water bath vaporizer,Electric heating bath type evaporator,Self-operated pressure regulating equipment,Natural gas pressure regulator,Gas filling bar,omnibus bar.

Are you interested in any more info? If yes, drop us a message!
