About Kaishan KCC Centrifugal air compressors

    The origin of the core technology is the Kaishan R&D center in North American. These products are designed by the world-renowned

expert in centrifugal compressors, Dr.Joost J. Brasz. Designed with cutting-edge technology, the 14-4PH stainless steel backeard impeller,

this product features a hihg pressure surge point, a wide volume adjustment range, and high operation stability and the highest operational efficiency.

   1. Superior design of the whole assembly

   2. Main pump and spindle are connected by shaft coupling, so it’s convenient to replace.

   3. Reliable design of sealing system to guarantee to provide 100% oil-free compressed air.

   4. The design of oil system can prevent lubricated oil from polluting by surrounding environment and causing equipment downtime.

   5. The inside auxiliary equipment to furthest reduce the site installations for customers.

   6. Reliable & high-efficiency

   7. Little vibration & low noise

   8. Seft-sustained pressure lubrication system & main and auxiliary oil pumps to ensure the lubricant of gearbox.

Main Features of Kaishan KCC Centrifugal air compressors

   A. Economical to operate:
   Due to the high efficiency of the impeller and its wide range of operation, the KCC turbo compressor uses less electricity per units of output, and is therefore less costly to operate. Additionally, the full authority controller allows the operation to be tailored to specific requirements, which in turn reduces costs.

   B. Easy to control:
   An easy to use interactive tough screen, operated by touch, provides all the necessary operating data. Additionally, the turbo compressor is operating with simple on/off buttons.

   C. Convenient maintenance:
   The KCC turbo compressor in a modular fashion which allows easy and quick access for inspection and maintenance.

   D. Advanced technology assures the best performance in its components:
   The specific dynamic components such as impellers and diffusers of the turbo compressor are designed to achieve optimum performance over wide operating range. They are thoroughly tested and proven in both the laboratories and fields. The turbo compressor was designed for flexibility and adaptability to meet all aspects of the customers needs.

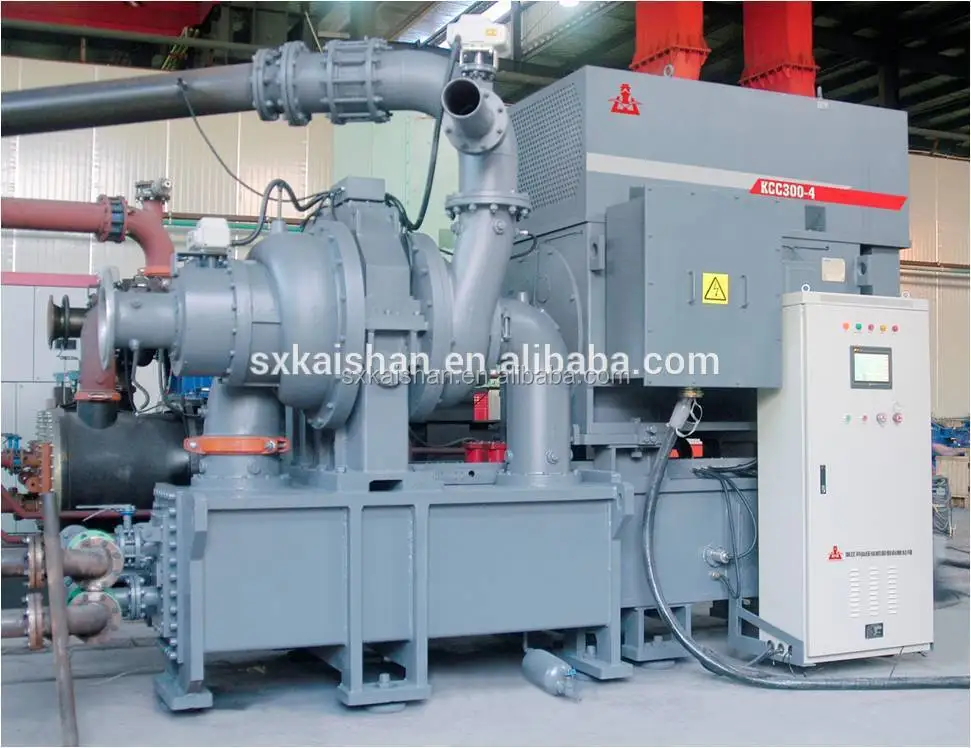

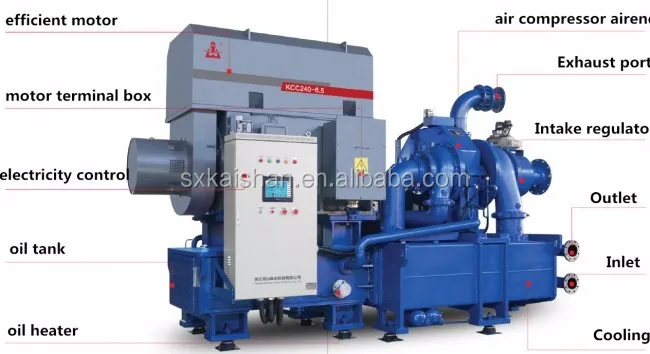

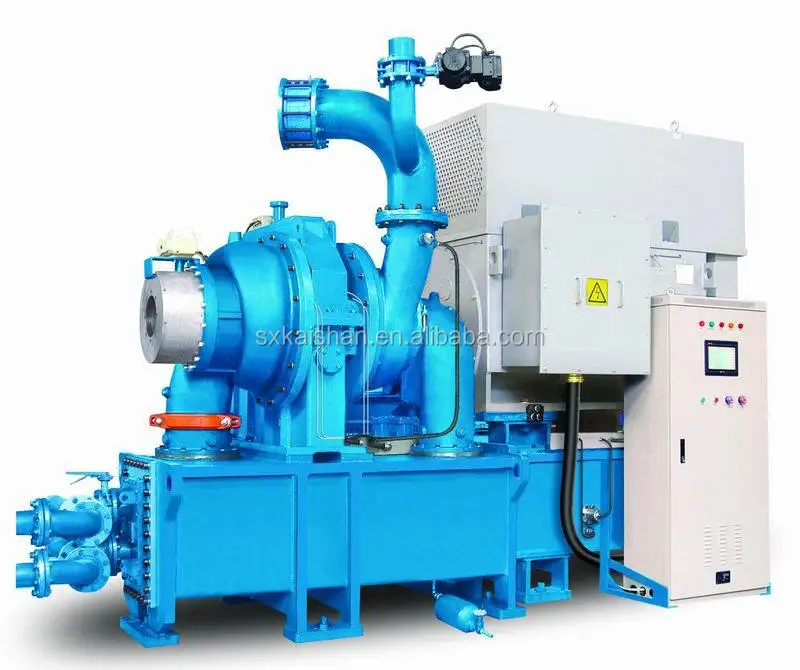

Pictures of Kaishan KCC Centrifugal air compressors

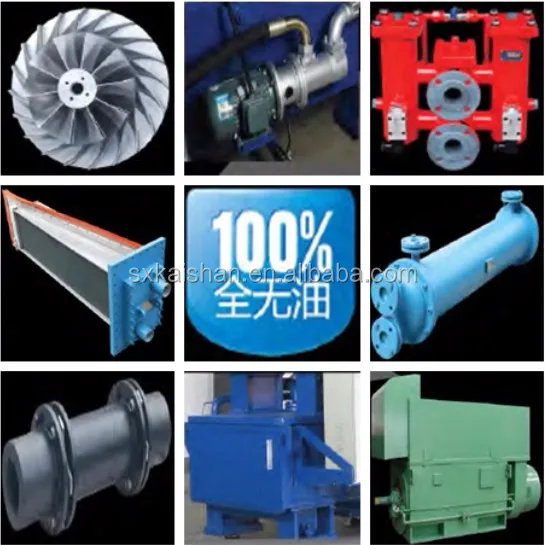

 Functions of Kaishan KCC Centrifugal air compressors

Packaging for Kaishan KCC Centrifugal air compressors

wooden case, also according to your request.

Shipping: 15-30 days by Fedex, UPS, EMS, TNT, etc

   All of our products are National Free-inspection Product, and have passed ISO9001 certification.

   We provide good service, competitive price, high quality, fast shipping and perfect after sale service.
