ONTIME SP2002 wall mount security display wall-mounted mobile phone anti-theft  device display stand





Wall-hung stand for smart phone, antitheft alarm function activated by 8-port controller. It optimizes space utilization, provides high rank protection with mechanical bracket (optional).  Centralized controller SP2006 can be mounted inside the closet with the help of external IR signal receiver, which enhances the protection level.



♦ Aluminum + ABS (black/white) frame                        ♦  Built-in rechargeable battery

♦ iPhone/type-C charging cable optional                     ♦ Remote controlled by SP9301/SP9307

♦ Charging power 1500mA                                             ♦ Alarm volume: 110Db

♦ Bracket size: 55-85mm or 75-105mm                       ♦ Wire coil length: 750mm max



Remark:
1. Built-in battery only used for security alarm during urgent situation such as power cut;
2. Built-in battery does not supply power charging to the cell phone protected;
3. AC power supply is needed through the whole protection application.



Standard fitting:
1 x centralized controller SP2006
1 x power supply for SP2006
1 x external IR signal receiver SP2008
8 x cable link SP2008
8 x wall post SP2001



Optional Fitting:
Remote controller
Metal bracket SP2009
Metal bracket SP2010



Attach the Display Security:

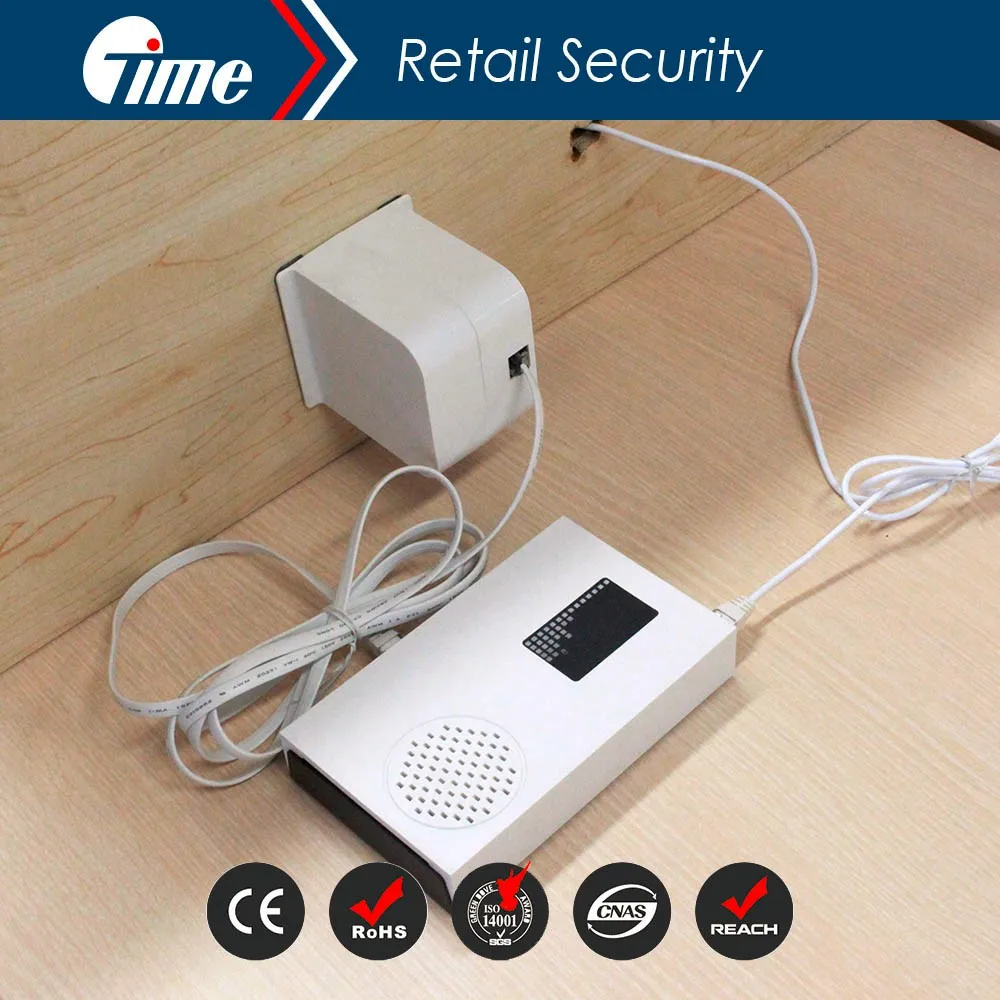

1. Connect max 8 network cable SP2008 to centralized controller, link the cable into recoiler SP2005 as below picture 3

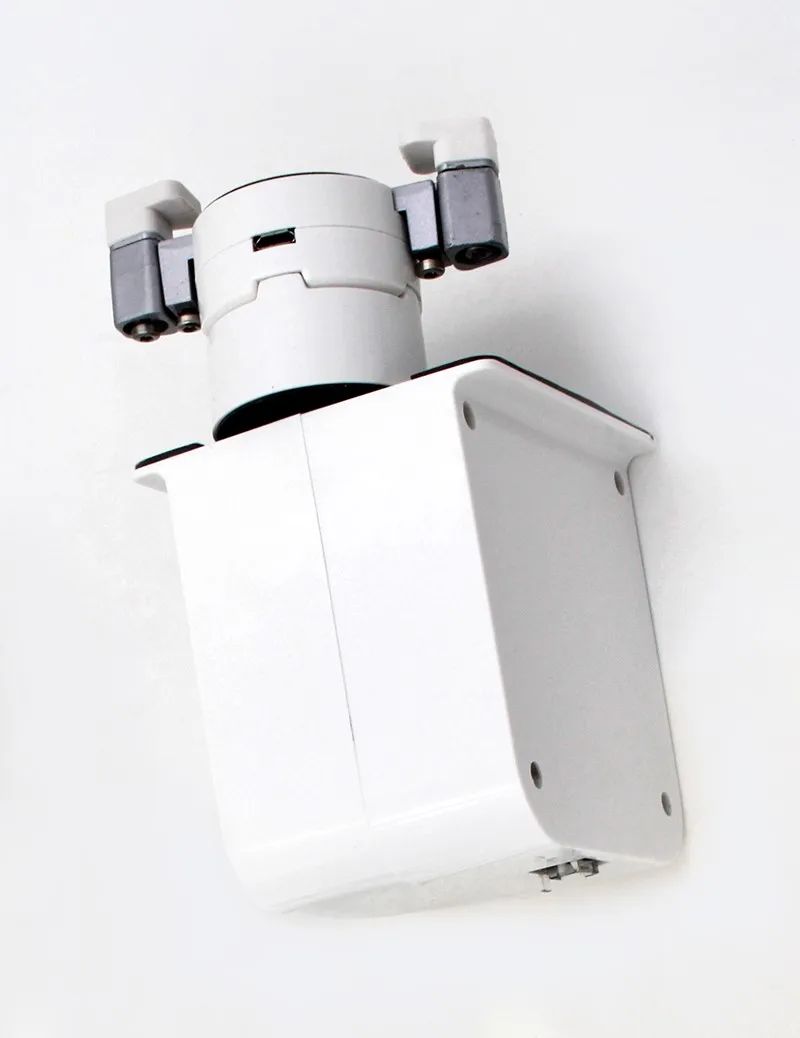

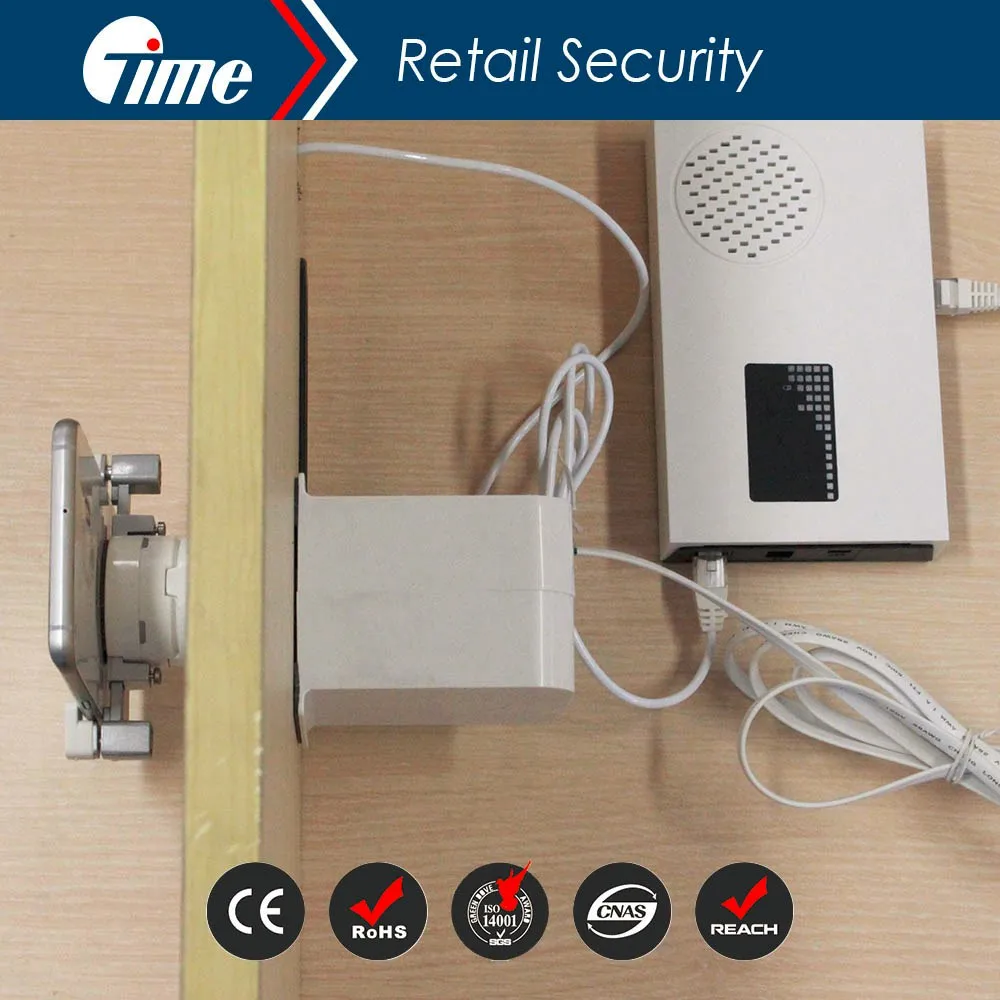

2. Stick the recoiler SP2005 inside the wall panel by 3M tape, guide the wire plug through the hole pre-drilled on the wall panel and connect to the protection sensor, and mount the seat onto wall panel by 3M tape:





3. Assemble the cover plate to sensor: aim screw position, lock cover plate by clockwise rotation, tight the cover by special screw driver by clockwise rotation. Whereas, anticlockwise rotate screw and cover plate to disassemble it.





4. Fix cell phone onto sensor by 3M tape and bracket; connect charging cable to cell phone. No. 1 and 2 screws used to adjust the bracket to fit phone thickness, while No. 3 and 4 screws used to adjust the bracket to fit phone width.

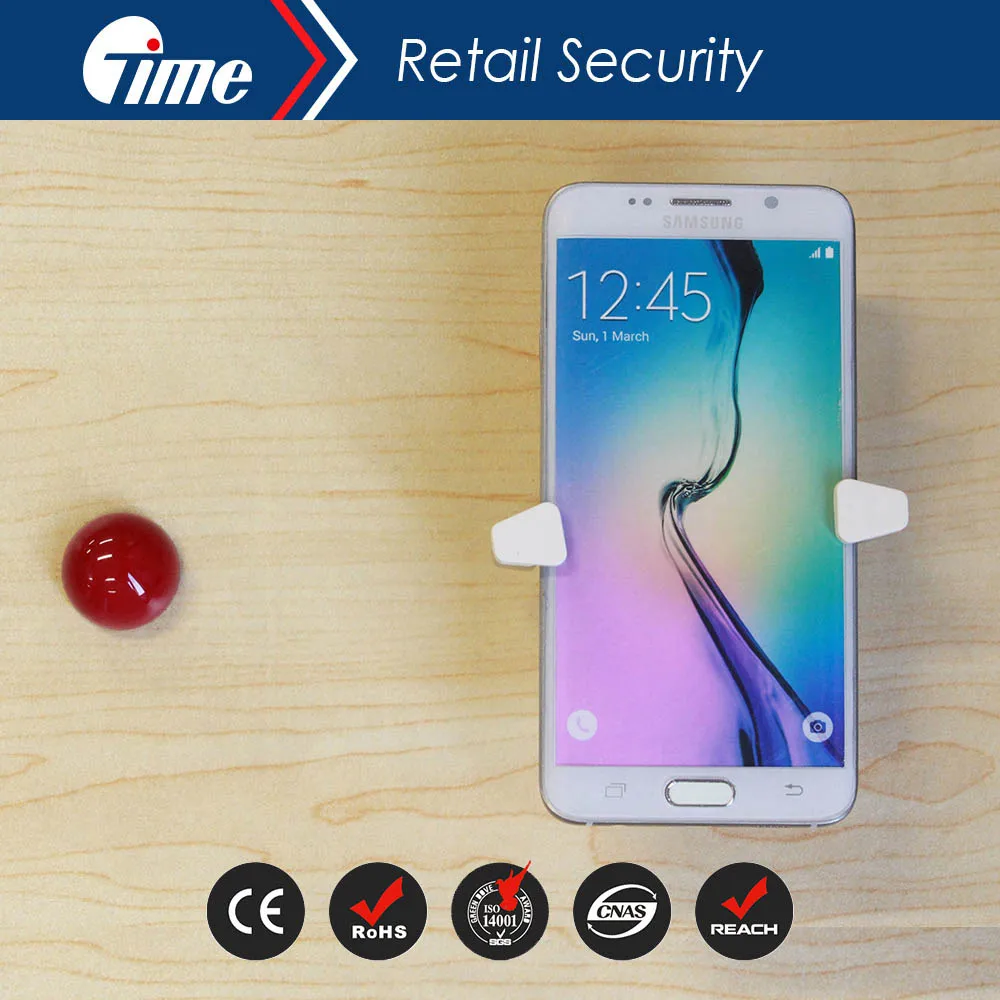

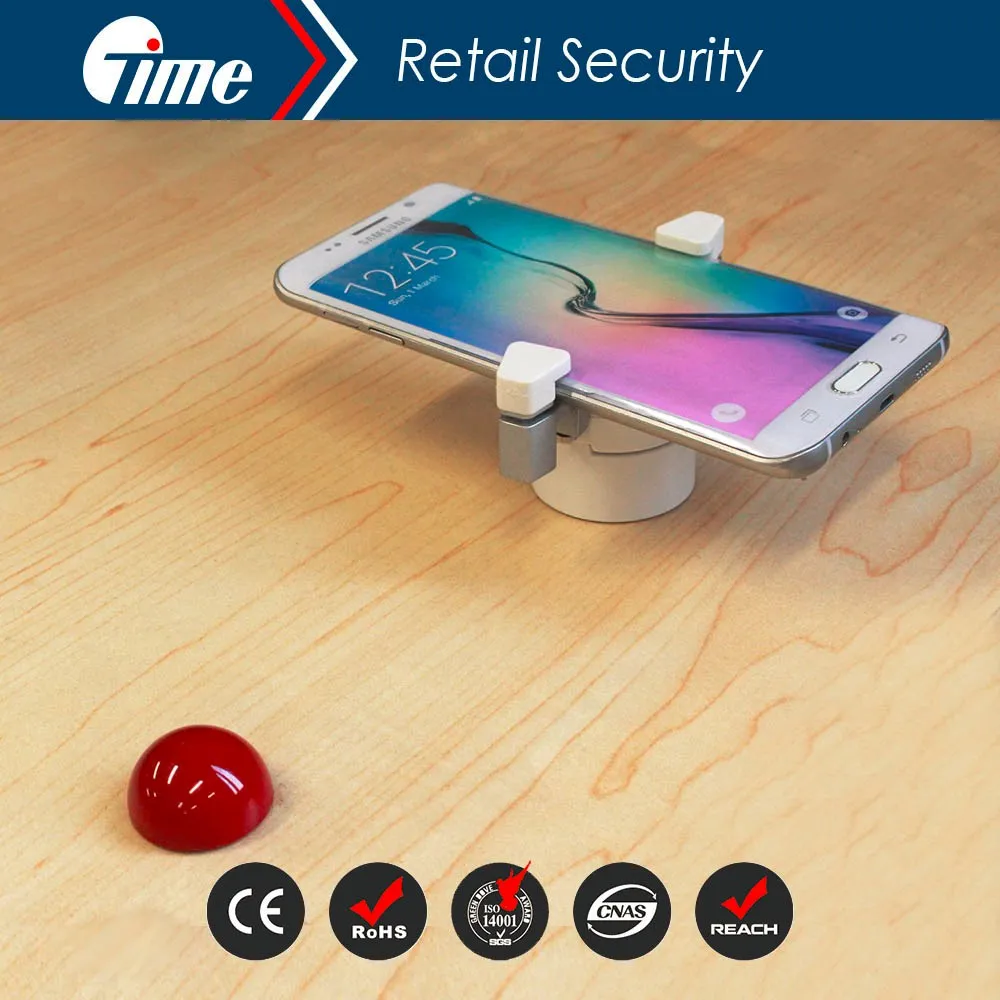

5. Guide the external IR receiver cable through wall panel and plug into the controller, stick the receiver beside the sensor so that it can be used to disarm the alarm (Please disarm within 3cm distance after 3 seconds alarm).
6. Connect the power supply to controller to activate the display security protection.





Remark:
Display security should not be closed to high magnetic field or heat source; Please use the original power supply and adaptor to ensure the performance and avoid potential damage.



Alarming Condition:
During alarming mode, controller audio alarms; external IR receiver will also blinks rapidly.



Alarming condition as below:
a. Disconnection between controller and recoiler in protection mode, triggers alarm;
b. Disconnection between sensor and recoiler in protection mode, triggers alarm;
c. Disconnection between sensor and charging cable in protection mode, triggers alarm;
d. Disconnection between phone and charging cable in protection mode, triggers alarm;
e. Disconnection between sensor and phone in protection mode, triggers alarm;
f. Charging cable is cut off in protection mode, triggers alarm.
