Высококачественный речной расходомер воды

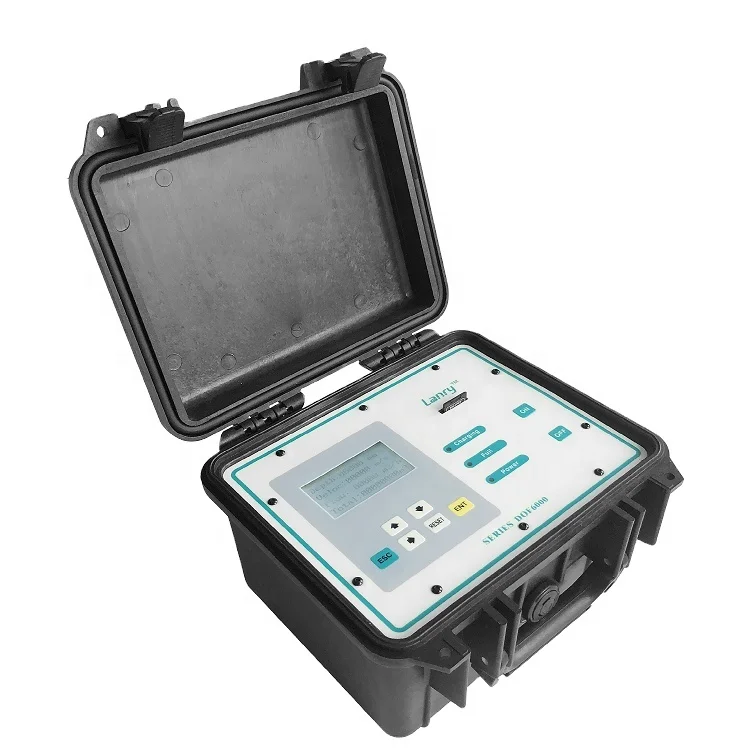

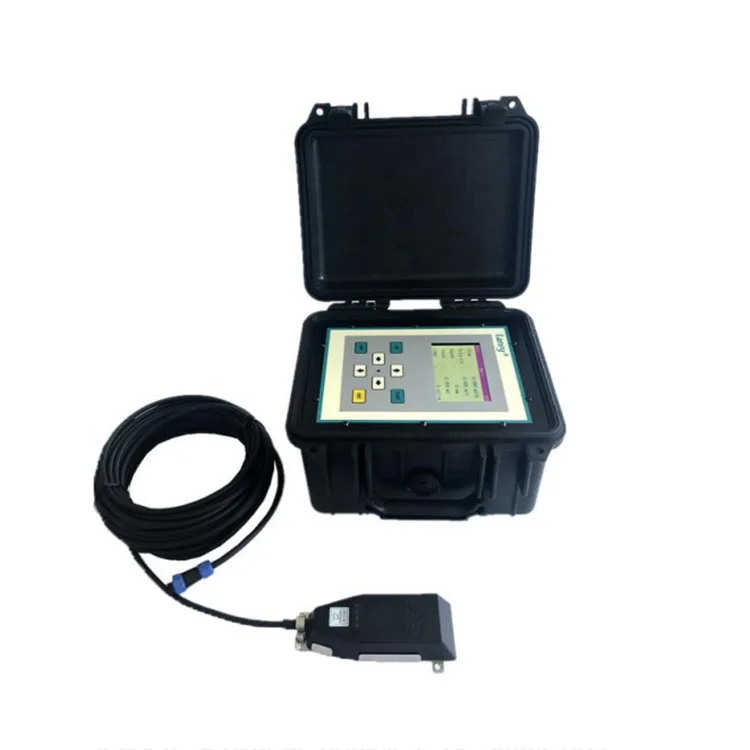

DOF6000-P seriesGood Quality River Water Flow Meter consists of flow calculator, and the integrated DOF 6526 transducer to measure velocity and level at the same time.

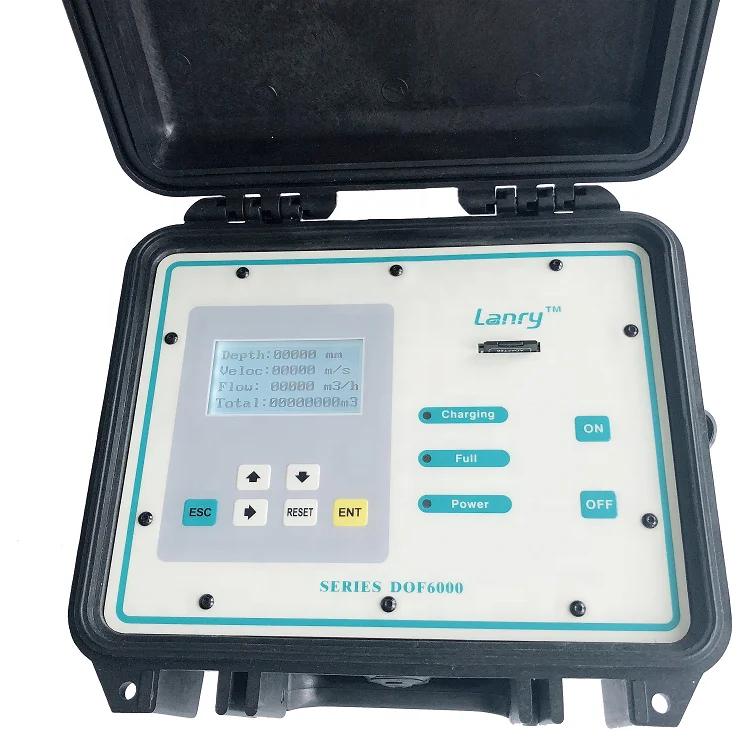

The flow calculator can display the velocity, level, flow rate and flow totalizer. It also can be available with 4-20mA, RS232, RS485 (Modbus) /GPRS and SD card logger outputs. It can record data of flow rate and total flow with a SD card up to 8GB.

The flow calculator can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, it can input up to 20 coordinate points describing the river's shape of cross section. It is suitable for various applications.

The DOF6526 Velocity and Level Transducer is a unique combination of water velocity, depth and temperature instruments integrated with a solid state logger. It is a new generation of intelligent flow measurement systems.

By using digital signal processing techniques, transducer is able to perform in a wide range of environments. It is used to record flows in pipes, channels and small streams and operates in a wide range of water qualities from fresh streams to primary sewage channels.

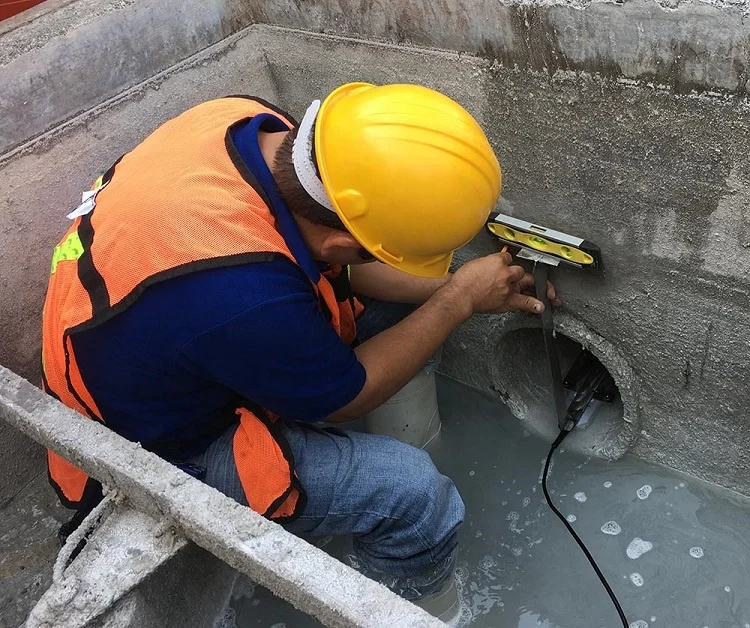

DOF6526 Transducer is mounted on (or near to) the bottom of the stream/pipe/culvert and measures the velocity and depth of the water flowing above it.

DOF6000-P series systems have been tested in small streams and pipes, and the calibration has been verified in a tow tank. Indications are that different channels have different characteristics and that acoustics can see velocity distributions that, if they are correct, may challenge some conventional ideas.
