Product Description

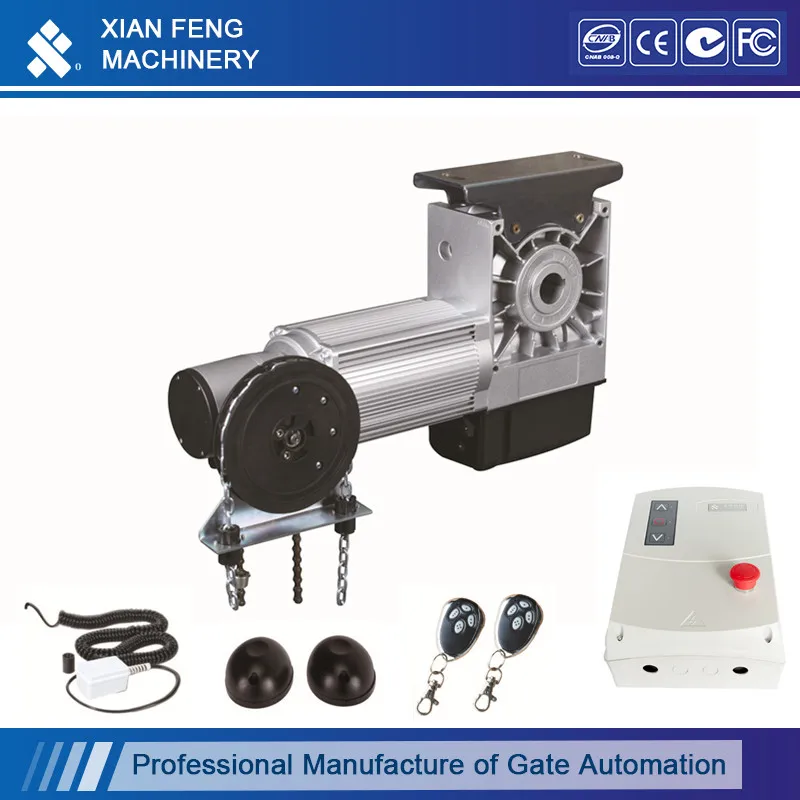

Xianfeng Industrial Sectional Door Motor KG50S


Industrial door operator is applied widely to factory, storehouse and hotel etc., and featured with compact structure, powerful starting strength, safe and reliable performance.


We have many Models of Automatic industrial door operator such as KG50,KG50S,KG75S,KG200S KG400S,KG500S.




Features



  1. A unique brake is provided for accurately stop the door.

  2. In the event of power failure, the release device makes it possible to open and close the door manually.

  3. Thermal protection.

  4. Protection class: IP54

  5. Excellent sub-zero grease ensures quiet and stable operation, suitableforcold area.

  6. Mechanical & electrical integration.

  7. Wiring terminals for remote control, push button, pressure sensor and infrared photocell.

  8. Easy to set limit position.

  9. Comply with the industry standard of China ‘Commercial Sectional Door Operator ‘.





Technical specification

































































































Model



KG50



KG50S-1



KG75S-1



Power supply



220×(1±10%)V 50Hz



380×(1±10%)V 50Hz



380×(1±10%)V 50Hz



Motor rotate speed



1400 rpm



1400 rpm



1400 rpm



Output rotate speed



32 rpm



32 rpm



24 rpm



Output torque



30 N.m



50 N.m



75 N.m



Motor power



300 W



400 W



400 W



Max. rotation



28 cycles



28 cycles



28 cycles



Barrel diameter



Ø25.4 mm



Ø25.4 mm



Ø25.4 mm



Flat key



6 mm



6 mm



6 mm



Thermal protection



120ºC



120ºC



120ºC



Duty cycle



S2:20% S3:10min



S2:25% S3:15min



S2;25% S3:15min



Ambient temperature



-20ºC ~+45ºC



-20ºC ~+45ºC



-20ºC ~+45ºC



Dimensions



100*233*360



100*233*360



100*233*360



Net weight



12 kg



12 kg



12 kg



Door



16 m²



25 m²



32 m²






.jpg





Packaging & Shipping





Packaging: Neutral carton


Delivery Detail: Delivery time within 15-25working days


Shipping: Send by express, sea or air













Our Services





1. Small MOQ is required, One set is available for checking our quality first conveniently


2. OEM/ODM is available, we can help to print logo on products.


3. Most advanced machines imported from German and make our products of high precision


4. All kinds of gate operators and road barriers, Widely product range can provide full solution to save your time and cost


5. Strong customization capability, we are very capable to custom produce with your drawings


6. The first manufacture of gate openers in China , We specialize in Automatic gate openers & gate automation for more than 27 years.


7. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).


8. Rich experience in selling and installing, also problem solving.








Company Information





Zhejiang Xianfeng Machinery Co., Ltd. established in 1970, we are the first professional manufacturer for Automatic Gate Operators in China. There are more than 600 employees and 100 research and development engineers, with a strong design and production capacity. We have issued the China Automatic Gate Operator Industry Standard in the year of 1989. Our company has been upgraded to the biggest and professional manufacturer of Automatic Gate System Control Products in China at present.


We have been leading manufacturer and exporter of these products over twenty years and are largely exporting worldwide with excellent quality and reasonable price. We have passed the ISO9001:2000, CE, ROHS, FCC, C-TICK, CQC and EMC Testing certificate.
