Охладитель серии CSVT типа V для холодильной

Описание и отзывы

Трекер стоимости

Характеристики

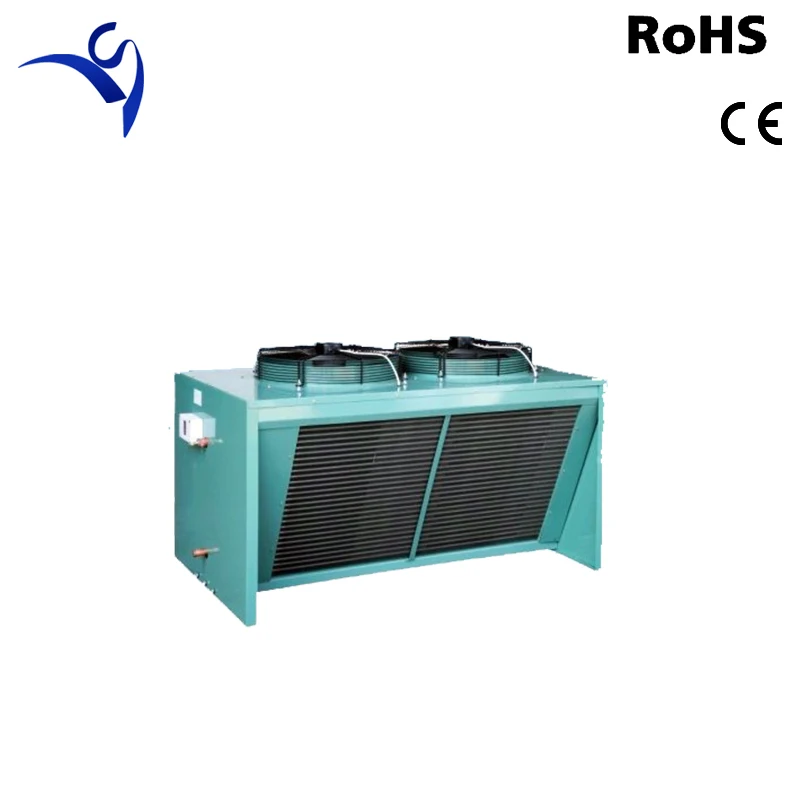

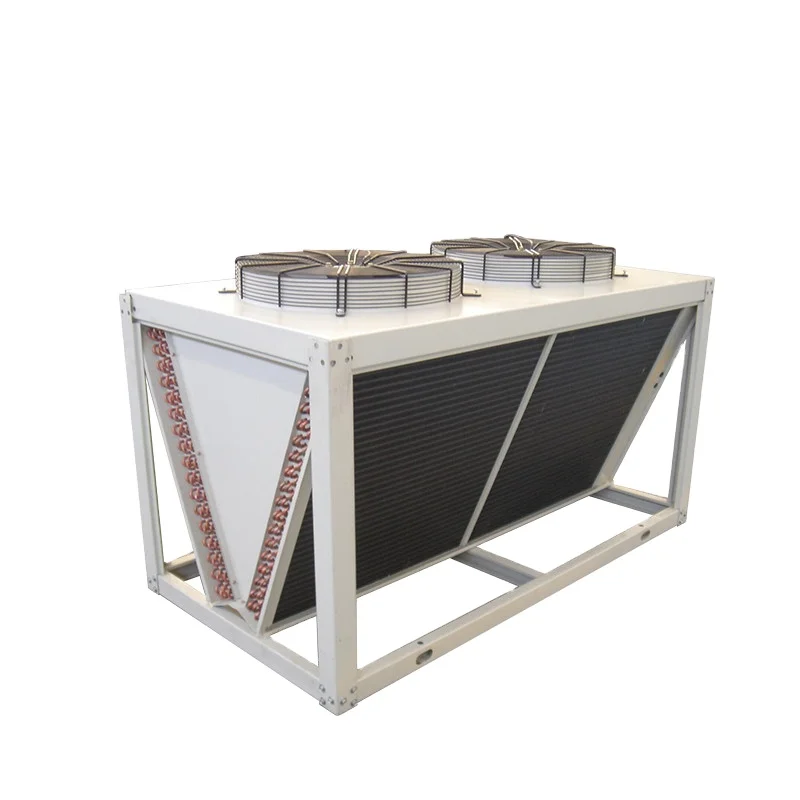

CSVT series V type air cooled condenser

Model	Heat exchange capacity	Surface	Copper pipe arrangement	Fan					inlet	outlet	Weight
				Qty	power	air flow	diameter	voltage
	kw	m2			w	m3/h	mm	V	mm	mm	kg
CSVT-060	17.7	60	3x10	2	180x2	4000x2	382	380	25	19	88
CSVT-080	23.6	80	3x12	2	250x2	5000x2	450	380	25	19	112
CSVT-100	29.5	100	4x11	2	250x2	5000x2	450	380	25	19	122
CSVT-120	35.4	120	4x11	2	370x2	8000x2	550	380	32	25	143
CSVT-140	41.3	140	4x13	2	370x2	8000x2	550	380	32	25	162
CSVT-160	44.3	160	4x13	2	550x2	9000x2	600	380	32	25	180
CSVT-180	47	180	4x14	2	750x2	12000x2	650	380	32	25	203
CSVT-200	52.5	200	4x16	2	750x2	12000x2	650	380	32	25	224
CSVT-220	58.5	220	4x14	3	370x3	8000x3	650	380	32	25	234
CSVT-240	64.5	240	4x14	3	550x3	9000x3	600	380	32	28	255
CSVT-260	70.5	260	4x15	3	550x3	9000x3	600	380	32	28	272
CSVT-280	76	280	4x16	3	550x3	9000x3	600	380	35	28	300
CSVT-300	82.5	300	4x16	3	750x3	12000x3	650	380	35	28	322
CSVT-320	88.5	320	4x17	3	750x3	12000x3	650	380	42	32	340
