Характеристики
High-quality card clothing carding machine for sale
Product Description
·Computer control, showing parameter
·Doffer and feeding roller with inverter to control speed, toothed belt driving
Features:
·Visible dust filtering pipe, multi continuous suction points, pressure continuous detection, good suction effect.
·A group of licker-in carding board and stationary flats in aluminum alloy
·Fully enclosed
·Multiautomatic stop devices
·2 web cleaners (1 front 1 back)
·High quality card clothing
Specification
| Application | cotton, chemical fiber and blends of 22~76mm |
| Capacity | up to 60kgs/h |
| Output speed of sliver | up to 180m/min |
| Quantitative sliver | 3.5~6.5gs/m |
| Feeding weight | 400~800g/m |
| Working width | 1000mm |
| Total draft | 98~177 |
| Licker-in diameter | Φ250mm |
| Doffer diameter | Φ706mm |
| Cylinder diameter | Φ1288mm |
| Flat number(working/total) | 30/82 |
| Sliver-can size | Φ600*1100/1200mm Φ1000*1100/1200mm |
| Continuous suction(air volume) | 3500m³/h |
| Air pressure | -920pa |
| Total power | 6.6kw |
| Main motor | 3.8kw |
| Doffer motor | 1.5kw |
| Cleaning roller motor | 0.37kw |
| Flat cleaning roller motor | 0.37kw |
| Feeding roller motor | 0.55kw |
| Flat brush motor | 0.007kw |
Security cover | Fully enclosed |
| Footprint (not including coiler) | 3442*1916 mm |
Weight | 5500kg |

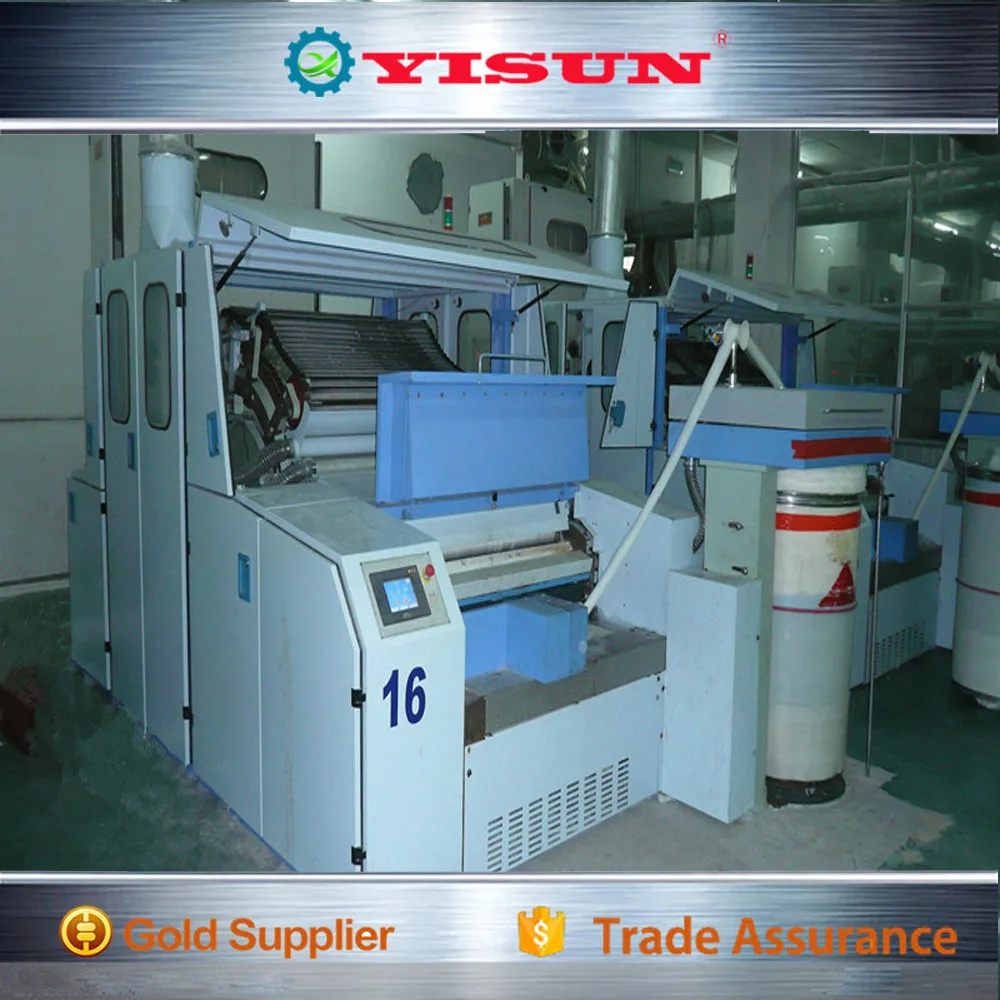

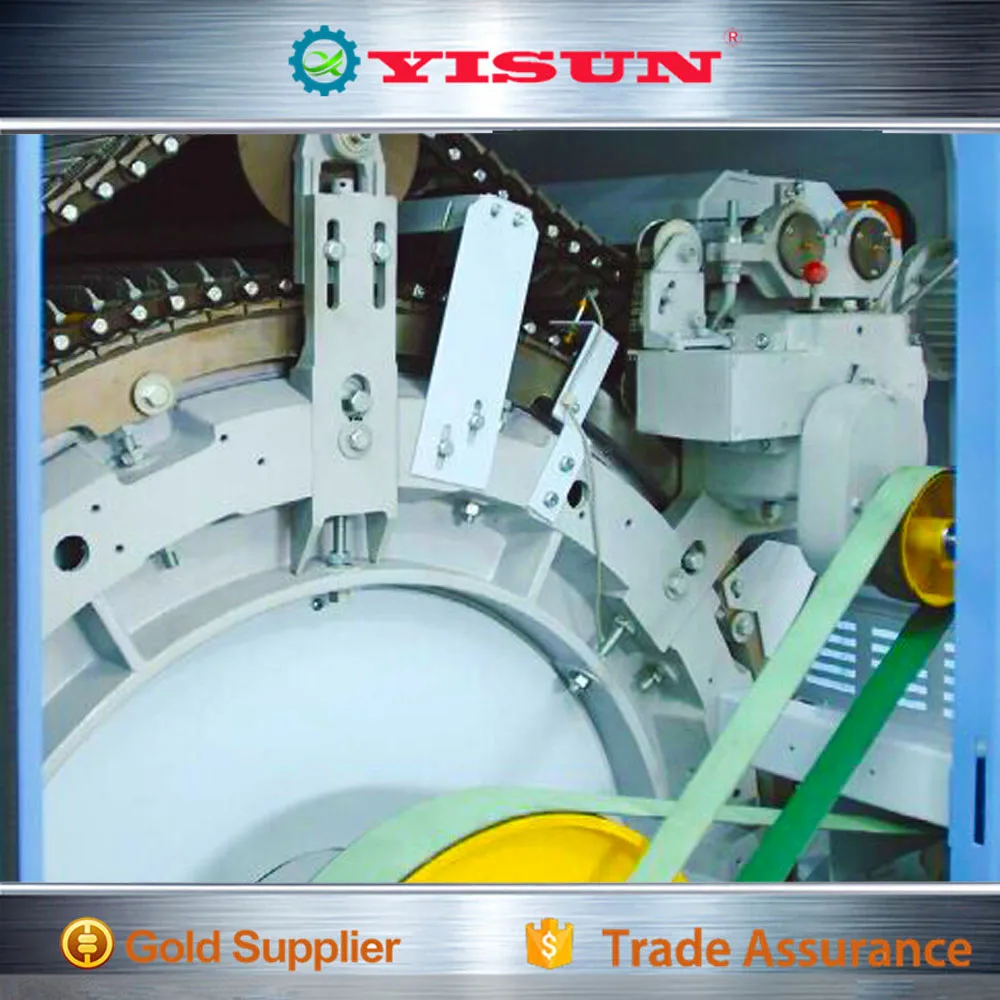

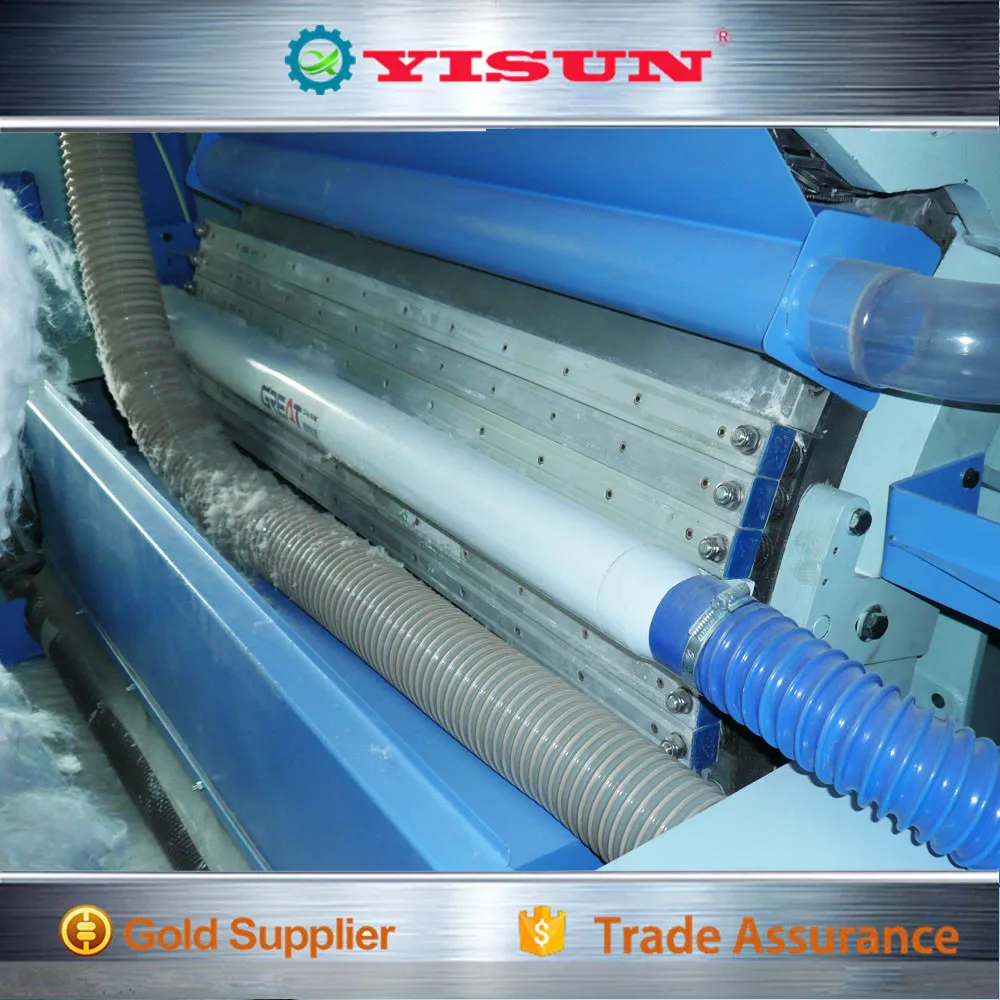

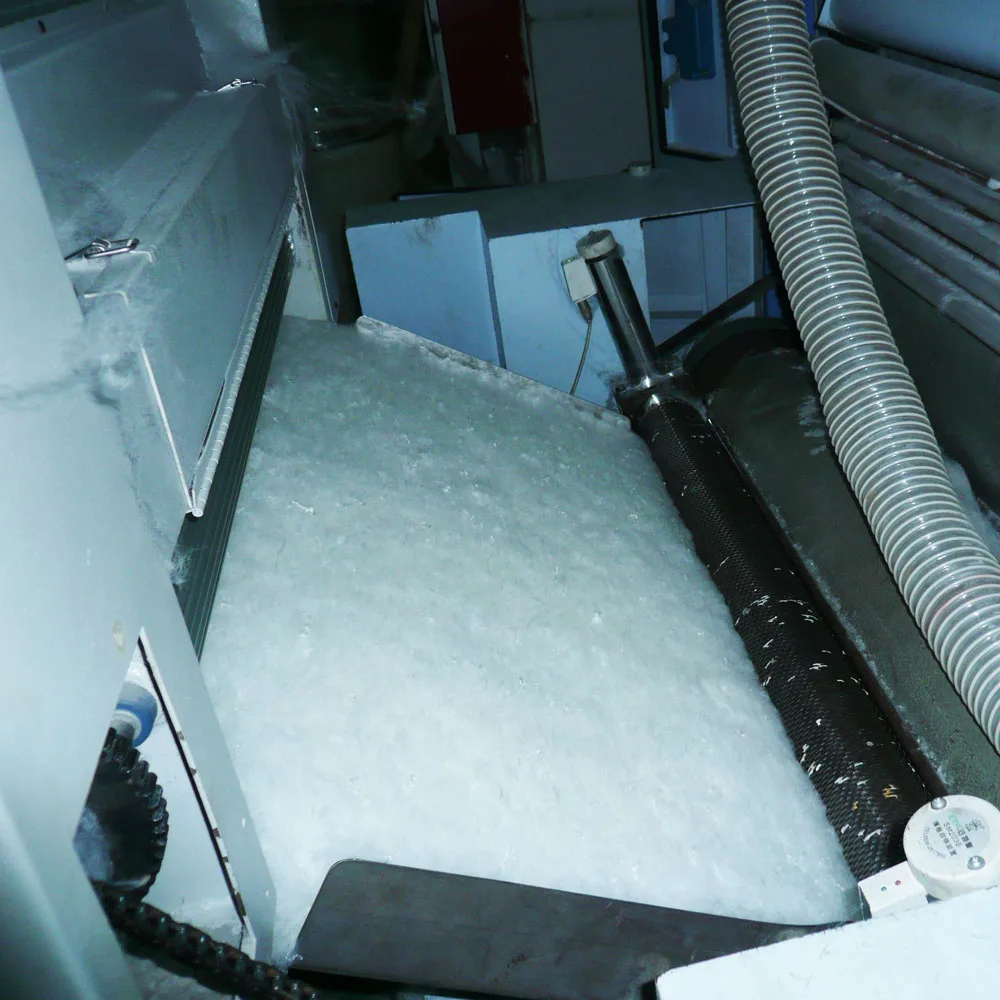

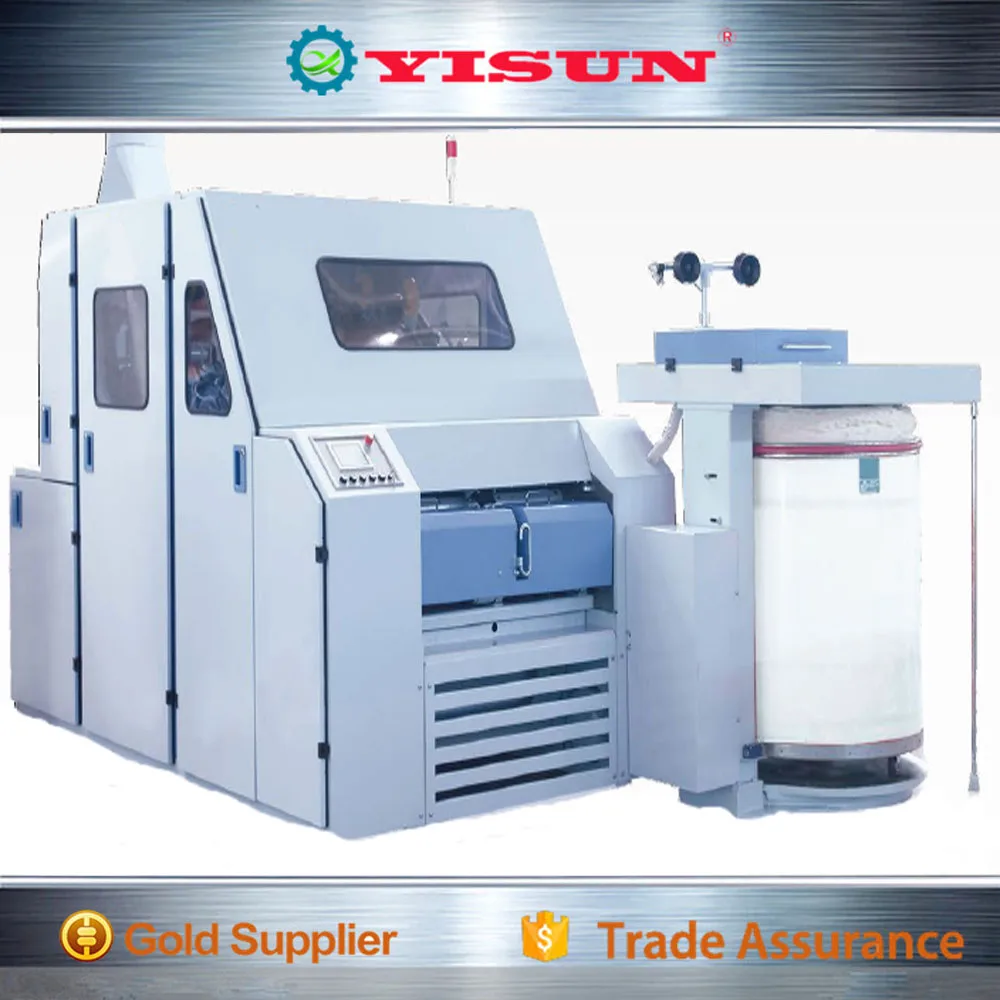

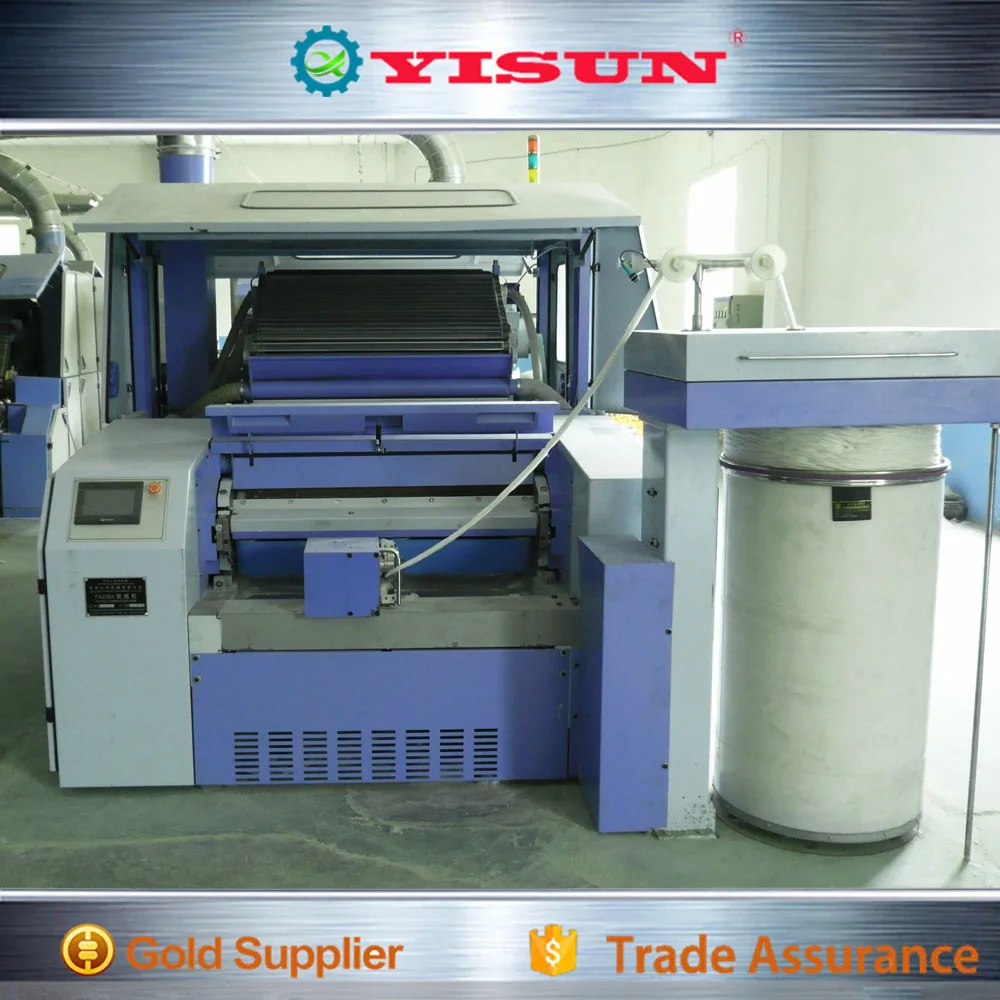

Detailed Images
