Метка Диапазона UHF RFID модуль Impinj R2000 4 порта санраи M2240 чтения и
- Категория: Другие товары управления доступом >>>
- Поставщик: Shenzhen,Sanray,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 75.19 $* | 77.16 $* |
| Jul-19-2025 | 61.83 $* | 62.30 $* |
| Jun-19-2025 | 74.92 $* | 75.68 $* |
| May-19-2025 | 73.89 $* | 74.6 $* |
| Apr-19-2025 | 58.32 $* | 59.84 $* |
| Mar-19-2025 | 72.97 $* | 73.2 $* |
| Feb-19-2025 | 71.89 $* | 72.0 $* |
| Jan-19-2025 | 71.48 $* | 72.90 $* |
Характеристики
Product Description

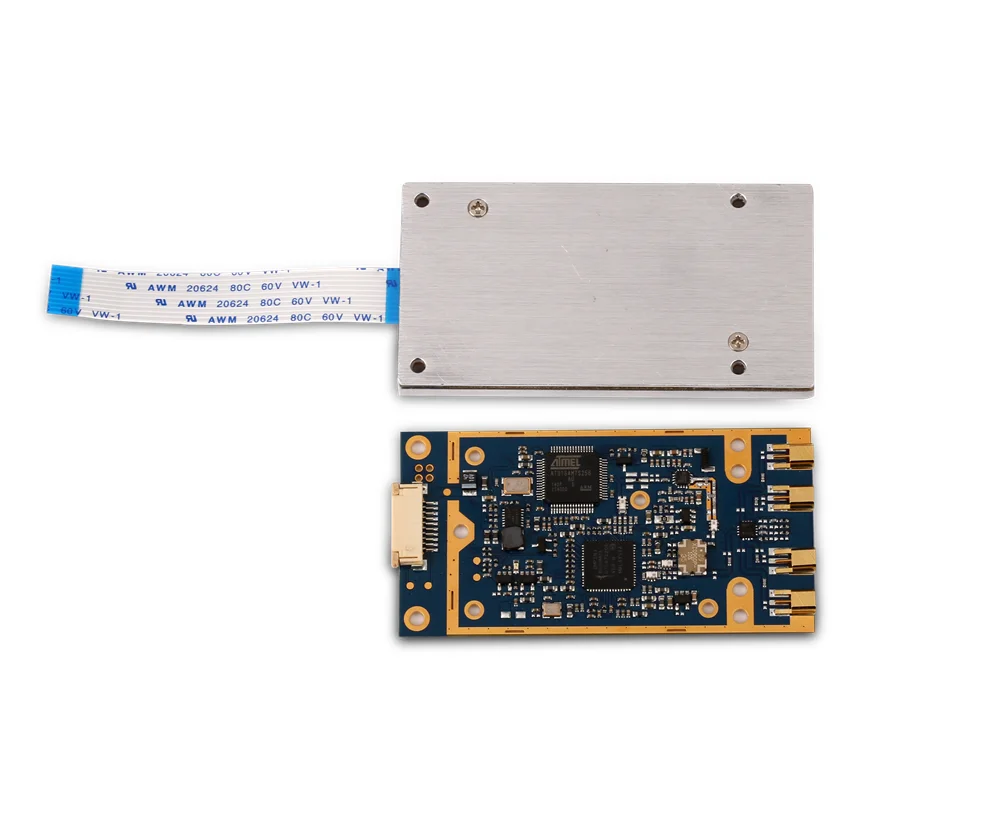

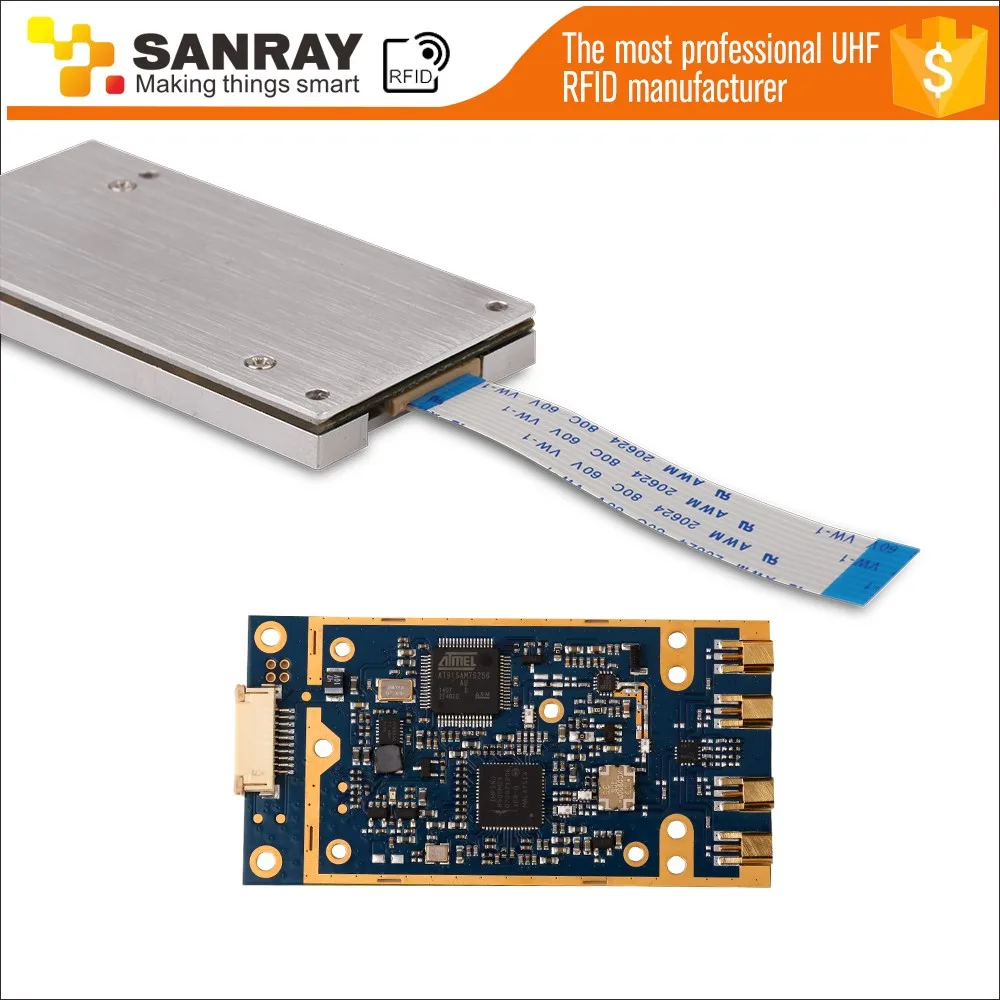

Product Name: M2240 read/write module impinj uhf rfid reader (4 port)
Product Advantage
1. Employed IMPINJ R2000 RF Chips, up to -82dbm receiving sensitivity and the highest performance in this field makes this module more suitable for harsh application environment.=
2. High stability and reliability, 60*24 hours high temperature of workstation, can work stably and continuously.
3. Remarkable performance with 8dbi RF antenna, can achieve a reading distance over 10m per single tag.
4. Remarkable performance in intensive taps reading can attain a tags identification rate of 400tags/s.
5. Provide the most comprehensive functions SDK and ports, easy to integrate RFID software.
6. Adopted integrating RF chip, module performance is more stable, and more suitable for harsh application environment.
7. The use of carrier wave cancellation technology makes the tag reading more accurate and the reading scope wider.
8. The smallest module volume in the same field and supply power of 3.7V, it is especially suitable for handsets and other mobile devices.
9. Enhance noise suppression for reliable data capture.
10. High precision return signal strength (RSSI).
Technical Specifications
NO. | Name | Reference |
1 | Working Voltage | DC 5.0V |
2 | Working Current | ≤1.5A |
3 | Standby Current | ≤50mA |
4 | Sleep Current | ≤1mA |
5 | Working Temperature | -25 -- +65℃ |
6 | Working Humidity | ≤95%(+25℃) |
7 | Storage Temperature | -40 -- +80℃ |
8 | Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
9 | Working Frequency | 840~960 MHz |
10 | Supporting Working Areas | China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan Korea Malaysia Taiwan |
11 | RF IC | Impinj R2000 |
12 | Output Power | Software adjustable, step interval 1.0dB, maximum 30dBm |
13 | Output Power Flatness | ±0.2 dBm |
14 | Receiving Sensitivity | ≤-110 dBm |
15 | RF Port Standing Wave | ≤1.5 |
16 | Maximum Reading Distance | ≥10m (With 8dBi antenna/Relate to tags type, transmitted power and application environment) |
17 | Multi-tag Reading | ≥400 tags/s |

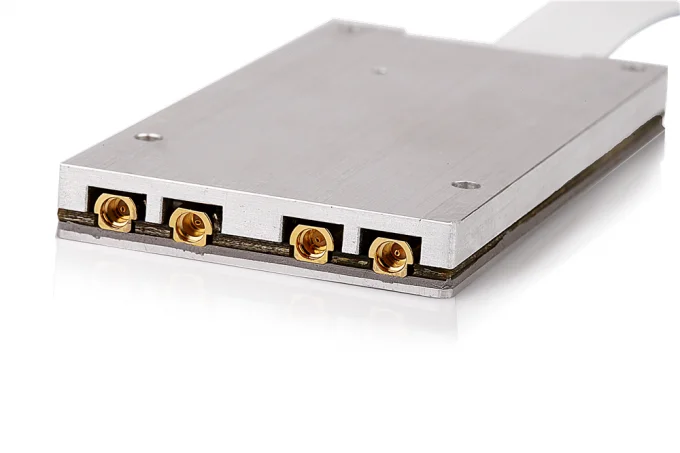

18 | Antenna Interface Amount | Four (MMCX) |
19 | Interface Communication Rate | 115200 bps |
20 | Working Temprature Detection | support |
21 | Intensive Read/Write Mode DRM | support |
22 | Antenna Connection Protection | support |
23 | RSSI | support |
24 | LED | Red light (power indicator ) |
25 | Product Cooling Way | Aluminum metal case as cooling fin for the module |
26 | Dimension | 76.4*40.3*7.0MM |
Interface Definition
Pin NO. | Name | Type | Description |
1 | UART_TX | I/O | TTL UART Transmit |
2 | UART_RX | I/O | TTL UART Receive |
3 | GPIO3 | I/O | Output |
4 | GPIO2 | I/O | Output |
5 | GPIO1 | I/O | Output |
6 | PWREN_MODULE | I/O | When Pull Down This Pin to Ground,The Module Enter Sleeping Mode. |
7 | GND | Ground | Ground |
8 | |||
9 | VCC | Power | DC 5V Power Input. |
10 |
Other products
We also have different kinds of UHF RFID devices, such as uhf rfid reader modules, fixed passtive uhf rfid readers, uhf rfid handheld readers,uhf rfid antennas, Alien inlays, uhf rfid anti metal tags.2.4G active readers and tags, etc.. All devices will come with free SDK and demo (rfid development kit). If anything meet your demand,Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
Applications
Company Information
Customer Visiting
FAQ
FAQ
Q1. Can I have a sample order for reader ?
A: NO , you need buy sample
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for reader order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for reader?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on reader product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
What we can supply
We are committed to providing the highest level of these serial RFID products below,
UHF RFID Module/ Desktop Reader / Four Port Fixed Reader / Integrated Reader / Handheld Reader / Antenna / Gate / 2.45GHz Active Reader/Tags etc.
We are the manufactuer,welcome OEM and ODM.
Why us
*Strict QC department to ensure quality and to get your trust.
*Factory sales directly with professional sales team.
*Best price High quality and favorable service.
*Express service for some urgent delivery orders to meet customer request.
*Complete RFID solutions.
*Testing samples of all models will be available upon your request.
Main applications of our uhf rfid devices
* Access control, convention registeration
* Intelligent parking management.
* Logistics & Digital warehouse management.
* Industrial production process control system.
* Attendance system
* Students management
* Auto-identifying and tracking of important person or objects
* Tracking, orientation and checking people in coal mine,etc.
