Электрические низкое напряжение водостойкий 2 Pin 12v MC 4
- Категория: Разъемы >>>
- Поставщик: Yueqing,Feeo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.80 $* | 0.31 $* |
| Aug-15-2025 | 0.97 $* | 0.84 $* |
| Jul-15-2025 | 0.99 $* | 0.30 $* |
| Jun-15-2025 | 0.62 $* | 0.75 $* |
| May-15-2025 | 0.64 $* | 0.20 $* |
| Apr-15-2025 | 0.43 $* | 0.58 $* |
| Mar-15-2025 | 0.22 $* | 0.21 $* |
| Feb-15-2025 | 0.80 $* | 0.94 $* |
| Jan-15-2025 | 0.5 $* | 0.31 $* |
Характеристики
Related Products
Product Description

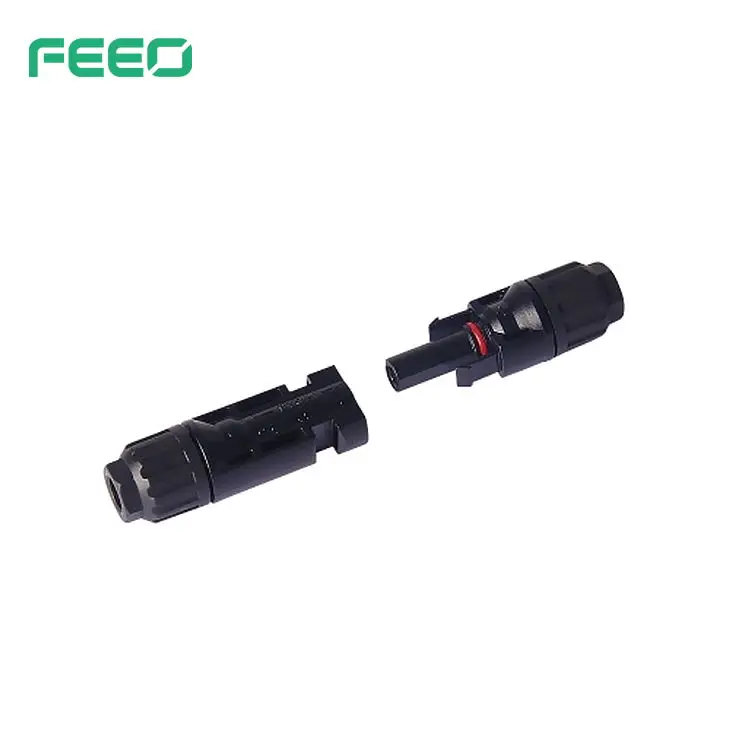

Electrical Low Voltage Waterproof 2 Pin 12v MC 4 Connector
mc4 solar connector Features:
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable

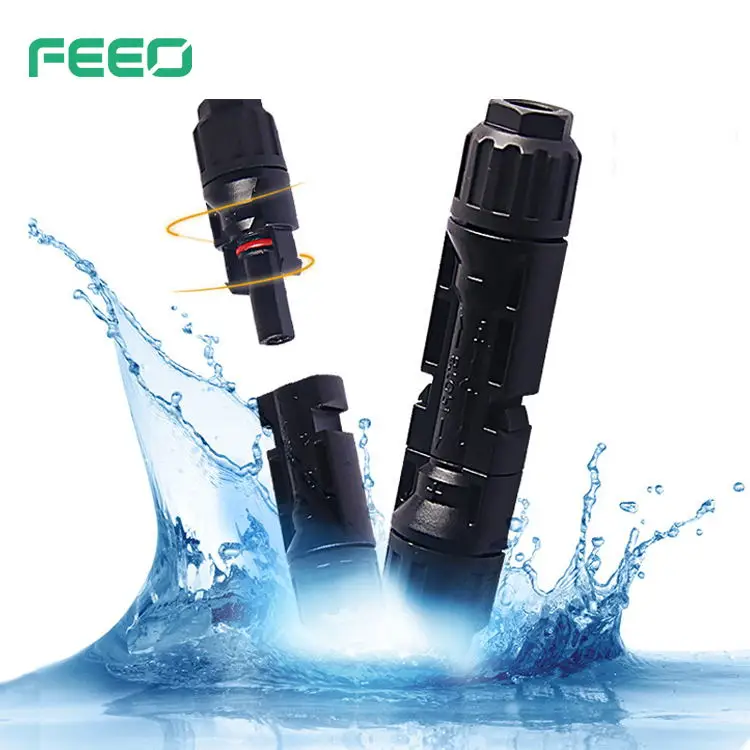

3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
mc4 solar connector Parameters:
| Item | MC4 cable connector |
| Rated current | 30A(1.5-10mm2) |
| Rated voltage | 1000v DC |
| Test voltage | 6000V(50Hz, 1min) |
| Overvoltage type/pollution degree | CAT Ⅲ /2 |
| Contact resistance of plug connector | 1mΩ |
| Contact material | Copper, Tin-plated |
| Insulation material | PPO |
| Degree of protection | IP67 |
| Safety class | Ⅱ |
| Suitable cable | 2.5mm2, 4mm2, 6mm2 |
| Insertion force/withdrawal force | ≤50N/≥50N |
| Connecting system | Crimp connection |

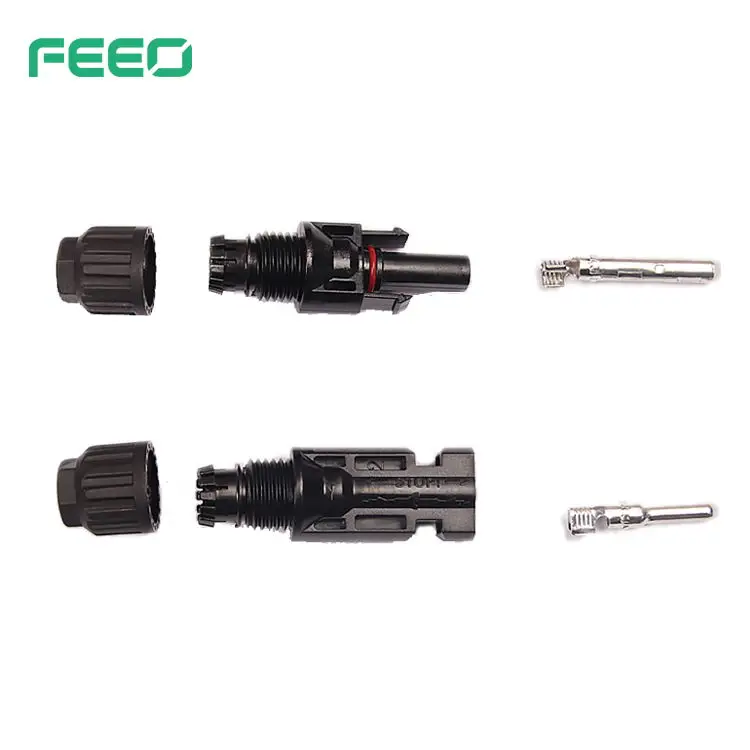

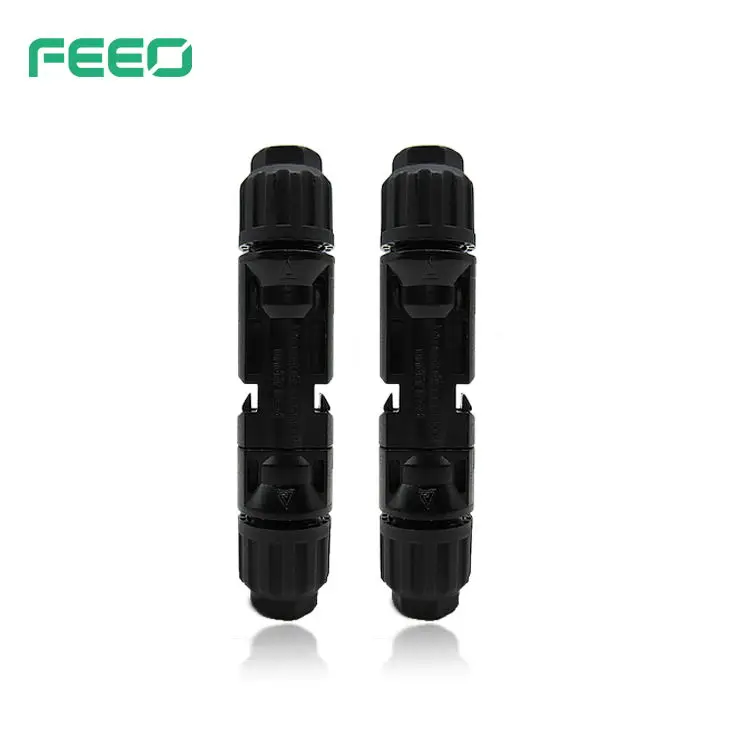

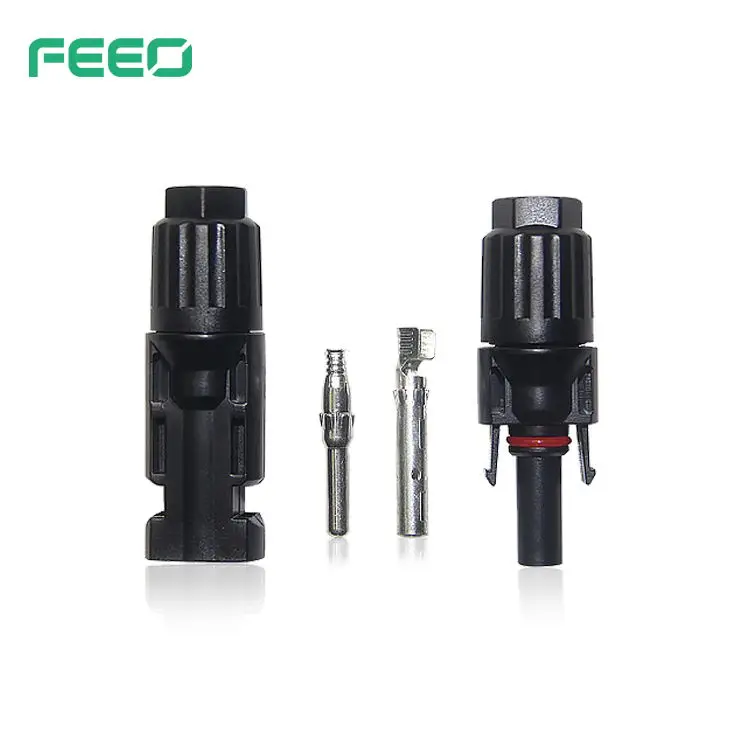

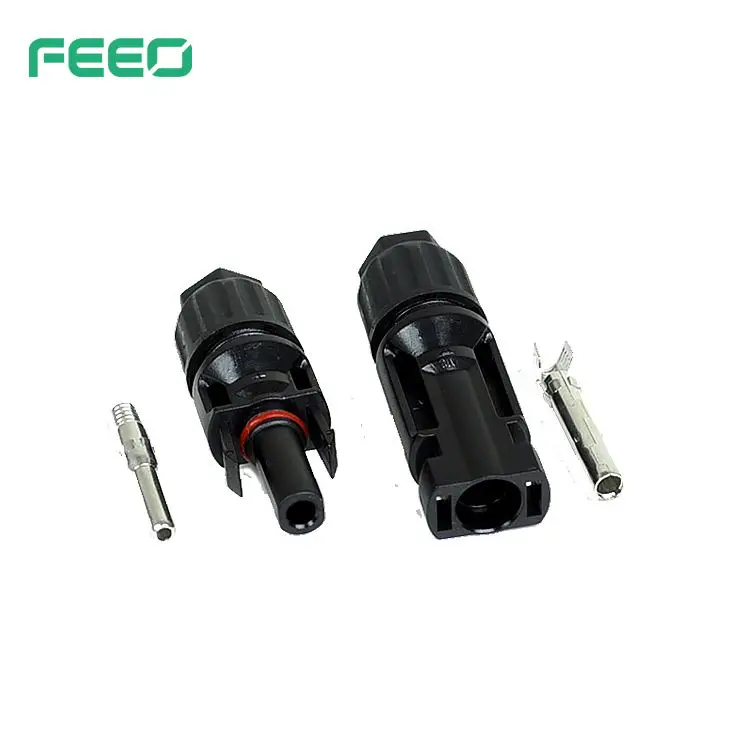

Detailed Images
Packaging & Shipping
mc4 solar connector Package:
Standard export carton packing:
MC4 connector 1000pair/ctn
Carton Size 44*34.5*35CM3
G.W./N.W.: 22.5/21.8kgs
mc4 solar connector Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
mc4 solar connector Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4
.
