Лидер продаж профессиональный монитор для трансляционной видеокамеры 28 дюймов с несколькими входами и выходами дисплей 4k 60 Гц
- Категория: LCD Monitors >>>
- Поставщик: Zhangzhou,Seetec,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.24 $* | 0.60 $* |
| Aug-18-2025 | 0.20 $* | 0.98 $* |
| Jul-18-2025 | 0.13 $* | 0.20 $* |
| Jun-18-2025 | 0.79 $* | 0.30 $* |
| May-18-2025 | 0.24 $* | 0.0 $* |
| Apr-18-2025 | 0.78 $* | 0.34 $* |
| Mar-18-2025 | 0.93 $* | 0.19 $* |
| Feb-18-2025 | 0.34 $* | 0.20 $* |
| Jan-18-2025 | 0.4 $* | 0.54 $* |
Характеристики
Top sell 28" Professional Broadcast video camera monitor with Multiple Inputs and Outputs 4k display 60hz for director
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability!
Specification
Top sell 28" Professional Broadcast video camera monitor with Multiple Inputs and Outputs 4k display 60hz for director
Display Spec.
| Model | 4K280-9HSD-CO |
| Screen Size | 28" |
| Color Depth | 1.073G (10 bits) |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.16 (H) × 0.16 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 170°(H) / 160°(V) |
Input
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
| 1 X BNC | SDI |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X Tally | Tally |
Output
| 1 X BNC | SDI |
Audio
| Audio Out | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 4K |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC13~18V |
| Power Consumption | ≤45W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 731L×410H×39D (mm) (W/O Suitcase) / 840L×430H×270D (mm) (W/ Suitcase) |
| Unit Weight | 18.8kg (with Suitcase) |
Advanced Features
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * Overscan |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue) |
| * Image Freeze |
| * Zoom |
| * Aspect Ratio (Full Screen, 16:9, 4:3, 1:1) |
| * Center Marker |
| * Screen Marker (80%, 85%, 90%, 93%, 96%) |
| * Line Color (Red, Green, Blue, White) |
| * Color Temperature Adjustment |
* Built-in LED tally indicators (Red, Green, Yellow)
|

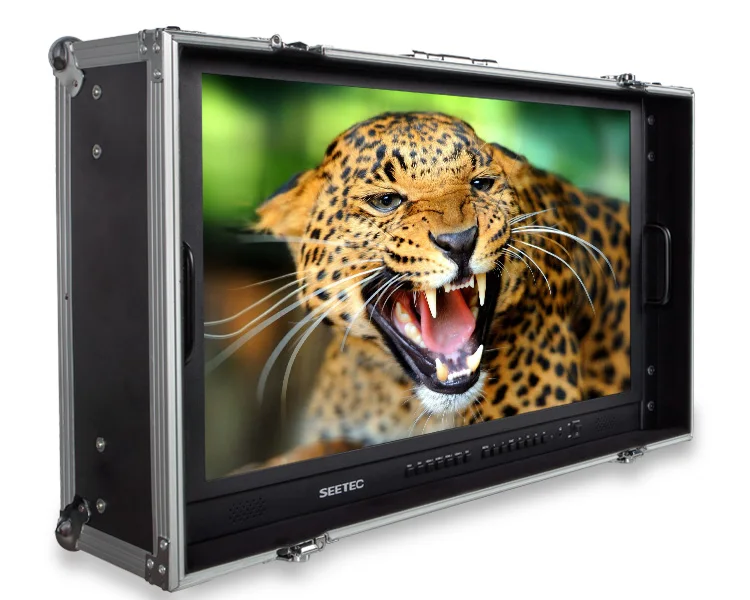

28" 4K Ultra-HD Resolution
The SEETEC 4K resolution (3840 x 2160) 28" LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.

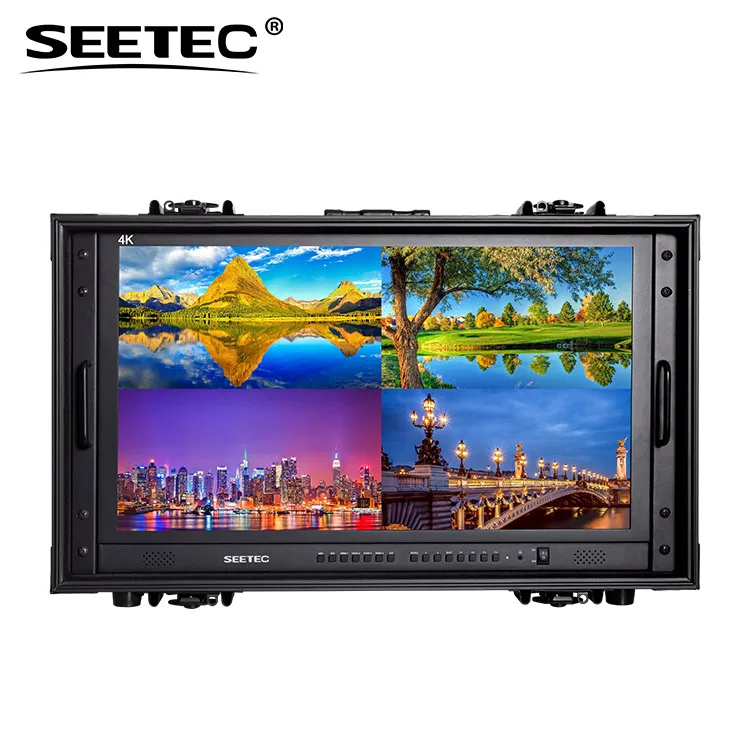

Quad Split LCD Display
SEETEC new 4K280-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.

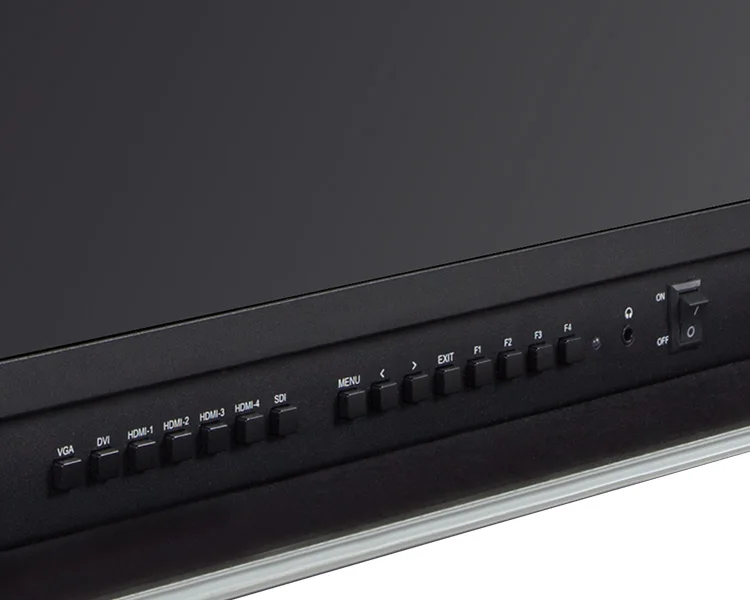

High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc
Multiple Inputs and Outputs
Input:
4 X HDMI (HDMI2.0 X 1, HDMI1.4 X 3)
1 X DVI
1 X VGA
2 X Audio(L/R)
1 X SDI
1 X Tally
Output:
1 X SDI
Audio:Stereo Headphone, Speaker

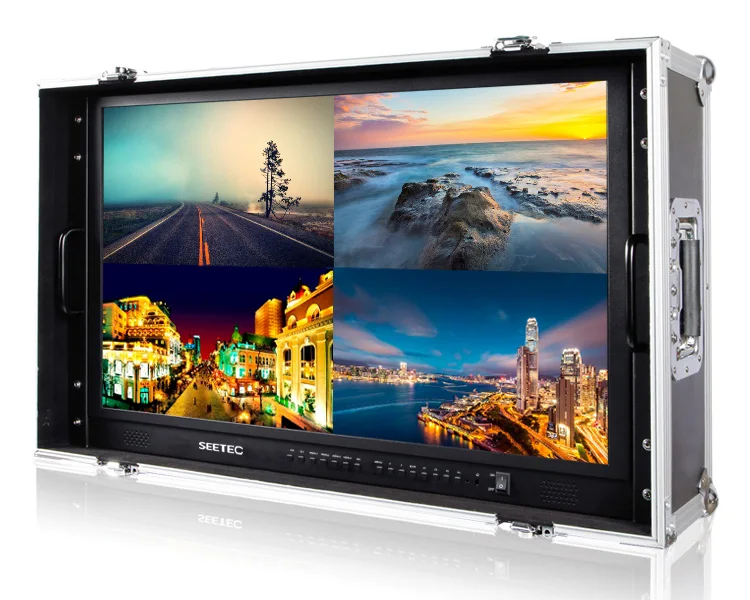

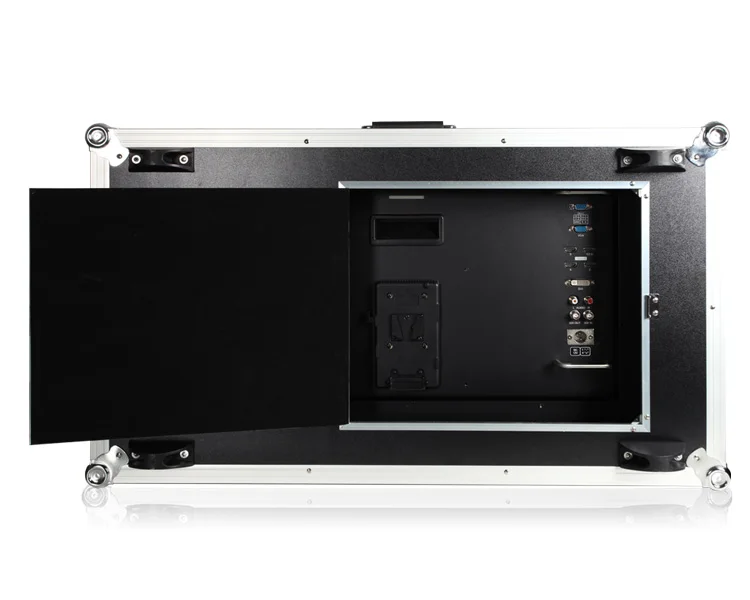

Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.
Collapsable Sunshade
Design for easier viewing in bright environments.![4K280-9HSD-CO 28 inch lcd monitor sunshade for dslr camera.jpg]()
Design for easier viewing in bright environments.
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
3. Special Features:
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* Overscan
* Display Rotate (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue)
* Image Freeze
* Zoom
* Aspect Ratio (Full Screen, 16:9, 4:3, 1:1)
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* Overscan
* Display Rotate (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue)
* Image Freeze
* Zoom
* Aspect Ratio (Full Screen, 16:9, 4:3, 1:1)
* Center Marker
* Screen Marker (80%, 85%, 90%, 93%, 96%)
* Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
Accessories
Standard Package Includes:
1× 5A DC Power Adapter
1× V Battery Plate
1× Mini HDMI Cable
1× Tally Kit
1× Suitcase
1× Sunshade
Packing & Shipping
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
If by T/T, shipping address as communicate
Company View
