Резиновая смесительная мельница

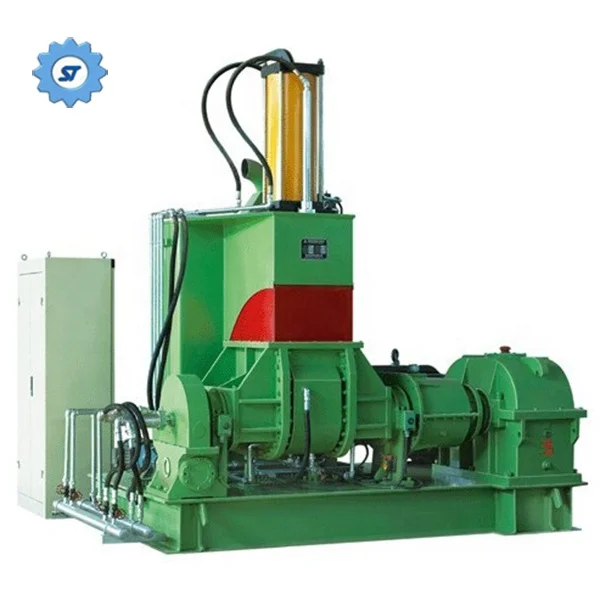

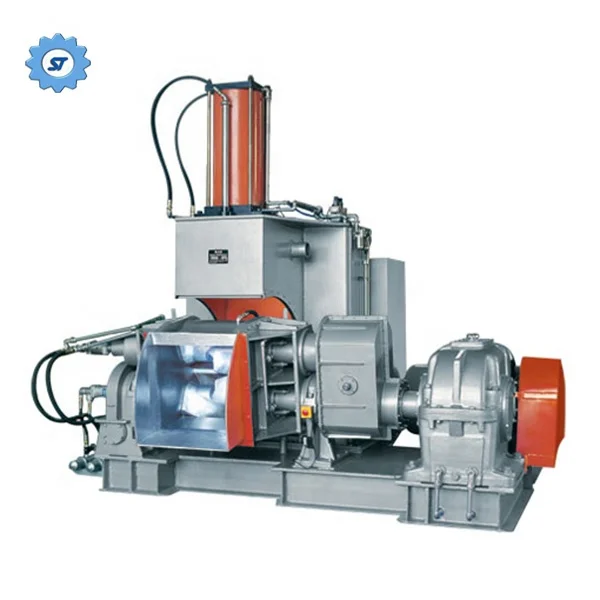

The rubber banbury mixing mill is widely used in rubber and plastic industries.
It is applicable for plasticating, mixing and refining of rubber and plastics, and mixing of rubber and synthetic rubber.
The rubber banbury mixing mill feature is as below:

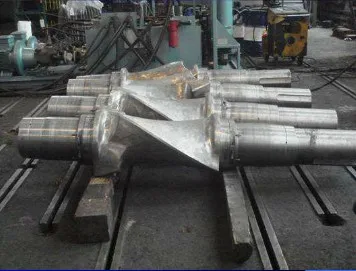

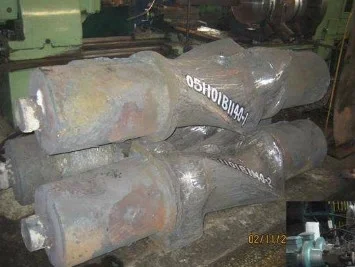

1. The rubber banbury mixing mill is an internal mixer with intermeshing rotors. The wings and the working surfaces of the rolls, the internal surfaces of the mixing chamber, and the working surfaces of the pressing ram device and the discharge device are all put on with wearable hard alloy by built-up welding method, which are durable and corrosion proof and have a longer life of service.
2. The shape of the rotors is cylindrical. As it has big wings with large cooling area, it can improve the quality of the mixing rubber and thus increase the productive efficiency. It may shorten two mixing periods into one.
3. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
4. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
5. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
6. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.
7. Feeding from back door on the frame (or separate top door) is convenient for continuous process operation in production line. The mixing chamber is able to turn forward by 140 around the front rotors to discharge and is easy for changing pigments and cleaning the chamber.
8. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

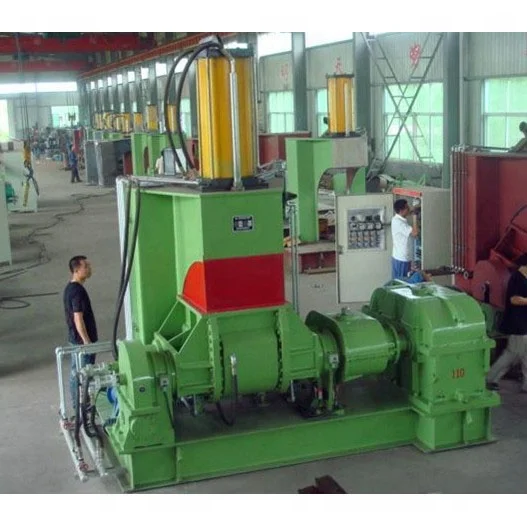

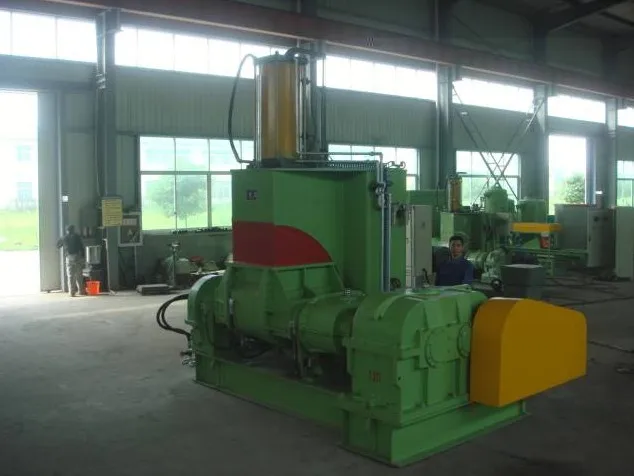

9. The WIRE of kneader motor is Made of COPPER, the motor adopted is China famous brand. It's very durable and can longtime continuous running in scurviness condition (the working environment full of dust, as you can see from the above picture).

1) Simple structure,easy in installation and maintenance.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) The rubber banbury mixing mill is with hollow jacket structure which ensures good cooling effect.

4) The rubber banbury mixing mill can mixing various rubber and  plastics material, including pigmen etc.

5) The rubber banbury mixing mill rotors have smooth and rough type for choice.

6)  ISO, CE, GOST, SGS certificate.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
