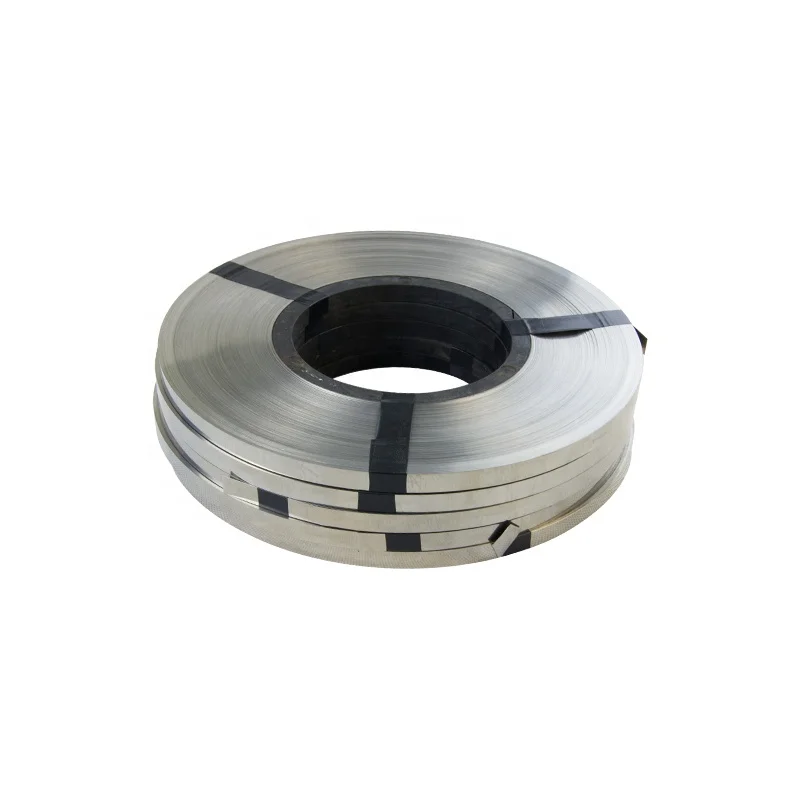

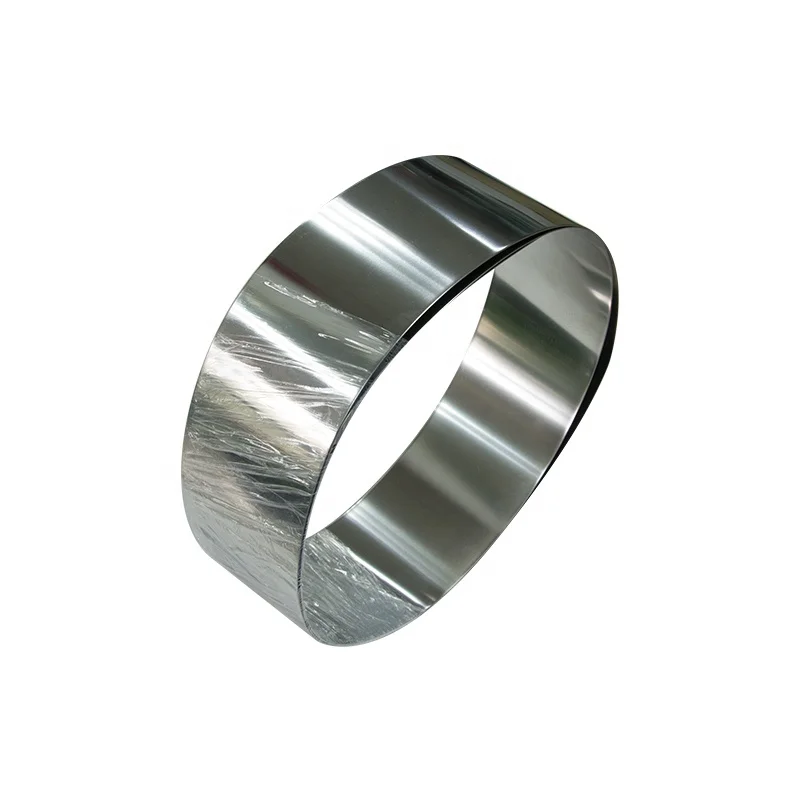

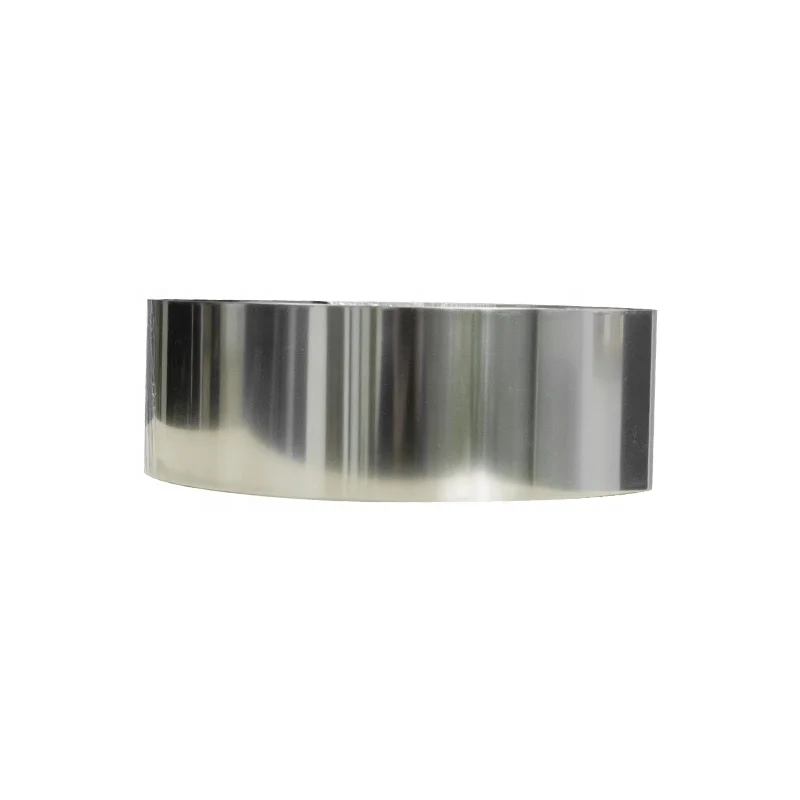

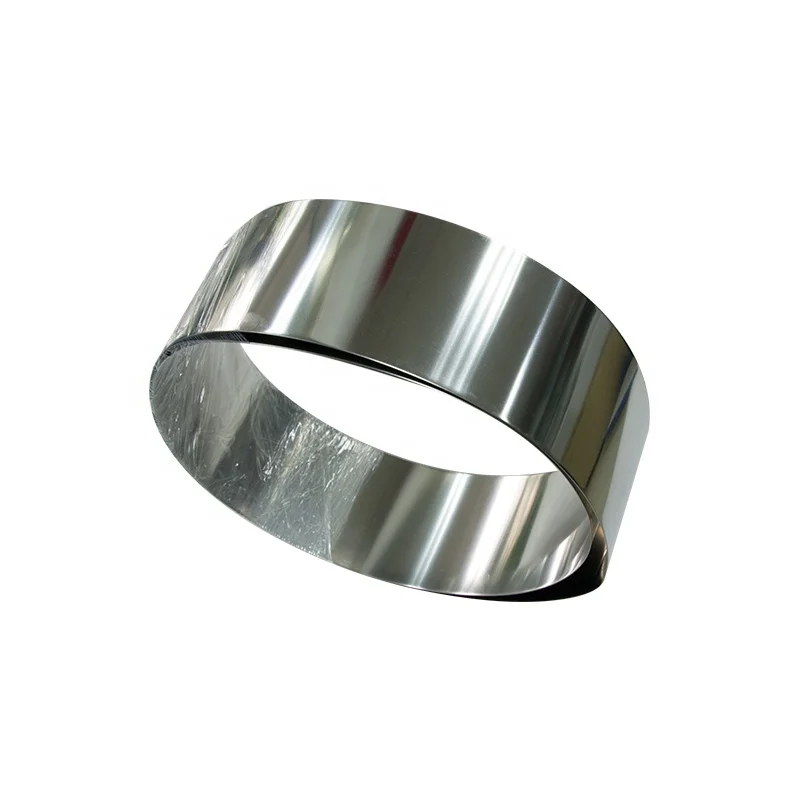

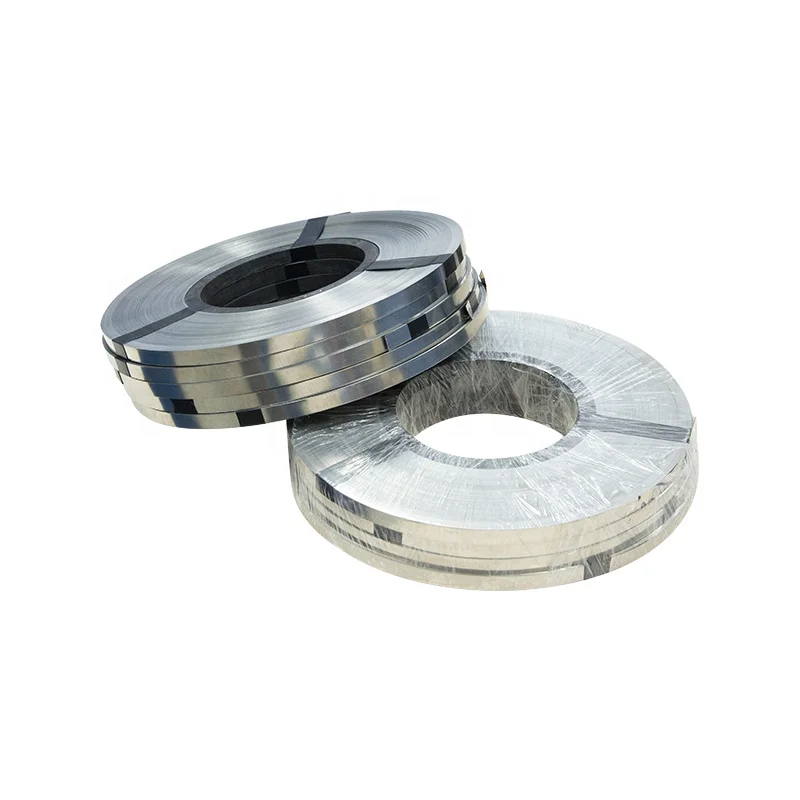

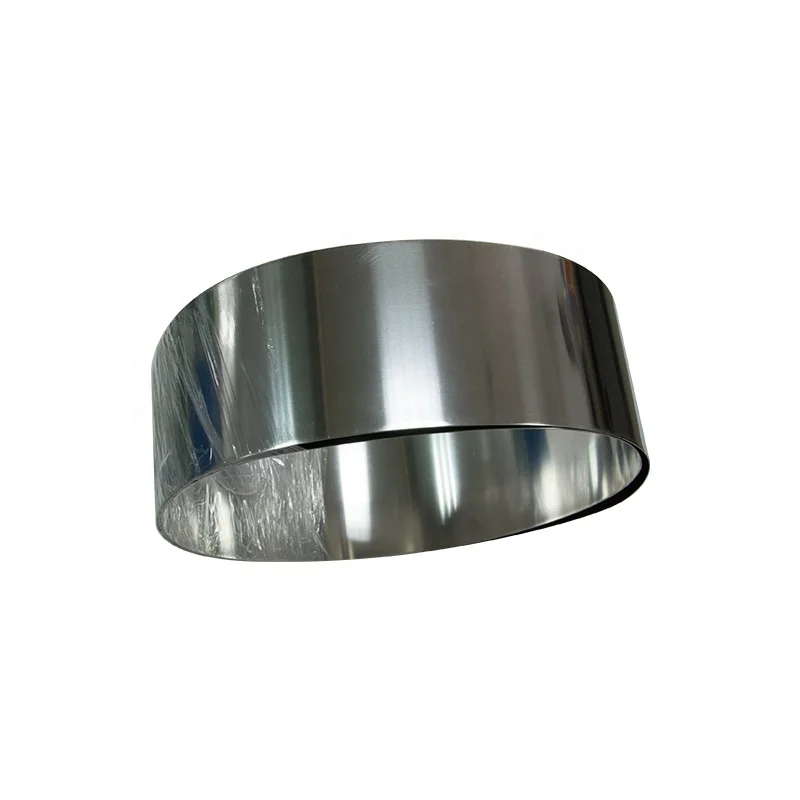

ASTM TM19 bimetallic coil



Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.

The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.

Main features: Linear temperature range is higher, low thermal performance, can be used at high temperature.



shop sign		ASTM TM19
With brand
Composite layer alloybrand	High expansion layer	Ni19Cr2
	middle layer	--------
	Low expansion layer	Ni39





Chemical composition

shop sign	Ni	Cr	Fe	Co	Cu	Zn	Mn	Si	C	S	P
									≤
Ni39	38.0~40.5	-	allowance	-	-	-	≤0.6	≤0.3	0.05	0.02	0.02
Ni19Cr3	18.0~20.0	2.0~4.0	allowance	-	-	-	0.3~0.6	0.15~0.30	0.5	0.02	0.02





performance

Than bending K(20~135ºC)			Temperature curvature F/(greenhouse ~ 130 ºC)	resistivity		Linear temperature / ºC	Allows the use of temperature / ºC	Density (g/cm after)
Nominal value	Allowable deviation			Standard values	Allowable deviation
	Level 1	Level  2
13.7	±8%	±10%	25.7%±10%	0.75	±5%	+70~230	-70~480	8.0
