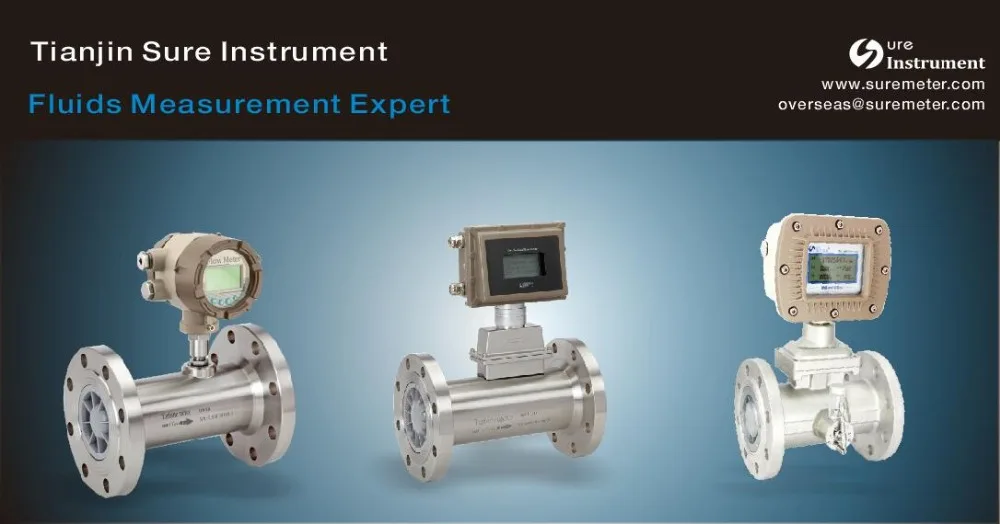

Gas Turbine Flow Meter Series





Operate Principle



The operation of the International Gas Turbine Meter is based on the measurement of the velocity of gas. The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.



The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.



Specification



Model	LWQ-N	LWQ-A	LWQ-E1	LWQ-E2..E5	LWQ-D
Diameter	DN25 to DN300 (1 to 12 inches)
Output Signal	Pulse	4-20mA	No	4-20mA/Pulse	Optional 4-20mA or Pulse
Power Supply	+24VDC±15%	+24VDC±15%	Lithium Battery	24VDC±15%	24VDC±15%  and Lithium Battery
Accuracy	2.5% or 1.5%		1.5% or 1.0%		1.5% or 1.0%
Flow Range	Standard		Standard or Extended		Standard or Extended
Local Display	No		Yes		Yes
Temperature and Pressure compensation	No		No		Yes
Communication	No		No	RS485	RS485
Housing Material	Aluminum Alloy or Stainless Steel
Impeller Material	Aluminum Alloy or ABS Resin
Explosion Proof	ExdIIBT6 or ExiaIICT4
Protection Level	IP65		IP65		IP65
Diameter	DN25 to DN300
End  Connection	Flange (Standard: ISO; Optional: ANSI, DIN, JIS)
Fluid Temperature	-20°C~80°C
Ambient Temperature	-30°C~60°C





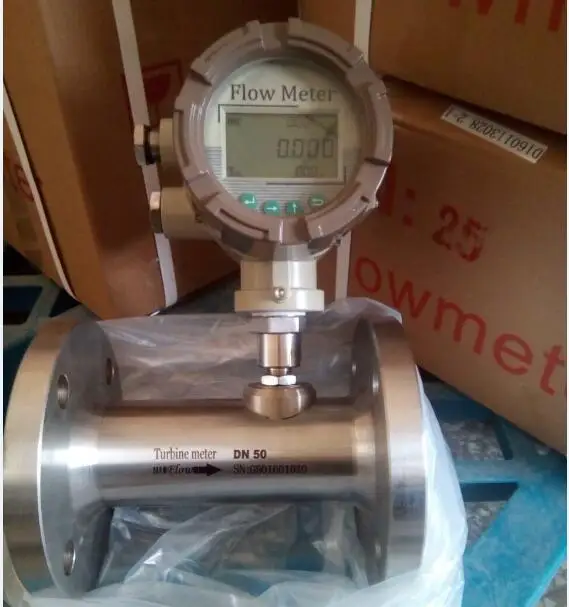

 LWQ-E Display



Technical Data                                      Selling Points

- Output: Pulse / 4-20mA                                                      Ø  Certificate of CE & ISO 9001: 2008
- Accuracy:±1.0 of Rate / ±1.5% of Rate                              Ø OEM & ODM services
- Operating Temp.: - 20...+60°C                                           Ø  Enough stock with short delivery time
- Fluid Temp.: - 20...+80°C                                                   Ø  Quality product with competitive price
- Housing Material: SS304 / SS316                                       Ø  Fast response services
- Rotor Material: ABS/ Aluminium Alloy                                  Ø Guarantee time is 24 months.
- Temperature and pressure compensation





Flow Range



Model Selection



Calibration Certificate

Nameplate





SURE Exhibition

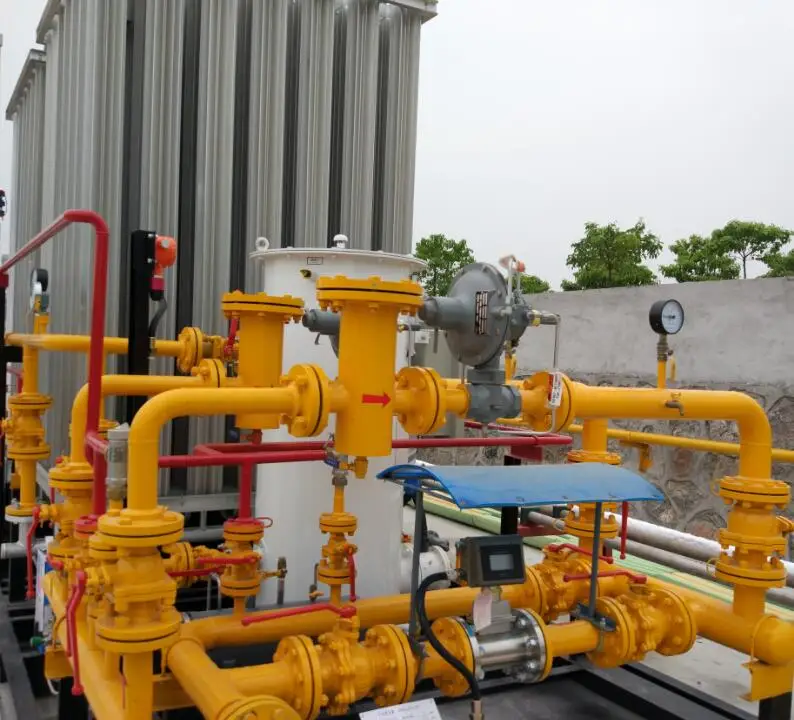

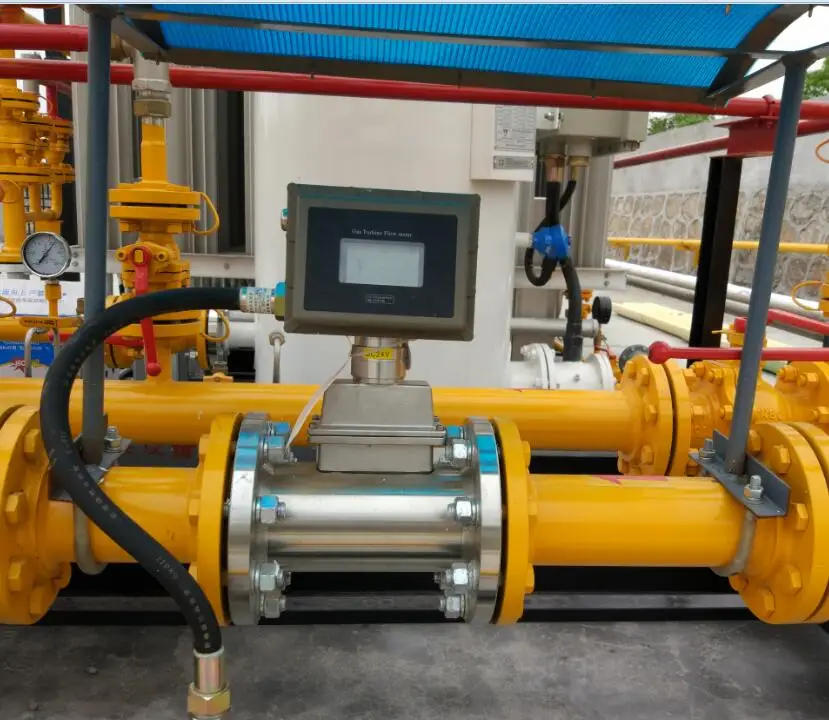

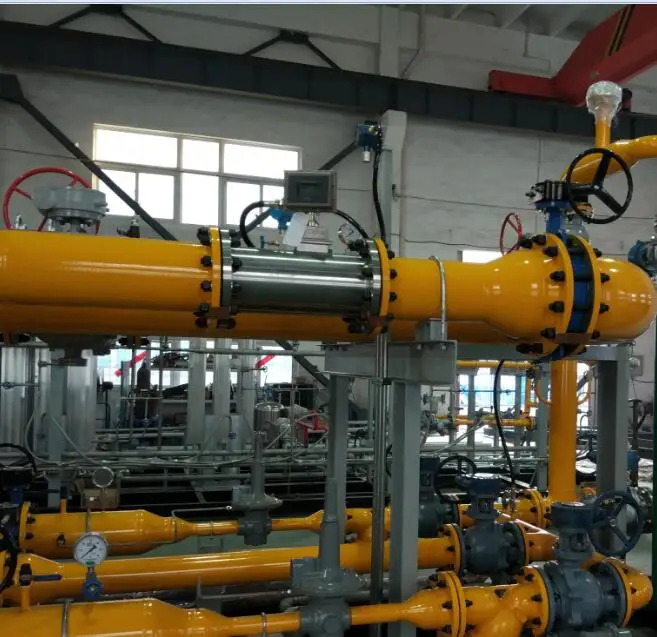

Product Application
