Промышленный осевой вентилятор охлаждения переменного тока 120x120x25
- Категория: AC Motor >>>
- Поставщик: Shenzhen,Jianzhun,Electrical,Machinery,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.91 $* | 5.93 $* |
| Aug-16-2025 | 5.99 $* | 5.62 $* |
| Jul-16-2025 | 4.42 $* | 4.73 $* |
| Jun-16-2025 | 5.28 $* | 5.90 $* |
| May-16-2025 | 4.97 $* | 4.94 $* |
| Apr-16-2025 | 5.51 $* | 5.78 $* |
| Mar-16-2025 | 5.59 $* | 5.84 $* |
| Feb-16-2025 | 4.13 $* | 4.79 $* |
| Jan-16-2025 | 4.65 $* | 4.91 $* |
Характеристики

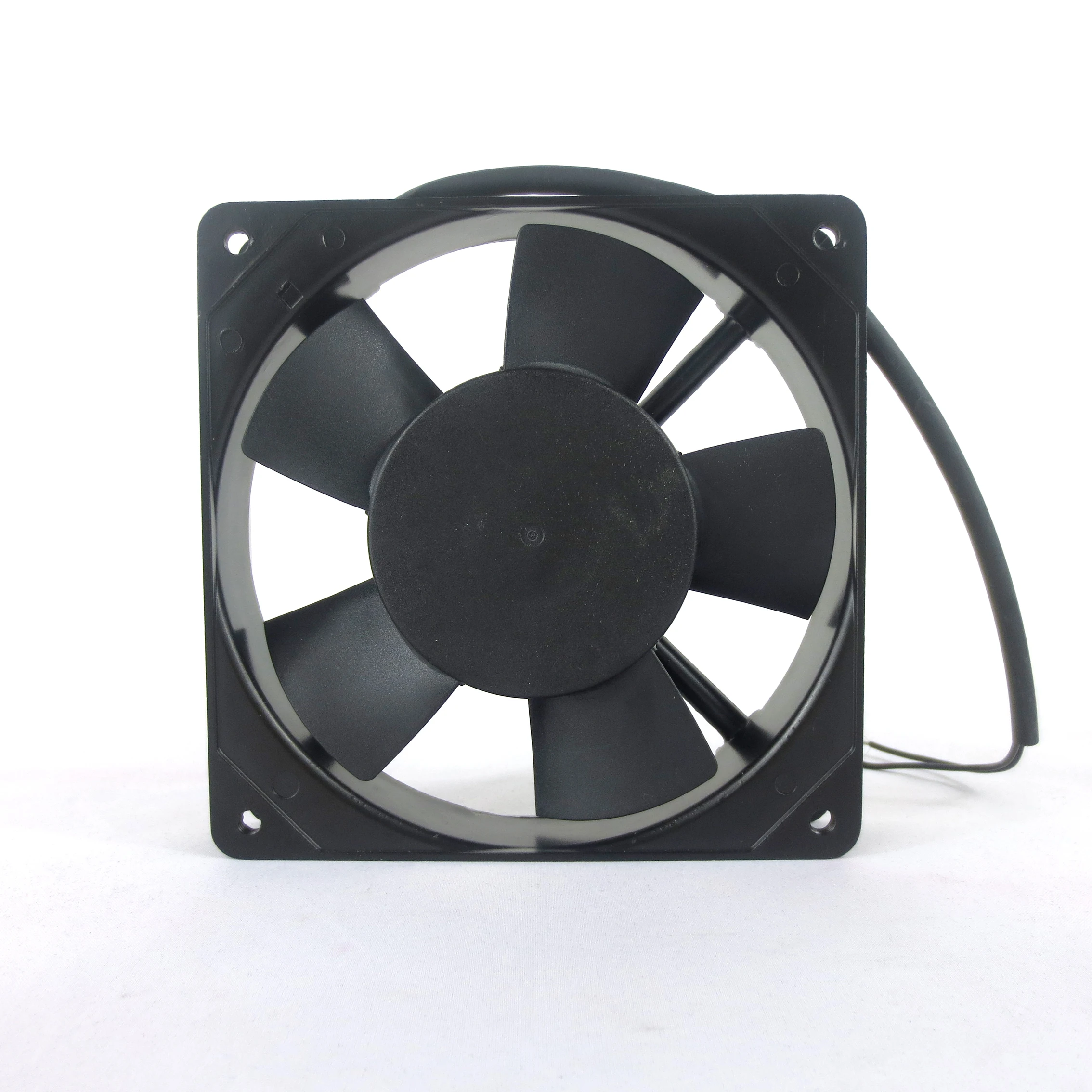

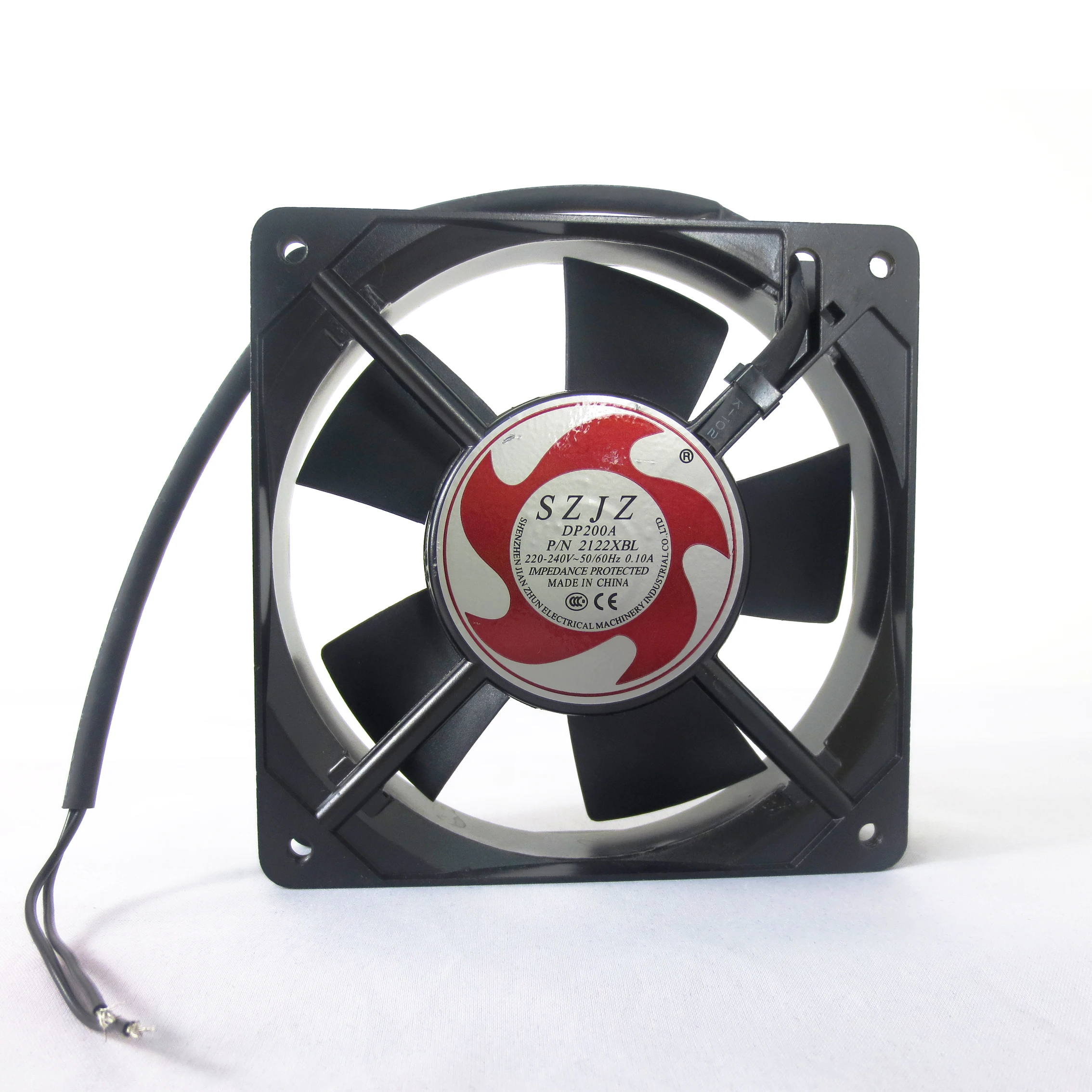

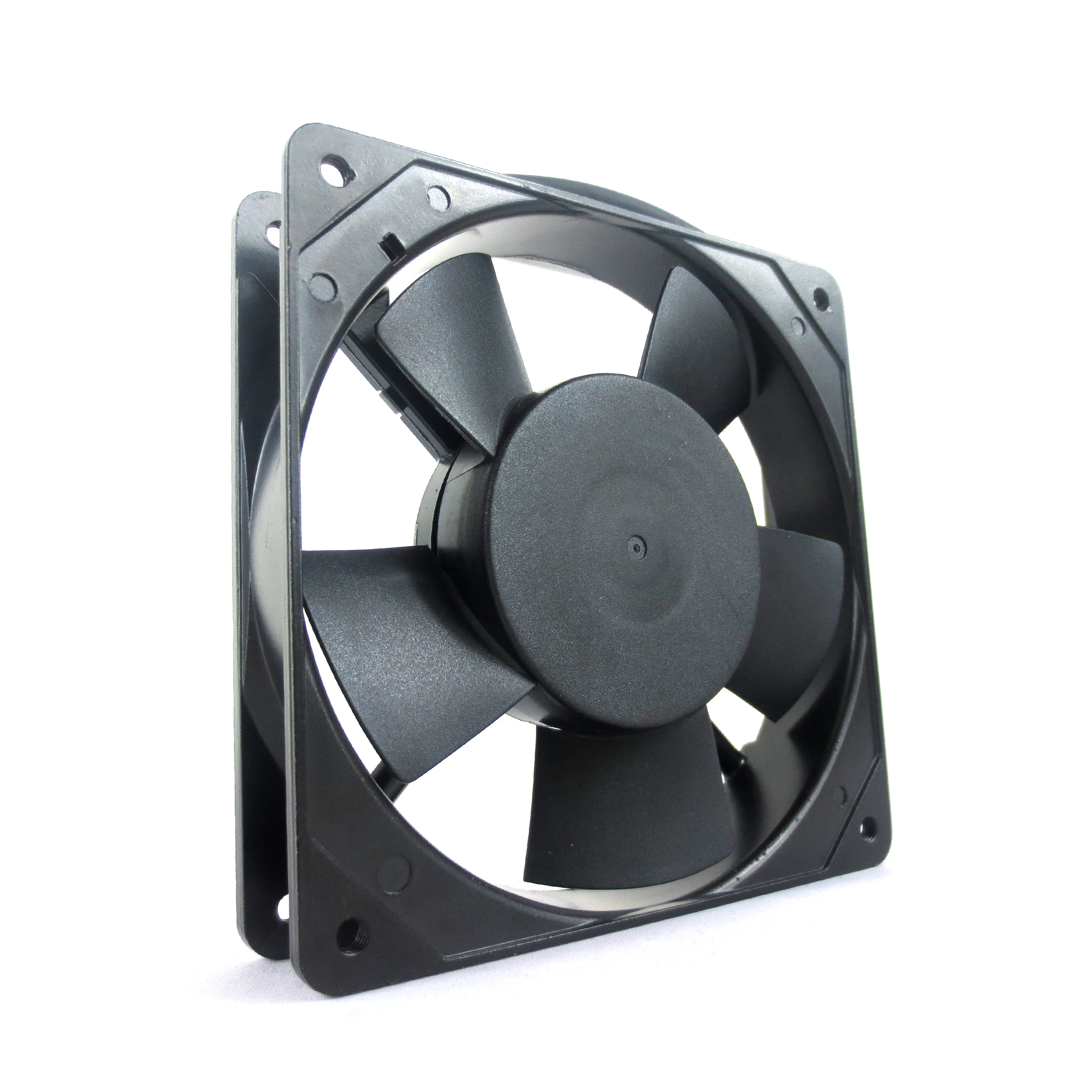

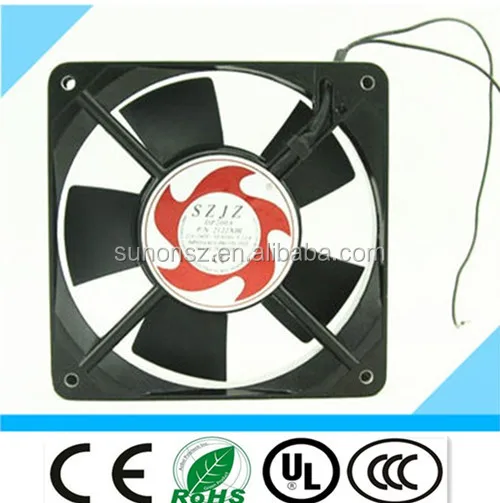

industrial axial cooling fan 120x120x25mm ac two ball bearing ventilating air cooler
1. Air flow, air pressure, speed and rated voltage can be customized based on customer's
requirement
2.Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
3.ISO9001 quality and manage system certification is approved.
4.Trade Assurance is available for product quality and on-time shipment
5. 29 years' experience of cooling fan manufacturer
Product Description
Cooling Fan Component
- A Tiny Ring connect the two high quality ball bearings
- Die-cast Aluminum Housing Case
- Plastic blade with Carven PBT Identification
- The motor with 100% copper coil
- Small Spring support the two ball bearings
- Solid Plastic Impeller
Specification of cooling fan
| Model | P/N | Rating Voltage (V) | Frequency (Hz) | Current (A) | In-put Power (Wi) | Speed (RPM) | Ball/Sleeve bearing | Air Flow (CFM) | Noise{dBA) |

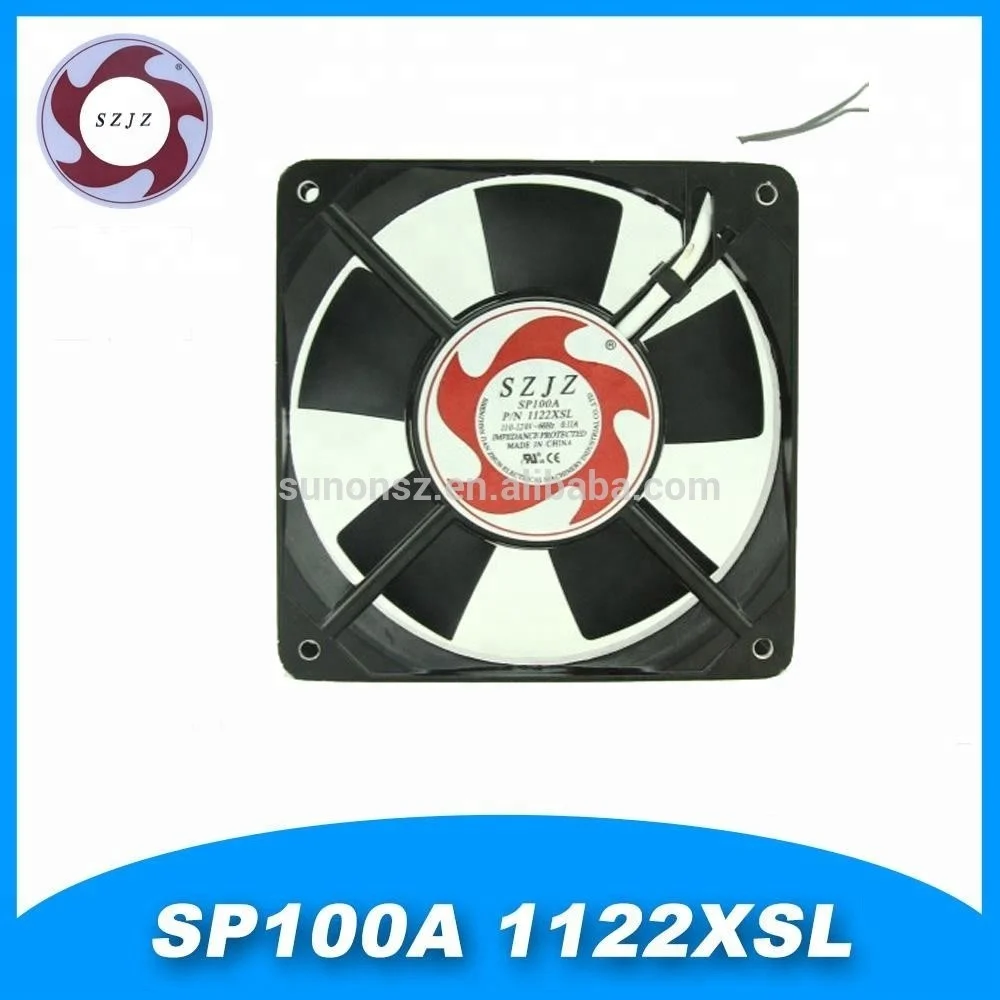

| SP100A | 1122XSL(T) | 115 | 50/60 | 0.12~0.13 | 14~16 | 2300~2500 | S | 60~65 | 44~46 |
| SP100A | 1122XBL(T) | 115 | 50/60 | 0.12~0.13 | 14~16 | 2350~2550 | B | 62~68 | 43~48 |
| DP200A | 2122XSL(T) | 220~240 | 50/60 | 0.12~0.13 | 14~16 | 2100~2300 | S | 60~65 | 43~48 |
| DP200A | 2122XBL(T) | 220~240 | 50/60 | 0.12~0.13 | 14~16 | 2150~2350 | B | 62~68 | 43~48 |
Cooling fan application
Packaging & Shipping
Packing: 1 carton=40pcs=14kg=325×275×285/mm
Company Information
Shenzhen Jianzhun offers best quality products and best service:
1. 13 years gold supplier of cooling fans on Alibaba.
2. Professional manufacturer with 29 years’ experience
3. Imported equipment & technical assistance
4. Professional designers to meet any of your requirements
FAQ
Thank you for clicking our product,and if this product couldn’t meet your requirements or if you have any other need,please contact us!
