Характеристики

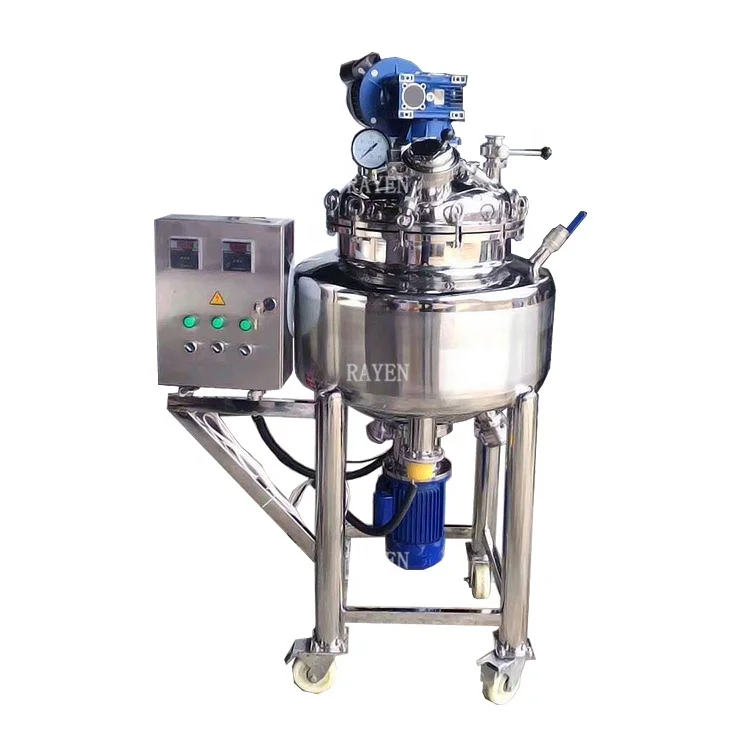

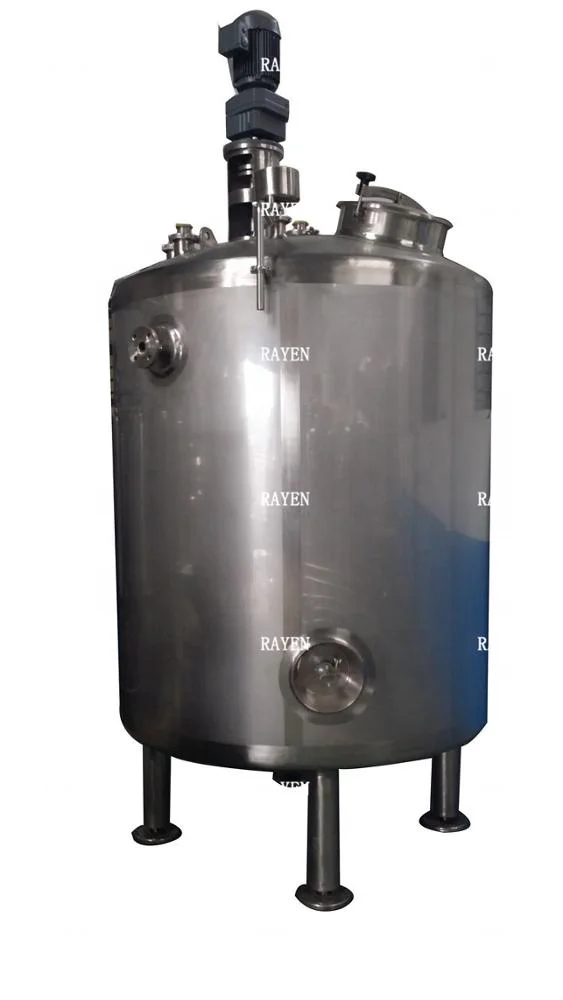

Stainless Steel Food Mixing Tank Agitator mixer beverage juice Milk Tank
Can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy
products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin
viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind
of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment
or viscosity oral liquid, etc.

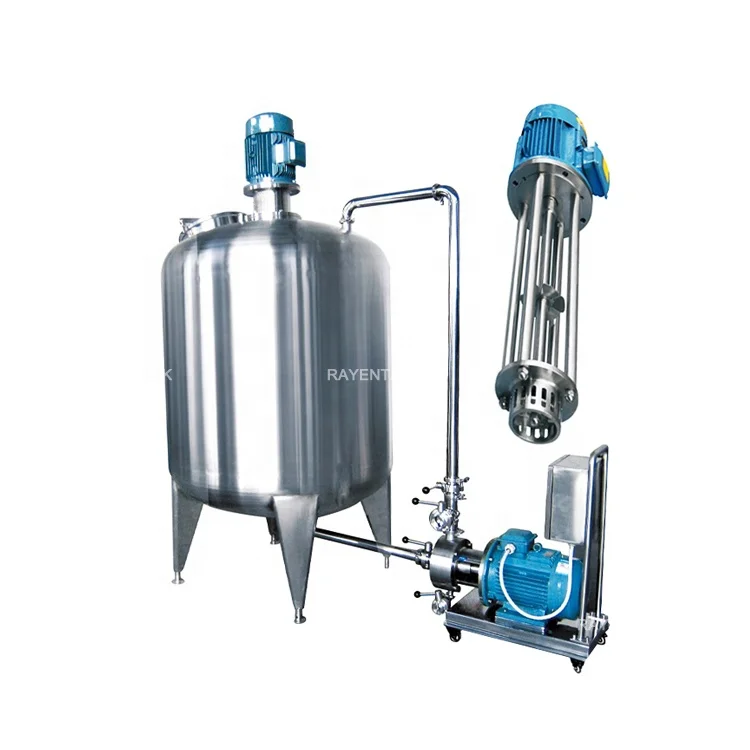

4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.
products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements
are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin
viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind
of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment
or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing
most high viscosity , such as suspension, oil, fat emulsification , etc.
Model | Equipment Volune(L) | Dimension Of Tank(MM) | Motor Power (KW) | Agitator Peed(R/Min) | Outine dimension | |||||||||
Length | Width | Height | ||||||||||||
RTS500 | 500 | Φ800×900 | 0.55 | 63r/min (According to customer requirements) | 800 | 800 | 1700 | |||||||
RTS1000 | 1000 | Φ1000×1220 | 0.75 | 1000 | 1000 | 2100 | ||||||||
RTS2000 | 2000 | Φ1200×1500 | 1.5 | 1200 | 1200 | 2500 | ||||||||
RTS3000 | 3000 | Φ1600×1500 | 2.2 | 1600 | 1600 | 2600 | ||||||||
RTS4000 | 4000 | Φ1600×1830 | 2.2 | 1600 | 1600 | 2900 | ||||||||
RTS5000 | 5000 | Φ1800×2000 | 3.0 | 1800 | 1800 | 3150 | ||||||||
RTS6000 | 6000 | Φ1800×2400 | 3.0 | 1800 | 1800 | 3600 | ||||||||
RTS8000 | 8000 | Φ2000×2400 | 4.0 | 2000 | 2000 | 3700 | ||||||||
RTS10000 | 10000 | Φ2100×3000 | 5.5 | 2100 | 2100 | 4300 | ||||||||
We Can Design Drawing According To Your Requirement. | ||||||||||||||
1.Q: Are you manufacturer or trading company? | ||||||||
A: RAYEN is a professional manufacturer. | ||||||||
2.Q: How could we confirm the details of the products? | ||||||||
A: RAYEN will provide the detail drawings for you to confirm. | ||||||||
3.Q: How long the warranty will be? | ||||||||
A: 1 Year warranty. | ||||||||
4.Q: Do you take L/C? | ||||||||
A: Yes, we accept Western Union, T/T and irrevocable L/C payable | ||||||||
5.Q: Can we become your distributor in our country? | ||||||||
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent. | ||||||||
