Sugar Grinding Machine/ Ice Sugar Gringer/ Professional Icing Sugar Mill Powdered Icing Sugar Grinding Machine



 Specialty of sugar powder grinding machine:

Since it features a simple structure, firm and stable operation and good crushing effect,

the crushed material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.

Besides, the whole machine is made of stainless steel.



The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.

As a result, the production of sugar can better conform to the state standard and the GMP requirement.



This machine has a very good effect for grain/sugar/rice/chili/herbal.... powder.



technical data of sugar powder grinding machine:



Model	Main Structural Dimensions(mm)			Capacity	Input Particle Size	Output Particle Size	Machine weight	Speed	Total power
	L	W	H	Kg/H	mm	mesh	Kg	Rpm/min	KW
JB-20	650	820	1500	20-150	<6	12-120	230	4650	4
JB-30	700	900	1650	30-350	<10	12-120	330	3800	7.5
JB-40	750	1000	1750	50-450	<12	12-120	430	3400	11
JB-50	850	1150	1900	80-550	<15	12-120	700	2900	18.5
JB-60	950	1250	2150	100-800	<15	12-120	900	2300	22
JB-80	1100	1400	2250	120-1000	<20	12-120	1200	1800	30
JB-100	1300	1500	2400	150-1500	<20	12-120	1800	1400	45

















































If you have a very high standard of the factroy, JB universal crusher with auto dust collecting is recommended.

If you need very big capacity, a cyclone is highly recommended.

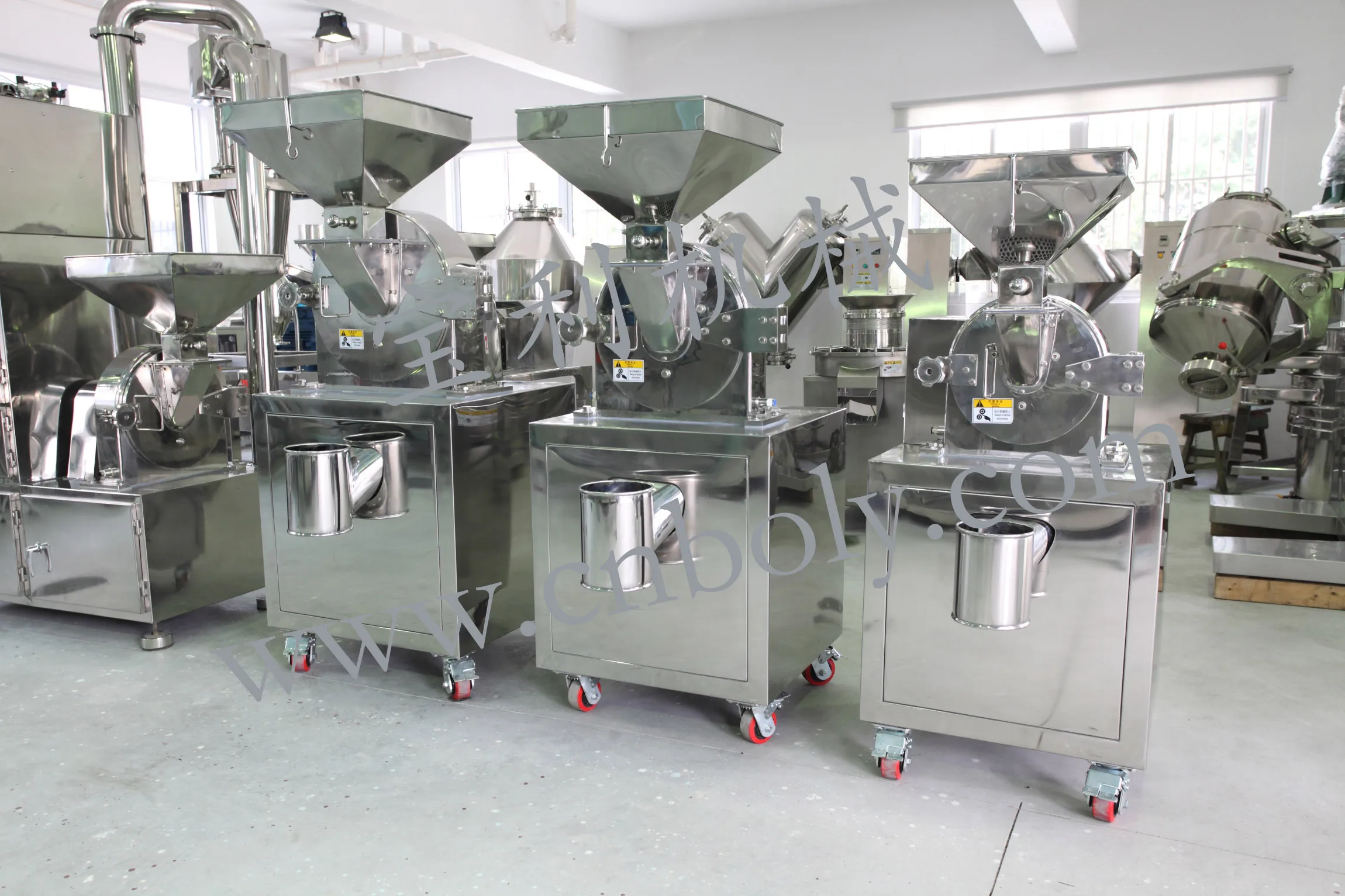

Warehouse look:

Factory look:





If you want to send inquriy to me about our sugar powder grinding machine , could you please tell me?



1)  What material you want to grind, is it dry? what is the size of feed material ?

2)  What capacity you expect by sugar powder grinding machine? (kg/h)

3)  What mesh or mm or micron(size) of the powder you want?

4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

     (We only provide 3P, because our machines are all for industrial use,not for family.)

5)  Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.



Then our communication will be more efficient.
