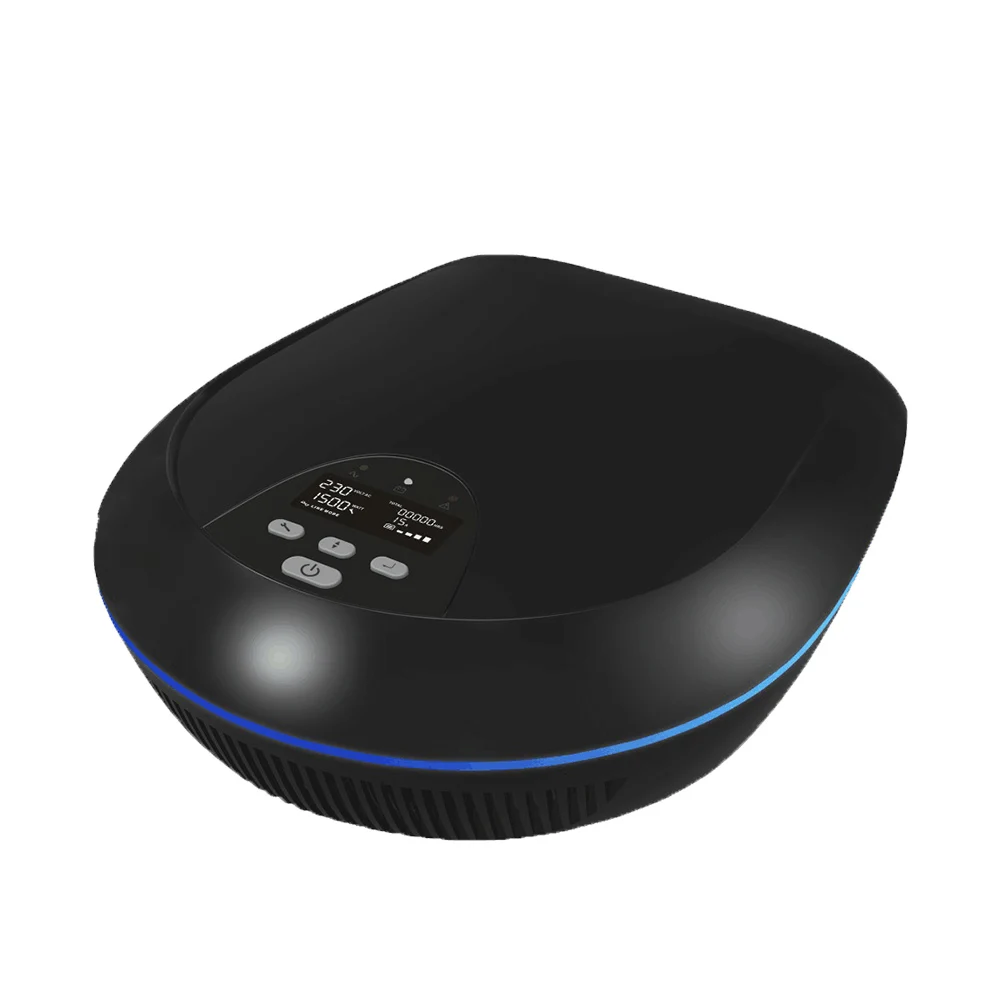

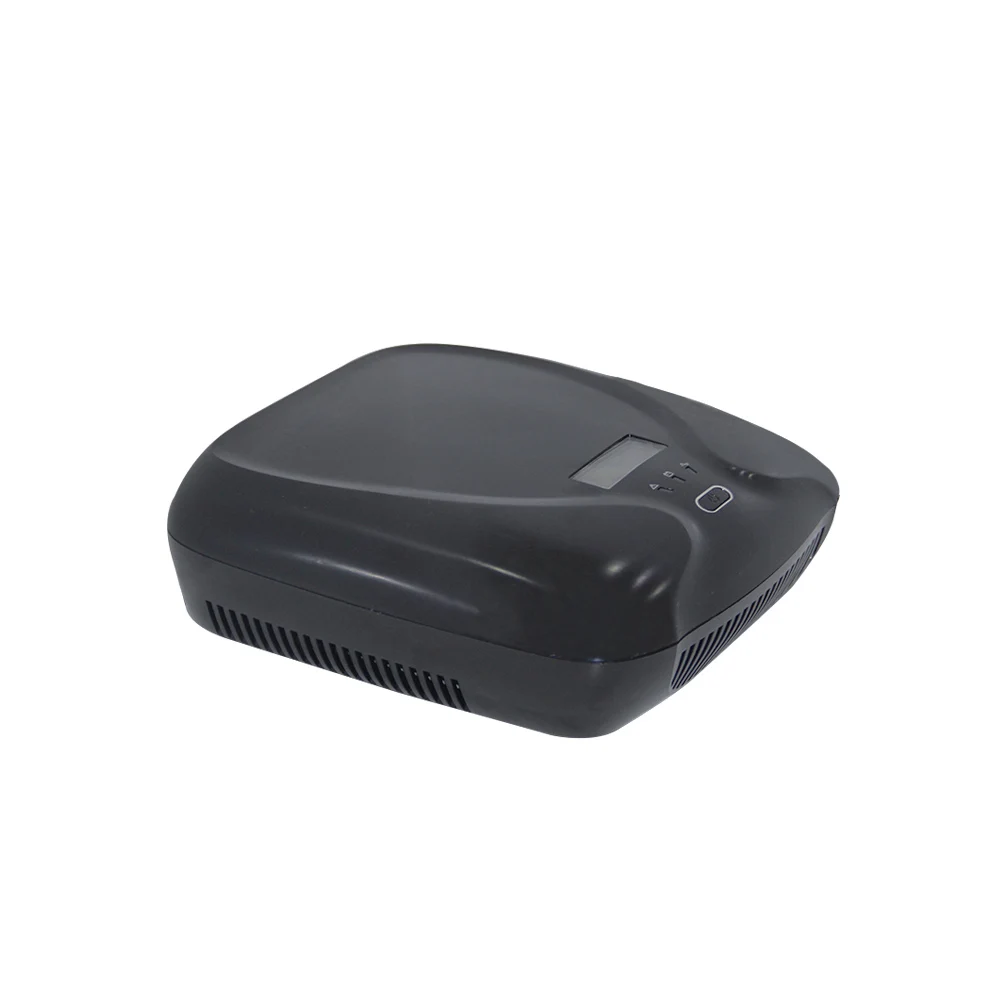

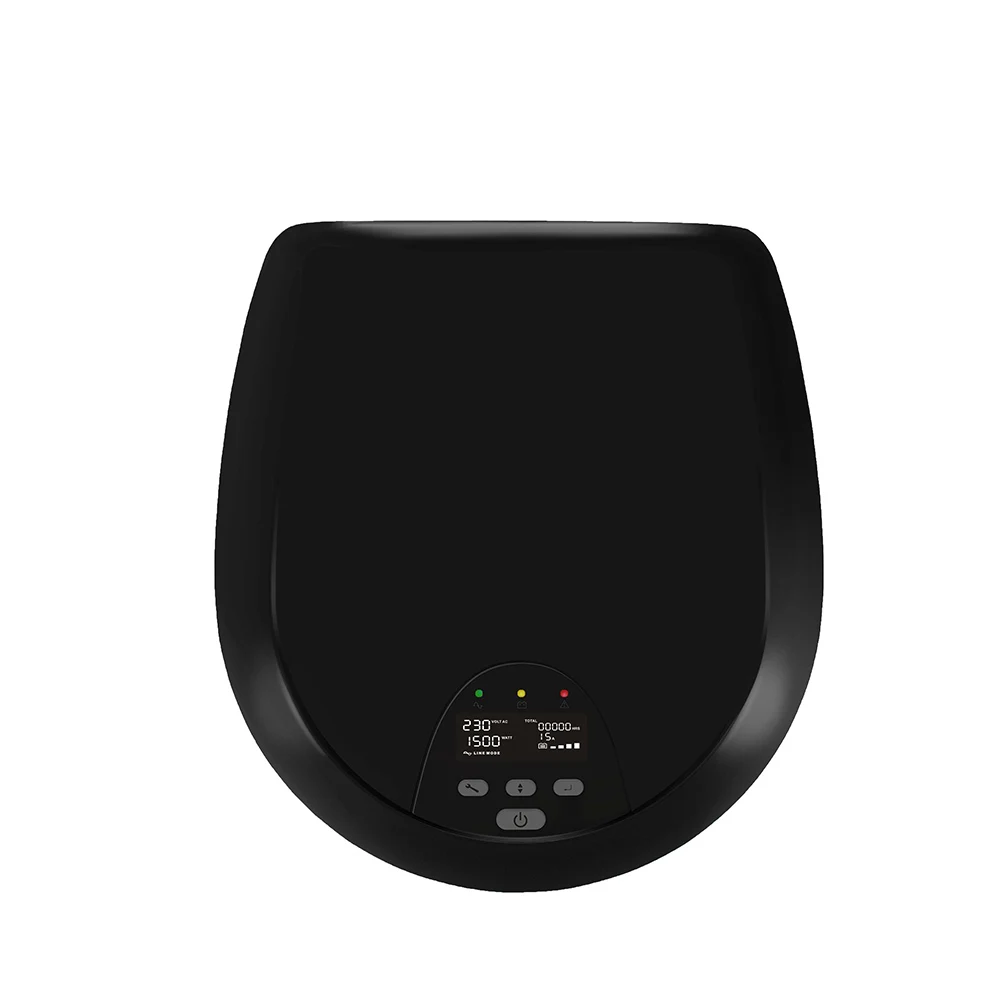

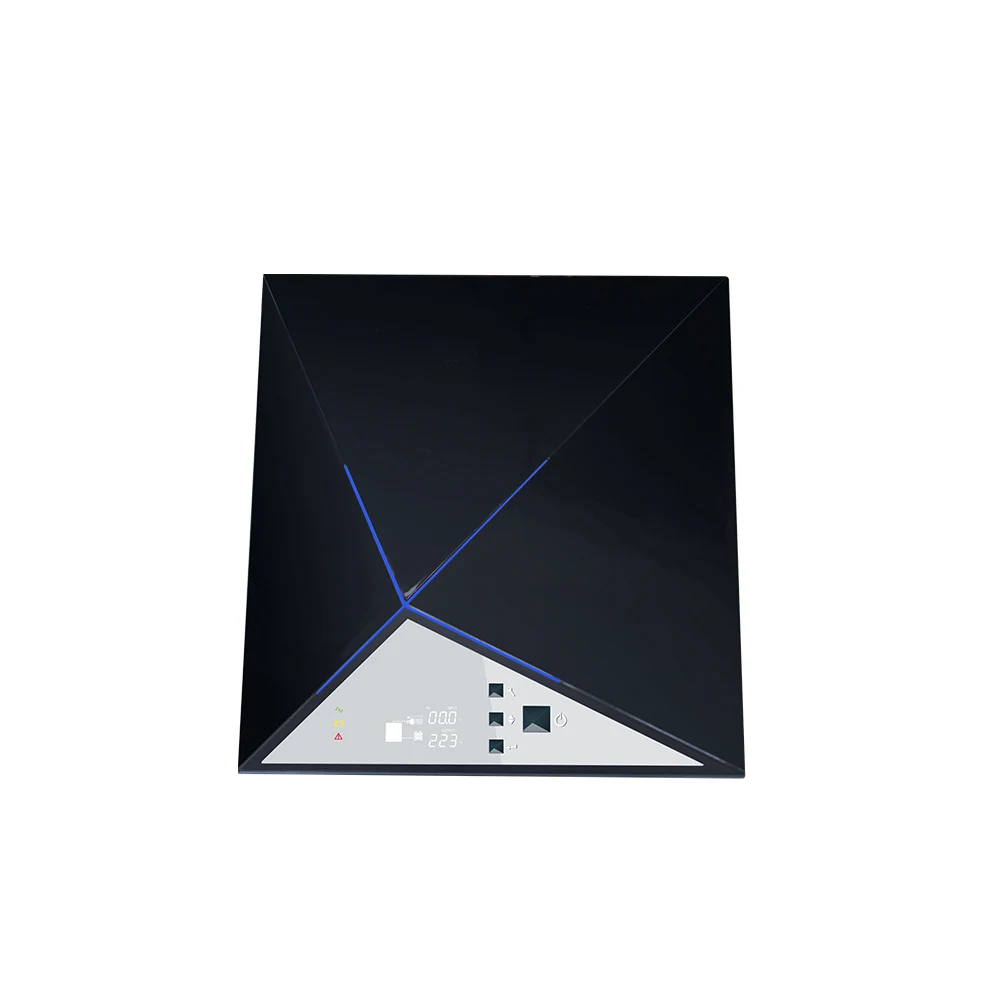

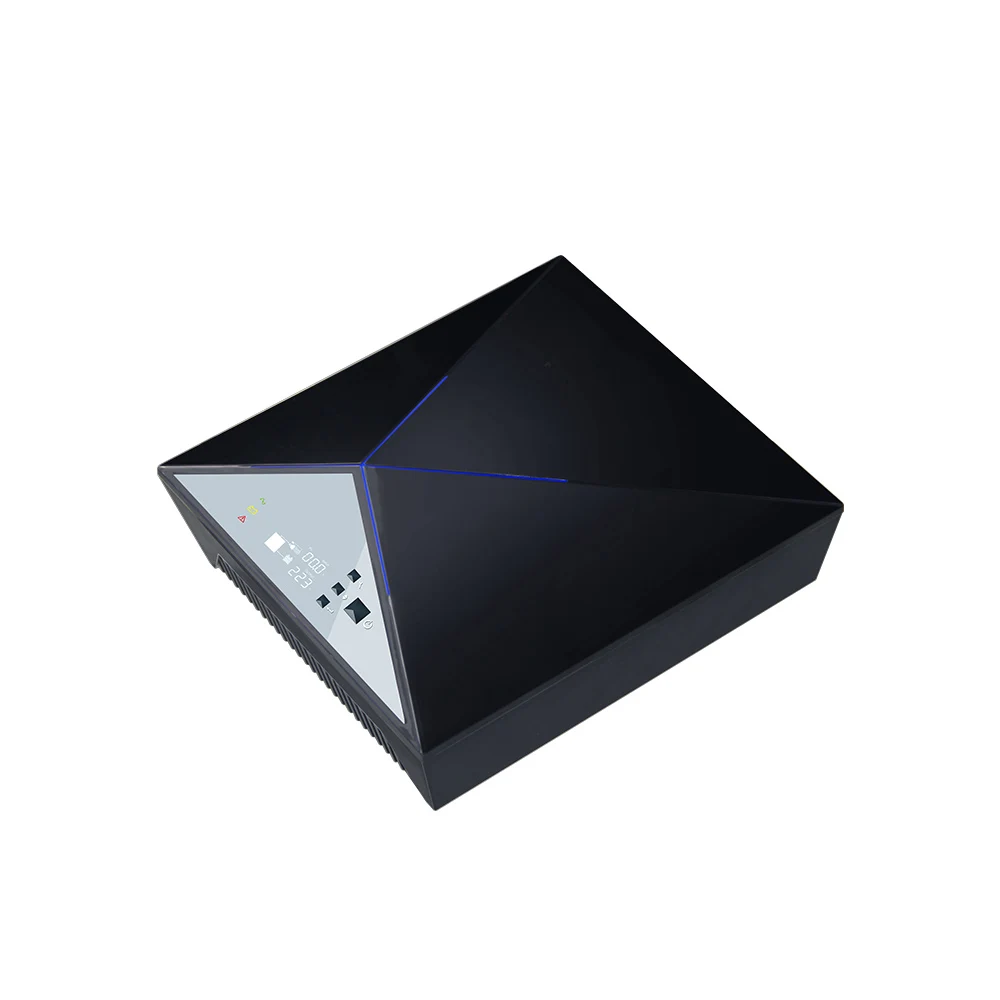

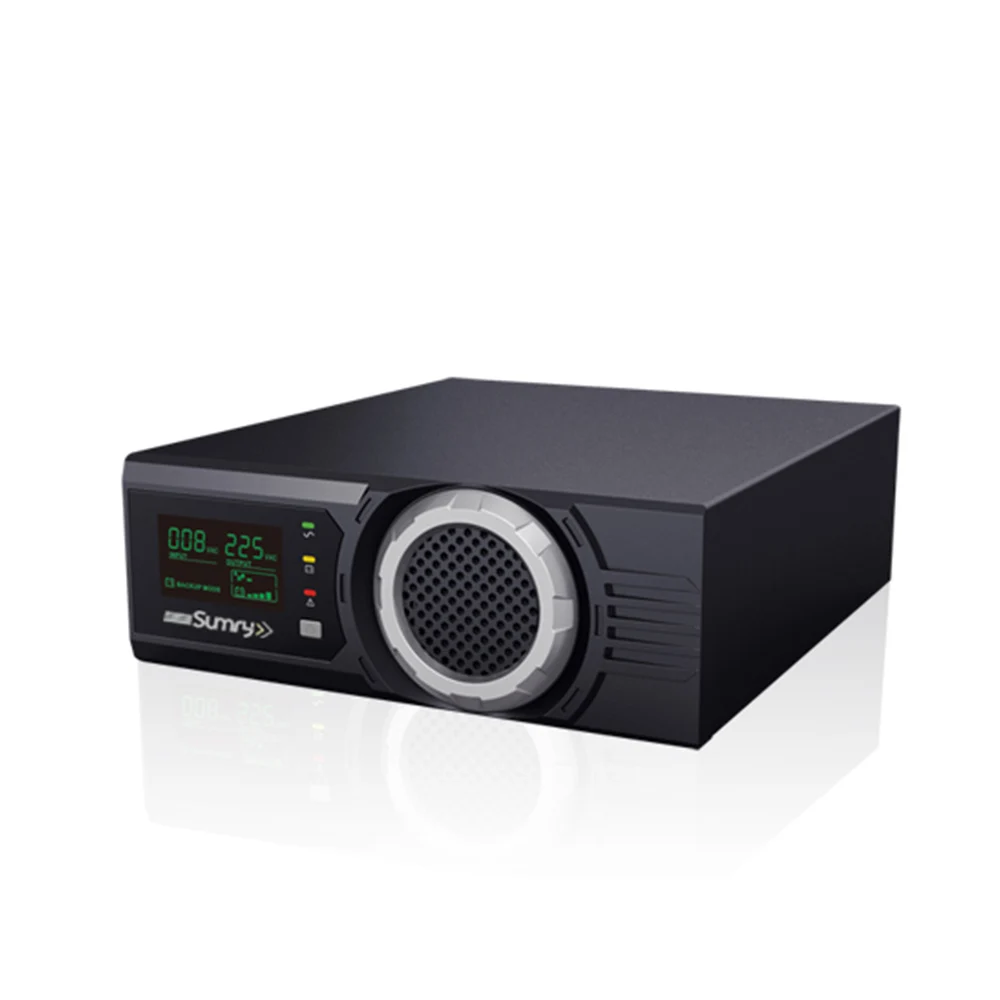

High Quality High Efficiency Portable 1000va 2000va Modified Sine Wave 12V UPS Battery Charger









PRODUCT KEY FEATURES:

1.Automatic line-to-battery switch over

2.Bulit-in enhanced AC charger

3.Bulit-in solar charger controller

4.Configurable output source priority,charger source priority,charger current and so on

5.High efficient DC-to-AC conversion with minimized energy loss

6.Rack design & wall-mounted design for flexible installation

7.Intelligent 3-stage charger control for efficient charging and preventing  overcharge

8.Auto restart upon AC recovery

9.User-friendly LCD and LED indications with setting function

10.Smart temperature compensation technology to extend battery life

11.Multiple protections:low battery alarm,low battery shutdown,over charger protection,overload protection,over temperature protection,short circuit protection.





SPEC:



Model	PG1000	PG1200	PG2000
Rated Power	700W	900W	1500W
Input
Nominal Voltage	220/230/240VAC
Voltage Range	90-145VAC or 170-280VAC(Narrow Range)
	50-145VAC/90-280VAC(Wide Range)
Output
Voltage(Battery mode)	120VAC or 230VAC
Frequency	50Hz±0.1Hz
Waveform	Modified sine wave
Power Factor(AC to AC)	>95%
Power Factor(DC to AC)	>80%
Battery
Type	Sealed Lead-Acid,Maintenance-free
Normal Voltage	12VDC	12VDC	24VDC
Charge Current	20 Amp		15 Amp
Overcharge protection	16 V		32 V
LED indicators+LCD
Utility mode	Green light
Battery mode	Yellow light
Over-load fault	Red light
Audible alarm
Low Voltage(battery mode)	Beeping sound every two seconds
Over-load	Beeping sound twice every second
Fault	Continous beeping sound
Conduction/RFI
CB7260.2/EN50091-2CLASS A
Environmental
Operating Temperature	0-40℃
Relative Humidity	0%-90% non-condensing
Measurement
Dimensions(mm)	296*268*91
Weight	1.98KG	2.29KG	2.17KG



MODEL		HTD-1011SCC	HTD-1211SCC	HTD-2011SCC	HTD-2211SCC
CAPACITY	VA/W	1000VA/800W	1200VA/1000W	2000VA/1600W	2200VA/1800W
NORMAL BATTERY VOLTAGE		12VDC		24VDC
LINE MODE
INPUT	Normal Voltage	230VAC
	Voltage Range	170-280Vac(Narrow Range)
		90-280Vac(Wide Range)
	Normal Frequency	50Hz or 60Hz
OUTPUT	Voltage	230VAC
	Frequency	Following the Utility
	Output Waveform	Following the Utility
EFFICIENCY		>95%(full load,battery full charged)
TRANSFER TIME		15ms Typical,40ms Max
BACKUP MODE
OUTPUT	Voltage	230VAC(+10%/-18%)
	Frequency	50Hz or 60Hz(Auto detection)
	Output Waveform	Modified Sine-wave
EFFICIENCY		>80%
OVERLOAD PROTECTION		1 min @>110%,20s @>120%,0s @>150%
PROTECTION		Discharge,over-charged,over-loading,over-temperature,short-circuit protection
BATTERY CHARGER(powered by AC)
CHARGING ALGORITHM		3-step charging
AC CHARGING MODE		0A/5A/10A/15A/20A selectable		0A/5A/10A/15A selectable
FLOATING CHARGING VOLTAGE		13.7V		27.4V
OVERCHARGING VOLTAGE		16V		32V
SOLAR BATTERY CHARGER
MAX.PV PANEL ARRAY POWER		900W	1050W	1500W	1750W
MAX PV MODE POWER RATING TO SUPPORT LOAD		500W	600W	1000W	1200W
MAX CHARGING CURRENT		12V		24V
OPTIMAL WORK VOLTAGE RANGE		16V-18V		32V-36V
MAX.PV INPUT VOLTAGE		55V
MAX.PV INPUT CURRENT		65AMP
GENERAL
PHYSICAL	Dimension(D*W*H)	280mm(D)*250mm(W)*95mm(H)
	Net Weight(kg)	2.16	2.46	2.38	2.38
ENVIRONMENT	Operating Environment	0-50℃,5%-90% relative humidity(non-condensing)
	Storage Environment	-15℃ to 55 ℃,5%-95% humidity(non-condensing)
	Noise Level	Less than 50 dB
