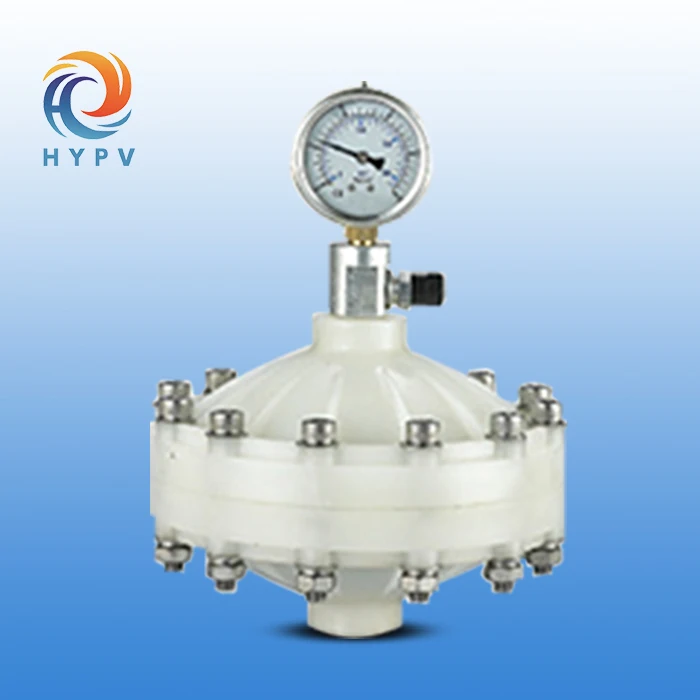

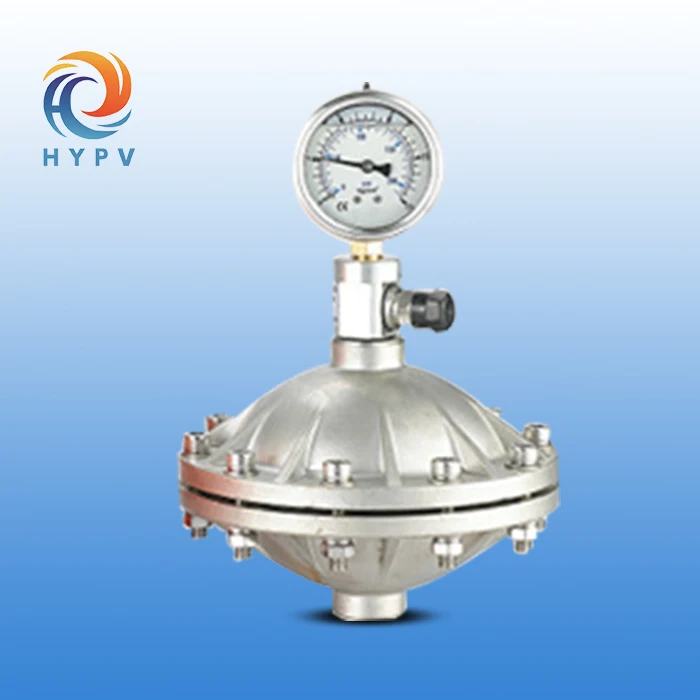

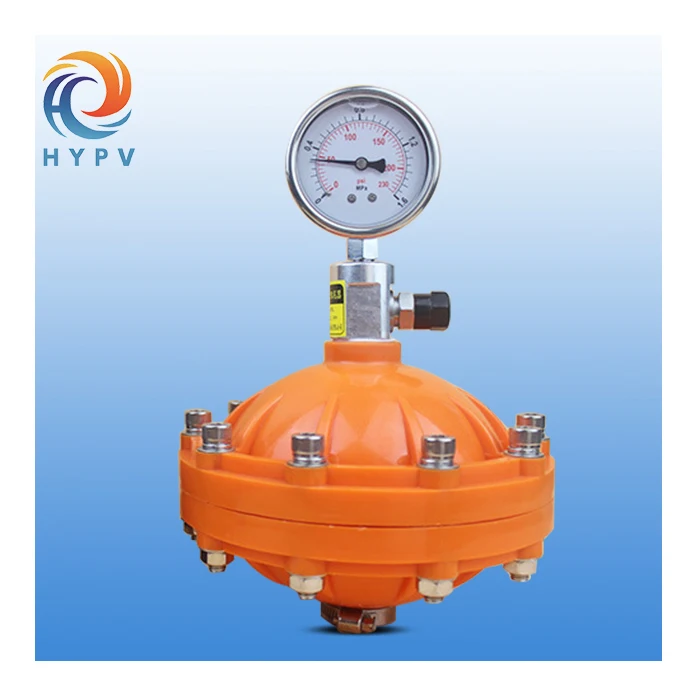

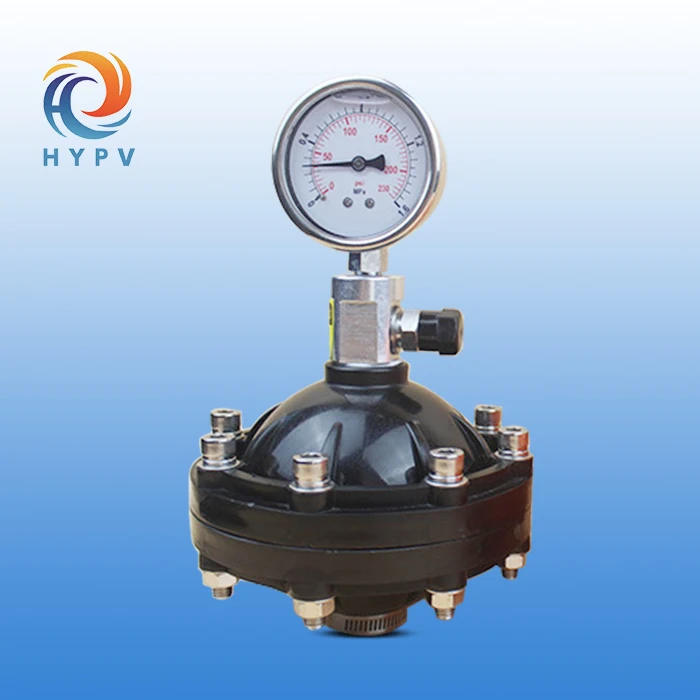

Регулятор давления водяного насоса ДИАФРАГМЕННОГО

Категория: Мембранные клапаны >>>
Поставщик: Shanghai,Haoyang,Pump,Valve,Manufacturing,Co.,Ltd.

Цена:31 724,09 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	37752.47 $*	39640.14 $*
Aug-16-2025	37434.34 $*	39306.57 $*
Jul-16-2025	31407.71 $*	32977.60 $*
Jun-16-2025	36800.10 $*	38640.31 $*
May-16-2025	32041.53 $*	33643.9 $*
Apr-16-2025	36165.16 $*	37973.83 $*
Mar-16-2025	35848.11 $*	37640.47 $*
Feb-16-2025	35531.40 $*	37308.43 $*
Jan-16-2025	35214.8 $*	36975.1 $*

Характеристики

SHELL MATERIAL

Can be customized

PVC SUS304 SUS316L PVDF PP

Product parameters

Dimensional drawings

Product can be customized according to your demands

Volume selection method:

Pulsation Damper volume = Every stroke volume (ml) *15

A PULSATION DAMPER

Applicable temperature:

Ordinary diaphragm -5 ℃ to +80 ℃)

Increased system efficiency and pump component life

1.5 times

The maximum input pressure

Ineases safety by reducing pressure surges

PTFE composite rubber diaphragm

Good corrosion resistance, long service life

ADVANTAGES

1. The ability to minimize pulsations, vibrations, and water hammer means that this component provides excellent protection and smooth system flow.

2. Protection of pipes, meters, valves and instrumentation from pulsation and vibration

3. Used together with back pressure valve can make pressure fluctuation close to zero.

4. Limit damaging pressure surges caused by pump start-up and shut-down.

5. Prevention of foaming and splashing

6. Allows more accurate readings when pumping through mass flow meters & other instruments

DESIGN FEATURES

Valve Housing

Air Connection

Air Dome

Valve Spool

Diaphragm

Damper Chamber

The container is often divided into two sides by a flexible membrane , one containing compressibe nitrogen gas, and the other side through which the liquid goes. Convenient maintenance, long-term stable operation

When the system under high pressure, the

medium flow into the container by

compressing the gas;

When the system pressure drop, the

compressed gas expansion and forced the

medium flow back into the pipe.

APPLICATION

In a metering system constant flow is normally required. A damper is essential to reduce the flow fluctuations to ensure process control and mixing. In pipes pressure pulsation will shake the piping and dampening the pulses prevents fatigue and connection failures. In general removing pulsation reduced the energy usage to transmit liquid over distances.

Where is a Pulse Dampener installed ?

For best performance a Pulsation Dampener should be installed at the start of the pipe down which the flow has to be forced or when the dampener is to perform as a suction side acceleration head loss reducer, then the installation is after the suction supply line at the entry to the pump inlet check valve.Generally A pulsation dampner is installed as close to the source of the pulsation as possible.

Instructions

COMPANY INFOTMATION

Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in Shanghai,China. We provide one-stop fluid solution, including AODD pumps, accessories and components suitable for different working condition. HaoYang have earned industry recognition for premium quality and innovative design.

To ensure suitability for a variety of media, wetted parts are available in numerous optional materials. Focus on customer satisfaction is supported with quality and reliability, validated by CE , ISO ,ATEX certifications.We specify only the most durable materials that are dependable and long-lasting. When we combine the highest-quality products with topnotch customer care, we get outstanding value.
