Тахеометра RUIDE RTS862RA добычи полезных ископаемых выравнивания геодезическое

Цена:1 700,00 $ - 1 800,00 $*

Количество:

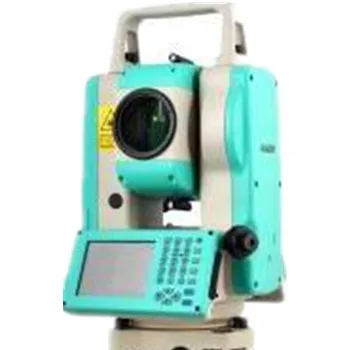

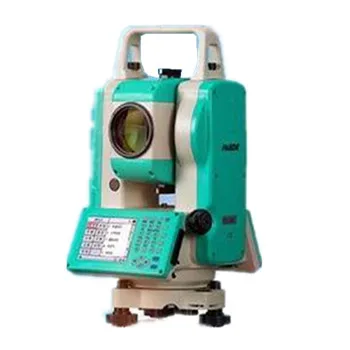

TOTAL STATION RUIDE RTS862RA MINING LEVELING LAND SURVEY EQUIPMENT

Key advantage for reflectorless china made total station RTS862RA

1.ELECTRONIC POINTING FUNCTION, ON TOP OF EDM;

2.Multi Data transfer: USB cable , USB driver, SD Card, Blueteeth;

3.Large colorful Touch Screen 3.7'', with Key Board double side too;

4.One Key Survey functions, easy operations;

5.Dual Aixes and compensations for Air pressure and Temperature too;

6.Fast Delivery : 1-2 days after order;

7.Windows OS with ON-Board software, and road program

Description total station cheap station

Name: TOTAL STAION
Model: RTS-862RA

SIZE: 53cm*32cm*42cm

WEIGHT: 9.5KG

TOTAL STATION Performance Specification
	RTS-862L	RTS-862RA	RTS-885L		RTS-885R
DISTANCE MEASURING (max. distance under good condition)
Single Prism	3.0km	5.0km	3.0km	3.0km	5.0km
Non-prism		300m			300 m
Number display	max: 99999999.999, min: 1mm
Accuracy	single prism: 2mm+2ppm; non-prism: 5mm+3ppm
Measuring time	Fine:1s, tracking:0.5s
meteorologic correction	input the parameter adjusted automaticall
prism constant	input the parameter adjusted automaticall
ANGLE MEASUREMENT
measuring method	absolute encoding
disk diameter	79mm
Min. reading	1” / 5” optional
accuracy	2”
detection method	horizontal: dual				vertical: dual
TELESCOPE
image	erect
length	154mm
effective aperture	telescope:45mm, distance meter: 50mm
magnification	30X
field of view	1°30’
Distinguishability	3”
min.focuing distance	1m
AUTO VERTICAL COMPENSATOR
System	dual axis liquid sensortronic Compensation
range	±3
accuracy	1”
LEVEL SENSITIVITY
plate vial	30”/2mm
Round vial	8’/2mm
OPTICAL PLUMMET (OPTIONAL - LASER PLUMMET)
image	erect
magnification	3X
Focusing range	0.5m ~ ∞
field of view	5°
DISPLAY
type	3.5-inch color screen windows CE operating system
OTHERS
power supply	rechargeable Ni-H battery
Continuous working hours	8 hours
SIZE & WEIGHT
size	200mm180mm350mm
weight	6.0kg
