Высококачественный высокоэффективный Автомобильный кабель для зарядки зарядный электромобиля типа от 2 до
- Категория: >>>
- Поставщик: Shanghai,Jiukai,Wire,&,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.1 $* | 0.39 $* |
| Aug-19-2025 | 0.32 $* | 0.66 $* |
| Jul-19-2025 | 0.59 $* | 0.94 $* |
| Jun-19-2025 | 0.2 $* | 0.63 $* |
| May-19-2025 | 0.95 $* | 0.67 $* |
| Apr-19-2025 | 0.86 $* | 0.3 $* |
| Mar-19-2025 | 0.65 $* | 0.61 $* |
| Feb-19-2025 | 0.46 $* | 0.52 $* |
| Jan-19-2025 | 0.47 $* | 0.86 $* |
Характеристики
Specifications
Specifications
Ev charging cable, Ev cable
High quality High efficiency charging cable car jump cable ev charge cable type 2 to type 1
1) EV07EE-H 2X1...70+nX0,5
2) EV07EE-H 3...5G1...70+nX0,5.
EV-Cables
Model Designation: car jump cable
TUV certificate EV AC charging cable
| Item name | Typical type dimension | Voltage | Current | Rated Temp |
| EV07EEC4E-H | 3x2.5mm2+1x0.75mm2 | 450/750V | 16A | -40°C~105°C |
| 3x6.0mm2+1x0.75mm2 | 450/750V | 32A | -40°C~105°C | |
| 2x16mm2+2x0.75mm2 | 450/750V | 64A | -40°C~105°C | |
| 3x35mm2+2x0.75mm2 | 450/750V | 125A | -40°C~105°C | |
| 2x70mm2+2x0.75mm2 | 450/750V | 250A | -40°C~105°C | |
| EV07EE-H | 5x13.3mm2+(1~2)x(0.5~2.5)mm2 | 450/750V | 63A | -40°C~105°C |
| Remark: 2-5 cores of conductors are available with cross-section area be from 1 mm2 to 95mm2,1-4 cores of control wires with cross-section area at 0.5mm2~0.75mm2can be added. | ||||
EV charging cables-AC
| Item name | Typical type dimension | Voltage:AC | Current | Rated Temp |
| EV-SS EV-SSPS EV-S90U EV-S90S90PU | 3x2.5mm2+1x0.75mm2 | 450/750V | 16A | -40°C~105°C |
| 3x6.0mm2+1x0.75mm2 | 450/750V | 32A | -40°C~105°C | |
| 2x16mm2+2x0.75mm2 | 450/750V | 63A | -40°C~105°C | |
| 2x35mm2+2x0.75mm2 | 450/750V | 125A | -40°C~105°C | |
| Remark: 2cores of conductors with cross-section area be from 18AWG to 12AWG,1-2 cores of control wires can be added. For more details please check technical catalog. | ||||
| Item name | Typical type dimension | Voltage:AC | Current | Rated Temp |
| EV-S90U(Spiral Cable) | 3x2.5mm2+1x0.5mm2 | 450/750V | 16A | -40°C~105°C |
| 3x6.0mm2+1x0.5mm2 | 450/750V | 32A | -40°C~105°C | |
| Remark: 2-5 cores of conductors with cross-section area be from 1.0mm2 to 6.0mm2,1-2 cores control wires of cross-section area0.5mm2~0.75mm2 can be added. Control wire shield and total cable shield are selectable. For more details please check technical catalog. | ||||
EV DC charging cables
| Item name | Typical type dimension | Voltage | Current | Rated Temp |
EVDC-SS | 2x16mm2+2x4.0mm2+2x0.75mm2 | 600V | 63A | -40°C~105°C |
2x35mm2+2x4.0mm2+4x1.5mm2 | 600V | 125A | -40°C~105°C | |
2x70mm2+2x6.0mm2+4x1.5mm2 | 600V | 250A | -40°C~105°C | |
2x95mm2+2x6.0mm2+4x1.5mm2 | 600V | 280A | -40°C~105°C |

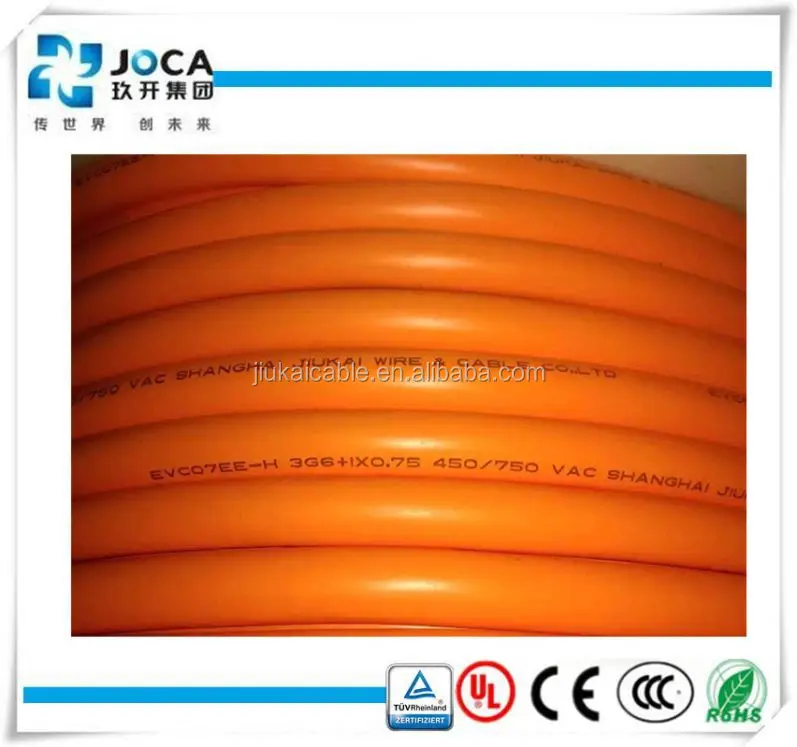

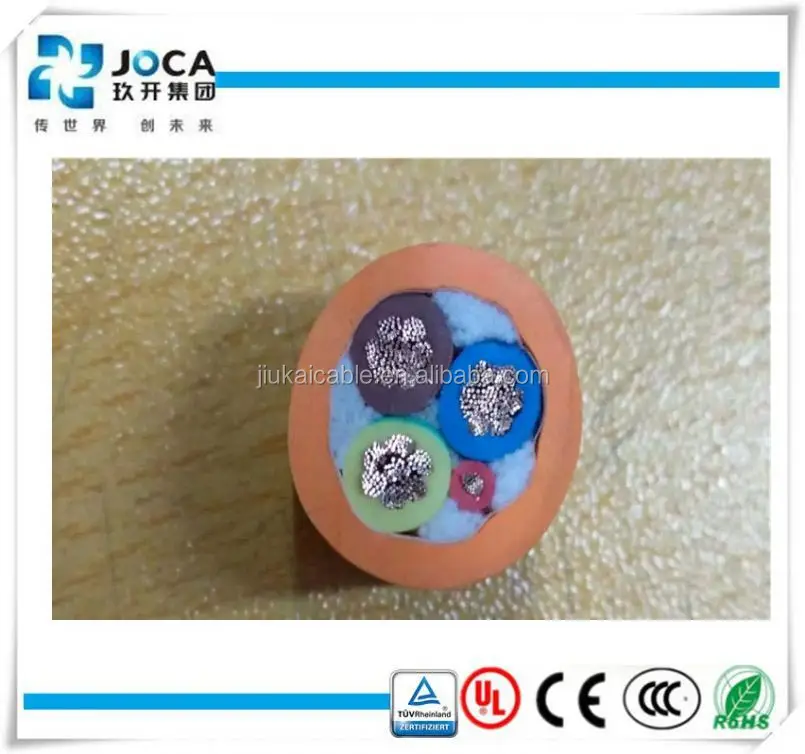

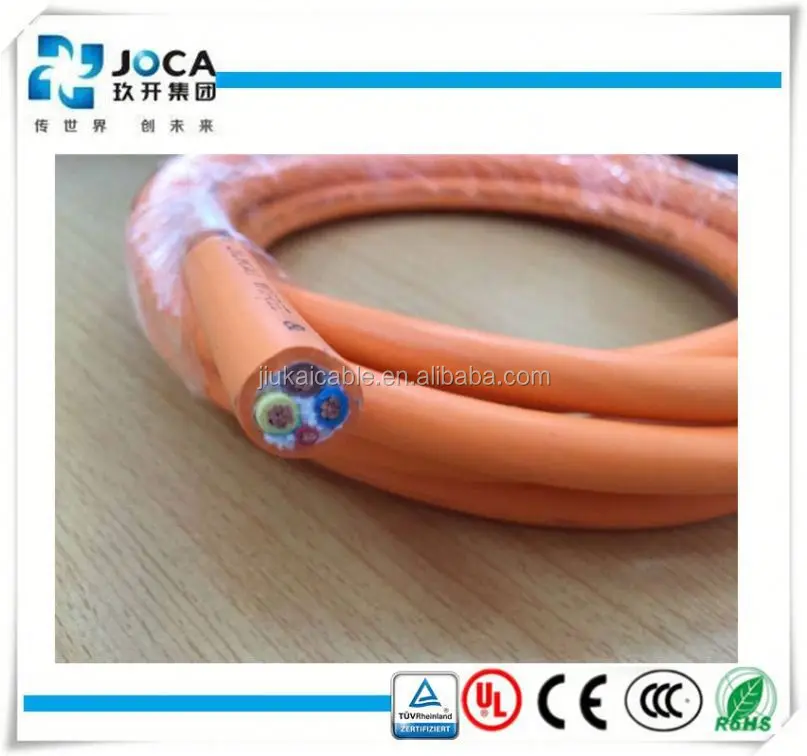

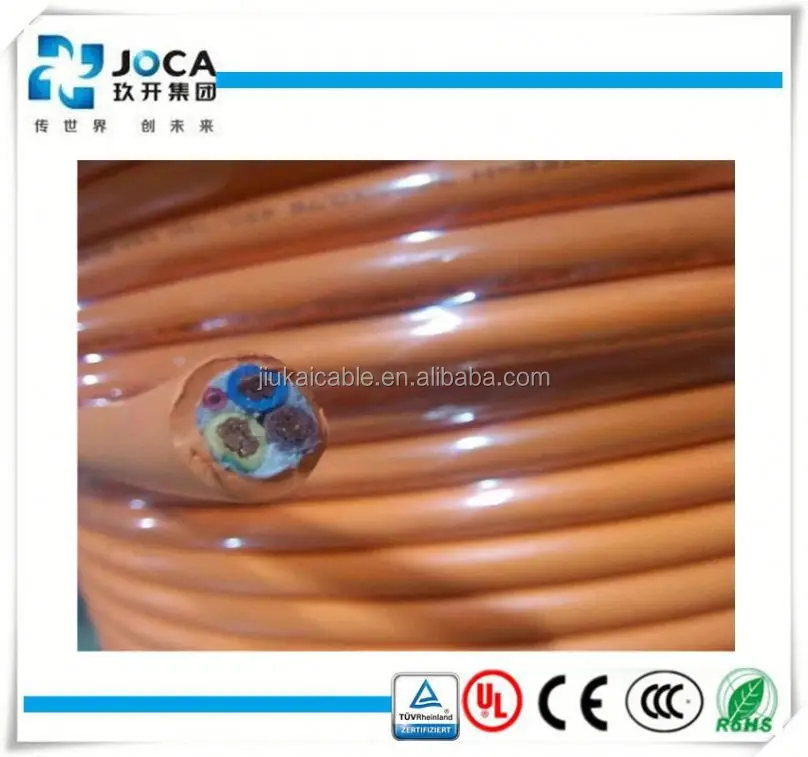

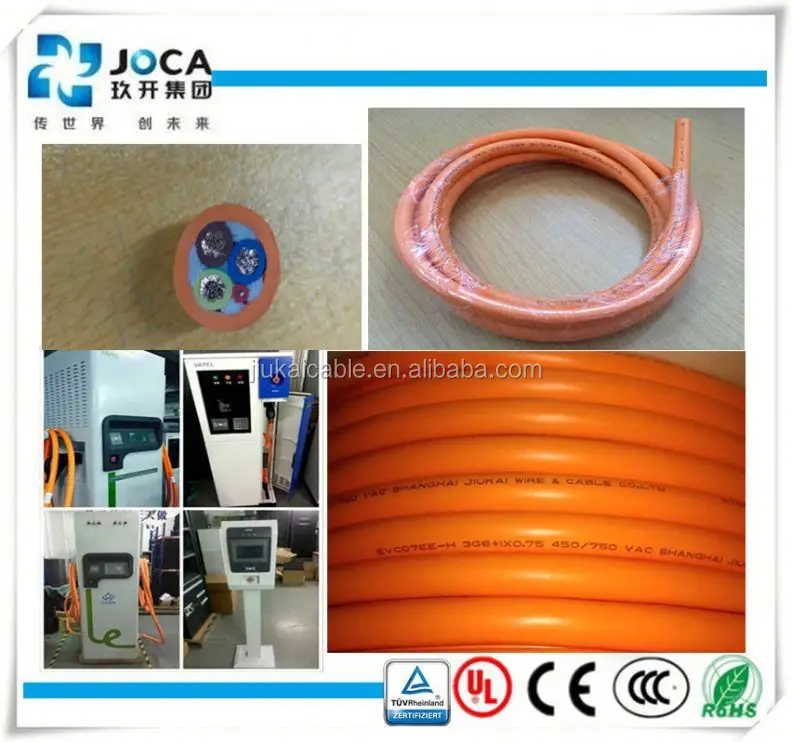

Real Photos
High quality High efficiency charging cable car jump cable ev charge cable type 2 to type 1
