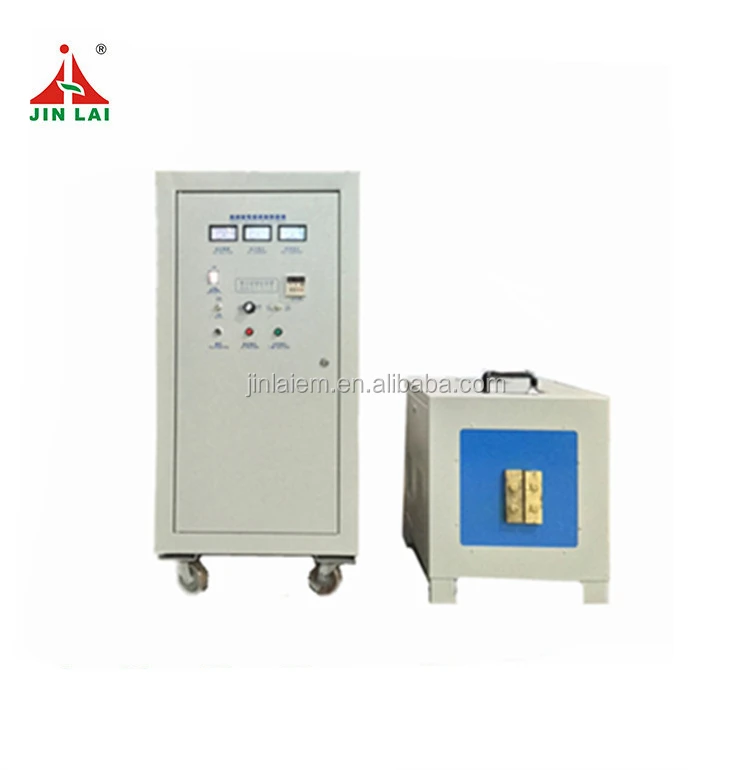

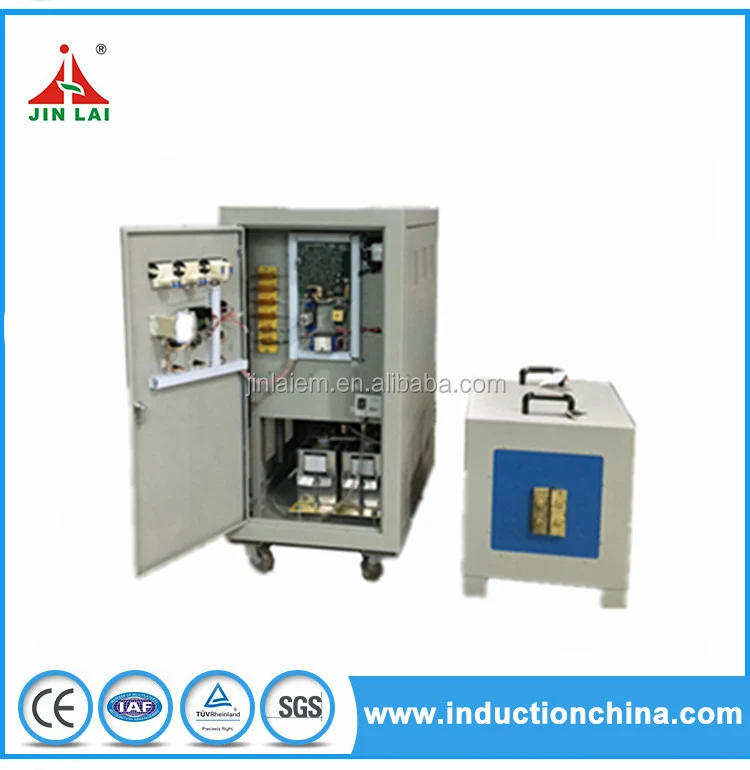

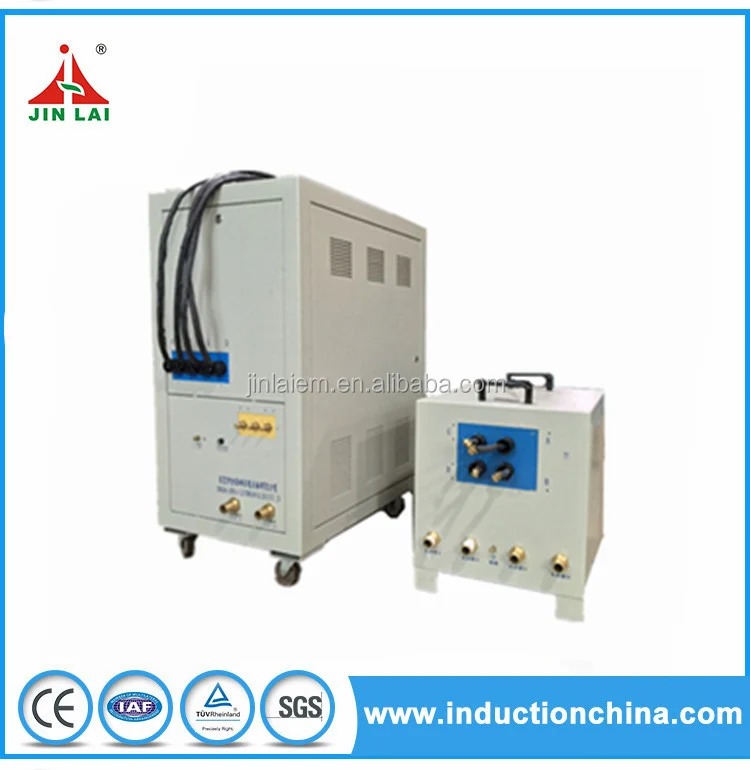

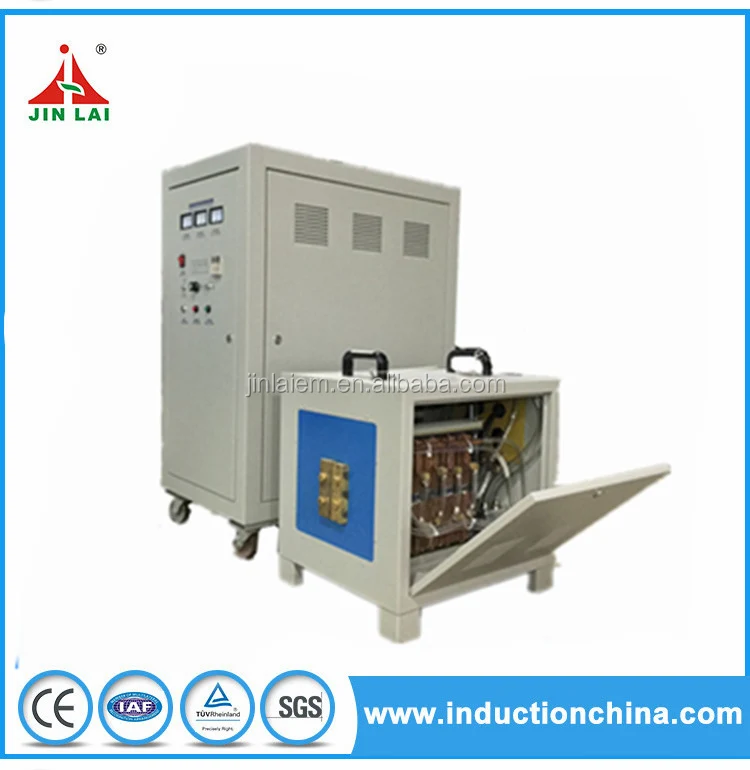

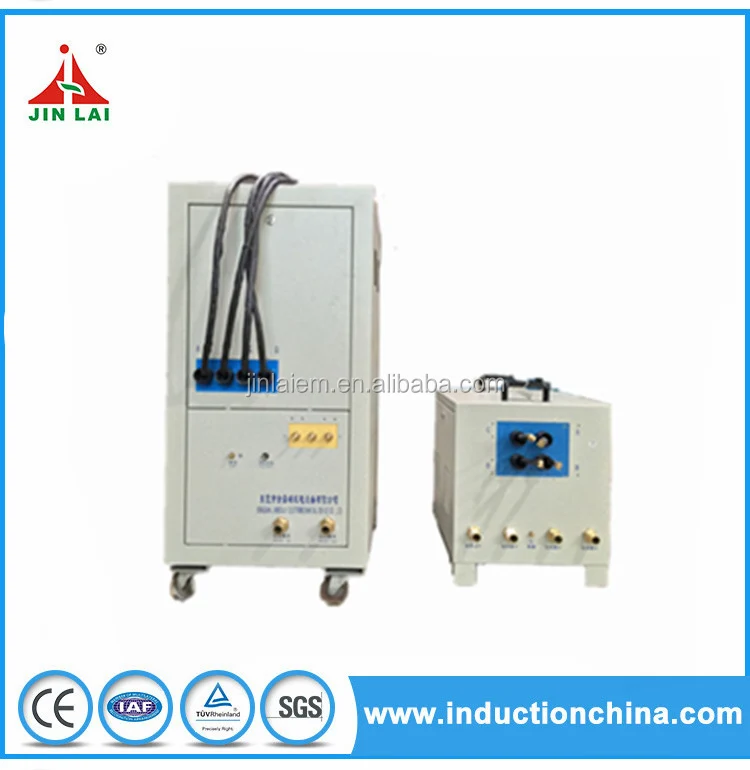

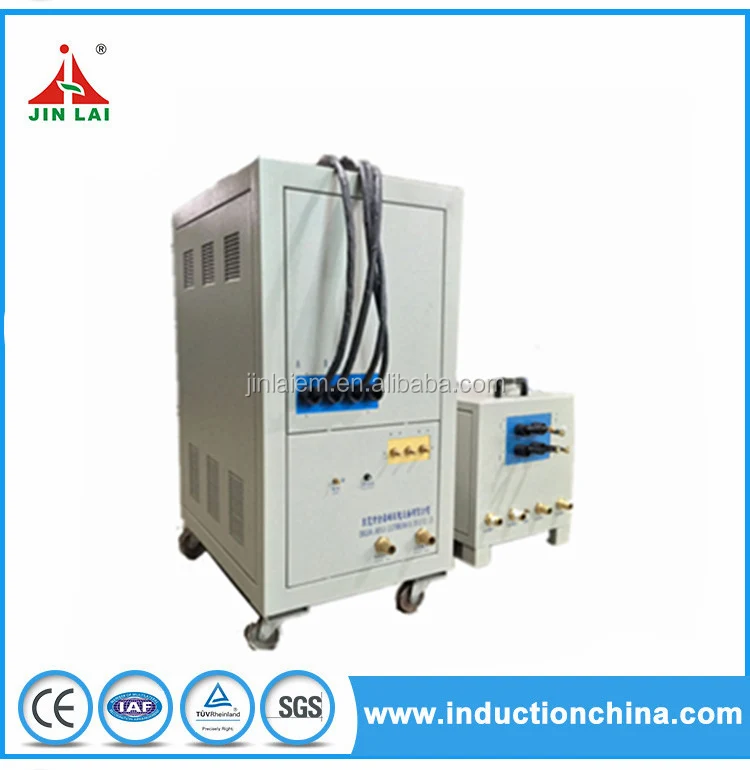

Energy Saving Used Induction Heating Equipment



1) Feature:

1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability

7. Suitable for heating medium size of part.

 2) Specifications:

Model		JLC-50KW
Input power desire		3 phase 380V 50/60HZ
Oscillate power max		50KW
Max input current		63A
DC current		80A
Oscillate frequency		10-30KHZ
Timing		1M-99.99M 1S-99.99S 0.01S-99.99S
Cooling water desire		0.3Mpa
Duty cycle		100% 40°C
Dimensions(L*W*H)	Generator	400*580*920mm
	transformer	450*330*500mm
Net weight		65kg/45kg
Cable length		2-6(Meters)



3) Spare parts for JLC-50KW Machine



Item	Name of machine or parts	Specification	Amount
1	JLC-50KW Generator	-	1 pc
2	JLC-50KW Transformer	-	1 pc
2	Foot switch	3 core	1 pc
3	Induction Coils	-	3 sets
4	Coil connect pole	-	3 set
5	Instruction Manual	-	1
6	Packing list and receipt	-	1
7	Guarantee card	-	1
8	Products certificate	-	1





4) Application:

1. Pre-heating for forging and forming
2. Brazing
3. Heat treatment such as surface hardening
4. Melting for aluminum, copper etc
5. Pipe Pre-heating and soak before after weld
6. Pipe heating for elbow machine
