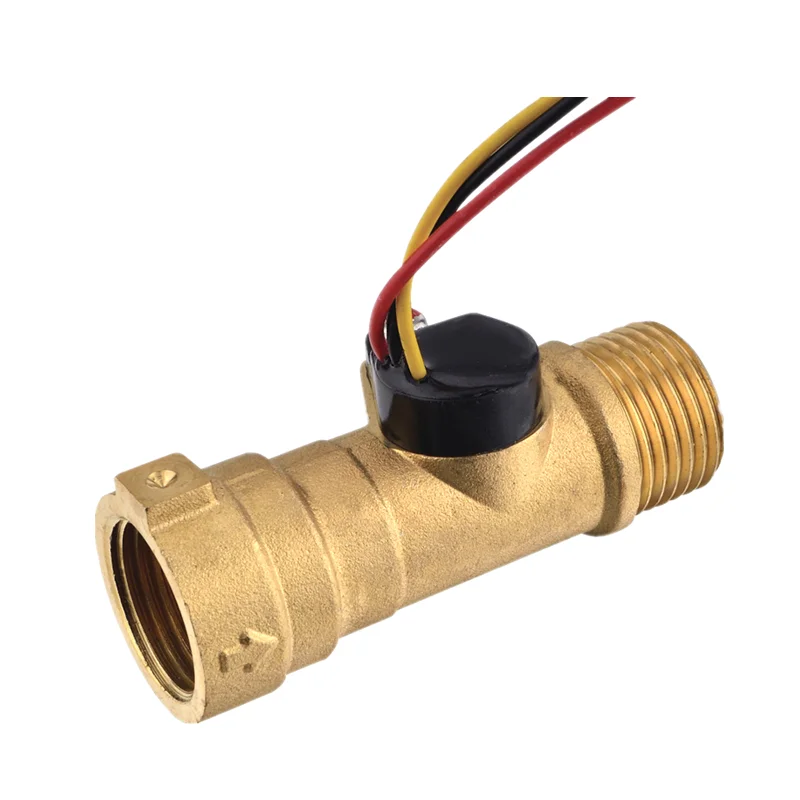

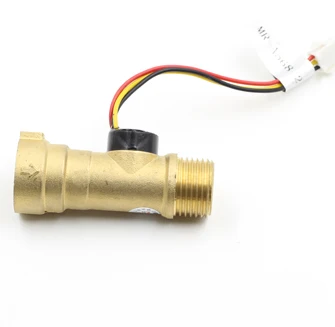

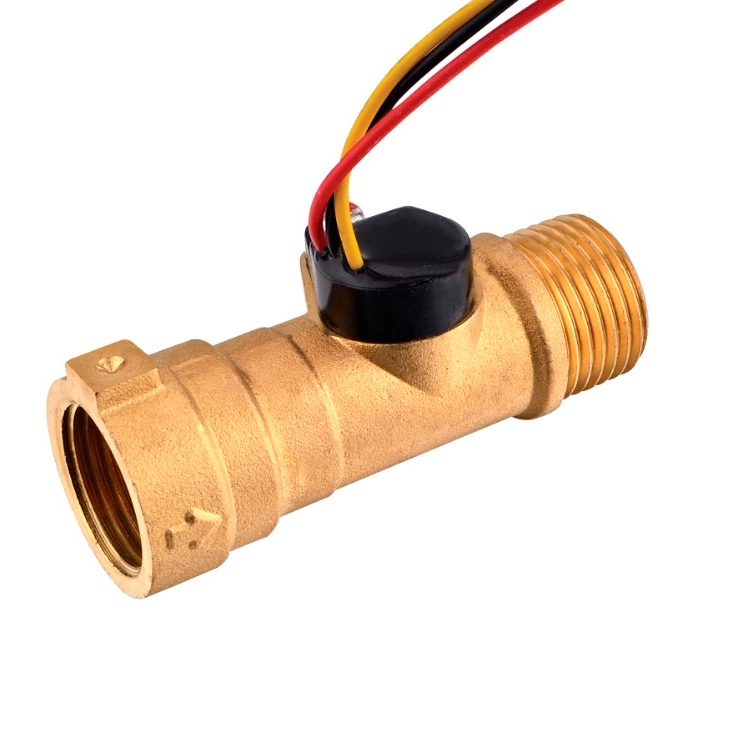

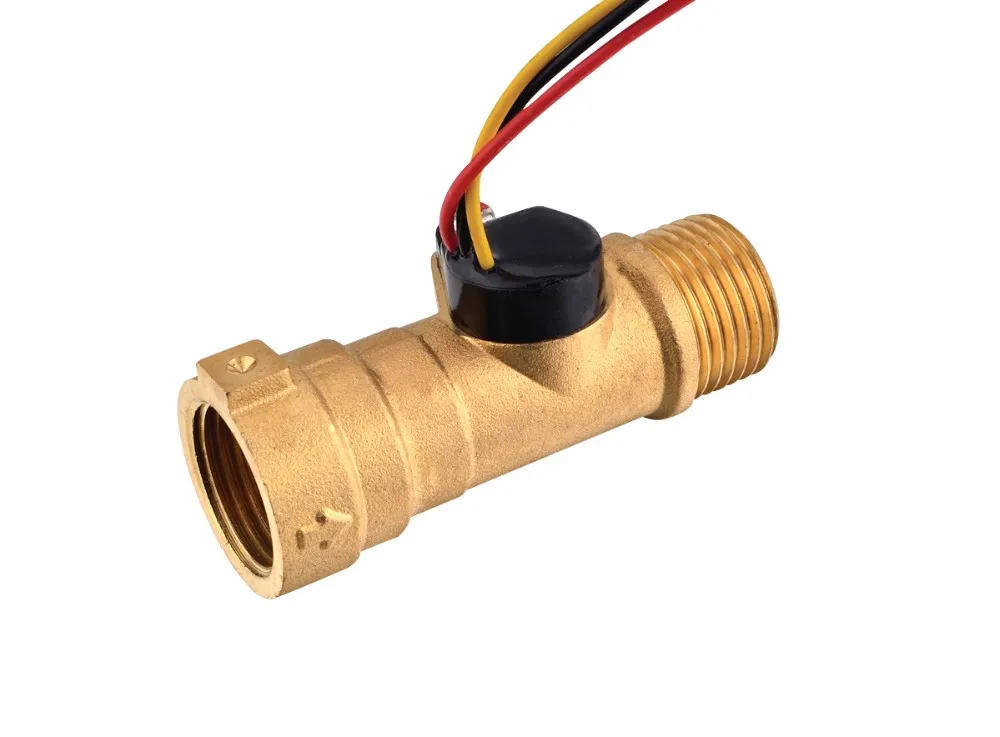

MR-A568-2 мужской/женский водный магнетический датчик

Описание и отзывы

Трекер стоимости

Характеристики

 1.Special designed      2.Low cost        3.Simple installation       4.wide application































     Introduction

        flow sensor consists of magnetic core, rotating impeller, external casing and sensor.Flow through the sensor activates the magnetic core to trigger switch action, with signal output.

     Features

        imported components of the magnetic switch, sample working principles, and highly reliable,  cheaper price.

     Applications

        it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy  water heater, air condition and other water systems.



withstand hydraulic pressure	≤0.35Mpa
voltage rating	DC5V-24V
insulation resistance	>100MΩ
precision	0.2-6L/M  2-30L/M  1-60L/M
flow pulse	F=(18Q)+5% Q=L/min
output pulse duty cycle	50%±10%
max output pulse voltage	>DC4.7V
min output pulse voltage	<DC0.5V
body material	Nylon

    Package

       Standard plastic bags and cartons, also we can provide customized design for all kinds package.



    Production Line

       Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.

    Latest Exhibitions

    We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
