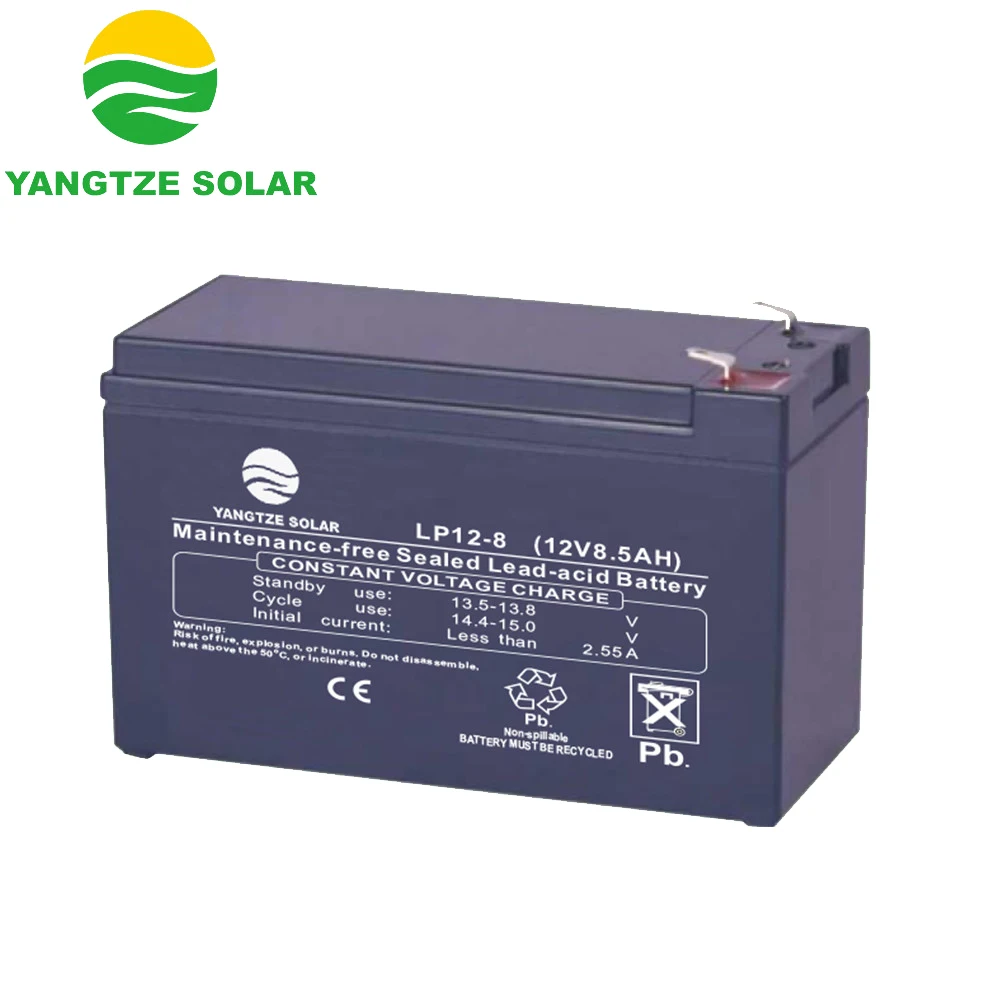

Аккумуляторная батарея Yangtze 6 dzm 8 12v

Категория: Other Batteries >>>
Поставщик: Hefei,Yangtze,Solar,Power,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.48 $*	0.99 $*
Aug-17-2025	0.70 $*	0.44 $*
Jul-17-2025	0.2 $*	0.32 $*
Jun-17-2025	0.39 $*	0.5 $*
May-17-2025	0.66 $*	0.34 $*
Apr-17-2025	0.42 $*	0.97 $*
Mar-17-2025	0.5 $*	0.6 $*
Feb-17-2025	0.13 $*	0.95 $*
Jan-17-2025	0.61 $*	0.31 $*

Характеристики

Product Description

Key Features:
♦Maintenance-Free, Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life, Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range

Applications:
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system, emergency lighting system, security system
♦Telecommunication Equipment
♦Power source for portable devices or tools

specs logo 1.jpg

1. Functional Parameter		5. Environment Temperature
Nominal Voltage	12V	Discharge Temperature	-15~50℃
Nominal Capacity (20 hour rate)	8Ah	Charge Temperature	0~40℃
Number of Cells	6cells	Storage Temperature	-15~40℃
2. Rated Capacity at 25℃ (77° F)		6. Inner Resistance & Max . Discharge Current
20 hour rate (0.05C, 10.8V)	8Ah	Fully Charged battery at 25℃ (77° F)	26mΩ
5 hour rate (0.165C, 10.8V)	6.6Ah	Max. Discharge Current	120A (5s)
1 hour rate (0.55C, 10.5V)	4.7Ah	Short Circuit Current	400A
3. Capacity affected by Temperature (20 hour rate)		7. Self-discharge at 25℃ (77° F)
40℃ (104° F)	103%	Capacity after 3 month storage	91%
25℃ (77° F)	100%	Capacity after 6 month storage	82%
0℃ (32° F)	85%	Capacity after 9 month storage	73%
-15℃ (5° F)	65%	Capacity after 12 month storage	64%
4. Dimension and Weight		8. Constant voltage charging at 25℃ (77° F)
Length	151mm	Cyclic use	14.4~14.9V
Width	65mm	Maximum charging current	2.4A
Height	94mm	Temperature compensation	-30mV/℃
Total Height	98mm	Float use	13.6~13.8V
Reference Weight	2.5kg	Temperature compensation	-20mV/℃
