Product Description
SC series construction lift with gear wheel and rack driving for building construction
SC series Building Hoist adopted computer aided design. Comparing with traditional buiding hoist, it is attractive, light, easy to handle, secure, applicable and popular. Depending on special needs of regular or irregular sections, the lifting capacity can reach 1~2 tons and the running speed can reach 28~38m/min. Moreover, VVVF speed regulation and PLC enable0~68 limitless speed, automatic layer selectingand levelingas required. SC series Building Hoist is excellent in technical performance, more secure in operating mechanism and more compact on structure.
Technical Parameters | ||||||
Rating loading capacity | 2x2000kg | |||||
Passenger number | 2x16 | |||||
Rating rising rate | 33m/min | |||||
Max. Promoting Height | 400m | |||||
Motor power | 2x3x11kw | |||||
Cage size | 3mx1.5mx2.5m | |||||
650 max section weight | 150kg | |||||
650 max section length | 650x650x1508mm | |||||
Steeve rating rising weigh | 200kg | |||||
Detailed Images
Machine Parts

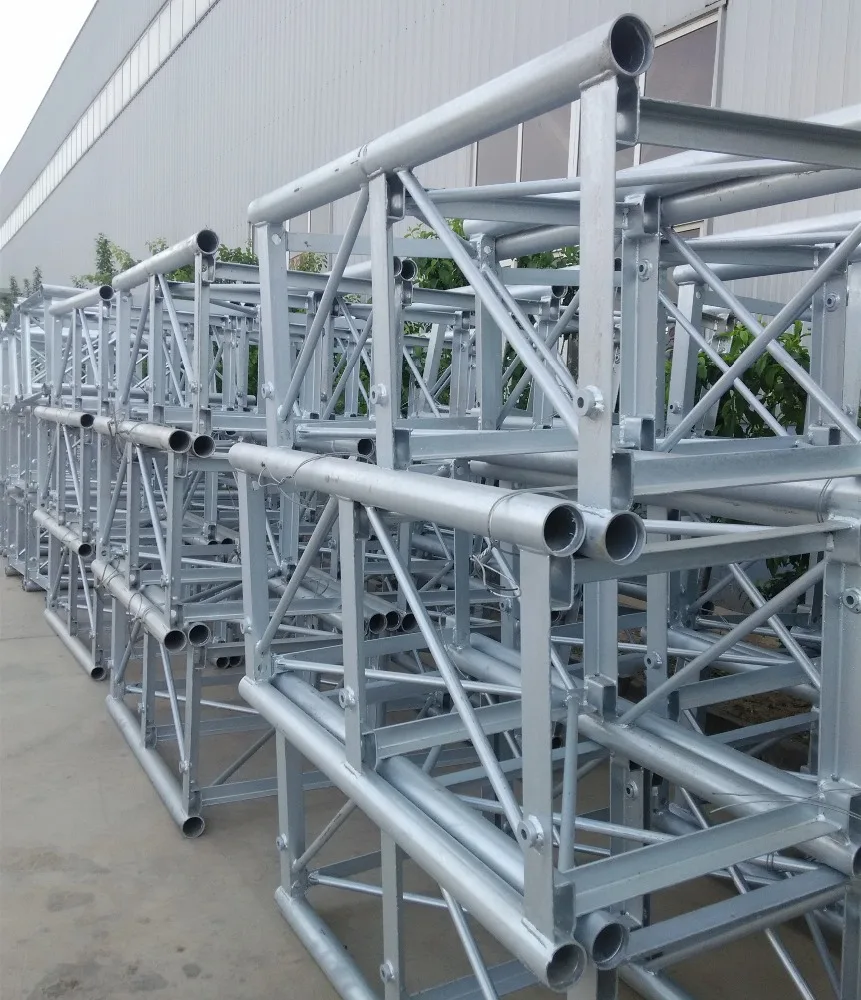

Name: Mast section 650*650*1508mm
Q235 #20 Swamless steel tube
Treatment of the surface: paint spraying or hot galvanized.
Machine Parts

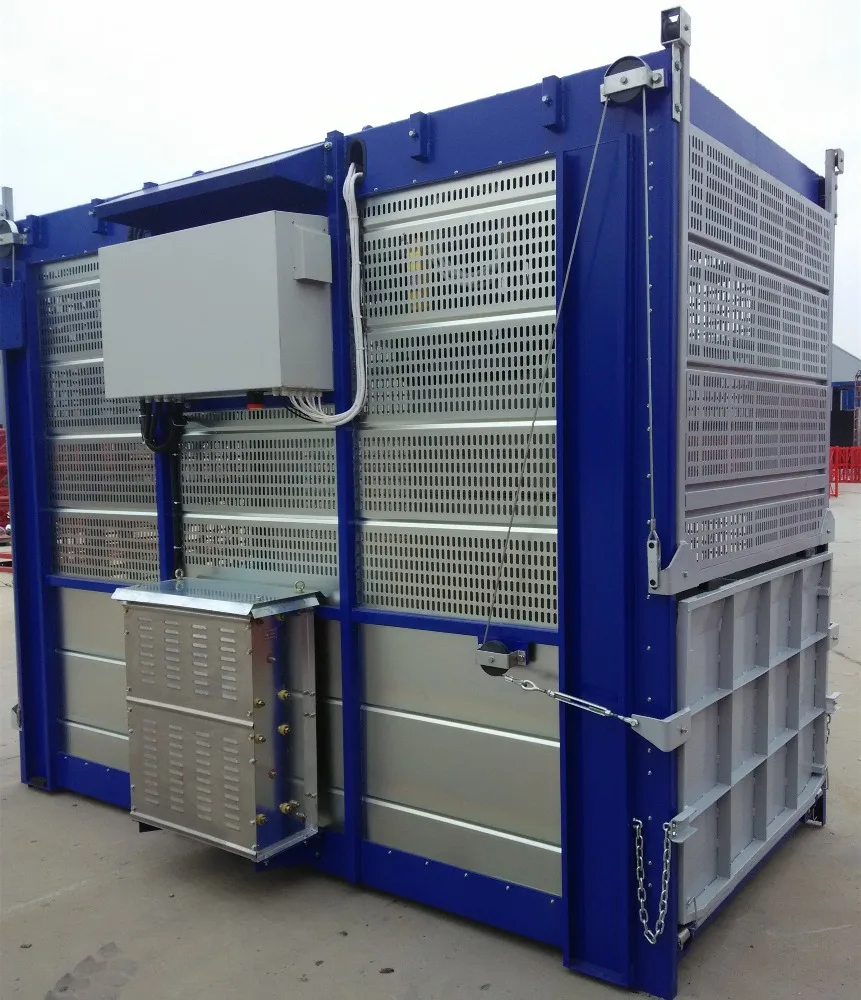

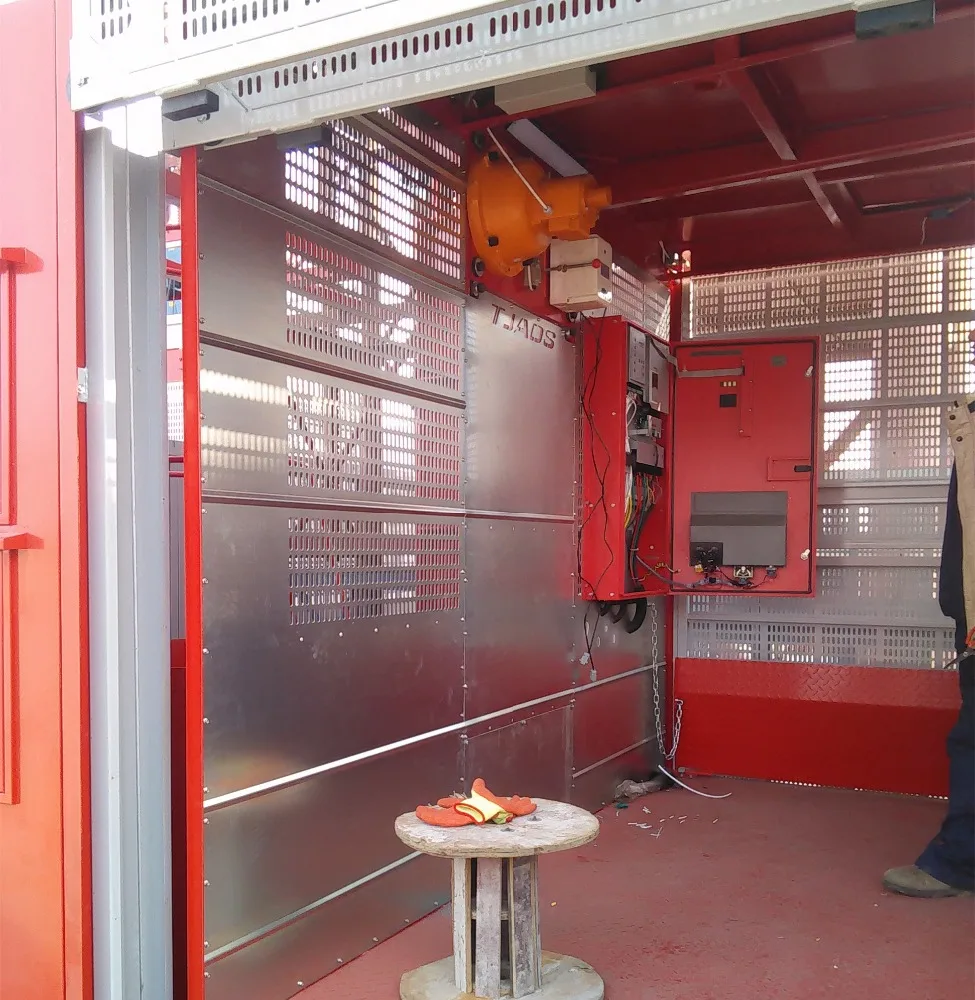

Name: Cage
The size: 3x1.5x2.5m or 3x1.3x2.5m
Other size can be customize.
Powder painting steel board with punching.
Cage boottom: 4mm thickened plate.
Machine Parts
Name: Hoisting mechanism
2 hoist or 3 hoist
Motor power: 11kw
