 CLUTCH AIR TUBE W18-20-901

Production Description:

 CLUTCH AIR TUBE W18-20-901

 for heavy duty clutch is composed of metal air nozzle,outer rubber lining,cord fabric and inner rubber lining,this rubber air tube is widely used in dis clutch for petroleum equipment,drilling rig,drawwork,mooring winches,paper mills,steel service centers etc.

Our air tube passed ISO9001:2008 international quality systerm authentication,and have a long-term cooperation with USA,UK,RUSSIA,Middle East customers.



Feature:

 1: ISO9001:2008

 2: CR,NR,high speed,durable,low and high temperature bearing

 3: Single spud/gas mouth, double spud /gas mouth,three or four depend on your requirement

4: OEM and ODM are accepted



Specificaiton:



	Outer diameter  D(mm)	Inner diameter  d(mm)	Thickness  H(mm)	Nozzle
Size
				PCD  mm	Quantity	Internal Thread	Outer diameter  /Milling size	Exposed height   h(mm)	Direction
Model
6"	184	56	19	121	2	1/4"NPT	φ30/27	11	Lateral
8"	229	108	19	168	1or 2	1/2"NPT	φ30/27	14	Radial
10"	250	120	26	185	1	ZG1/2"	φ30/27	20	Radial
11"	289	143	19	216	1or2	1/2"NPT	φ30/27	20	Radial
14"	356	191	25	273	1or2	1/2"NPT	φ30/27	20	Radial
16"	400	230	25	318	2	1/2"NPT	φ30/27	20	Radial
17"	436	217	23	328	2	ZG1/2"	φ30/27	20	Radial
18"	470	267	25	360	1or3	1/2"NPT	φ30/27	20	Radial
18"	470	267	23	360	1or2	ZG1/2"	φ30/27	20	Radial
19"	521	251	25	403	4	1/2"NPT	φ30/27	44	Radial
							1-3/16-12UN
20"	508	308	25	405	3	ZG1/2"	φ30/27	20	Radial
21"	521	305	25	406	1or2or3	1/2"NPT	φ30/27	20	Radial
21"	540	260	40	400	3	ZG1/2"	M30×1.5	25	Radial
22"	543	245	25	406	4	1"NPT	φ44/38	38	Radial
							1-3/4-12UN
24"	660	413	28	533	1or3	1/2"NPT	φ30/27	20	Radial
24"	650	406	28	530	3	ZG1/2"	φ30/27	34	Radial
26"	660	315	25	483	4	1"NPT	φ44/38	38	Radial
							1-3/4-12UN
29"	746	457	29	629	4	1/2"NPT	φ30/27	20	Lateral
30"	800	457	29	629	4	1/2"NPT	φ30/27	20	Lateral
30"	790	445	23	615	4	ZG1/2"	φ30/27	20	Radial
36"	943	537	28	775	4	1/2"NPT	φ30/27	20	Lateral
36"	943	597	28	775	4	1/2"NPT	φ30/27	20	Lateral
36"	943	597	28	775	2	1/2"NPT	φ30/27	11	Lateral
36"	930	465	28	708	3	ZG1/2"	φ30/27	20	Lateral
38"	950	475	30	716	4	ZG1/2"	φ30/27	34	Lateral
42"	1095	752	28	889	4	1/2"NPT	φ30/27	20	Lateral
42"	1095	752	28	889	4	1"NPT	φ57/48	38	Lateral
48"	1283	794	29	1016	4	1/2"NPT	φ30/27	20	Lateral
48"	1283	794	29	1016	4	1.5"NPT	φ86/71	57	Lateral
52"	1320	760	40	1040	3	ZG1"	M45×1.5/42	65	Radial
60"	1522	840	29	1181	6	1/2"NPT	φ30/27	20	Lateral
60"	1522	840	29	1181	6	1"NPT	φ57/48	38	Lateral

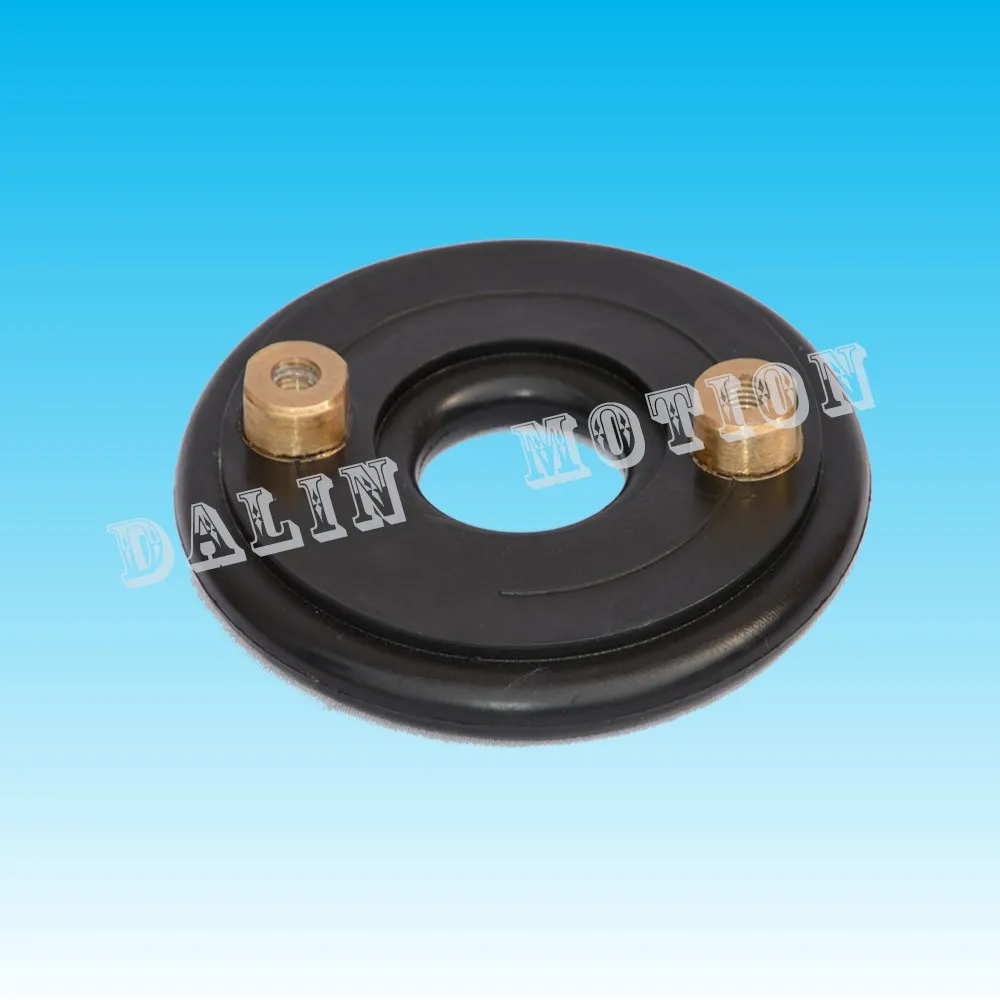

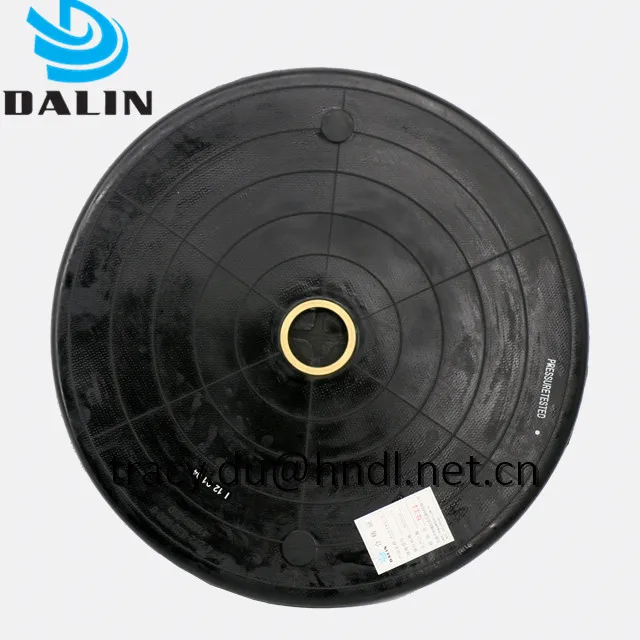

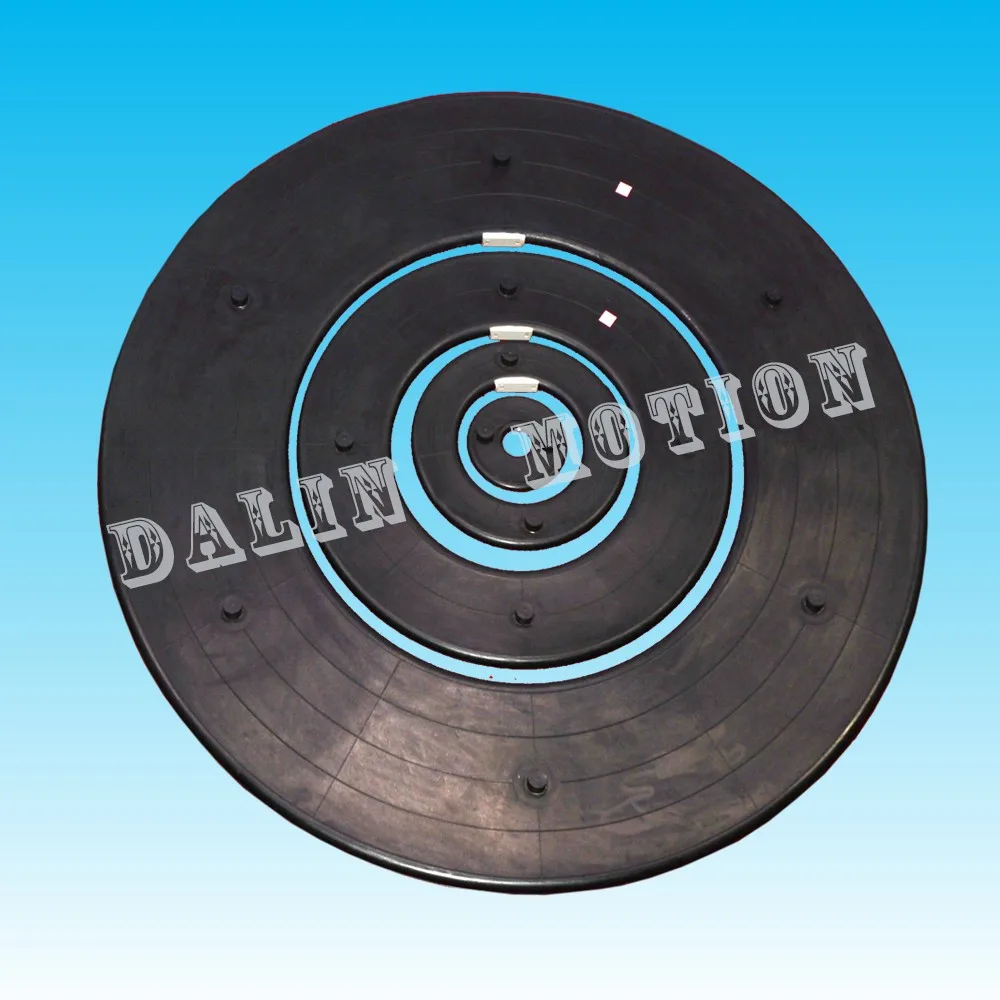

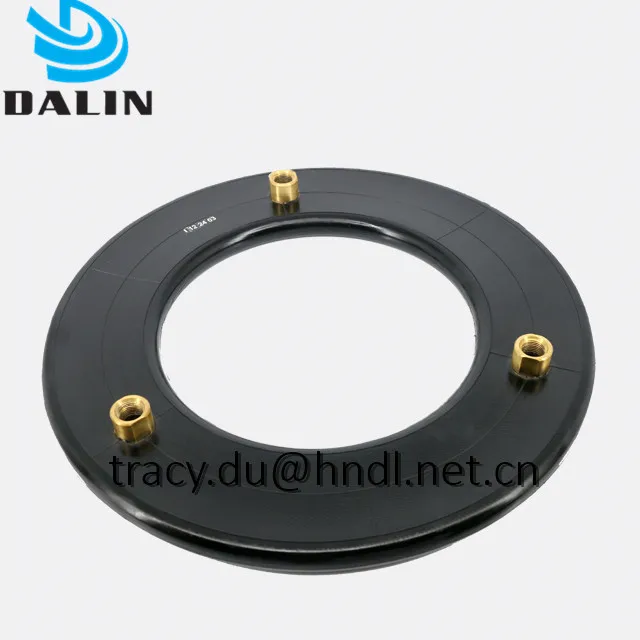

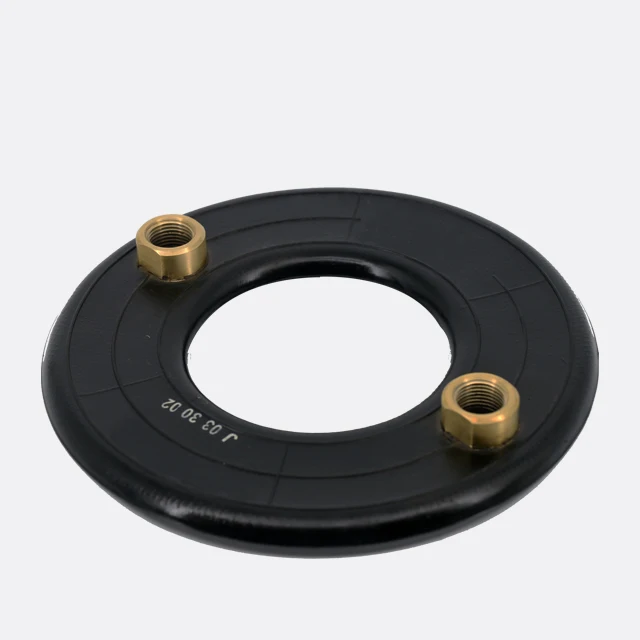

Product Pic:



 Company inforamtion:

Henan Dalin rubber Co,Ltd is a professional manufacturer with more than 20 years, specialized in clutch air tube ,VC clutch and CB clutch,pulsation dampener bladders,our products strictly implement the ISO 9001:2008 Management System.

Main market:USA,UK,Russia,Mid East,India,Dubai,Saudi Arabia etc.

Payment: 50% deposit for bulk production and balance before delivery.

We're 100% confident in our quality and price,all related serives are very convenient and comfortable for you.
