Однофазное измерение двойная цепь защита от кражи событий/сигнализация Электрический измеритель
- Категория: >>>
- Поставщик: Yueqing,Logos,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10.59 $* | 11.68 $* |
| Aug-19-2025 | 9.62 $* | 9.24 $* |
| Jul-19-2025 | 8.33 $* | 8.21 $* |
| Jun-19-2025 | 9.40 $* | 9.70 $* |
| May-19-2025 | 8.89 $* | 8.66 $* |
| Apr-19-2025 | 9.36 $* | 9.91 $* |
| Mar-19-2025 | 9.28 $* | 9.28 $* |
| Feb-19-2025 | 9.37 $* | 9.30 $* |
| Jan-19-2025 | 9.48 $* | 9.95 $* |
Характеристики
Detailed Images
Product Description
Model | Accuracy | Reference Voltage(V) | Current specifications(A) | Starting current(A) | Insulation performance |
LEM056NC | Class 1 | 127 or 230 | 5(30) 10(60) 20(120) | 0.02 0.04 0.08 | AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv. |
Specifications
1.Front panel mounted in 3 points for fixing. The centre-to-centre distance between the top mounting holes and the bottom one is 130 – 147 mm, which the user can select any needed distance, in accordance with Standards BS 7856 and DIN 43857.
2.Can select the step motor impulse register of 5+1 digits (99999.1kWh) or 6+1 digits (999999.1kWh) LCD display.
3.Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.
4.Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
5.LEDs indicate the power state (green) and the energy impulse signal (red).
6.Automatic detection for the load current flow direction and will be indicated by LED.
7.Measure the active energy consumption in one direction on single phase two wire or single phase three wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
8.Direct connection. For single phase two wire, two types of connections: type 1A and type 1B for option. For single phase three wire, the connection is type 2A.
9.Can select the extended terminal cover or short terminal cover.
2.Can select the step motor impulse register of 5+1 digits (99999.1kWh) or 6+1 digits (999999.1kWh) LCD display.
3.Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.
4.Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
5.LEDs indicate the power state (green) and the energy impulse signal (red).
6.Automatic detection for the load current flow direction and will be indicated by LED.
7.Measure the active energy consumption in one direction on single phase two wire or single phase three wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
8.Direct connection. For single phase two wire, two types of connections: type 1A and type 1B for option. For single phase three wire, the connection is type 2A.
9.Can select the extended terminal cover or short terminal cover.

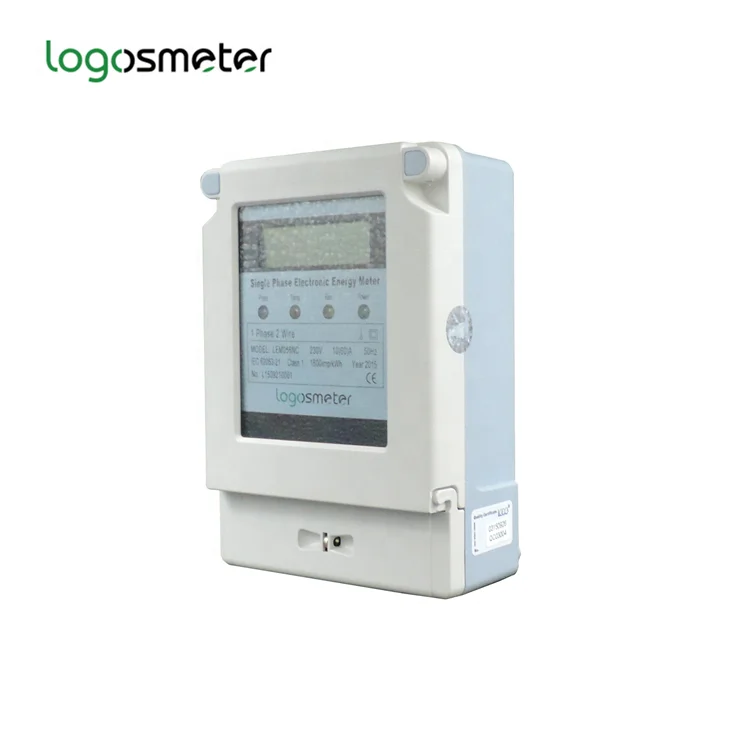

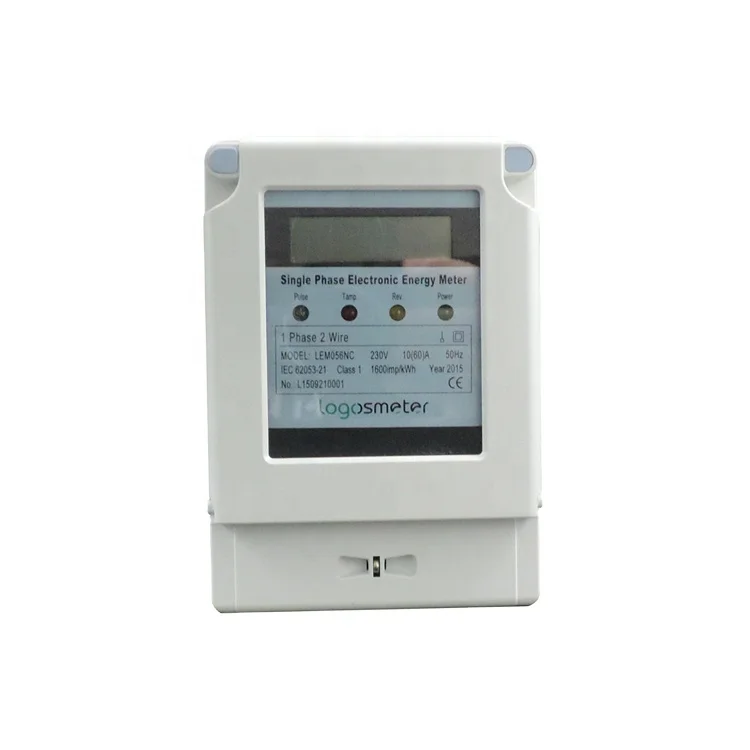

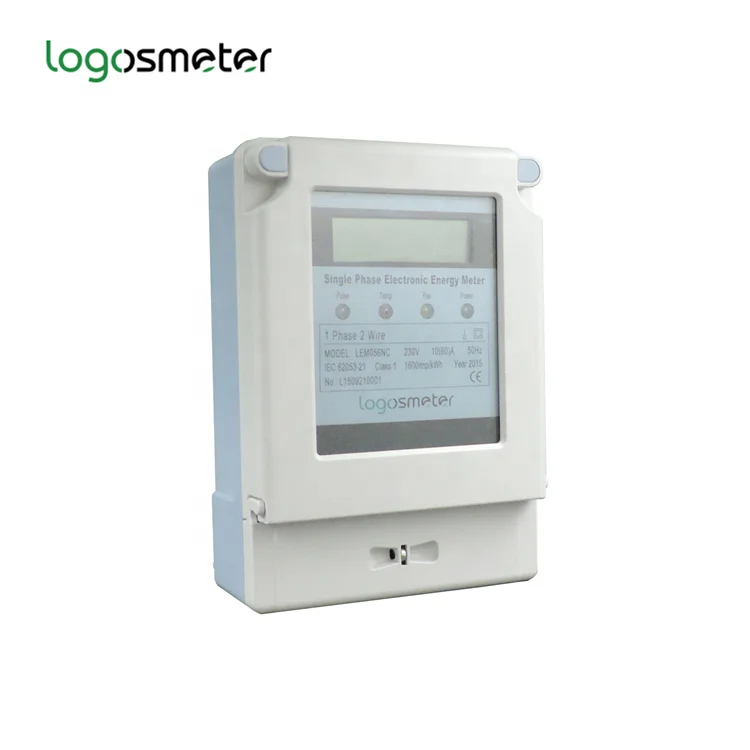

Single phase measure double circuit anti-theft Events / Alarms electrical meter LEM056NC
Other Products
Our Company
Yueqing Logos Electrical Co., Ltd. is an all-round manufacturer dedicated to research, development, manufacture and sales of top-quality energy meters. Logos furnishes itself with a strongly practical and fully experienced R&D team which is capable of keeping up with the changes of meter industry. Furthermore, Logos has established a whole industrial chain management and an innovation system of integrated organization by combining cooperation of developing the strong cooperative partnerships with the main Electric Power Research Institutes, National Institute of Metrology as well as the world-renowned electrical enterprises both at home and abroad.
Work Shop
Compression Molding
Welding Circuit Board
Testing&Calibration Product
Contact Us
Ed Cai
Call (Whatsapp/Wechat): 0086-13989776916
Website: http://www.logosmeter.com
Address: Xia'an Village, Beibaixiang Town, Yueqing, Wenzhou, Zhejiang, China (Mainland)
FAQ
Q1. Are you factory?https://www.alibaba.com/product-detail/Factory-directly-sales-din-rail-electricity_1668808129.html?spm=a2747.manage.0.0.5ef071d29t6Yvd
A: Yes ,our factory is located in Wenzhou,two hours to Ningbo,four hours to Shanghai and two hours to Yiwu by train.Only 40 minutes to Wenzhou international Airport by car.
Q2. Do you offer OEM service?
A: Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.
Q3. What′s your warranty?
A: We offer 2 years warranty.
Q4. Are samples available before order?And do you charge samples?
A: Yes ,samples are normally available in 7-10 days after the receipt of sample payment.But the sample payment will be retuened to you once place an order.
Q5. What′ s material of your product?
A: We ues fire-proof plastic for the frame,red copper and silver for inside compoents.
