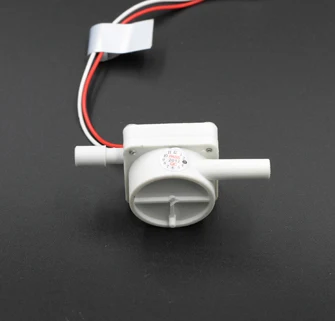

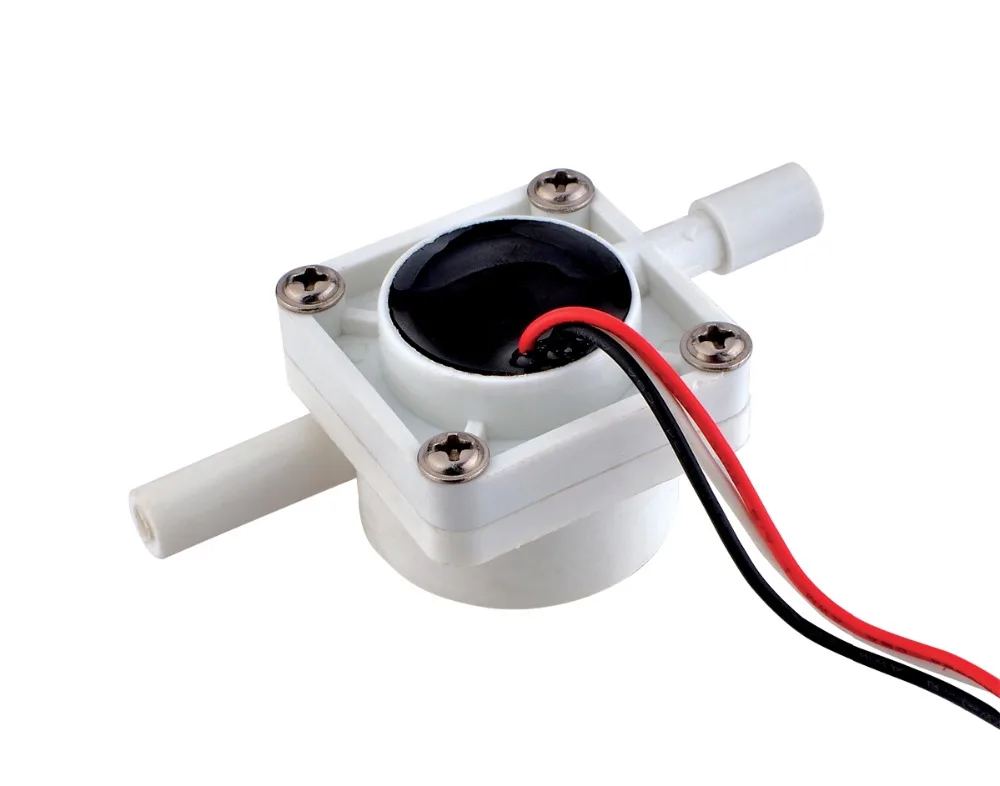

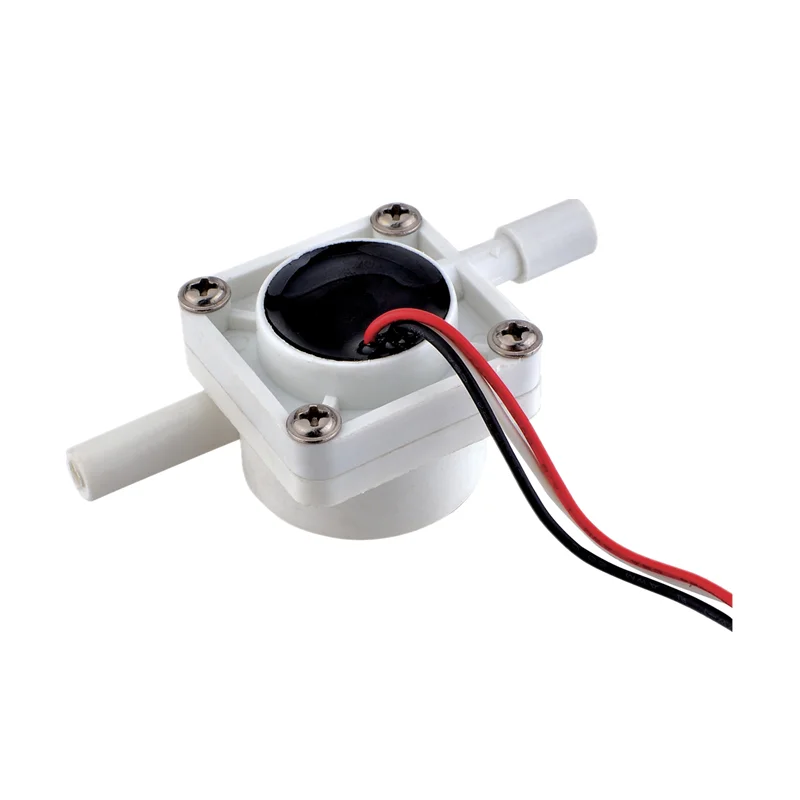

MR-A68 Float Rate Sensor Water Flow Switch For Coffee Machine, Drinking Machine, Intelligent Toilet



1.Low cost      2.Long life      3.Simple installation        4.Wide application











 Operating principle



As liquid passes through the RotorFlow body, the magnetic rotor spins at a rate proportional to flow. This Causes a series of magnetic fields (the rotor vanes) to excite the Hall Effect sensor, producing a series of voltage pulses



Features



* Imported components of the magnetic switch

* Simple working principle

* Highly reliable

* Easy to install

* No standby power requirements

* Cheap costs



Applications

   It is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.



withstand hydraulic pressure	≤0.35Mpa
voltage rating	DC5V-24V
insulation resistance	>100MΩ
precision	0.2-6L/M  2-30L/M  1-60L/M
flow pulse	F=(18Q)+5% Q=L/min
output pulse duty cycle	50%±10%
max output pulse voltage	>DC4.7V
min output pulse voltage	<DC0.5V
body material	glass-filled PP



     Package

       Polybag and standard export cartons, also we can provide customized design for all kinds of packages.



    Production Line

       Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.

    Latest Exhibitions

       We attended the electronica India 2016 in India in Sept 2016, new products have won the praise of many buyers.



      Owned Certifications
