Китайская заводская цена высококачественные автоматические кормушки и поилки для птицы полива бройлеров

Weifang U-Best Husbandry Equipment Co.,Ltd

We are professional leading manufacturer and supplier of poultry feeders and drinkers in China!

Our equipment has passed ISO9001:2008 Quality Management System Certification ,CE and PC Certification By SGS/Soncap/SASO!

We have our own production line so we can control the quality very well! Our poultry poultry feeders and drinkers have been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Indonesia, Philippines, Uzbekistan, Columbia, Costa Rica, Paraguay, Guyana, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.

Welcome to contact Ms. COCO in U-Best company!

A Complete Set Automatic Poultry Feeders and Drinkers Includes The Following Parts:

(1) main feed line of silo;

(2) pan feeding line system;

(3) nipple drinking line system;

(4) ventilation system;

(5) cooling pad system;

(6) climate and power controller system;

(7) fogger spraying and disinfection system;

(8) heater;

(9) curtain for two side walls of open type chicken house.

Poultry Feeders and Drinkers - Chicken Farm Equipment - Modern Design Fully Automatic Control

Poultry Feeders and Drinkers

Brand: U-Best

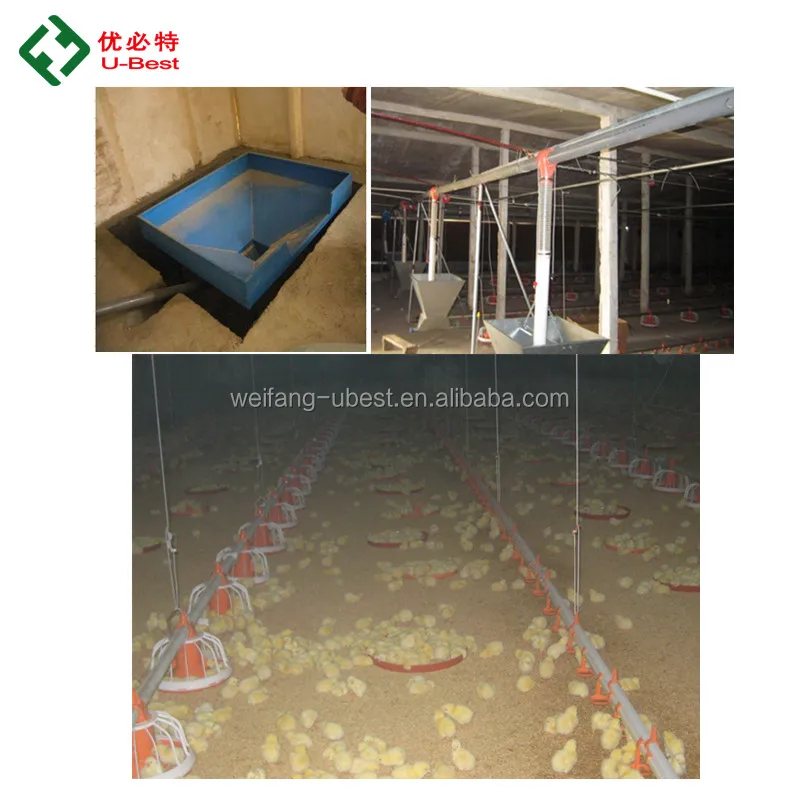

1. Automatic Main Feed Storge Line System of Silo or Manpower Hopper/Feed Bin

Silo or manpower hopper/feed bin is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper at the beggining each feeding line.

2. Automatic Pan Feeding Line System(Línea De Comedero/Alimentación)

Automatically convey feed from vice hopper into each feeder pan/Comedero/Alimentacion.

• Driving Motor: high-quality special driving reduction motor, Taiwan Wanxin and Italy Transtecno for your choice,0.75KW/1.1KW/1.5KW.


• V-Shaped Bin with Hopper: 70/90KGS capacity, hot dip galvanize sheet


• Feed Tube: Φ45mm diameter,hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2,


• Auger: Helical spring auger from South Africa,


  Feeding ability:450kg/h


  Maximum conveying length:150m


•


  Pan Feeder(Type of Plasson/Valco Double Grill/Bigdutchman): 4 pans/3 meters, 3 pans/3 meters.




  Material: 100% virgin raw material PP





•

  Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.




• Hanging System: winch in the middle of house, hanging point 3m, all steel wire.


• Anti-roost System

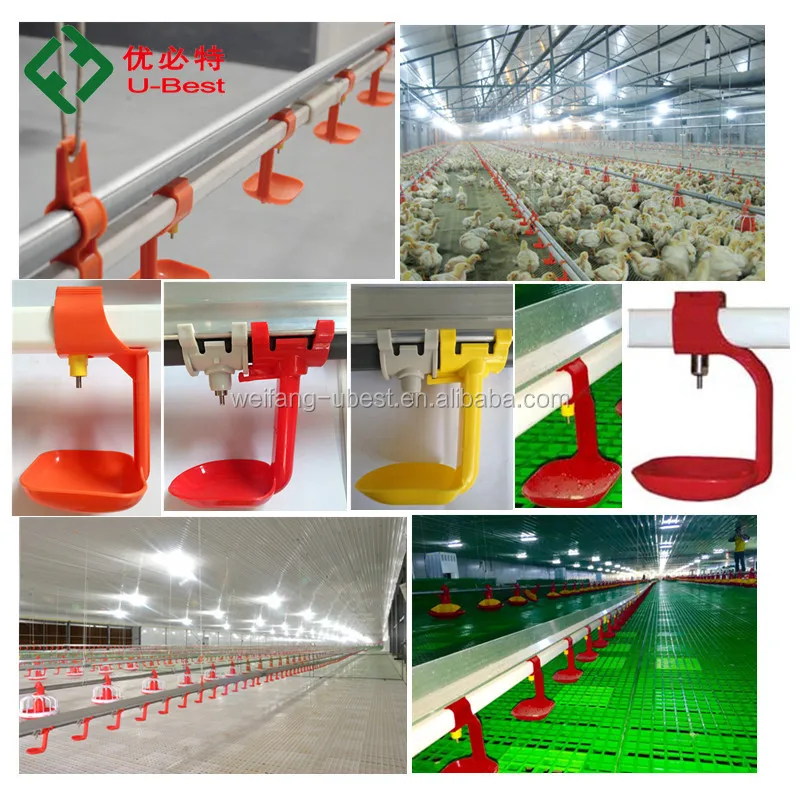

3. Automatic Nipple Drinking Line System(Línea de Bebedor de Agua).

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.

Three kind  poultry automatic nipple drinking/drinker system for your choice:

•


   Bigdutchman Type: square water pipe with galvanized support.





•


  Plasson Type: round water pipe with aluminum support





•


  Lubing Type: square water pipe with aluminum support.


  Different Type Nipple Drinker But All Is Double Seal Structure which is absolutely no water leak.

A Complete Nipple Drinking Line System Includes The Following Parts:

• water front system: front controller for drinking system,including filter, water meter and doser medicator etc, which is used to adjust water supply and stabilize drinking volume.


• water pipe with nipple drinker and drip cup(type of Plasson/Lubing/Bigdutchman): 12nipple or 15nipple/3m, 20 nipple/4m.


• pressure regulator: double water-inlet-tube and flushing pressure regulator ensure large water flow.


• water-level display pipe


• hanging system

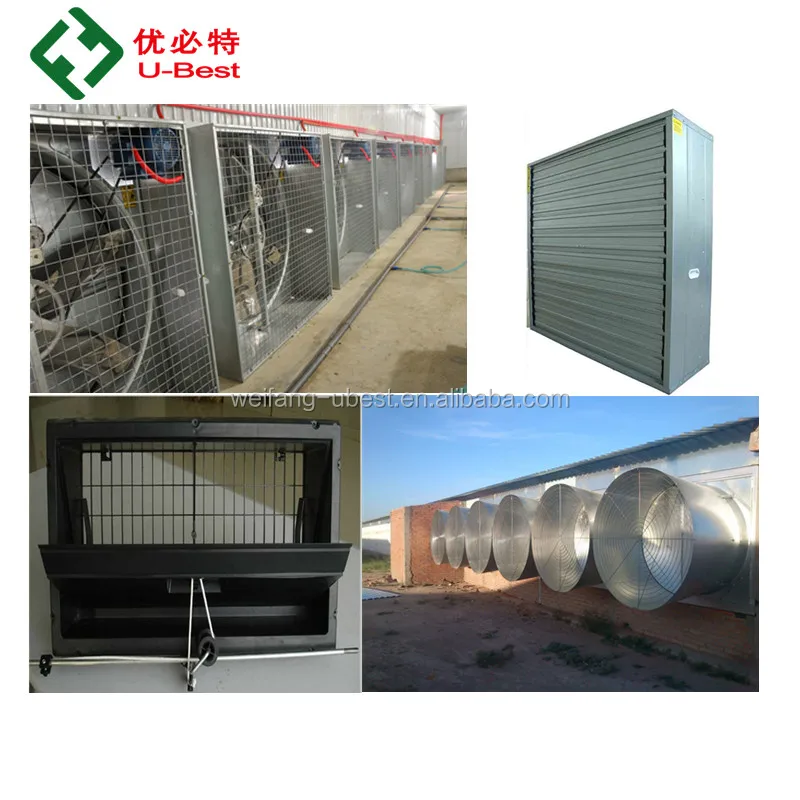

4. Automatic Ventilation System/Ventilator/Extrador

This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.

• 36” Box Fan: 20800m3/Hr, 1000×1000×450mm, 0.5kw


• 50” Box Fan: 43070m3/H, 1380×1380×450mm, 1.1kw


• 50” Butterfly Cone Fan: 1.1KW 6 fan blades, Air capacity: 49452m³/h.

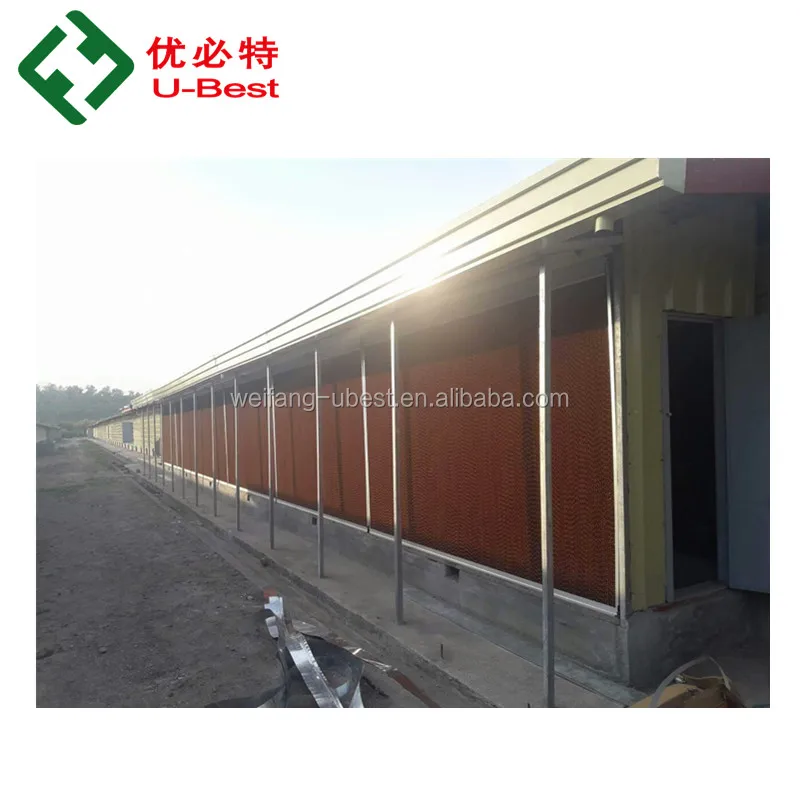

5. Automatic Cooling Pad System(Evaporativo Panel de Enfriamiento).

Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.

Color: black, yellow, green, red etc; Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)

Frame: Aluminium frame -high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.

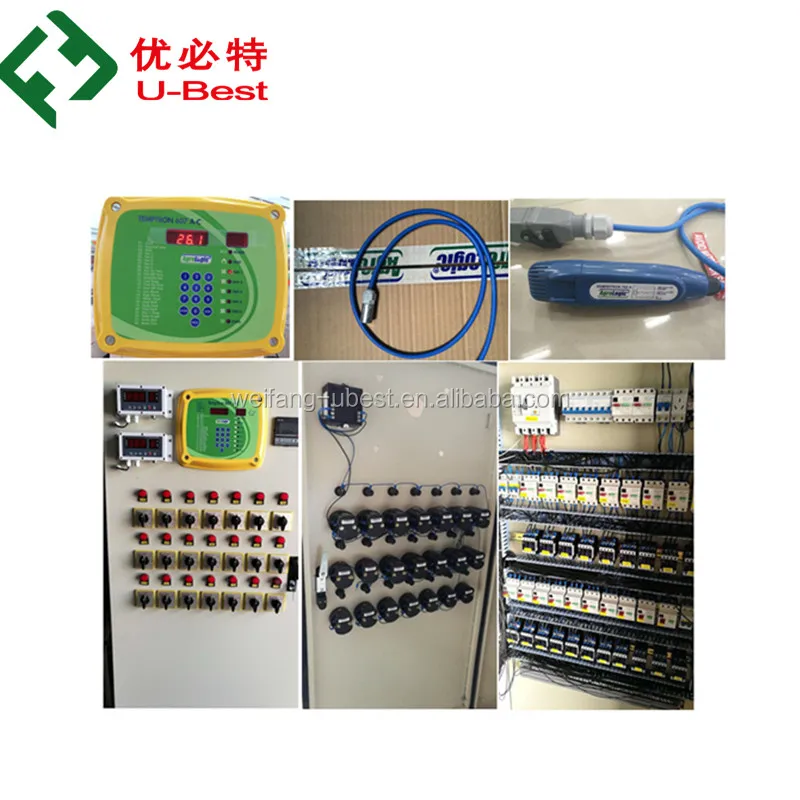

6. Automatic Environment and Power Control System/Controlador.

This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.

The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.

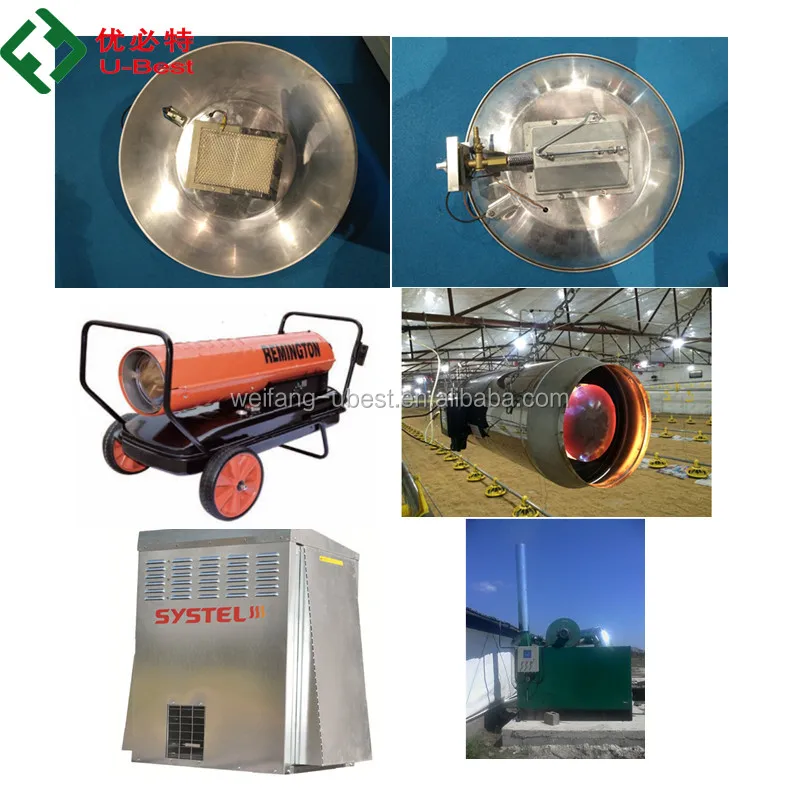

7. Automatic Heater System/Criador/Calentador.

 Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.

Standard export package of whole poultry feeders and drinkers equipment for export is in container. Shipment in 15 days after the order confirmation.

Poultry Farm Chicken Feeders and Drinkers Equipment Projects

Our this full automatic broiler poultry feeders and drinkers equipment are widely used in many different chicken farm projects around the world, like Philippines, Indonesia, Uzbekistan, Vietnam, Bangladesh, Papua New Guinea, Fiji, Australia, Mozambique, Zimbabwei, Namibia, Tanzania, Nigeria, Sudan, Mali, Algeria, Palestain, Saudi Arabia, Qatar, Afghanistan, Guyana, Costa Rica, Columbia, Palaguay and Chile etc.

FAQ:

1. Q: I need a complete set poultry feeders and drinkers modern broiler chicken farm shed, and also need a best price, what should I do?

A: pls let us know:

(1). Chicken House Size (length x width x height).

(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.

(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).

(4). Maximum and Minimum Temperature of Farm Location.

(5). House Type: close type of two side bricks building wall with 36” fans and air inlets, or open type of using curtain in two sides.

2. Q: what's the material of feeding pan and feeding pipe?

    A: the material of feeding pan is 100% PP.

         the material of feeding pipe is galvanized pipe.

3. Q:  how long is the life of your products?

   A: more than 15 Years.

4. Q: Do you have any certificate?

   A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?

    A: yes. but the client pay for the freight fee.
