JK6836BT Bluetooth mp3 usb fm radio module motherboard for Portable Boombox

 1.JK6836BT Bluetooth mp3 usb fm radio module motherboard for Portable Boombox function.

 USB/TF /MP3/Line in (AUX)/FM/Bluetooth

  MP3 decorder support 32–320kbps

  FAT16 or FAT32 systems supported

  4 Keys: MODE, NEXT/V+, PLAY/PAUSE/SCAN, PRE/V-

 With Remote control

 2, Keys function:

MODE: USB/TF /AUX/FM/Bluetooth switch.

NEXT/V+: Under MP3 mode,  short press NEXT, long press VOL+.
         Under AUX mode, press VOL+.
         Under FM mode, short press to selection up, long press VOL+.

         Under bluetooth mode, press VOL+.

PLAY/PAUSE:Under MP3 mode, short press PLAY/PAUSE, long press choose next folder

             Under AUX mode, press play/mute.
             Under FM mode, short press to automatic selection.

             Under bluetooth mode, press play/mute.
PRE/V-: Under MP3 mode, short press LAST, long press VOL-.
       Under AUX mode, press VOL-
       Under FM mode, short press to selection down, long press VOL-.

        Under bluetooth mode, press VOL-.



3, Power supply DC5V

 4, Remote Control--- Keys function

Power :ON/OFF  (standby)
Mode : Same function with Long press Play/Pause button on pannel for switch the working Mode
PREV: For Previous song in USB/TF state
NEXT: For Next song in USB/TF state
VOL+ : Volume up
VOL-: Volume down
RPT: For switching one song repeat or all song repeat in USB/TF state, default is all song repeat .
U/TF: Switch USB/TF /FM scan.
MUTE: First press mute , press again will release from mute.
EQ : NORMAL/JAZZ/ROCK/POP/CLASSIC/COUN
PLAY/PAUSE : For play and pause in USB/TF state.
Button 0-9 : Select song in USB/TF state, if the song number over 9 , just input the numbers in series .

5,Panel  dimension :105*25.5mm

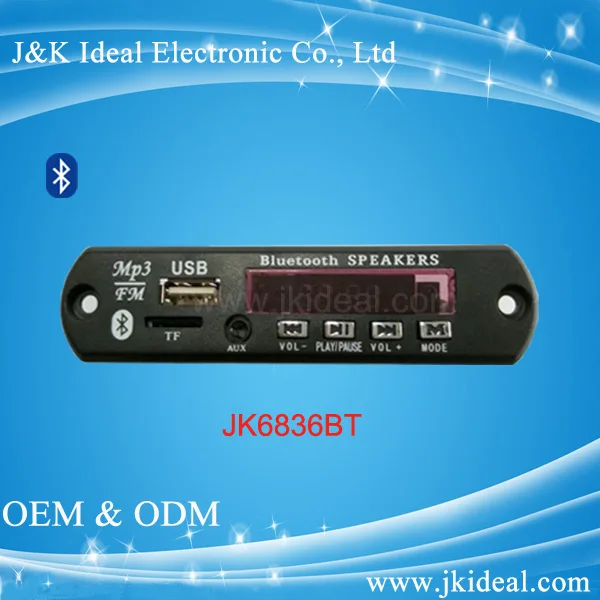

JK6836BT Bluetooth mp3 usb fm radio module motherboard for Portable Boombox photo

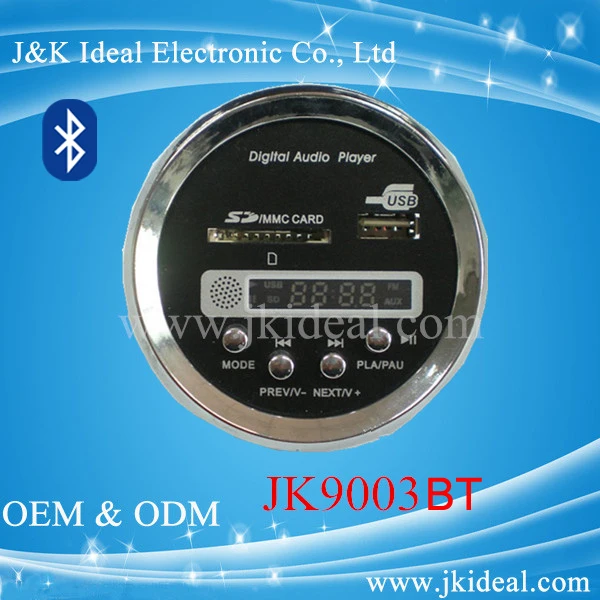

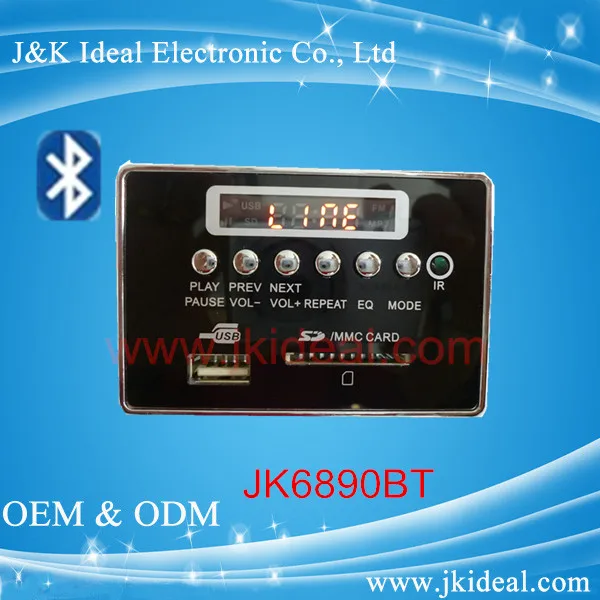

More Products for Reference:
