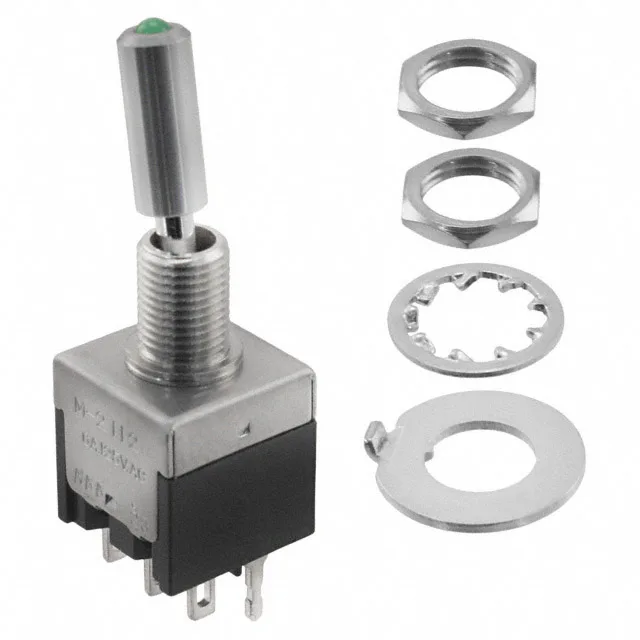

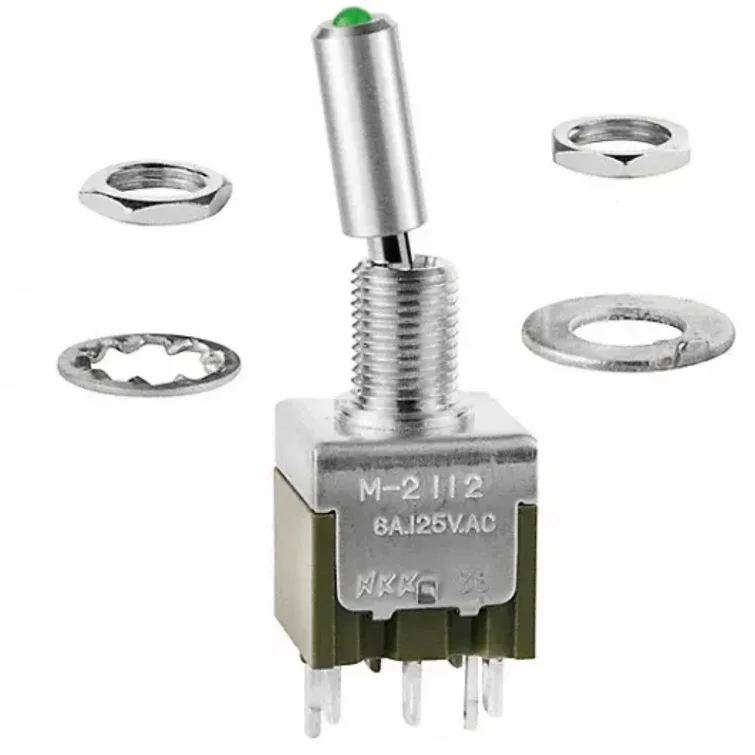

NKK Switches M-2112 illuminated Miniature LED Toggle Switch M2112LFW01
Industry’s first LED illumination at tip of toggle switches.
Single color LEDs green, bicolor red/green,to meet varied design requirements.
LEDs can operate independently from or synchronously with switching operation.
Antijamming feature to protect contacts from damage due to excessive downward force on the toggle.
M2112LFW01 in stock
Stainless steel frame resists corrosion.
Silver contacts are of specially composed alloy for
hardness.
Power Level (silver): 6A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
Logic Level (gold): 0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Other Ratings
Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
Insulation Resistance: 1,000 megohms minimum @ 500V DC
Dielectric Strength: 1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
Mechanical Life: 50,000 operations minimum
Electrical Life: 25,000 operations minimum
Nominal Operating Force: On-to-On Position Off-to-On Position
SHUNTU: M2112JFW01;M-2112JM;M2112JFW13;M-2112JM-B;
M2112JCW01;SHUNTU;RO;M-2112JR;M2112JCW13;M-2112JR-B;
M2112JCFW01;M-2112JRM;M2112JCFW13;M-2112JRM-B;
M2112JEW01;M-2112JY;M2112JEW13;M-2112JY-B;
M2112LFW13;M-2112LM-B;M2112LFG30;M-2112LM-H;M-2112LM;
M2112LCW13;M-2112LR-B;M2112LCW02;M-2112LR-F;M-2112LR;
M2112LCG30;M-2112LR-H;M2112LEW13;M-2112LY-B;M-2112LY;
M2112LEG30;M-2112LY-H;M2112LCFW01;M-2112-N229-RM;
M2112LFW01;M-2112NLMS1;M-2112NLMS;M-2112NLM;M-2112NL;M2112LCW01;
M-2112NLRS1;M-2112NLR;M-2112NLRS;Beijing Shuntu
M2112LEW03;M-2112NLYP;M-2112NLY;M2112NFW01;M-2112NM;
M2112NFW13;M-2112NM-B;M2112NFW02;M-2112NM-F;
M2112NFG30;M-2112NM-H;M2112NFW03;M-2112NM-P;
M2112NFW01/U;M-2112NMUL;M2112NCW01;M-2112NR;
M2112NCW13;M-2112NR-B;M2112NCW02;M-2112NR-F;
M2112NCG30;M-2112NR-H;M2112NCFG30;M-2112NRM-EDK;M-2112NRM;
M2112NCW03;M-2112NR-P;M2112TFW01;M-2112NTMS1;M-2112NT;
M-2112NTM;M-2112NTMs;M2112TCFW01;M-2112NTR;M-2112NTRMS1;
M-2112NTRM;M2112TCW01;M-2112NTRS1;SHUNTU;RO;M-2112NTRS;
BEIJING SHUNTU;M2112TEW03;M-2112NTY;M-2112NTYP;
M2112TEW03/U;M-2112NTYPUL;M2112NEW01;M-2112NY;
M2112NEW13;M-2112NY-B;
M2112NEW02;M-2112NY-F;M2112NEG30;M-2112NY-H;
M2112NEW03;M-2112NY-P;M2112PFW01;M-2112PM;
SHUNTU;M2112PFW13;M-2112PM-B;M2112PCW01;M-2112PR;
M2112PCW13;M-2112PR-B;M2112PEW01;M-2112PY;
M2112PEW13;M-2112PY-B;M2112RFW01;M-2112RM;
M2112RFW13;M-2112RM-B;M2112RFW02;M-2112RM-F;
M2112RFG30;SHUNTU;RO;M-2112RM-H;M2112RFW03;M-2112RM-P;
M2112RCW01;M-2112RR;M2112RCW13;M-2112RR-B;
M2112RCW02;M-2112RR-F;M2112RCG30;M-2112RR-H;
M2112RCW03;M-2112RR-P;M2112REW01;M-2112RY;SHUNTU;
M2112REW13;M-2112RY-B;M2112REW02;M-2112RY-F;
M2112REG30;M-2112RY-H;M2112REW03;M-2112RY-P;
M2112TFW13;M-2112TM-B;M-2112TM;M2112TFG30;M-2112TM-H;
M2112TCW13;SHUNTU;RO;M-2112TR-B;M-2112TR;M2112TCG30;M-2112TR-H;
M2112TCFW13;M-2112TRM-B;M-2112TRM;M-2112TRM;M2112TCFG30;M-2112TRM-H;
SHUNTU:M2112TEW13;M-2112TY-B;M2112TEG30;M-2112TY-H;M-2112TY;
