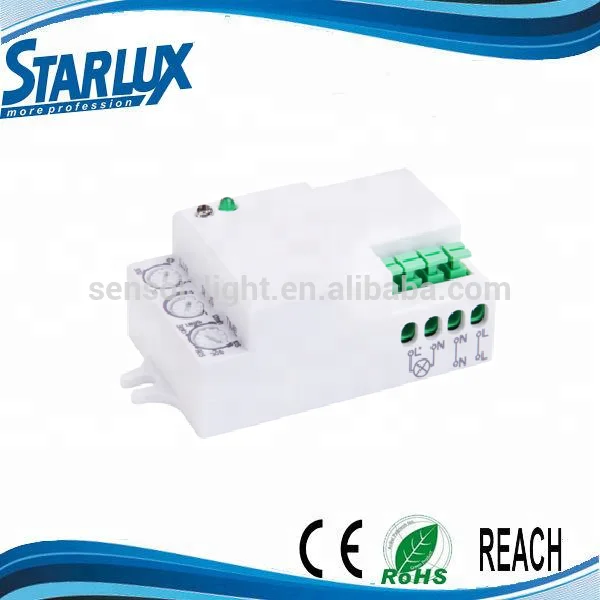

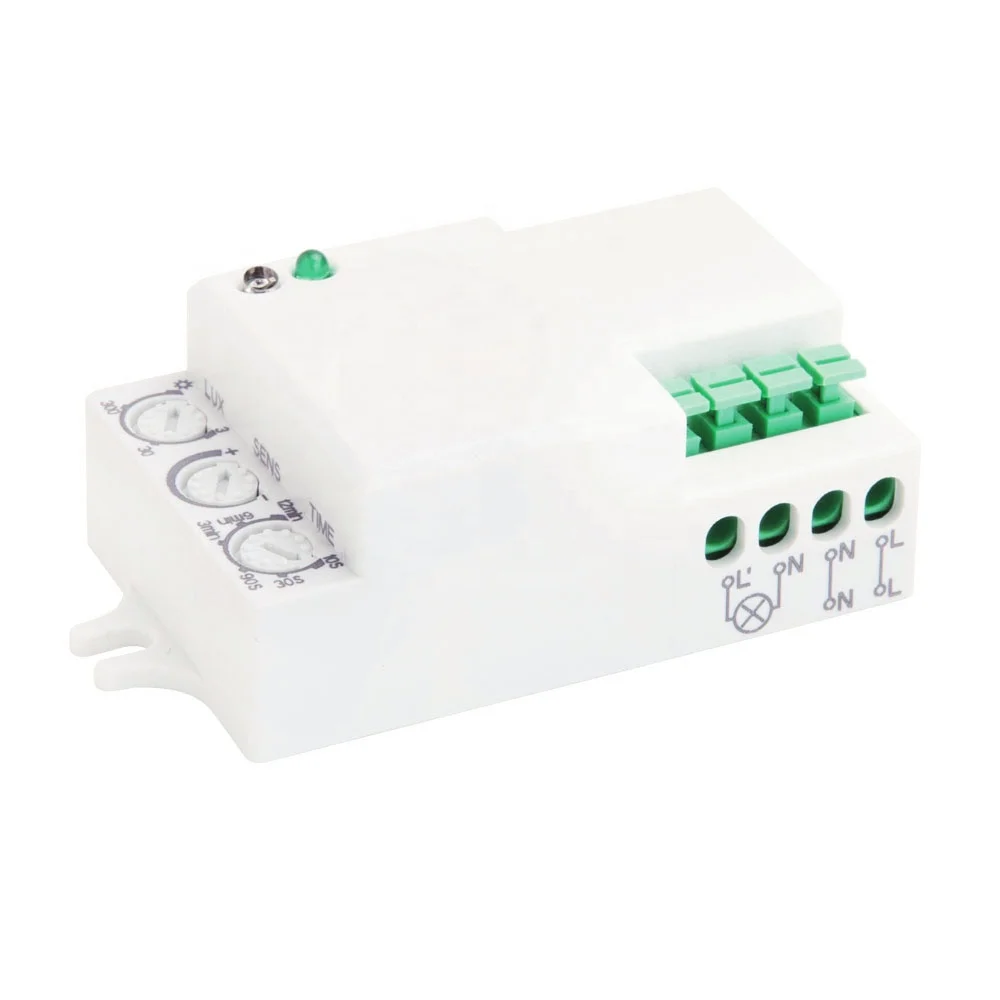

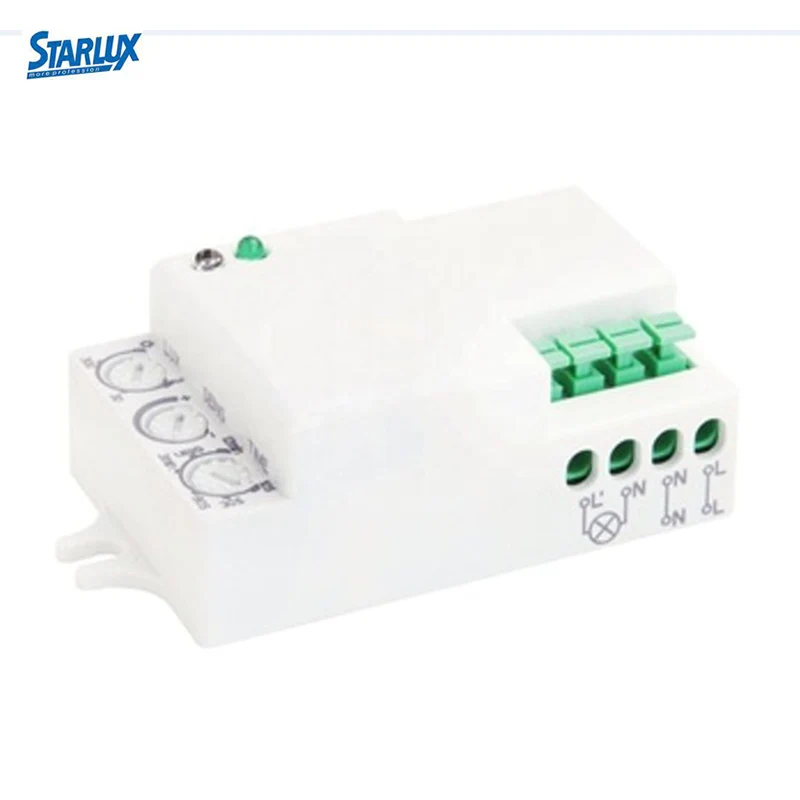

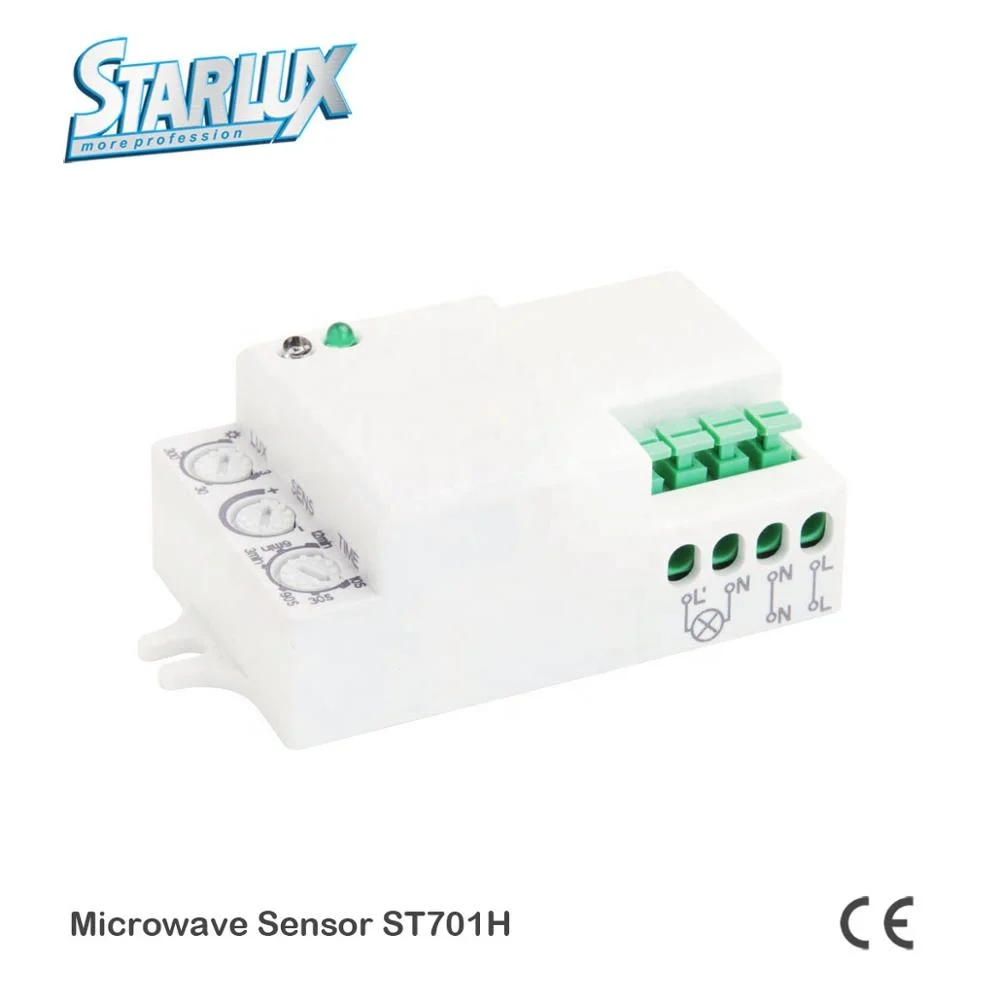

New Inventions Indoor Small Plastic ST701H Microwave Radar Sensor Motion Sensor Light Switch

The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz) and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. The wide detection field depends on detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible to go through doors, panes of glass or thin walls.





Electronical Characteristics:

Power Source: 220 -240V/AC                               Detection Range: 360°/180°



Power Frequency: 50/60Hz                                   Detection Distance: wall: 5-15m (adjustable)



Ambient Light: <3-2000LUX (adjustable)                                                ceiling: 1-8m (radius), adjustable



HF System: 5.8GHz CW radar, ISM band             Transmission Power: <0.2mW



Time Delay: Min. 10sec±3sec                               Installing Height: wall 1.5-3.5m



                      Max.12min±1min                                                              ceiling: 2-8m



Rated Load: 1200W (incandescent lamp)             Power Consumption: approx 0.9W



                     300W (energy-saving lamp)             Detection Motion Speed: 0.6-1.5m/s



Lifetime and Warranty:

Lifetime (hr)	26000-45000 at least
Warranty	5 years



FUNCTION:

Ø  Can identify day and night: It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 2m and high sensitivity could be 16m which fits for large room.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Ø  Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time is 10sec±3sec. The maximum is 12min±1min.



INSTALLATION: (see the diagram)

Ø  Switch off the power.

Ø  Fix the bottom on the selected position with the inflated screw through the screw holes at the side of the sensor.

Ø  Connecting the power and the load to sensor as per the connection-wire diagram.

Ø  Switch on the power and test it





CONNECTION-WIRE DIAGRAM:
