Немонтированный прецизионный воздушный щит используемый в оптических системах

• New Mounted Version Provides Secure Mechanical Support


• Ideal for Spectrophotometer Image Analysis


• Used in Optical Systems and Educational Efforts. By scanning across the focal point, MTF and point spread function can be calculated. More commonly used in light aperturing, spectrophotometer image analysis, and various optical experiments. 3/8" (9.5mm) stainless steel disc.











































  Material:	stainless steel, aluminum, phosphor bronze, beryllium copper and other copper alloys
  Thickness:	0.01 mm, 0.02mm, 0.03 mm, 0.05 mm,0.08mm, 0.1 mm, 0.12mm,0.13mm, 0.15 mm, 0.2mm, 0.25mm, 0.3 mm
  Surface finishing:	Black Anodized
  Outer Diameter:	9.5 mm or at customer's request
  Slit Length:	3mm or at customer's request

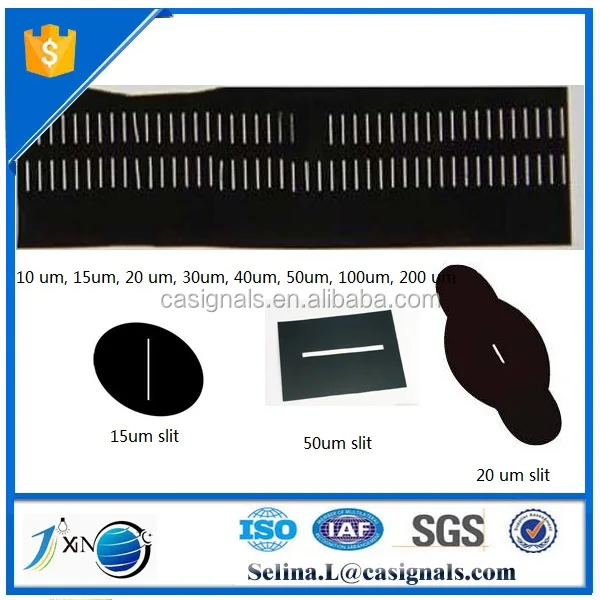

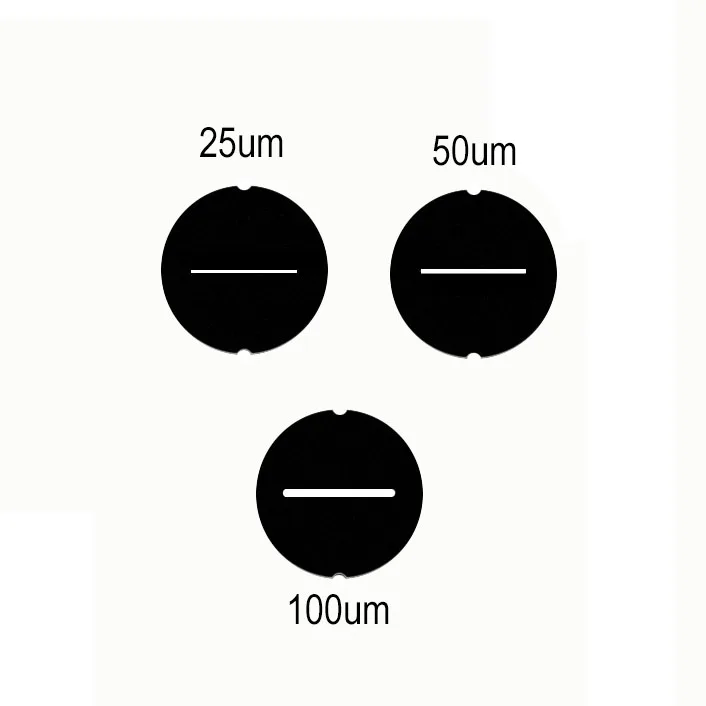

  Slit width:	5um,10um,25um,50um,75um,100um, 200um,500um,1000um or at customer' request
  Type:	Unmounted
  RoHS:	Compliant




We are Specializing in making high precision air slit by photo chemical etching and laser cut.

Photo Chemical etching is a superior method to make Precision air slit or other parts used in optical applications. The process creates precise openings to your exact specifications. Parts are created without burrs. Burrs can affect the size and shape of the opening and flatness of a part. Chemical etching all not add stress to the metal which can affect the flatness of the part. In addition, when the undesired material is dissolved instead of stamping or machined away, there is no work hardening to the edges which could affect the performance of the part.

All air slit can be customized, please send us your drawing for a quotation.

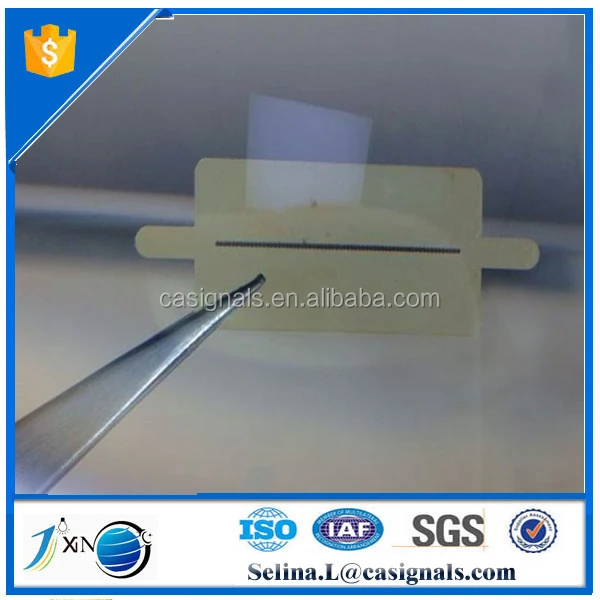

Air slit 10um

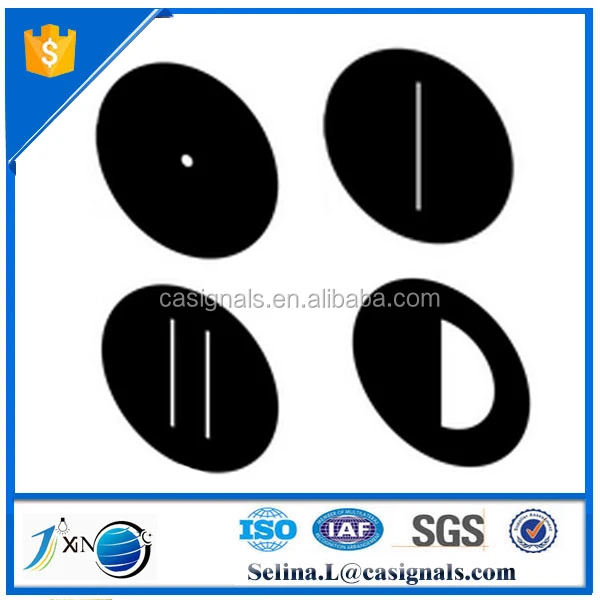

Optical mask

TEST EQUIPMENT--two dimension measuring instrument

If you want to make any optical air slit, please send us your drawing or tell us the size you need, we will contact you at the first time.

Send your inquiry now ! we are the right person you are looking for !
