LXC6620B-4G LIXiSE интеллигентая (ый) Пульт дистанционного управления мониторинг генератор amf
- Категория: Детали и аксессуары для генераторов >>>
- Поставщик: Dongguan,Feirui,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 174.14 $* | 177.10 $* |
| Jul-16-2025 | 141.5 $* | 144.50 $* |
| Jun-16-2025 | 171.55 $* | 174.21 $* |
| May-16-2025 | 170.87 $* | 173.37 $* |
| Apr-16-2025 | 136.26 $* | 139.14 $* |
| Mar-16-2025 | 167.43 $* | 170.66 $* |
| Feb-16-2025 | 166.53 $* | 169.23 $* |
| Jan-16-2025 | 164.50 $* | 167.50 $* |
Характеристики
Product Description

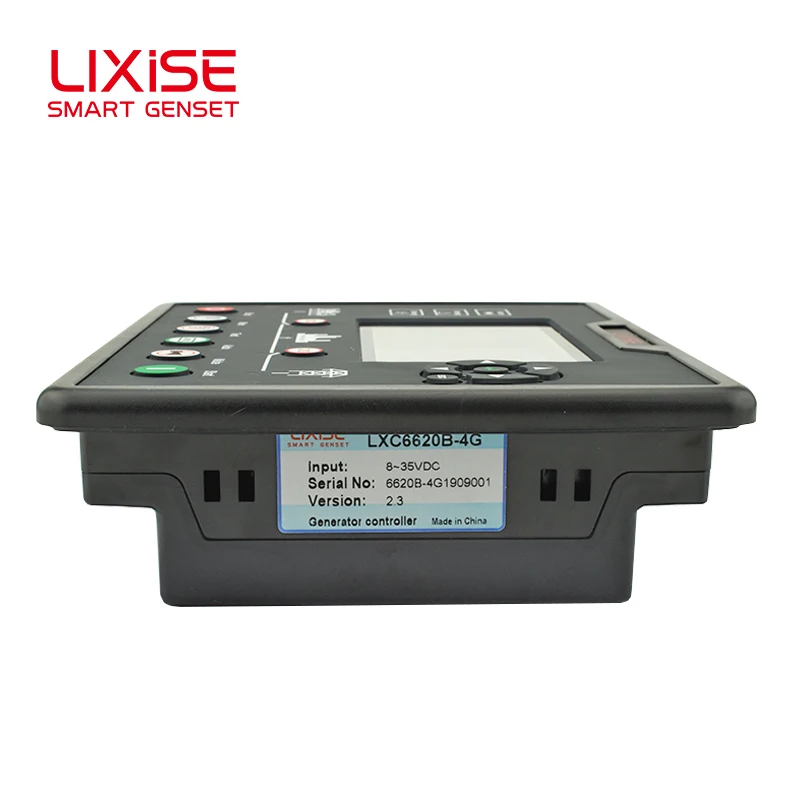

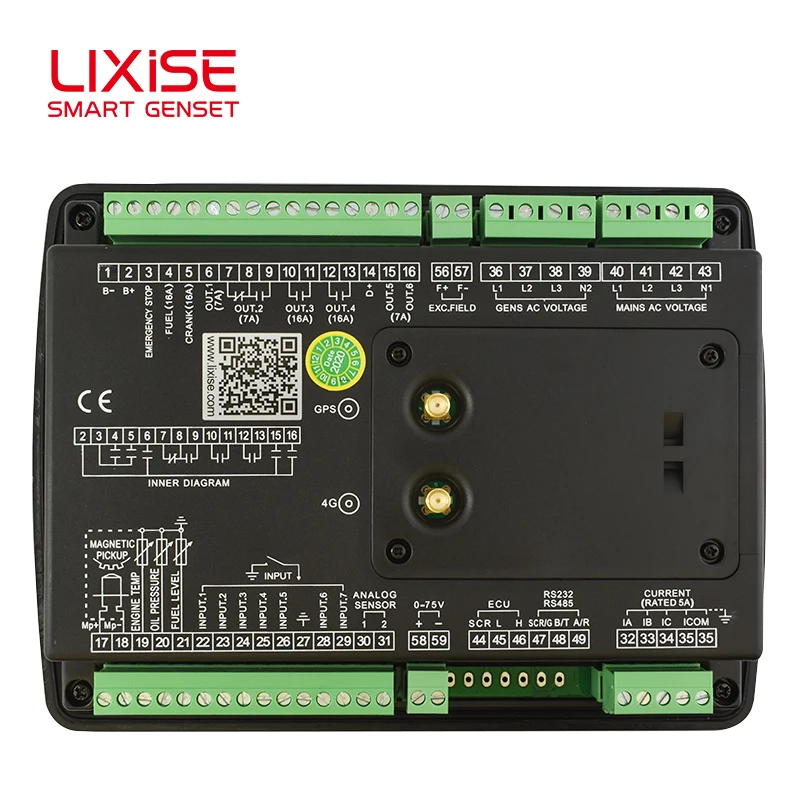

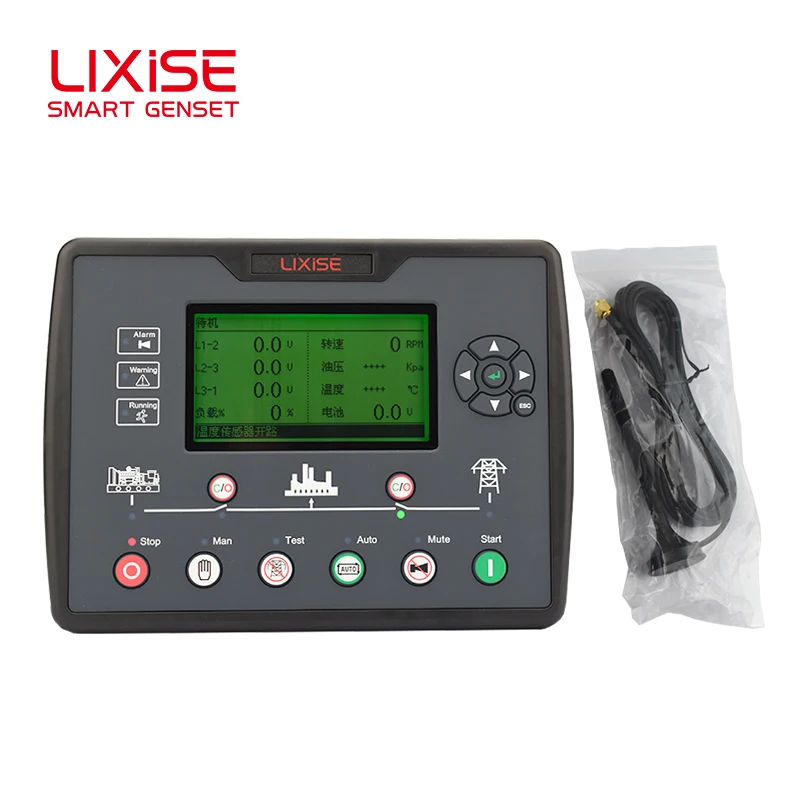

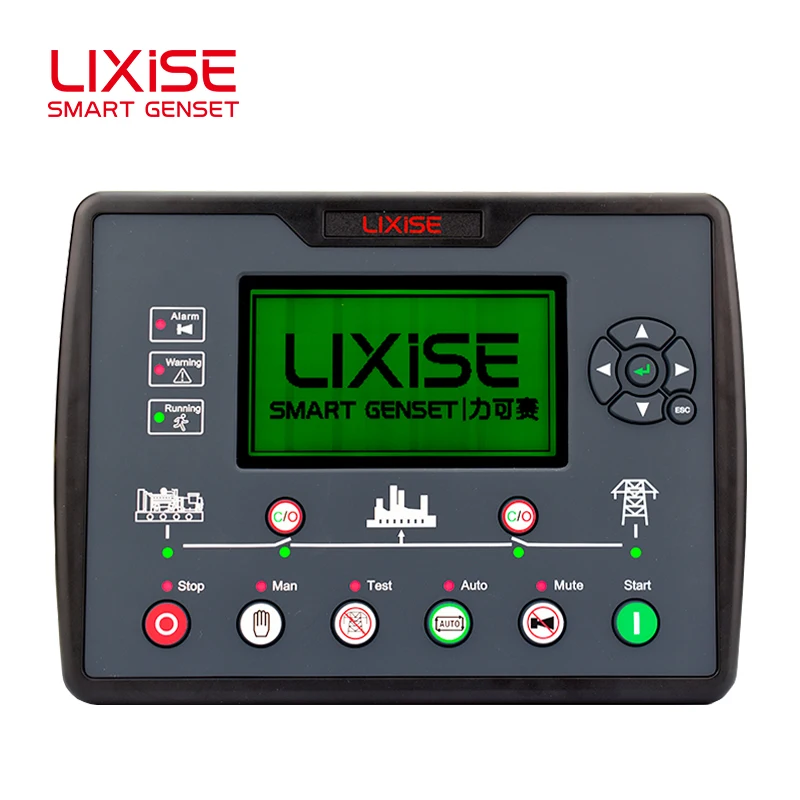

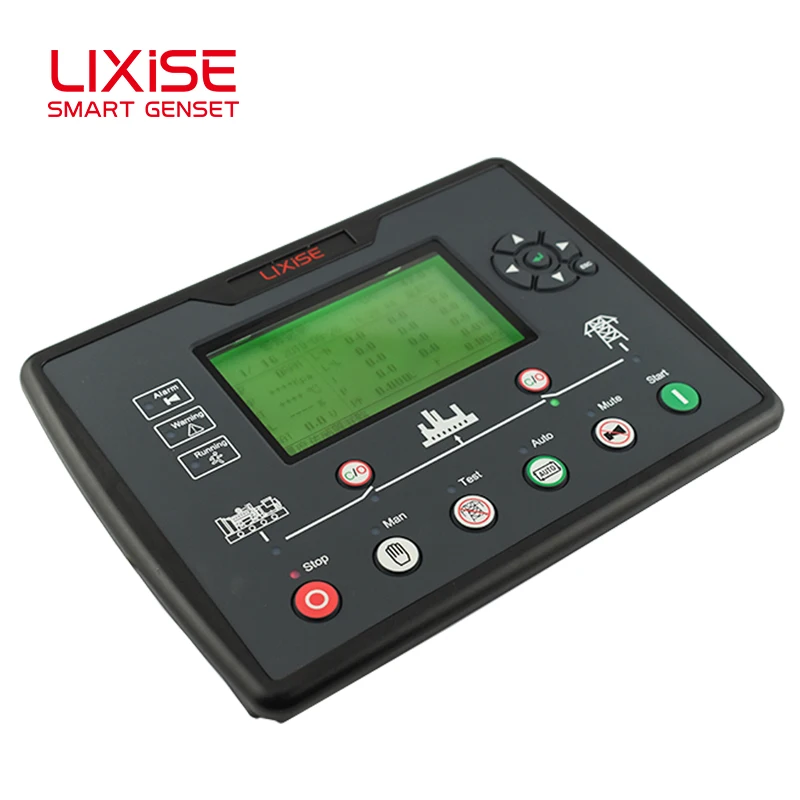

Cloud controller/Remote Monitor Control Model LXC6620B-4G
LXC6610B 4G / LXC6620B 4G all Netcom version, which is a black box cloud controller can access to the Internet directly and has a built-in communication module and an external IOT network card. This controller has patented black box technology for online monitoring.
LXC6610 wifi / LXC6620 Wifi version, which doesn’t restricted by regional communication signals, connects health cloud through router Wifi to realize global barrier free unit monitoring. This controller has patent technology of black box for online monitoring.
LXC6620B series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function. Through the built-in wireless communication module cooperate with mobile phone, you can connect the cloud server anywhere in the world, realize the unit remote monitoring, health check, early fault prevention, remote fault diagnosis and other services. Controller using high-precision electronic components, the operating temperature range is very wide: -32 ~ 75 ℃. At the same time can be displayed Chinese,English and other languages, all parameters can be adjusted from the controller panel, can also be a PC through a USB interface tweaks and RS232 or GPRS remote adjustment and monitoring. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.
No matter anywhere in the world, as long as there is the network, you can use mobile phones or computers to monitor the operation data of the generator set, control and manage the generator set remotely.
In addition to monitoring the basic information of the unit, it can also monitor the excitation voltage, the output voltage of the electric regulation, the bearing temperature, the winding temperature, etc.
Best choice
The monitoring system centered on the LXC 6610/LXC 6620 cloud controller, which is the world's first push, directly transmits data to the health cloud service system. Users use the mobile phone APP or computer for remote control.
Specification
Items | Contents |
Operating Voltage | DC8.0V to DC35.0V,Continuous Power Supply. |
Power Consumption | <3W(standby:≤2W) |
Alternator Input Range | 15V - 360 V AC (ph-N) |
3-Phase4-Wire | 26V - 620 V AC (ph-ph) |
3-Phase3-Wire | 15V - 360 V AC (ph-N) |
Single-phase2-wire | 15V - 360 V AC (ph-N) |
2-Phase3-Wire: | |
Alternator Frequency | 50/60Hz |
Speed Sensor voltage VPP | 2.2 - 100Vpp (Peak to peak) |
Speed Sensor Frequency | 10000Hz (max) |
Start Relay Output | 16Amp Controller Power Voltage Output |
Fuel Relay Output | 16Amp Controller Power Voltage Output |
Programmable Relay Output 1 | 7Amp 250VAC Voltage Free Output |
Programmable Relay Output 2 | 7Amp 250VAC Voltage Free Output |
Programmable Relay Output 3 | 16Amp 250VAC Voltage Free Output |
Programmable Relay Output 4 | 16Amp 250VAC Voltage Free Output |
Case Dimension | 210mm x 152 mm x 46 mm |
Panel Cutout | 186mm x 141mm |
C.T. Secondary | 5A Rated |
Working Conditions | Temperature: (-25~+70)℃ Humidity:(20~90)% |
Storage Condition | Temperature::(-40~+85)℃ |
Protection Level | IP55:When waterproof rubber seal installed between the controller and panel fascia. |
IP42:When waterproof rubber seal is not installed between the controller and panel fascia. | |
Insulating Intensity | Object: input/output/power |
Quote standard: IEC688-1992 | |
Test way: AC1.5kV/1min leakage current:3mA | |
Weight | 0.68kg |
Mobile phone remote monitoring display.--Real-time video.
Perfect application of cloud controller on base station
I: The special oil engine controller of base station can be used to monitor the 48V battery voltage in the machine room, which is used as the control signal of the oil engine when it starts. After the power outage, when the 48V battery is detected to have power, the oil engine will not be started, and only when it is lower than the threshold value, the oil engine can be started to generate electricity, so as to save fuel.
II： Using the special controller of the base station, you can set a time period to prohibit starting-up automatically. When it is set as 2:00 to 5:00 a.m. to prohibit starting-up, if the mains power is cut off within this time period, the unit will not start automatically , so as to save fuel.
Packing & Delivery
detail image
detail image
detail image

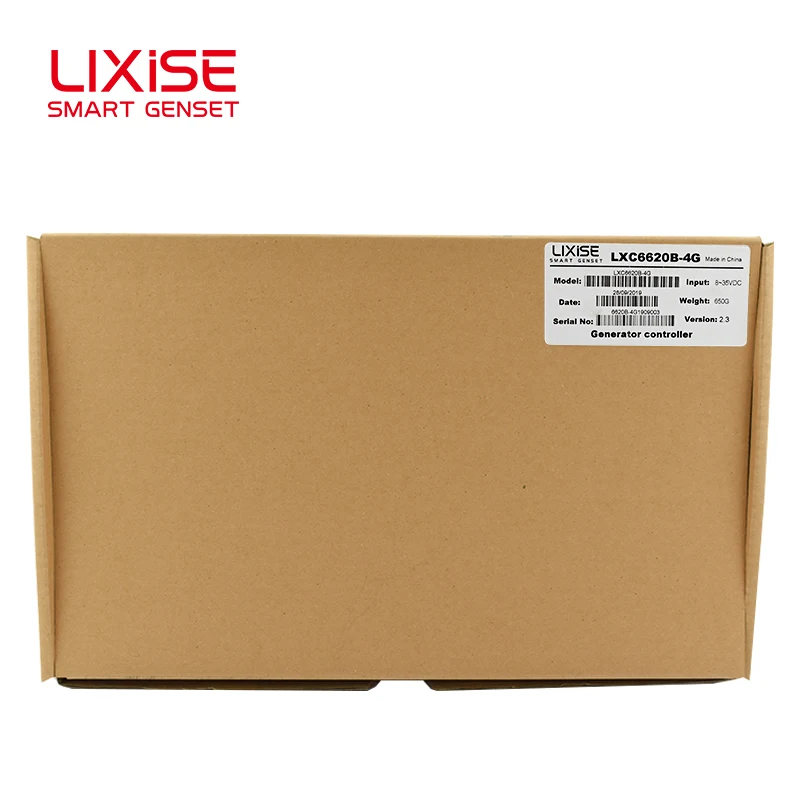

Packing Box
The packing box of each product is very strong to ensure that the product will not be damaged due to transportation.
Suitable carton size
We will choose the right size box according to the weight of the product.Too Heavy/too light is not appropriate.
Packing tape
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.
Our Certifications
Company Profile
PCBA Automatic Optical Inspection Equipment
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
Rubber sealing machine
In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even. In addition, it perfectly solves the problem that glue is not easy to dry in rainy weather, reduces the customer's waiting time, Make sure the goods are delivered on time.
Simulation Test Platform:
Quality Department anti-true Test Platform, simulation test generator operation process of electronic products are effective, reliable and stable performance, such as: Start, stop is sensitive and effective; Whether the low-frequency, high-frequency effective early warning, low-speed, high-speed early warning overspeed protection, the output voltage is stable, speed is normal and so on.
Shanghai Exhibition
at the Shanghai international power exhibition,there are many customers right away and we signed a cooperation agreement with the order.Spoke highly of our products are ahead in the development of the industry, fully explain our product innovation in science and technology, application and technology is the industry leader in solution.
Exhibition
Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
Place order on site
Customers highly appraise the company's advanced technology research and development ability, perfect production process and advanced testing equipment. More importantly, the products are simple to operate and have complete functions, which attract customers to place orders and purchase on site.
Customers come for visiting
Our Service
Reply
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Guarantee
Guarantee:365 days after selled. During guarantee,the items share free repairs or replacement.
High quality
We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
1.We accept alibaba order online, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
A: We are factory.
Q: How long is your delivery time?
1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
1.We accept alibaba order online, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Email： sales@lixise.com
