Лабораторный Гидротермический синтезирующий реактор из фторопласта корпус нержавеющей стали
- Категория: Сосуды высокого давления >>>
- Поставщик: Shanghai,Yuhua,Instrument,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.6 $* | 0.63 $* |
| Aug-16-2025 | 0.12 $* | 0.45 $* |
| Jul-16-2025 | 0.23 $* | 0.51 $* |
| Jun-16-2025 | 0.59 $* | 0.88 $* |
| May-16-2025 | 0.32 $* | 0.47 $* |
| Apr-16-2025 | 0.29 $* | 0.34 $* |
| Mar-16-2025 | 0.97 $* | 0.51 $* |
| Feb-16-2025 | 0.69 $* | 0.63 $* |
| Jan-16-2025 | 0.52 $* | 0.2 $* |
Характеристики
Products Description
Principle and Application
Hydrothermal synthesis reactor is working under certain temperature and pressure conditions to dissolve the material. Mainly for material which doesn’t dissolution, poorly soluble material, or the reaction product of the dissolving substance. By controlling the temperature of the solution errand convection to form a supersaturated state and folding crystal growth.
Hydrothermal synthesis reactor is used to the preparation or synthetic compound of nano materials. Also can used to do small synthesis reaction of crystal growth. Hydrothermal synthesis reactor is widely used in college laboratory.
Product Paramenters
Main Technical Details
1)Working pressure：≤3Mpa
2)Working Temp.：PTFE Lining Top Temperature ≤230℃, PPL Lining Top Temperature ≤280℃.
3)Solvent addition：It is usually 60% ~ 80%of the inner cup capacity
4)Heating and Cooling Rate：≤5°C/min
2)Working Temp.：PTFE Lining Top Temperature ≤230℃, PPL Lining Top Temperature ≤280℃.
3)Solvent addition：It is usually 60% ~ 80%of the inner cup capacity
4)Heating and Cooling Rate：≤5°C/min
Specification:
Model | Capacity | Lining Size(mm) | NW. | Material |
KH-25ml | 25ml | Φ32.8*61 | 1kg | 304 Stainless steel Shell and PTFE（Teflon）Lining; The PPL lining is optional |
KH-50ml | 50ml | Φ40*78 | 1.5kg | |
KH-100ml | 100ml | Φ48.7*94 | 2.5kg | |
KH-150ml | 150ml | Φ57.5*114 | 4.5kg | |
KH-200ml | 200ml | Φ62.7*133 | 5kg | |
KH-250ml | 250ml | Φ64.9*133 | 5.5kg | |
KH-500ml | 500ml | Φ83.5xH164 | 9kg | |
KH-1000ml | 1000ml | / | 16kg |
Tips:
PPL is a kind of synthetic material added to polytetrafluoroethylene, and its properties are better than those of polytetrafluoroethylene alone. PPL can be used continuously at 260 ℃, with the highest operating temperature 280 ℃-300 ℃, very low friction coefficient, good wear resistance and excellent chemical stability.
PTFE Lining
Working Temperatuer ≤230℃
Safe Temperature is 200℃
PPL Lining
Working Temperatuer ≤280℃
Safe Temperature is 260℃

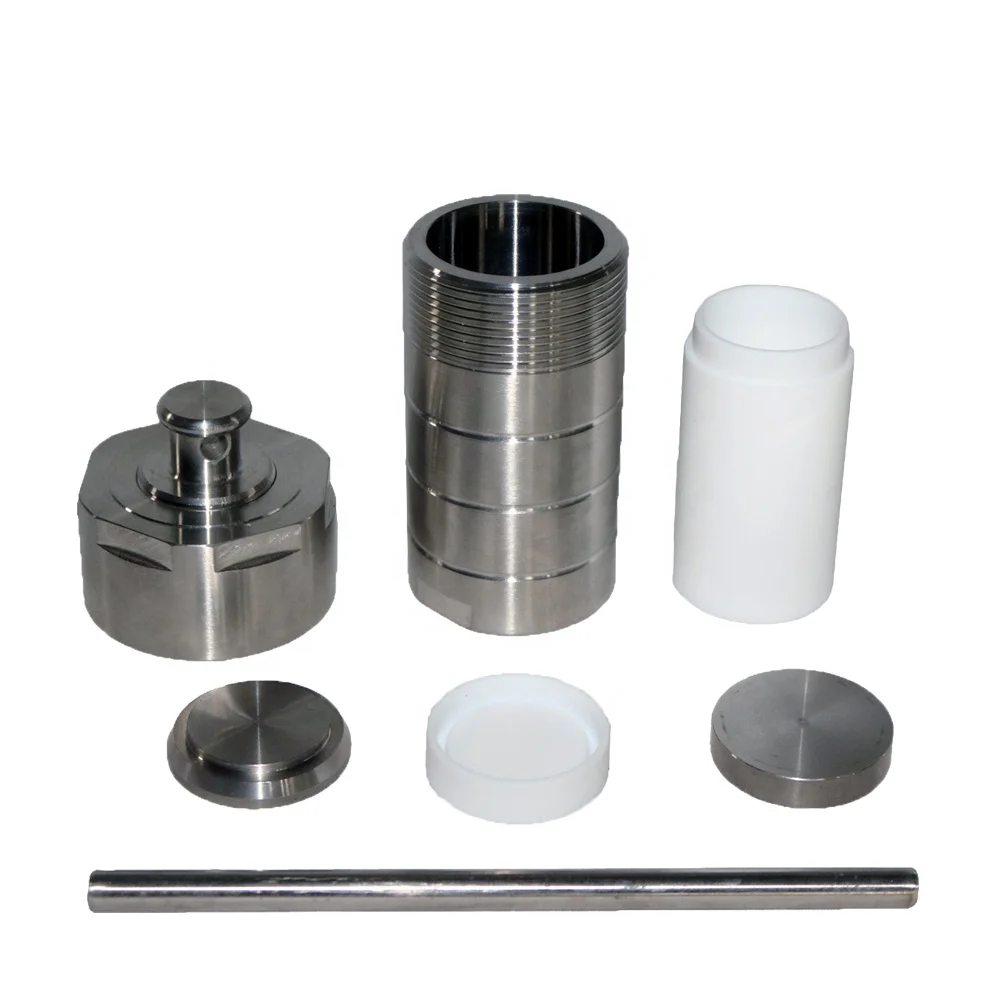

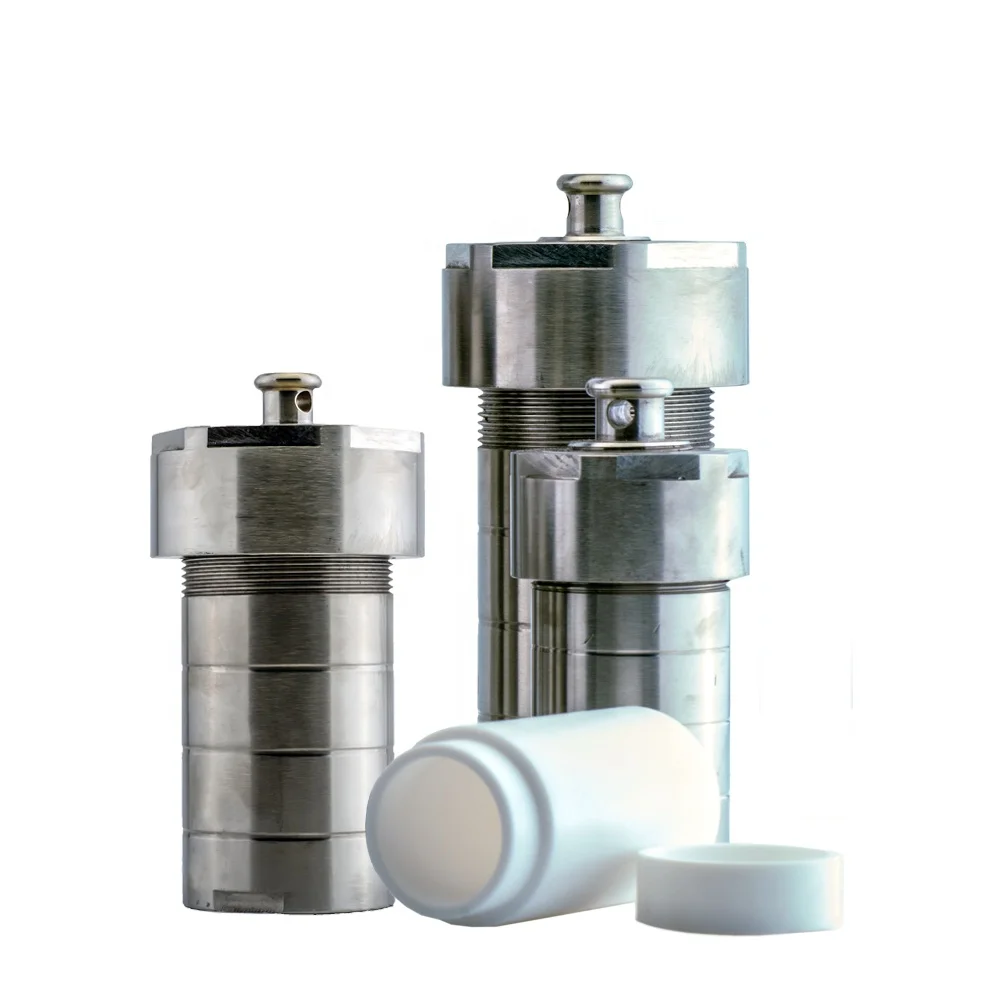

Details Images
Installation Instructions
Product packaging
Our Company
Shanghai Yuhua Instrument Equipment Co., Ltd is the professional manufacturer, was
established in 2008, in Shanghai, China, with more than 10 years development, we accumulated rich customer groups and huge amount of product application experiences. With rich experience and feedback from customers, we have manufactured series equipment, and widely used in Laboratory, Medical and other Pilot Plant.
Our main products are Rotary Evaporator, Glass Reactor, and its related Heating and Cooling Circulators.
Business License and Product CE Certificate
Our Factory and Exhibition
