Принудительная сквозная башня закрытая промышленная охлаждающая 50

Принудительная сквозная башня закрытая промышленная охлаждающая 50

Категория: Cooling Tower >>>
Поставщик: Wuxi,Sanjiu,Cooling,Equipment,Co.,Ltd.

Цена:3 999,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	5079.31 $*	5181.52 $*
Jul-16-2025	4119.79 $*	4201.51 $*
Jun-16-2025	4999.98 $*	5099.91 $*
May-16-2025	4959.33 $*	5058.70 $*
Apr-16-2025	3959.77 $*	4038.88 $*
Mar-16-2025	4879.6 $*	4977.54 $*
Feb-16-2025	4839.98 $*	4936.63 $*
Jan-16-2025	4799.19 $*	4895.98 $*

Характеристики

GHM Series Cross Flow Closed Water Cooling Towers

GHM Series is of capacities ranging from 25 to 300 tons/unit/hour, finished with alloy (Mg-Al-Zn) coated steel enclosure, stainless steel or copper heat exchange coils, and PVC fills. All raw materials are of virgin grade, with superior anti-corrosion features, and the longest service life in heavy duty environment. The enclosure can be also made in stainless steel 304 or 316L on customers’ request.

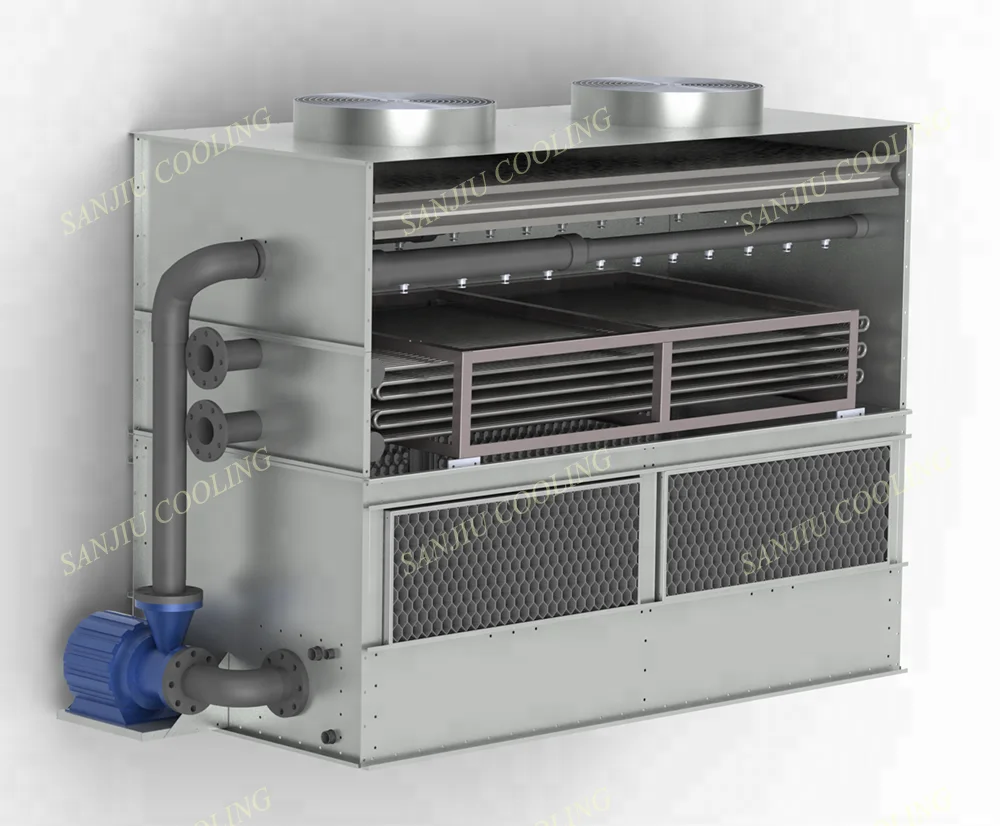

This series is of induced draft type. The cool air is inlet through a large surface of one side of the tower, then directed perpendicularly to the spray water flow through both the heat exchange coils and PVC stuff. Eventually the hot wet air is drawn upwards to the outside through the tower top removing the heat.
This cross-flow design is of high efficiency but lower initial and long term costs. Installation and maintenance is generally easy and economical. The towers dimensions can be customized to suit standard 20’ or 40’ containers to minimise delivery freight.

Product Description

Forced Draft Cooing Tower Closed Industrial 50 tons Cooling Tower

Note: All the data is under the condition of 28℃ wet temperature.

If any change of condition,the data will change.

Model no.	GHM-50(closed circuit)
Water flow rate	50m³/h, adjustable as different temperature
Cooling capacity	From 65~55℃to45~35℃
Water pressure	0.32Mpa
Pipe diameter	Input diameter(mm)	DN100
	Output diameter(mm)	DN100
Rated Power	Fan (KW)	1.1X3
	Spray pump(KW)	2.2
Material of shell/tower body	Superdyma(imported from Japan)
Material of tupe	SUS304;Red copper
Installation Method	Modular Design,Easy Install

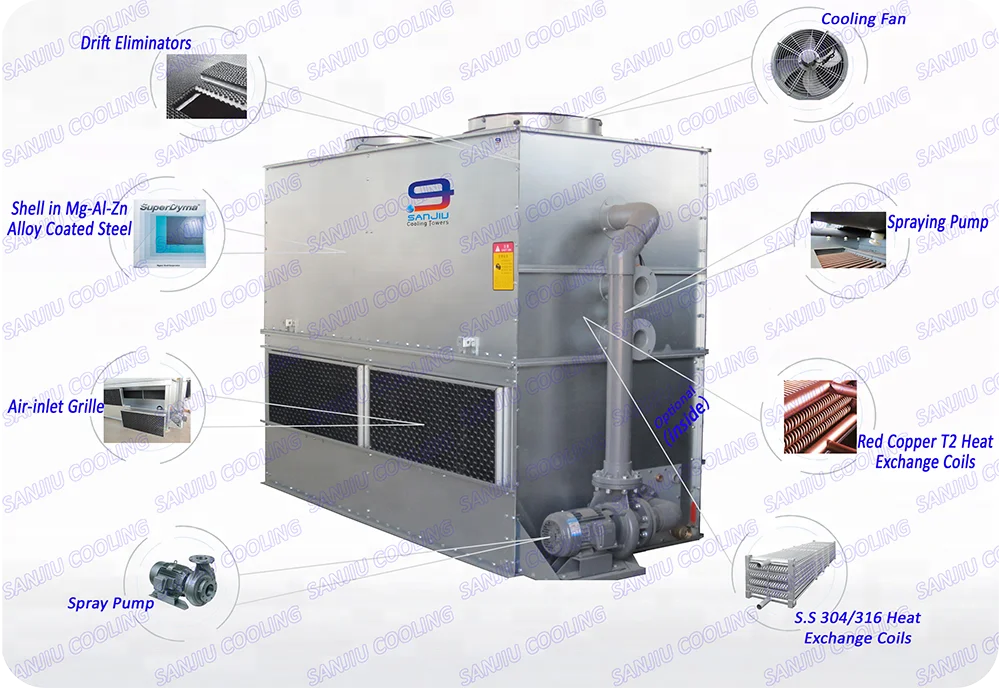

Raw Material & Main Configuration-Rev1-sj cooling tower

Closed water cooling tower shell is made in Mg-Al-Zn alloy coated steel, of "SuperDyma" series from company Nippon Steel, originally imported Japan. This special alloy coated steel is much better than galvanized steel in corrosion proof performance.

Material Test

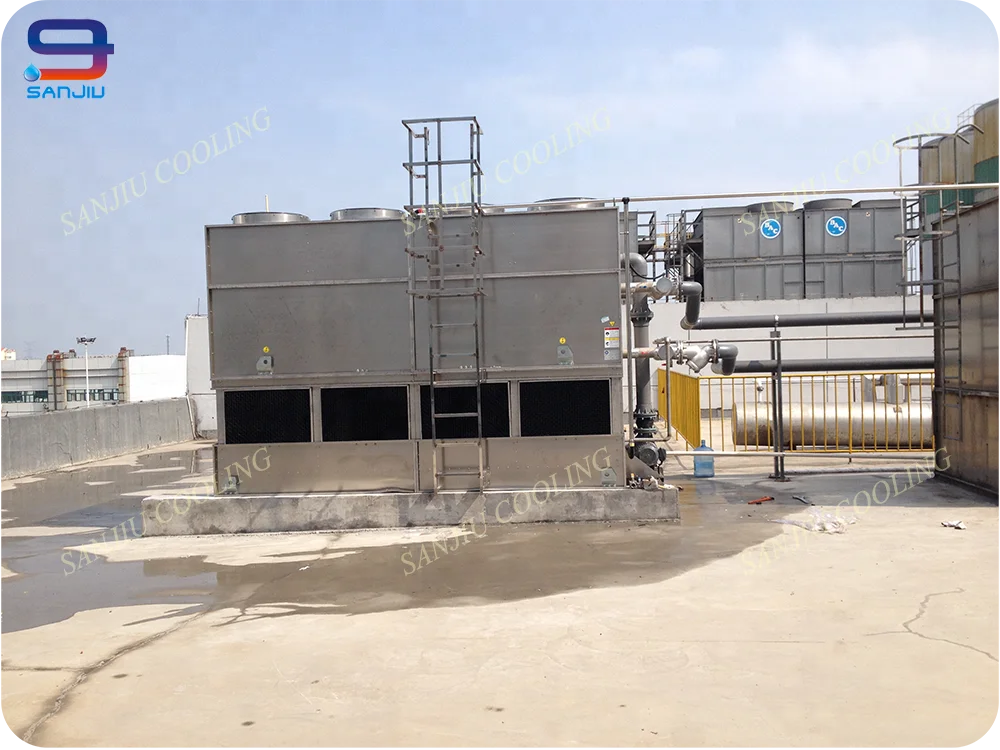

Application etc-Rev1-sj cooling tower

The primary use of cooling towers is to remove the heat absorbed in the circulating cooling water system used in power plants, petroleum refineries, petrochemical plants, natural gas processing plants, food processing plants, semi-conductor plants Etc… So Same Cooled Water Can Be Used Again… Which Saves Precious water …The smallest cooling towers are designed to handle water streams of only a few Liters of water per minute supplied in small pipes like those might see in a residence, while the largest cool hundreds of thousands of Liters per minute supplied in pipes as much as 15 feet (about 5 meters) in diameter on a large power plant.

A Cooling Tower is a heat exchange system that removes waste heat from a process system fluid, usually water.Cooling towers are used in both commercial and industrial applications.

Application of cooling tower copy

Working Theory-Rev1-sj cooling tower

Cooling tower Working principles

Packaging & Shipping

SJ Cooling Tower Loading-02

Company Information

Certificates-sjcooling

2-1 cooling tower

4-1-cooling tower

5-1

Our Services

-Quick response in 12 hours

-Professional and economical cooling solution for every client

-Considerate and complete after sales service

FAQ

Model selection guide-Rev1-sj cooling tower

Below information are normally required to know for selection of a most proper tower model and solution:

Application:		(Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.)
* Water Flow Rate:	m³/h	(Explanations: How many Tons of water required per hour?)
* Inlet Water Temp.:	°C	(Explanations: Temperature of hot water to be cooled)	(also descriped as "water temperature drop")
* Outlet Water Temp.:	°C	(Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.)	(also descriped as "water temperature drop")
* Wet-bulb Temp.:	°C	(Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers)
* Power Supply:		(Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer)
