Пусковой конденсатор двигателя переменного тока CD60 пусковой алюминиевый

Пусковой конденсатор двигателя переменного тока CD60 пусковой алюминиевый

Категория: Capacitors >>>
Поставщик: Ningguo,City,Share,Electronics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.83 $*	0.44 $*
Aug-19-2025	0.76 $*	0.89 $*
Jul-19-2025	0.92 $*	0.8 $*
Jun-19-2025	0.26 $*	0.66 $*
May-19-2025	0.48 $*	0.86 $*
Apr-19-2025	0.26 $*	0.42 $*
Mar-19-2025	0.14 $*	0.20 $*
Feb-19-2025	0.42 $*	0.28 $*
Jan-19-2025	0.18 $*	0.39 $*

Характеристики

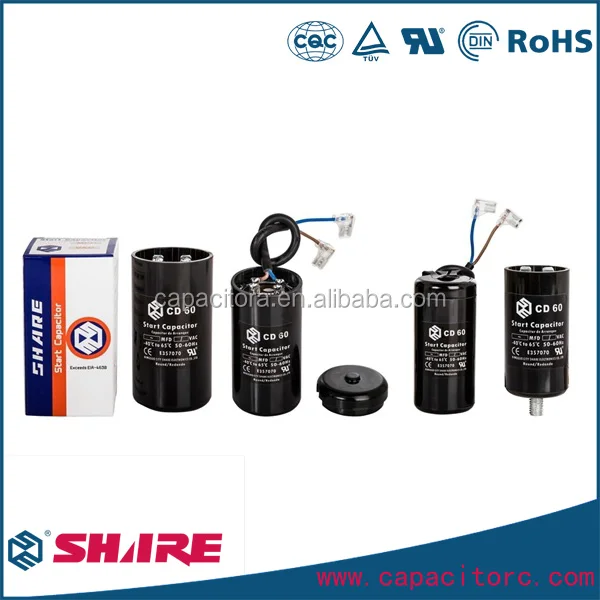

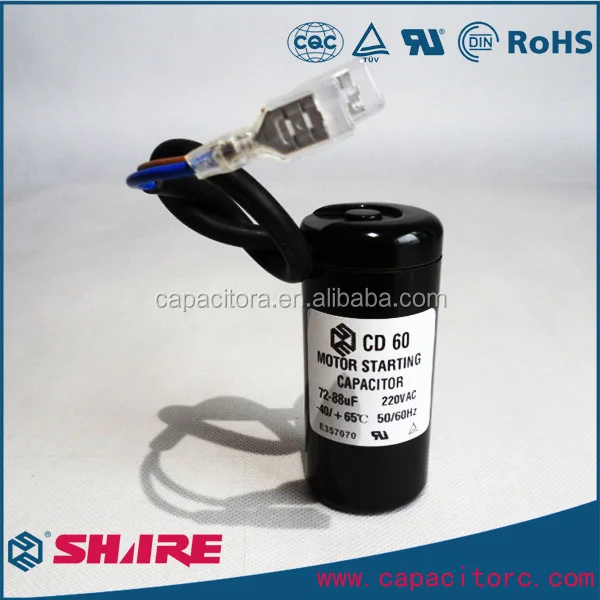

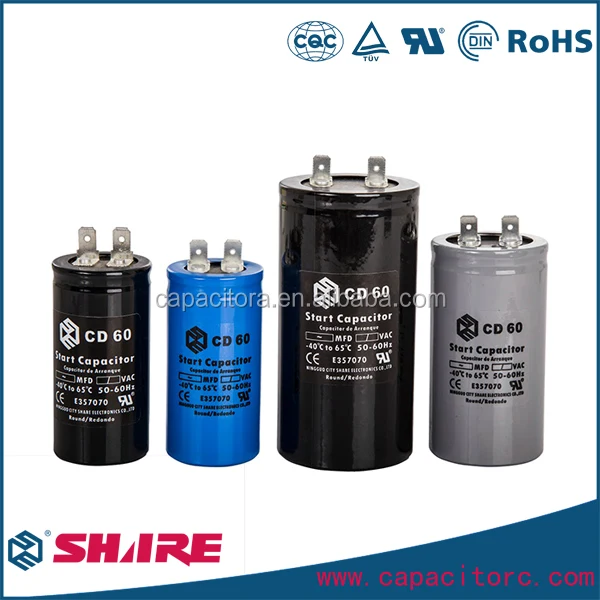

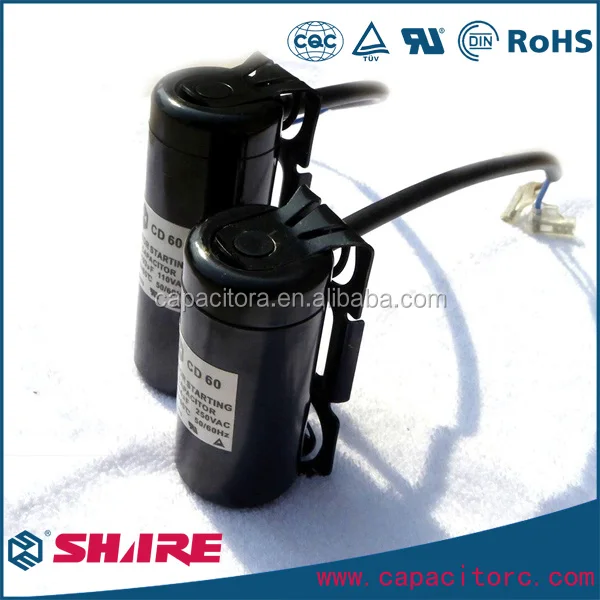

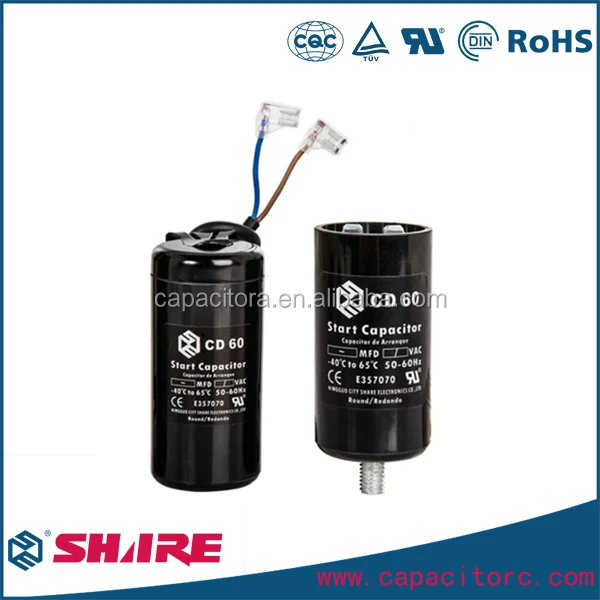

CD60 AC Motor Starting Capacitor Aluminum Electrolytic Capacitor

Start Capacitor Introduction :

CD60 Motor Start Capacitor is made according to American ANSI / EIA - 463-A standard, a new device developed,bakelite case, high class insulating, high strength, uneasy broken and good sealed. This device is of the good performance, easily for use, reliable and long in service life as well as the high and stable quality.

CD60 Motor Start Capacitor is suitable for use in single phase ac motors with frequency of 50hz - 60hz, voltage 110VAC - 330VAC to get high rotary torque at low starting current and also be widely for use in the high-tech territory.

CD60 Capacitor Main Technical Data :

Environment Temperature	-40~+65ºC
Rated Voltage(UR)	110~330VAC
Capacitance Range(CR)	21~1536μF
Capacitance Tolerance	0~+20%
Dissipation Factor(tg δ)	Tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Load Life	According to the difference working voltage and capacitance,alternation 0.5 - 4 minute turn on 1 time for second, 12500 ~ 50000 times. According to the ANSI/ EIA-463-A standard.
Surge Voltage between lugs	Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case	2000VAC 10 seconds non-broken down
