3000LHP Sanitary Homogenizer Price

Описание и отзывы

Трекер стоимости

Характеристики

                                                               Sanitary Homogenizer Homogenizer Price Homogenizer Factory

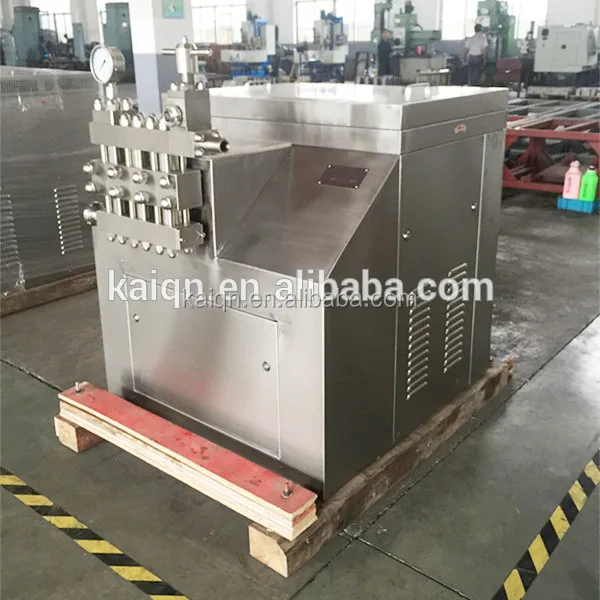

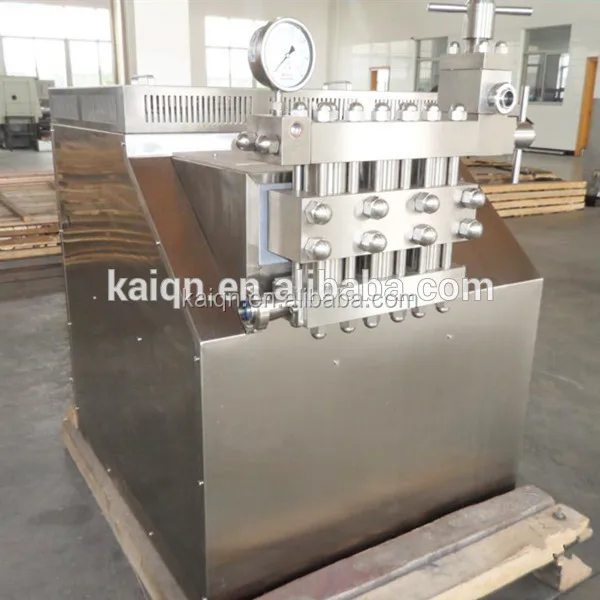

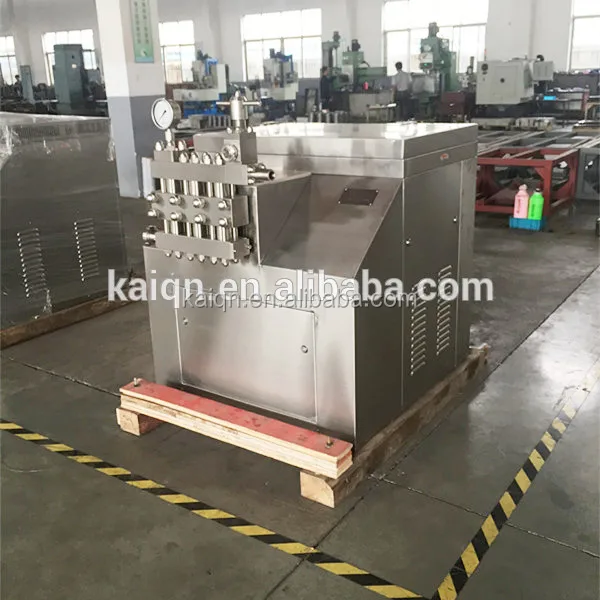

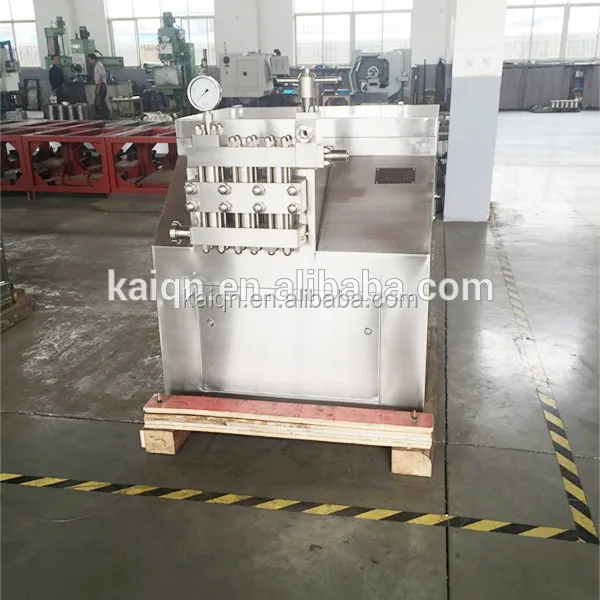

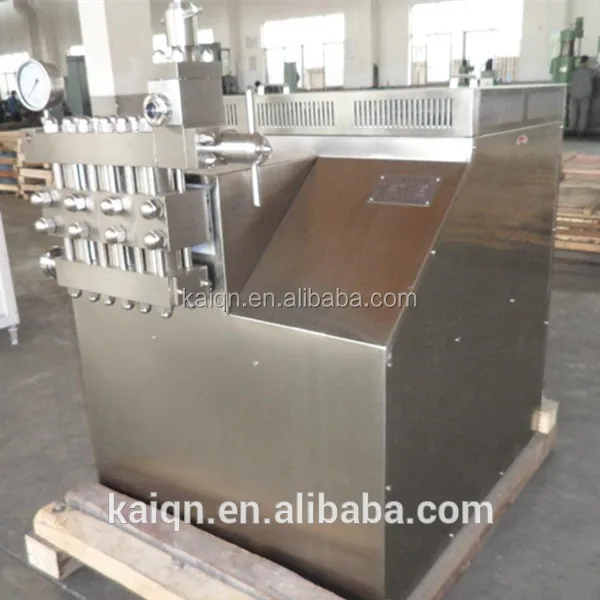

1. Picture of Homogenizer :

                                          (500L,1000L ,1500L Homogenizer )



                                              (2000L,2500L ,3000L , 4000L ,5000L Homogenizer )



                (6000L,7000L ,8000L , 9000L ,10000L Homogenizer )





2. Certification :



                  Our Homogenizer Was Certified By  CE already and can export to EU market .

    Milk Homogenizer For Small Milk Company

3. Technical Parameter :

    Ice Cream Homogenizer High Pressure Homogenizer Price



Model No. Technical parameter	GJB0.5-25	GJB1-25	GJB1.5-25	GJB2-25	GJB2.5-25	GJB3000-25	GJB5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow(Liters/H)	500	1000	1500	2000	2500	3000	5000
Medium temperature(℃)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	380V,50HZ,3PH	380V,50HZ,3PH	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7
Unit price FOB Shanghai(USD)	USD$	USD$	USD$	USD$	USD$	USD$	USD$

     Sanitary Homogenizer Homogenizer Price Homogenizer Factory

4. Working Prinple :



5. Packing And Shipment :

     We can ship the homogenizer to you by air or by sea . For your ref ,if by sea ,the shipp fee will be 100USD /Set .If by air ,the price will be higher a lot than this .It 's up to you .





6.Factory and Processing Department :

Sanitary Homogenizer Homogenizer Price Homogenizer Factory
