Грузовик SINOTRUK Howo грузовик 1-10 тонн


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.61 $* 0.21 $*
Aug-15-2025 0.37 $* 0.6 $*
Jul-15-2025 0.13 $* 0.49 $*
Jun-15-2025 0.76 $* 0.4 $*
May-15-2025 0.9 $* 0.33 $*
Apr-15-2025 0.72 $* 0.61 $*
Mar-15-2025 0.14 $* 0.56 $*
Feb-15-2025 0.8 $* 0.66 $*
Jan-15-2025 0.80 $* 0.37 $*

Характеристики




Product Description

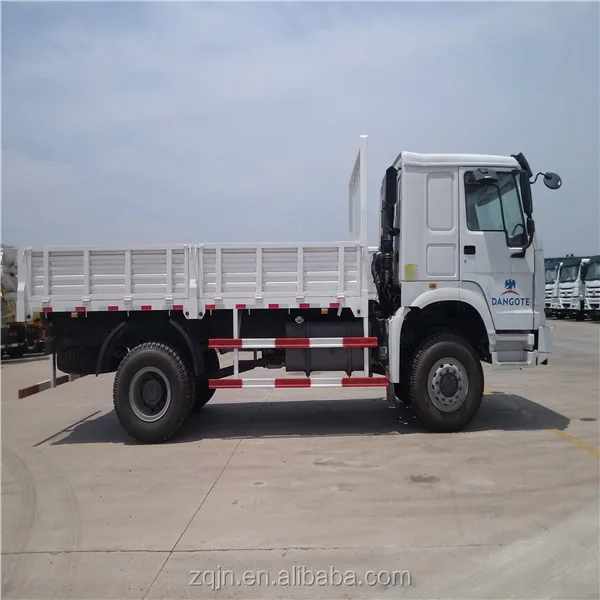

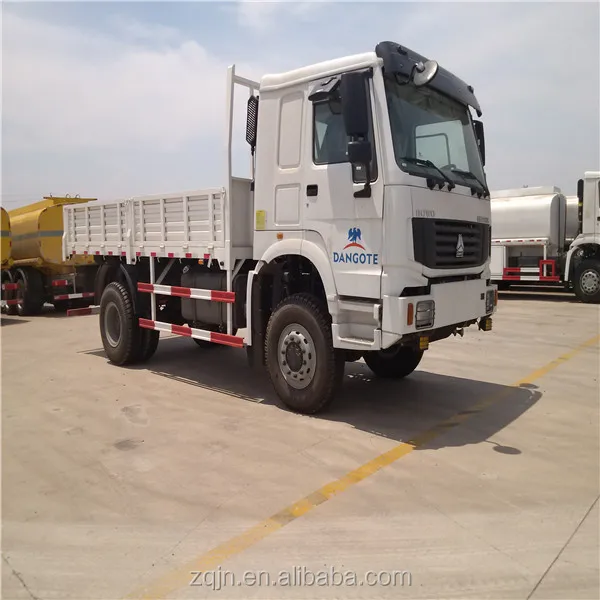

SINOTRUK cargo truck

ModelZZ1167M4611W
Product code11676011167602
EngineModelWD615.62WD615.87
 Horsepower266290
 Maximum output196/2200213/2200
Kw/r/min
 Maximum torque1100/1100-16001160/1100-1600
N.m/r/min
 Type6-cylinder in line, 4-stroke, water-cooled
turbo-charged & inter-cooled, direct injection
 Bore x Stroke126x130mm
 Valve2
 Displacement9.726L
 Euro II emission standard, Thermostat with 80℃
opening begin, Rigid fan
 Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with
electric-inlet-air heating System (180Ah battery)
Carriage Internal5550×2326×600
Dimension(mm)
CabLengthen cab,single bunk,new type seat,adjustable steering
wheel,EURO new type heating & ventilating system, German VDO instruments
safety belts, exterior sun visor,stereo radio/cassette recorder,left driving
air conditioner.Option: right driving; color; Wind guide cover
ClutchΦ430 diaphragm-spring clutch,hydraulically operating with
air assistance
TransmissionHW15710 transmission ,10 forward and 2 reverse
Ratio:14.28  10.62  7.87  5.88  4.38  3.27  2.43  1.80  1.34  1.00
13.91(R1)  3.18(R2)
Front AxleHF7 Front Axle,new 7-ton front axles of equipped with drum brakes
Option: disc brake
SteeringGerman ZF8098 Steering Gear Box ,hydraulic steering with power assistance
Ratio:22.2-26.2
Rear AxlesST16 Double Reduction Drive Axle, Pressed axle housing, central single reduction
with planetary wheel reduction and with differential locks between wheels and
axles,ratio: 3.93,4.42 or 4.8;strengthened design, loading capacity and reliability
have been increased greatly.
HW 1667 Single Reduction Drive Axle, ratio: 4.22 or 3.73  The basic
Configuration of HOWO series on-road vehicle is especially suitable for
transportation on express way and road above class II.
Brake Service brake:dual circuit compressed air brake
SystemParking brake (emergency brake):spring energy,compressed air operating on
 rear wheels
 Auxiliary brake:engine exhaust valve brake
Wheels & Tyres Rims:8.5-20,10 hole-steel ;Tyres: 12.00R20 radial tyre with 1 Spare tire
ElectricsOperating voltage:24V,negative grounded
Starter:24V,7.5 Kw
Alternator:3-phase,28V,1500 W
Batteries:2x12 V,165 Ah
Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light
Option:2x180Ah Batteries
Oil TankSquare type-300L Aluminum alloy fuel tank
OtherVertical Muffler;ABS;Automatic Break Clearance Adjusting Arm;Traveling Data
Optional Recorder;Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board
Delivery dateWithin 30 days after receipt advance
Dimensions Overall length x Overall width xOverall height            8377×2496×3048
in mmWheel base                                                                     4600
Weight Kerb weight                                                                     7860
in kgGross vehicle weight                                                         16000
 Front axle loading capacity                                                7000
 Rear axles loading capacity                                              16000
PerformanceMaximum drving speed (km/h)                                            102
Fuel consumption  (1/100 km)                                             35



Packaging & Shipping



  Nude but paint with wax before shipment








 Our goal is to make every customer a satisfied customer by providing the right trucks for your business.

Our sales professionals are here to serve you with a one-stop shopping experience.

If we can be of any assistance please feel free to contact us for the trucks we provided,

We hope that your truck buying experience is one that you will recommend to a friend!

Our Services

1.WARRANTY
we have 6month warranty for main parts, such as Engine, Gearbox, Chassis, Hydraulic Lifting System.
2. Maintenance
The first maintenance should be taken after 2000KMs or 50working hours
3.How about your product quality?
The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification,
the quality is 100% guaranteed.
4. How about your company's service, especially after-sale service?
We has been in this field for nearly 20 years and has strong production
and distribution capability,we can satisfy your demand within 3-7 days.
We always do our best to solve all the problems and put our customer's interests in the first place.
5.Is there any advantages of your price?
We is one of the important suppliers of Sinotruk and Shacman,
which provides guarantees for reasonable price and good quality.
Meanwhile, other products are procured from our long time business partners


Advantages



Original parts & best price

Small quantity accepted

Rich export experience, best and quickest delivery solution

Saving time for you when your order involves too many factories

Original Price and High Quality

Certificate systems: CCC, ISO, BV, GJB, CQC

Excellent After-sales Service



Professional and Senior Sales Team









Company Information

OUR COMPANY AND CONTACT INFORMATION

We, SINOTRUK VEHICLES (HONGKONG) CO.,LIMITEDhas nearly 20 years experience of exporting.

Our website is www.huawotruck.compls have a look and you will have a harvest!

We have the most professional team that insist to do our best to satisfy you.

Welcome to visit our factory!



Any question, please don’t hesitate to contact me. Wish we can be good friends!

Contact person: Danny Brown  ( sales manager)

Whatsapp: +8615508618395

Skype: present3233

Tel Mob: 0086 15508618395


Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
