Автоматическая машина для резки арматуры и гибочного пресса PD5-12D арматуру Бендер

Автоматическая машина для резки арматуры и гибочного пресса PD5-12D арматуру Бендер

Категория: Metal Cutting Machinery >>>
Поставщик: Xingtai,Penghao,Machinery,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.29 $*	0.43 $*
Aug-17-2025	0.20 $*	0.58 $*
Jul-17-2025	0.79 $*	0.21 $*
Jun-17-2025	0.88 $*	0.68 $*
May-17-2025	0.0 $*	0.80 $*
Apr-17-2025	0.13 $*	0.7 $*
Mar-17-2025	0.92 $*	0.70 $*
Feb-17-2025	0.64 $*	0.67 $*
Jan-17-2025	0.42 $*	0.39 $*

Характеристики

Product Description

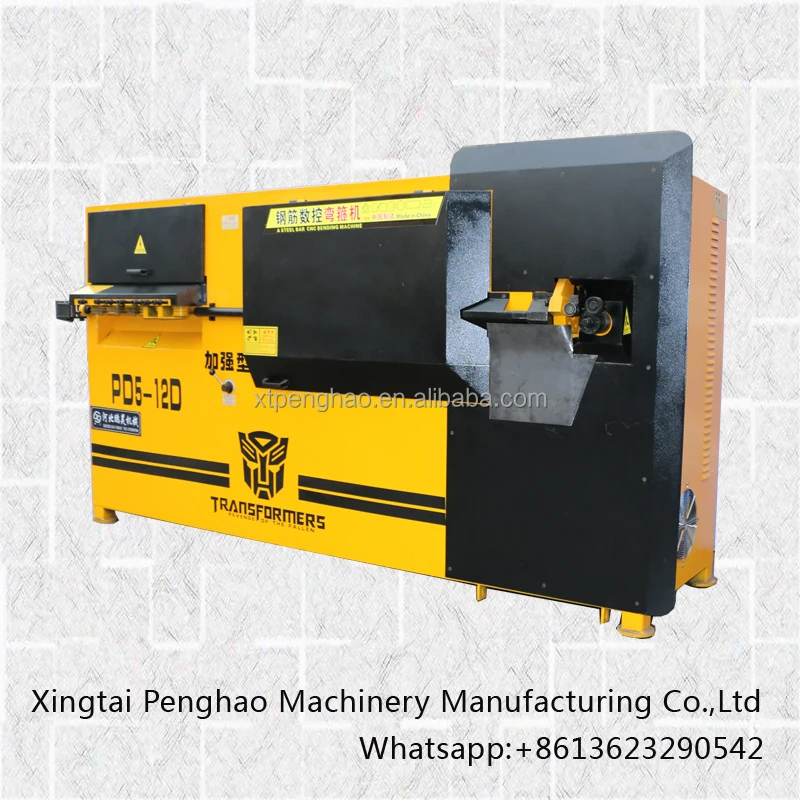

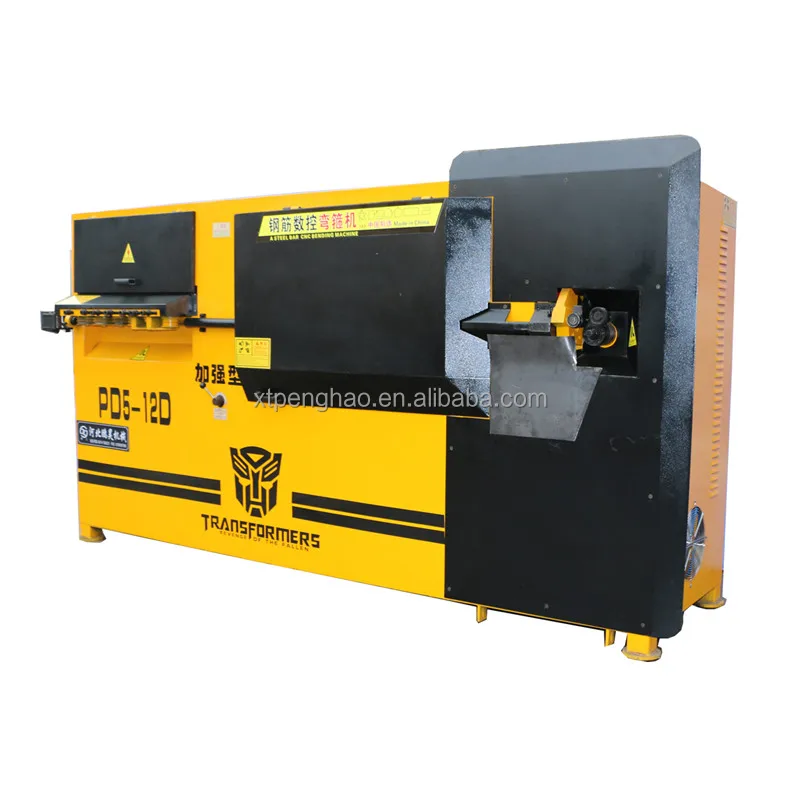

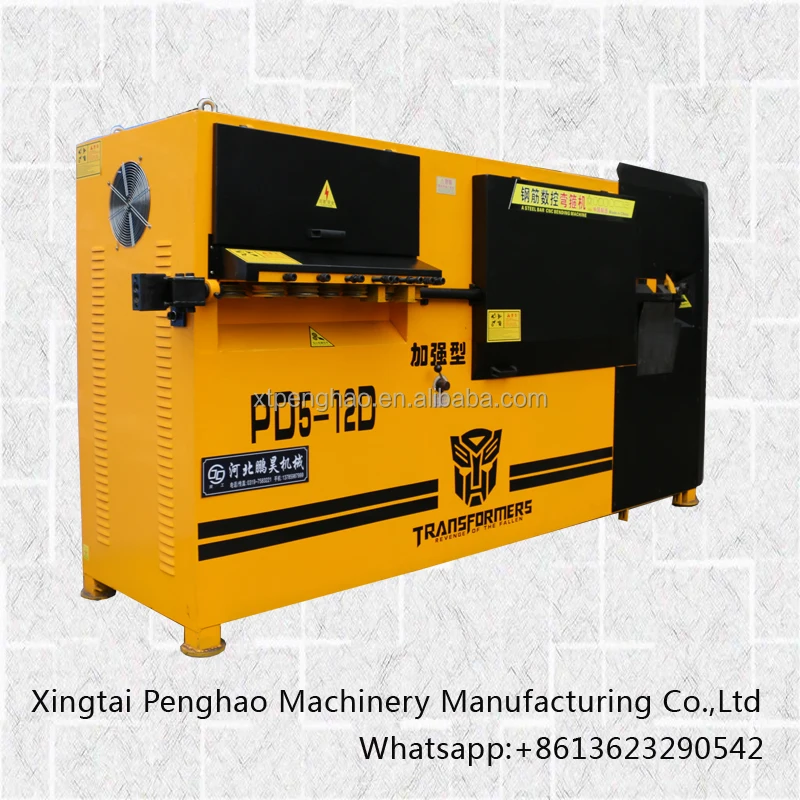

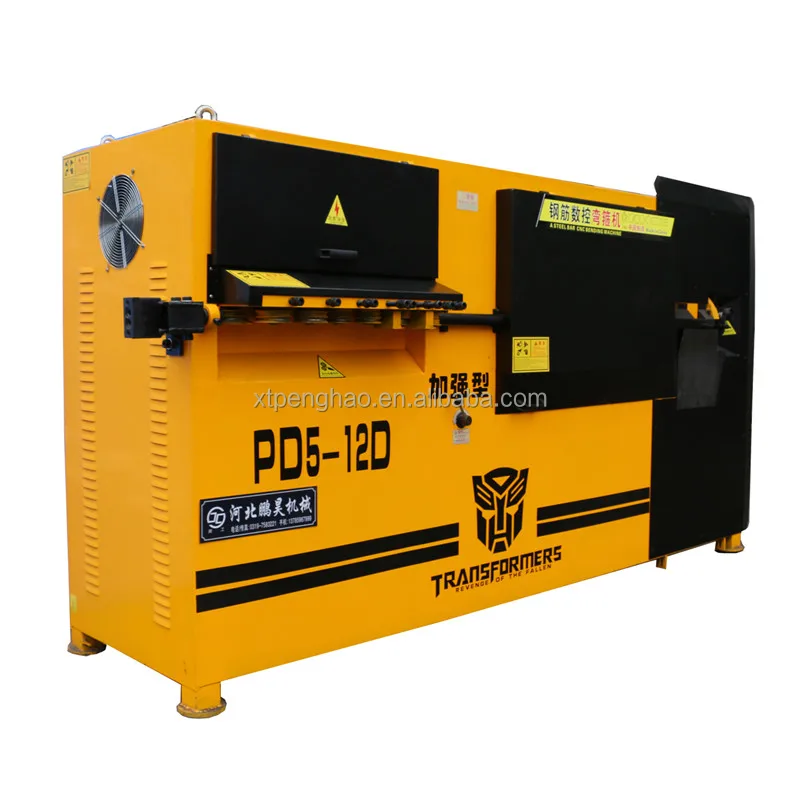

PD5-12D CNC rebar bending and cutting machine

The equipment adopting CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.
12mm is the max. diameter processed by this machine.The device is widely used in the construction industry, large steel processing plants and other fields.

Technical Parameters

PD5-12D Technical Parameters
Processing diameter (Sigle wire)	Round steel φ4-12mm	Max bending speed	800°/sec
Processing diameter (Sigle wire)		Screw steel φ4-10mm	Length accuracy	±1mm
Processing diameter (Double wire)	Round steel φ4-8mm	Angle accuracy	±1°
Processing diameter (Double wire)		Screw steel φ4-8mm	Equipment power	17.5kw
Max bending angle	±180°	Size (mm)	328010001700
Maximum towing speed	60m/min	Total weight	1350KG
Production efficiency	1800-2200pcs/h	Color	Customized

Amain Features of PD5-12D CNC bar bending machine

1.This equipment adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straightening, bending and cutting etc.;
3.Max bending diameter of rebar is 12mm;

4.Continuously bend various stirrup of plane figure;

5.High efficiency and accurate processing precision.

Detailed Images

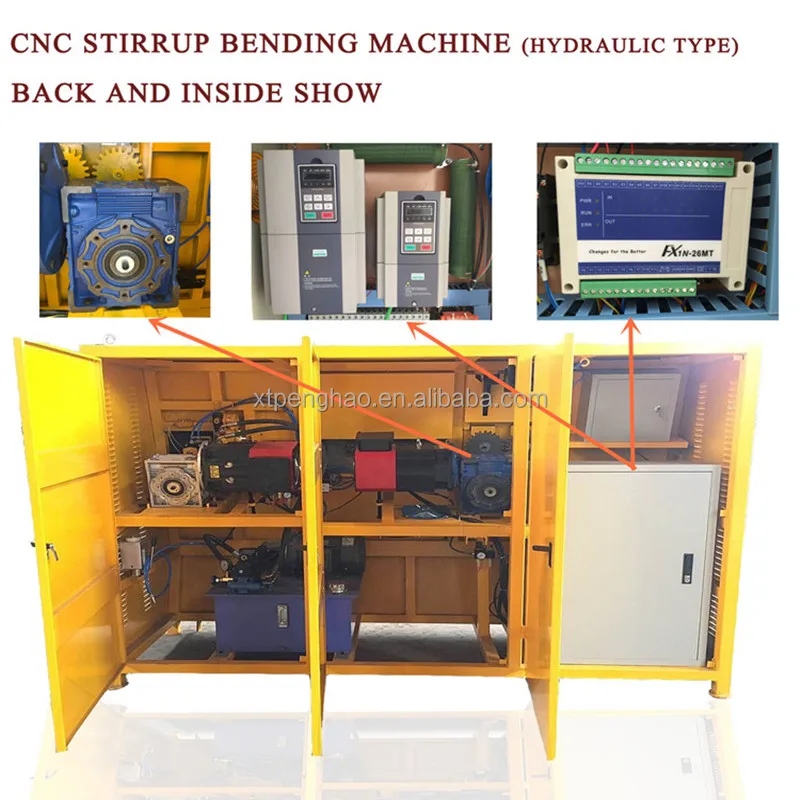

Machine Parts 1

Name: CNC automatic computer system

This machine adopts numerical control system, it can process many kinds of shapes of rebars.

Machine Parts 2

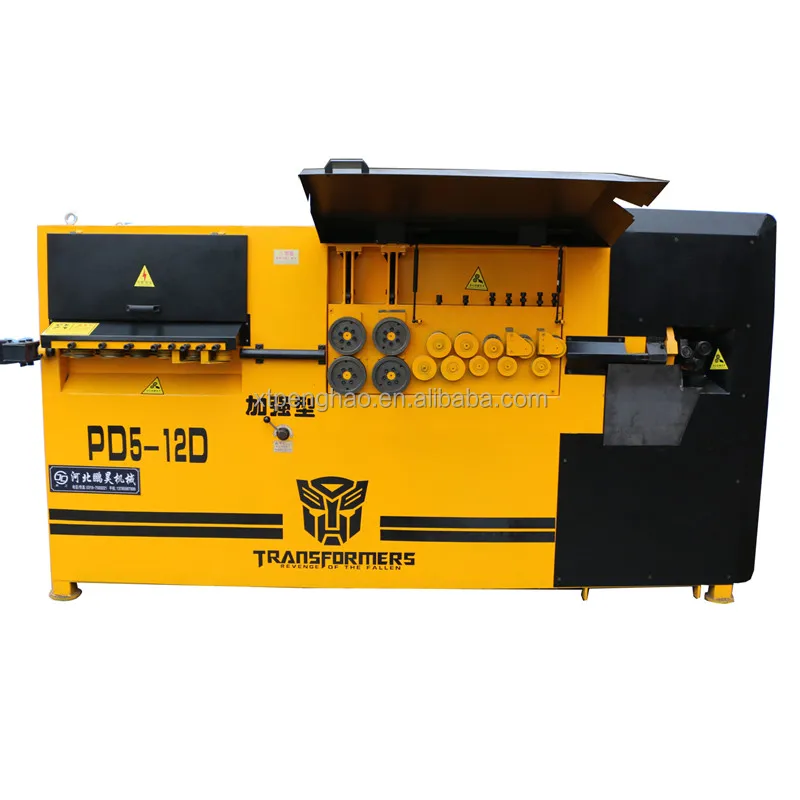

Name: Primary feeding and Straightening device

This machine has a unique set of feeding wheel, which effectively avoids the loading of the material and improves the straightening effect of the material.

Machine Parts 3

Name:Double roller traction device

The device has four high strength feed wheel.The wheel is durable, with mechanical diameter memory function.It can adapt to various specifications of the material and not slip.

Machine Parts 4

Name: Feed inlet device

The material inlet of the equipment adopts high strength abrasion resistant material which is durable . The feed inlet can support the double wire feeding.

Packing & Delivery

1.Standard export package(wooden case), fumigation free.If the customer needs, according to customer's demand.
2.If we have goods in stock ,we will delivery goods within seven days.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* One year warranty for whole machine(not including wearing parts ),life-long maintenance and technical support.
* All the machines sold in the country shipped with user-friendly English operation video and instruction.
* Training how to instal the machine, training how to use the machine.

Advanced technology

Fully automatic CNC bending hoop machine,adopting intelligent control, can process various sizes ,such as square, rectangle, polygon and rhombus etc..At the same time ,with straightening and cutting functions, multi-use of one machine.Greatly enhance the production efficiency and reduce labour costs.
