ОГ станок для снятия фасок закаленное стекло с закругленными краями на форма двухсторонней обработки
- Категория: Машина по производству стекла >>>
- Поставщик: Liaoda,(LAD),Glass,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.17 $* | 0.70 $* |
| Aug-17-2025 | 0.74 $* | 0.64 $* |
| Jul-17-2025 | 0.35 $* | 0.54 $* |
| Jun-17-2025 | 0.35 $* | 0.19 $* |
| May-17-2025 | 0.18 $* | 0.37 $* |
| Apr-17-2025 | 0.13 $* | 0.86 $* |
| Mar-17-2025 | 0.5 $* | 0.85 $* |
| Feb-17-2025 | 0.85 $* | 0.56 $* |
| Jan-17-2025 | 0.80 $* | 0.72 $* |
Характеристики
OG, beveling, round edge on shape glass grinding
YD100-2000B shape edging machine is applicable for processing abnormity edge and bevel edges of plate glass.
It can process round, rectangle or even small size ground glass (diameter 100mm).

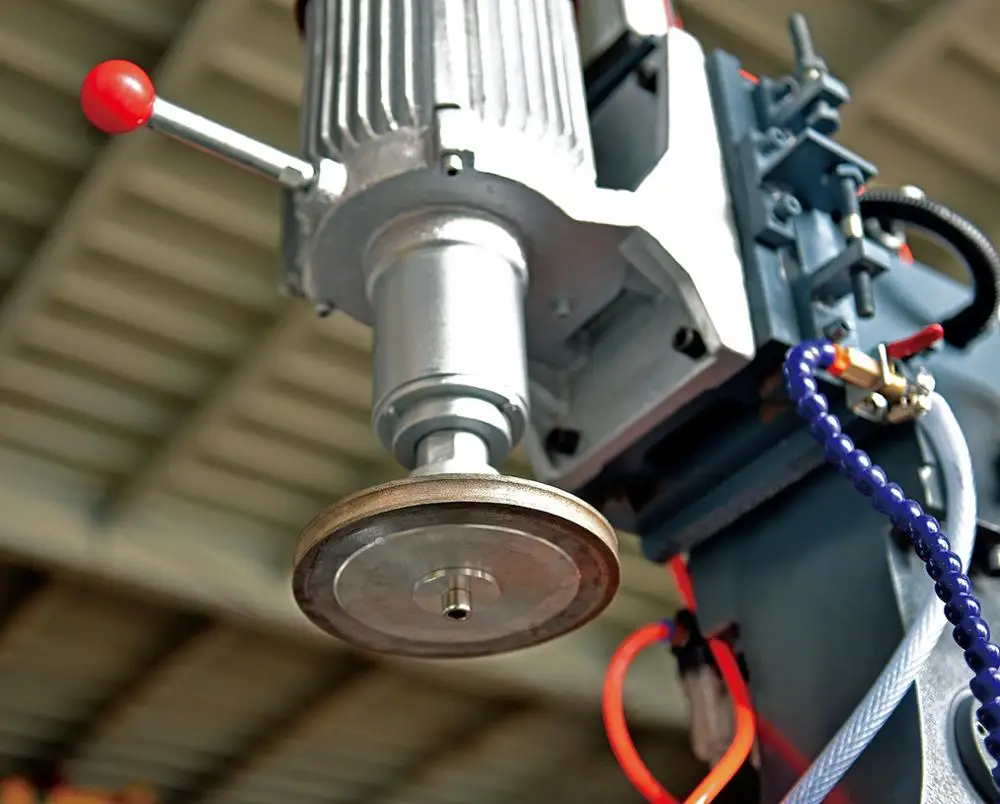

With changes of different wheels, it can process round, straight edge with arris, OG and beveling edge.
Technical specification
Model Number | YD100-2000B |
Glass diagonal size(mm) | 100-2000 |
Bevel angle(degree) | 0-30 |
Max.bevel width(mm) | 40 |
Min.internal hole(mm) | 100 |
Max.glass thickness(mm) | 30 |
Compressed air consumption(L/min) | <1.5 |
Pressure(kg/cm2) | 8 |
Power (KW) | 2.8 |
Outer dimension(m) | 1.2x1.2x1.6 |
Weight (kg) | 800 |

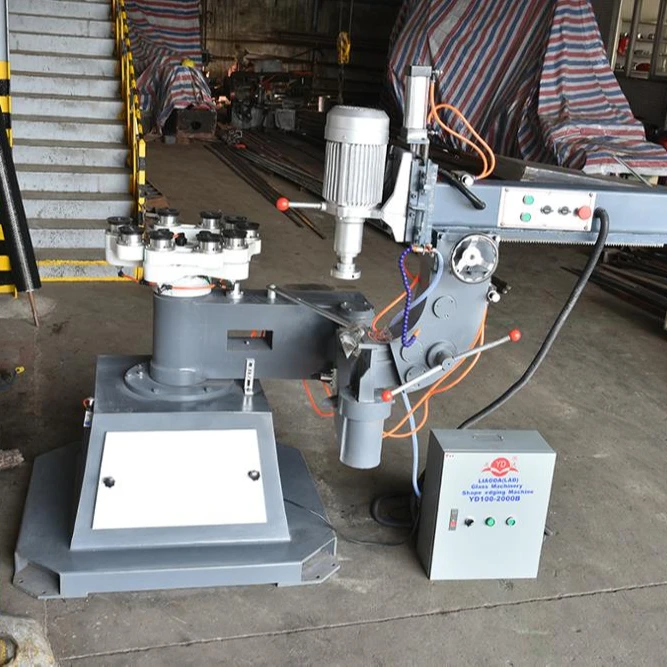

Shape edging machine both inner and out curve YD100-2000B
Advantage of the machine

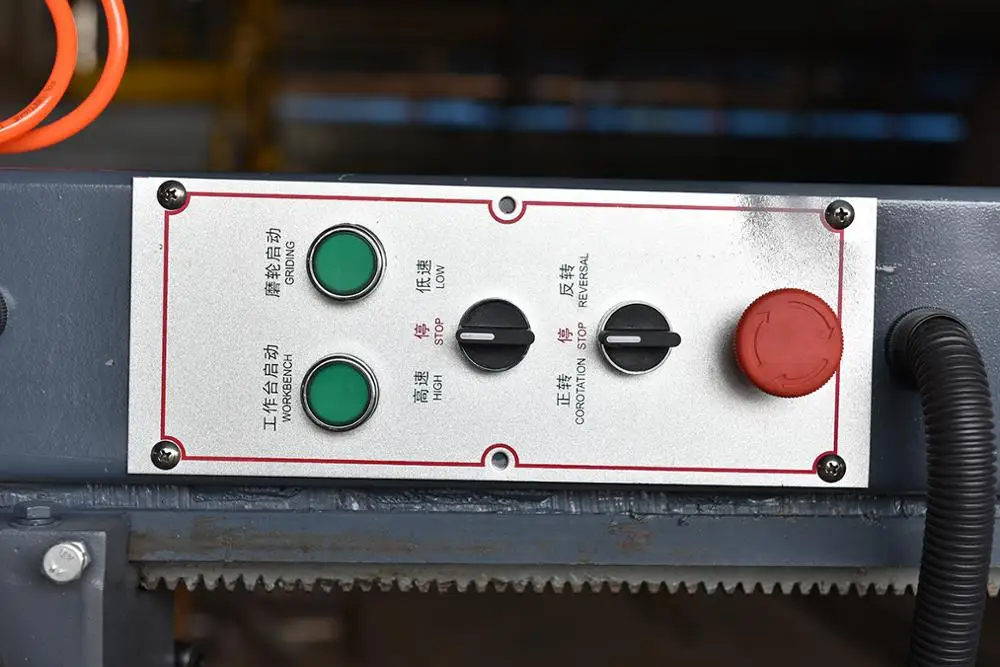

1. Easy operation for convenient design of control of wheel height, in/out position, beveling.
2. With the use of vacuum pump, no need compressed air, suck the glass tight and easy management.

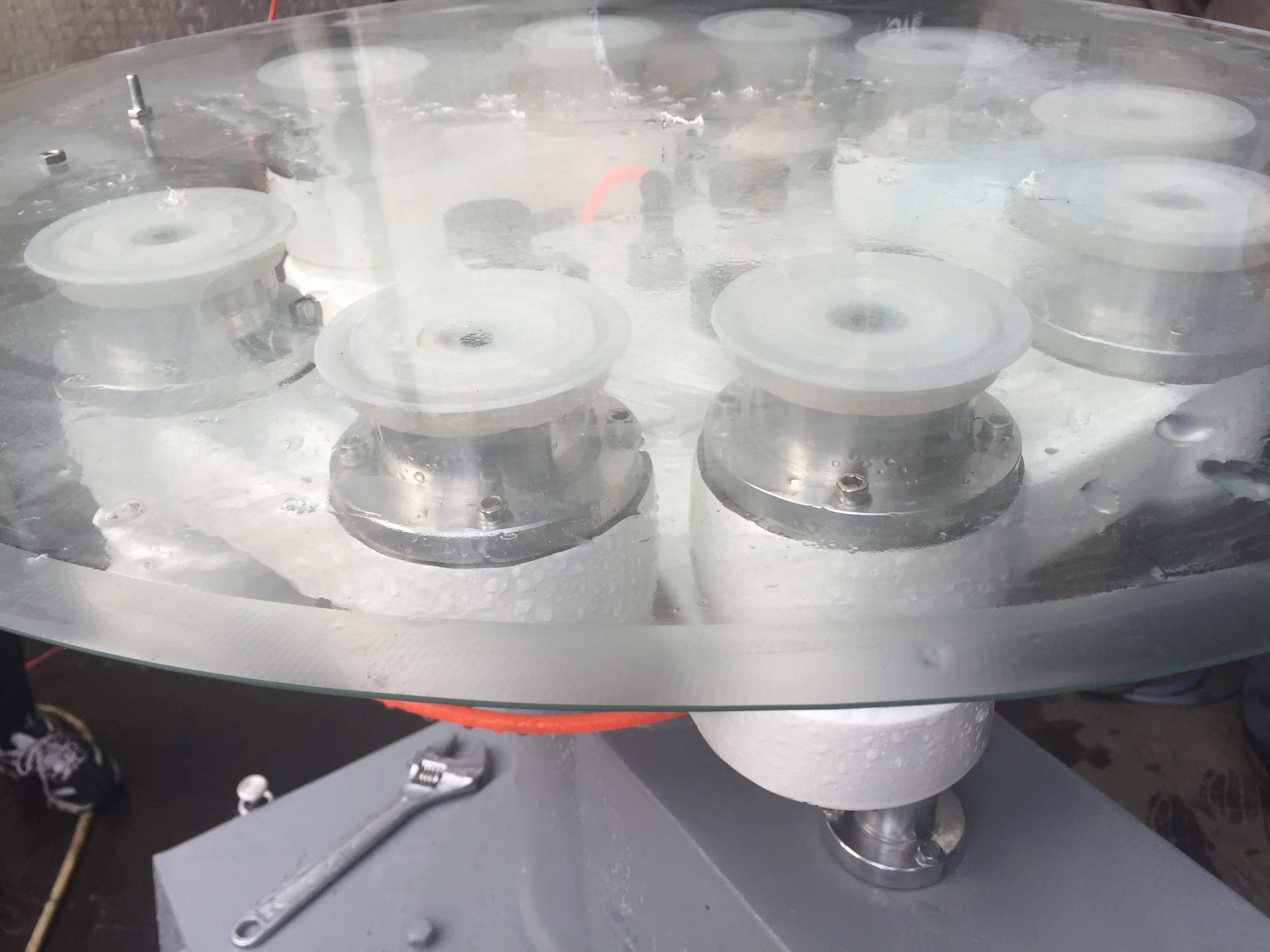

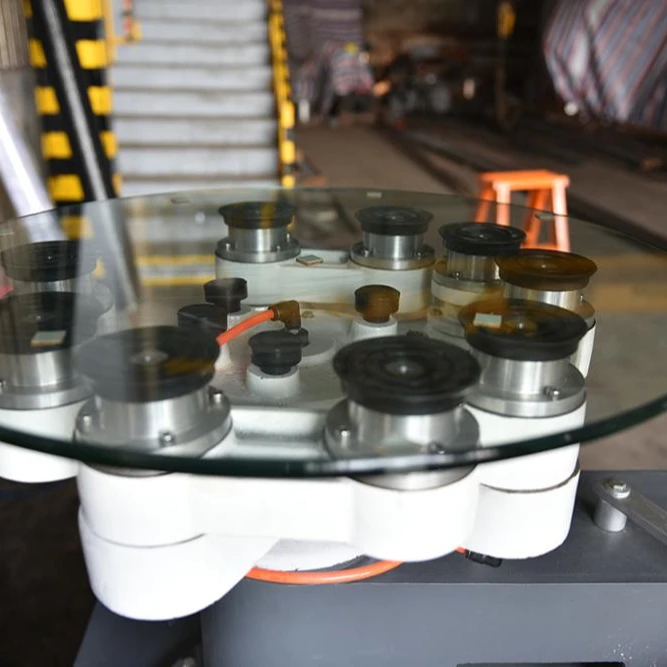

3. The working table rotating for round shape glass. Easy for the opeartor.
4. Can process small size round glass, smaller to 150mm.
