Китай высококачественное и офтальмологическое оборудование операционный

Technical Specification

Eye piece Magnification

12.5x 16B

Objective Lens

f=200mm

Working Distance

190mm

Magnification for Main Microscope

5.3x, 8x, 12x

Diameter of Field

37mm, 25mm,16.7mm,

Adjustable Diopter

±6D

Adjustable Range of Pupil Distance

50mm ~ 80mm

Maximal Resolution

100LP/m

Illumination Source

12V/100W, Medical cold-reflection Halogen Lamp

Illumination Type

6°+0 °Coaxial cold light source illumination

Coaxial Illumination

≥ 30000lx

Reaching Radius of Arm

870mm

Adjustable Vertical Range

700mm ~ 1100mm

Fine Focus Range

30mm

Input Voltage

AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz

Power

120VA

Fuse

T-type AC 250V T1.25A AC 125V T2.5 A

Electrical Safety Standard

Executive to GB 9706.1-2007, Class I

Packing Volume

0.2cbm, 1 cartons

Total Gross Weight

41kg

Optional Accessories:

 10 x eyepieces.

Table installation parts (Holding stand, split column).

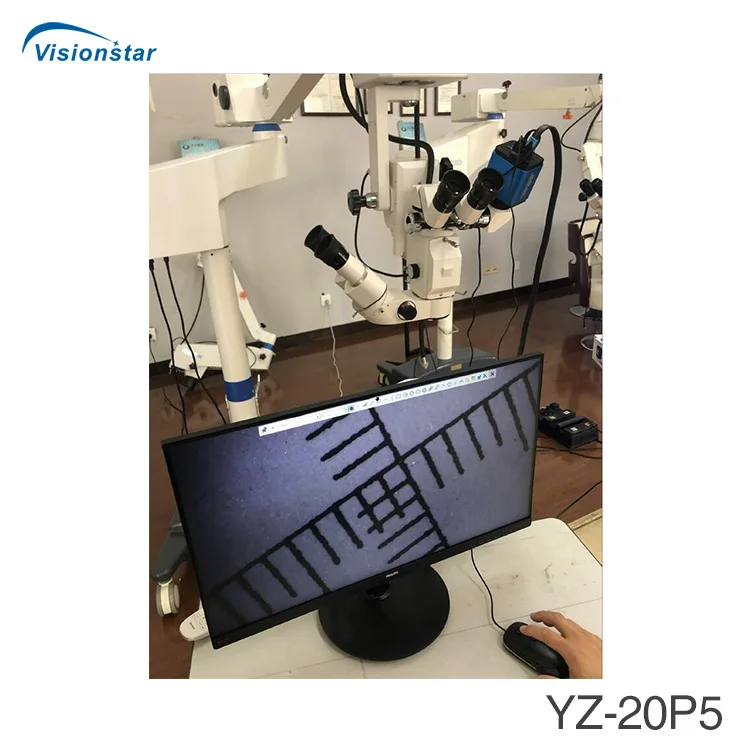

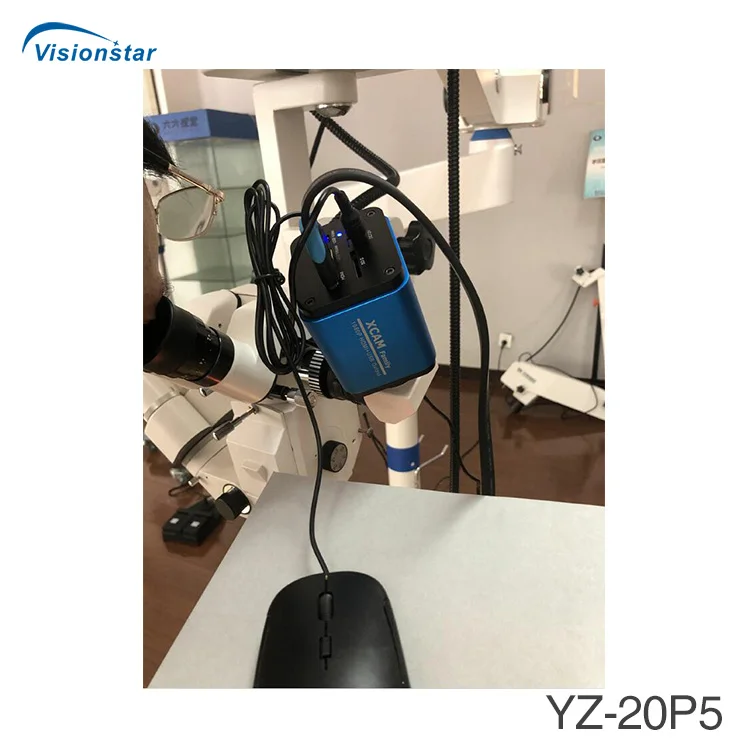

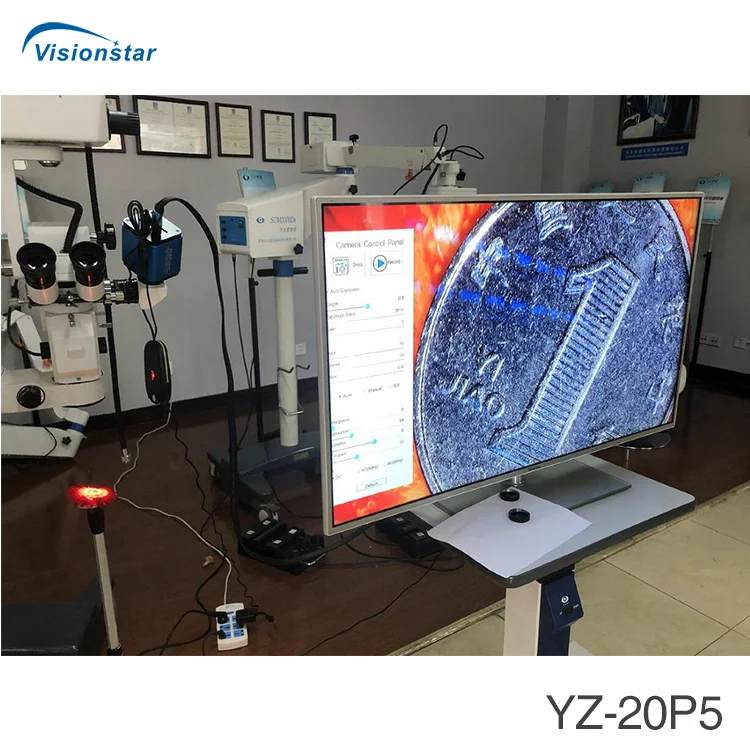

 Video devices (1/2'' or 1/4'' CCD camera, CCD Adapter, Beam Splitter and connecting cable)

 Straight Binocular, Universal Joint (for ENT)
