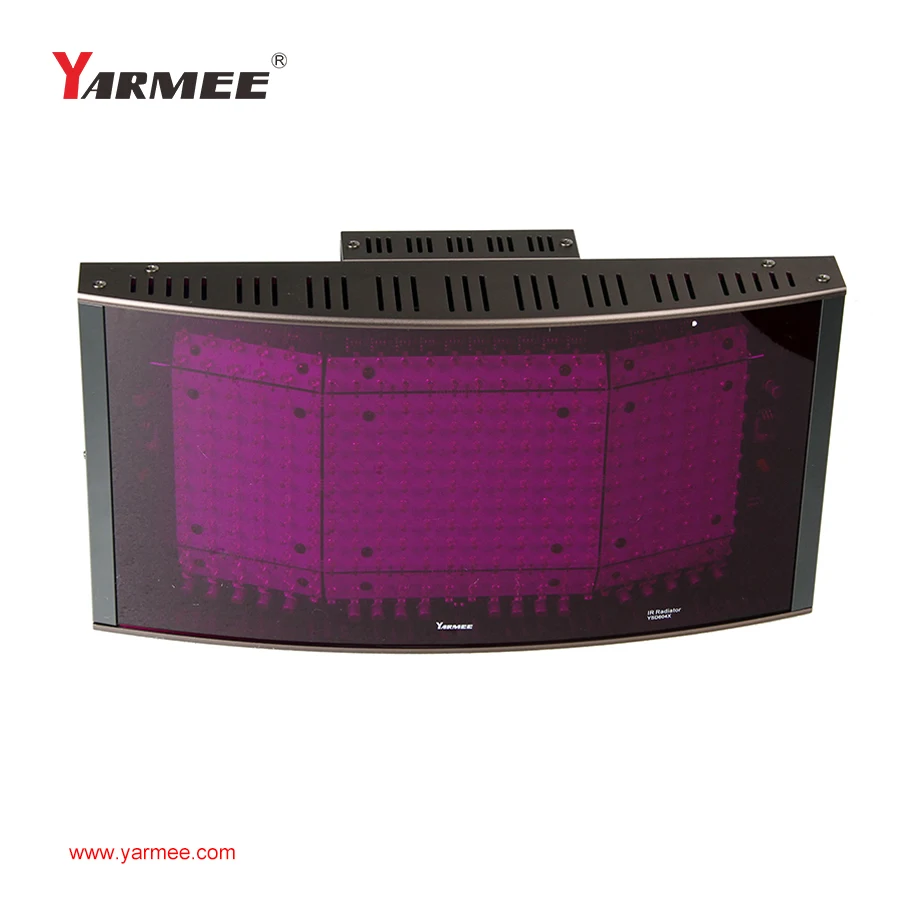

IR Radiator-YSD604X

1. Compliant to IEC 61603-7 and IEC 60914
2. Immune to interference from HF-driven lighting
3. Coverage up to about 50 meters (25 w)
4. Hand in hand radiation signal, easy to enlarge the coverage of signal, also be used to configure into many rooms
5. Installation: fixed up by bracket or tripod
6. Half-transmitting angle: ±22°
7. Delay compensation for differences in cable lengths between transmitter and radiators

Parameter of digital IR radiator:



Items	Parameter
HF input	Nominal 1 Vpp, minimum 10mVpp
Angle of half intensity	±22°
Total optical peak intensity	24 W/sr
Power consumption	Operating: 30W; Standby:25 W
Transmission distance	<30 meters/16 CH
Number of IREDs	312
Power supply	AC110V-220V ~ 50Hz-60Hz
Dimensions	445×235×113mm
Operating temperature range	0-40 degree
Mounting	Standard: Bracket, Option: tripod
N.W	4.2kg

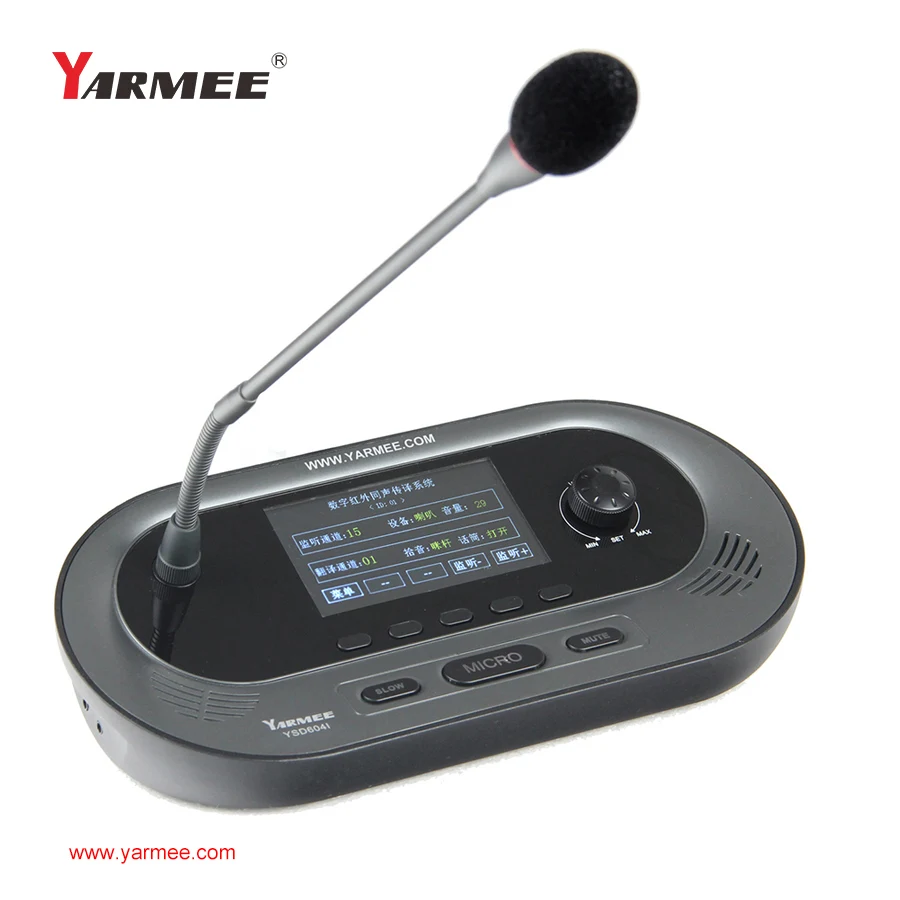

Digital Interpreter Console Unit-YSD604I



Digital Interpreter Console Unit-YSD604I



1. Fully digital design, high sound quality and greatly anti-jamming ability Volume adjust and automatic feedback eliminator
2. Cough elimination function
3. When the speakers speak too fast, can press the request button (missile) requires the speaker “SLOW” speaking speed
4. Configurable secondary translation functions, when the translator did not understand the speaker's language, by listening to the other translators transliteration again on the second translation
5. Support 4, 8, 12, 16, 20, 24, 32 road audio channel
6. Color display, optional headphones and microphones







Parameter of Digital Interpreter Console Unit:







Items	Parameter
Frequency response	50Hz – 20kHz
Sensitivity	-42 ± 2dB
Interpreter connector interface	12P-DIN
Length of gooseneck	410mm
Dimensions	300×150×70mm
Operating temperature range	0-40 degree
N.W	1.7kg

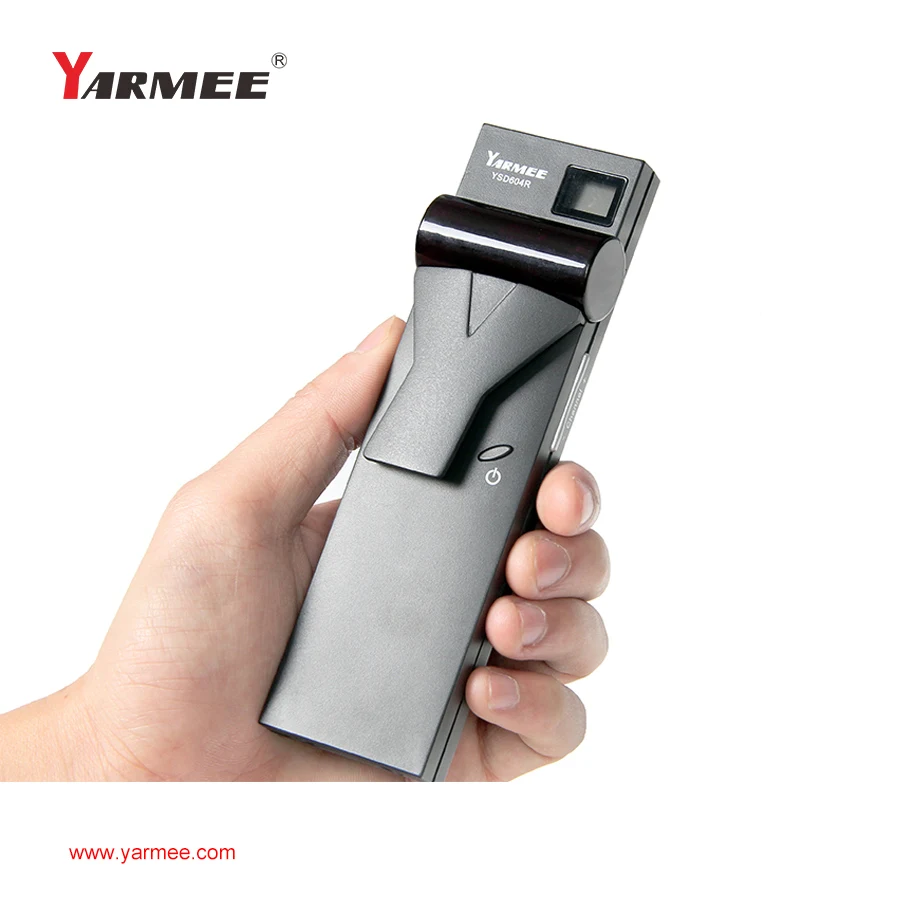

IR Receiver-YSD604R







IR Receiver-YSD604R

1. Support 4,8,16 or 32 channels available
2. Immune to interference from HF-driven lighting
3. Flexible configuration of channels and channel quality modes
4. LCD receiver display channel number and battery capacity
5. 28 level adjustable volume
6. Digital infrared signal transmission, low noise, no broken sound, wide dynamic range
Ergonomically compact and elegant design
7. Simple operation, lightweight, convenient to carry
8. Lightweight and handy receiver in conjunction with single earphone or headphone for easy and comfortable use
9. Use rechargeable batteries, can work continuously for 15 hours, and equipped with charging box
10. Setting data electricity saving function
11. Within the scope of the infrared emission, no restricted quantity of the receiver
Freedom of movement within the range of IR power radiator
12. Channel selection via up/down button
13. Works without errors, even in bright sunlight
14. Compliant to IEC 61603-7 and IEC 60914



Parameter of digital IR receiver:

Items	Parameter
Receiving sensitivity	-101dBM
Angle of half sensitivity	± 50°
Headphone output level at 2.4V	450 mVrms (Speech at maximum volume, 32 ohm headphone)
Headphone output frequency range	20 Hz to 10 kHz
Headphone output impedance	32 ohm
Max. signal-to-noise ratio	78 dB(A)
Supply voltage	1.8 to 3.6 V, nominal 2.4 V
Power consumption at 2.4V (battery voltage)	60 mA (speech at maximum volume, 32 ohm headphone)
Power consumption (standby)	60 mA
Dimensions	157×49×25mm
Operating temperature range	0-40 degree
N.W	150g without battery

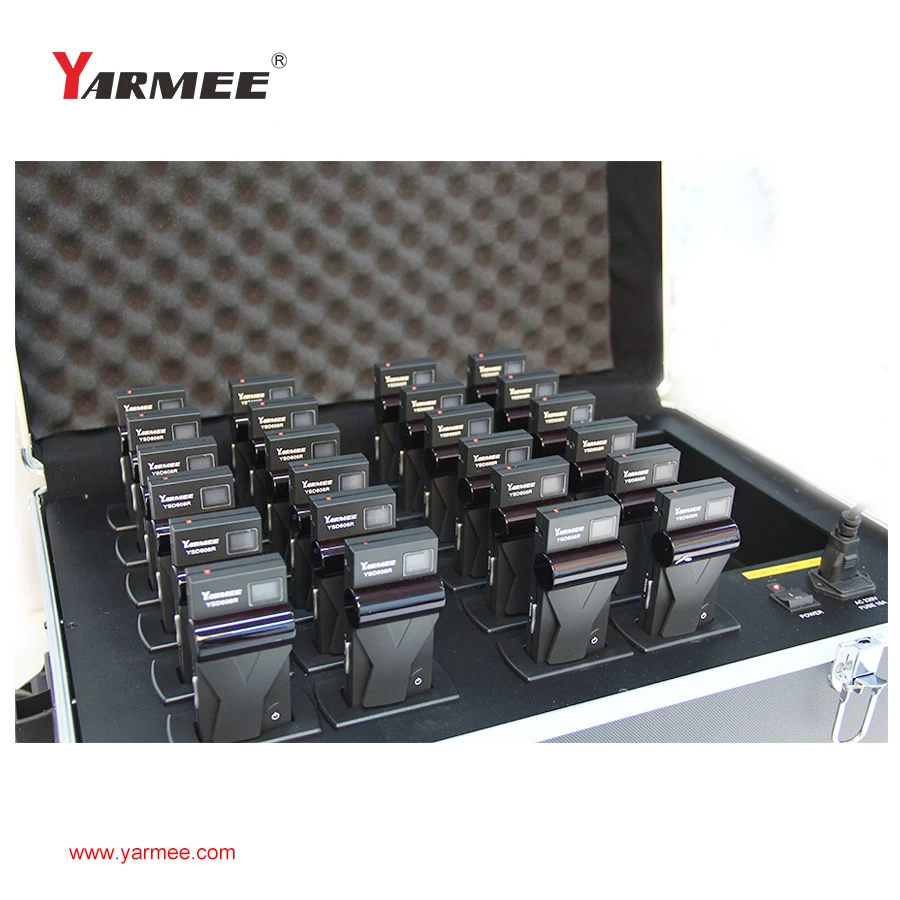

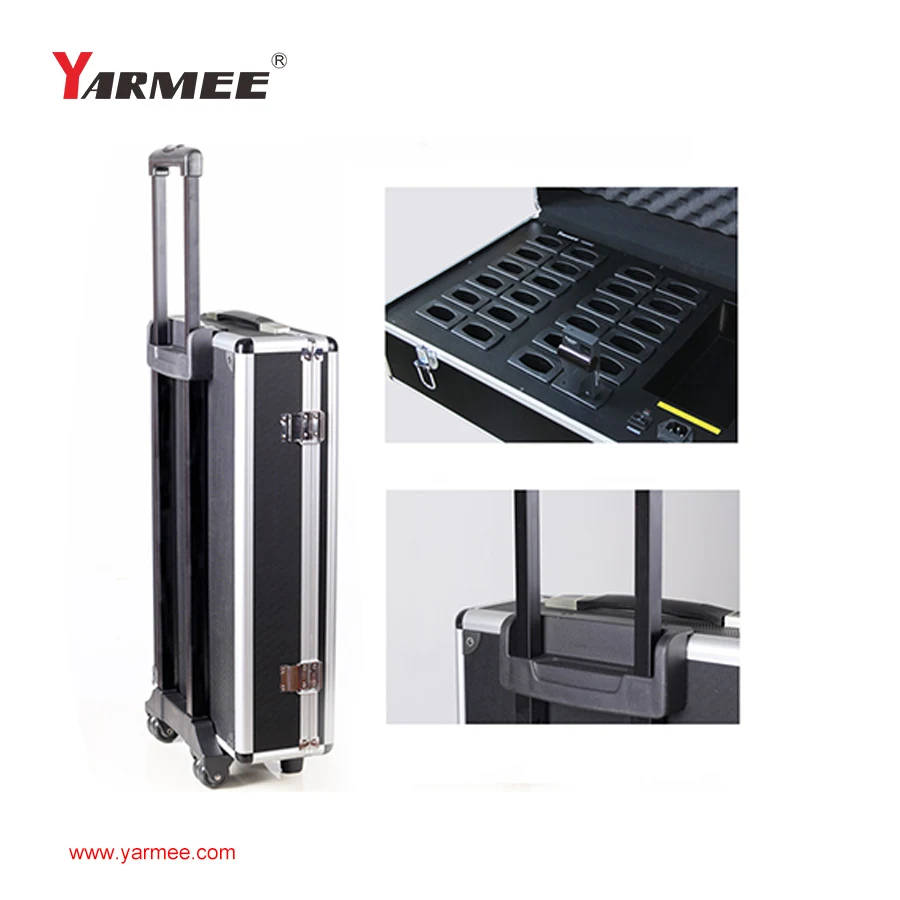

Recharging Storage Box –YSD604C



1. 220V ac power supply


2. charges 24 receivers unit per charging


3. Draw rod extension and convenient pulley for moving


4. Charging protection function and instructions
