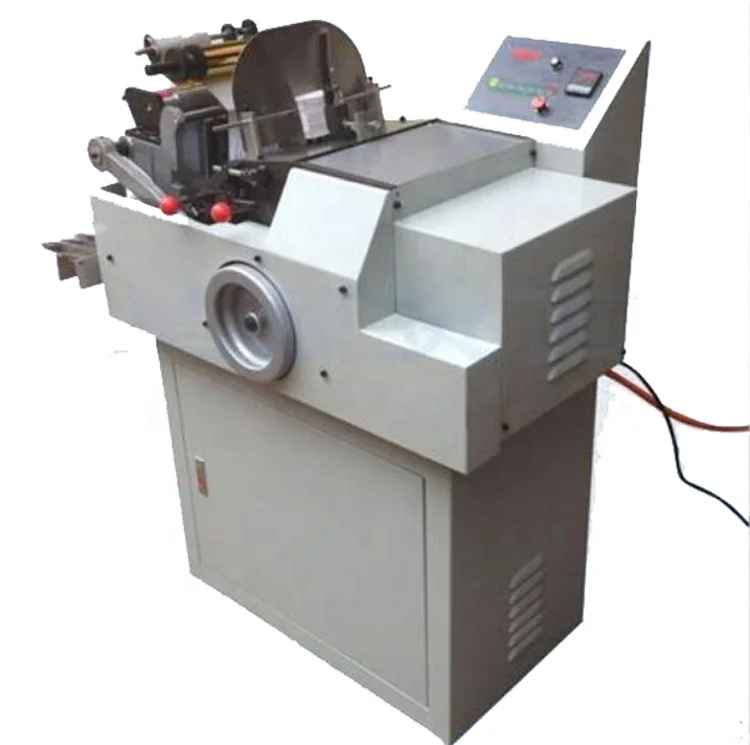

Specification of Fully Automatic Business Card Hot Foil Stamping Machine

Model:	ST-S20
Max. Paper size:	250*120mm
Max. Working area:	220*90mm
Product thickness:	80-500gsm
Application:	Business card, PVC card,scratching card, hang tag, envelope, paper box etc.
Speed:	0~4500(sheets/h)
Voltage:	220V single phase
Power:	0.8kw
Dimension:	1000*700*1000mm/1200*800*1500mm
Weight:	213kg/286kg

Features of Fully Automatic Business Card Hot Foil Stamping Machine

1.This machine has the function of hot stamping and embossing and debossing, thermoprinting.

2.Precision positioning servo motor electric-eye coordination with a special rubber tire transport membrane, stepping distance by positioning the cursor (you can also adjust the parameter settings), supplies high utilization.

3.Stamping speed and stroke parameters is adjustable.

4.Reasonable stamping head design, when you need a different stamping processing, the head can simply change to small ones.

5.Vacuum suction card feeding.

6.PLC program control, colored interface display and operation.

7. Adopts imported thermostat module to individually control the temperature of stamping head, ensures good stamping effect.

8. Can use copper stamping die or zinc stamping die.

Application of Fully Automatic Business Card Hot Foil Stamping Machine

1. Hot foil stamping on business card, cards, envelope, hang tag etc.

2. Thermoprinting on PVC cards, VIP cards, signature bar on phone cards, scratching foil etc.





Related products:

Business card cutting machine:

Cutting way	Longitudinal:rolled cutting by a roller  horizontal:cutting by a lateral long cutter
Paper feed way	Automatic paper feed in double friction way
Pape size	A3+(320*480mm),SRA3(320*450mm),A3(297*420mm)
Paper thickness	180~350gsm
Cutting speed	250pcs/minute for name card
Cutting size	Longitudinal:55(or54)mm and 89(or85,90,95)mm horizontal:40-250mm,adjustable
Paper capacity	Maximun 225pcs(about0.20mm thick)for nanme caeds or total thickness 45mm
Name card  capacity	180g/m2 200*5pcs 350g/m2 120*5pcs
Dimension	700mm*600mm*1030mm
Net.weight	90 Kgs
Power supply	AC 220V,50/60HZ,0.5A







Packaging and shipping

Packaging Detail:	Strong wooden case
Delivery Detail:	10 days after receiving payment
