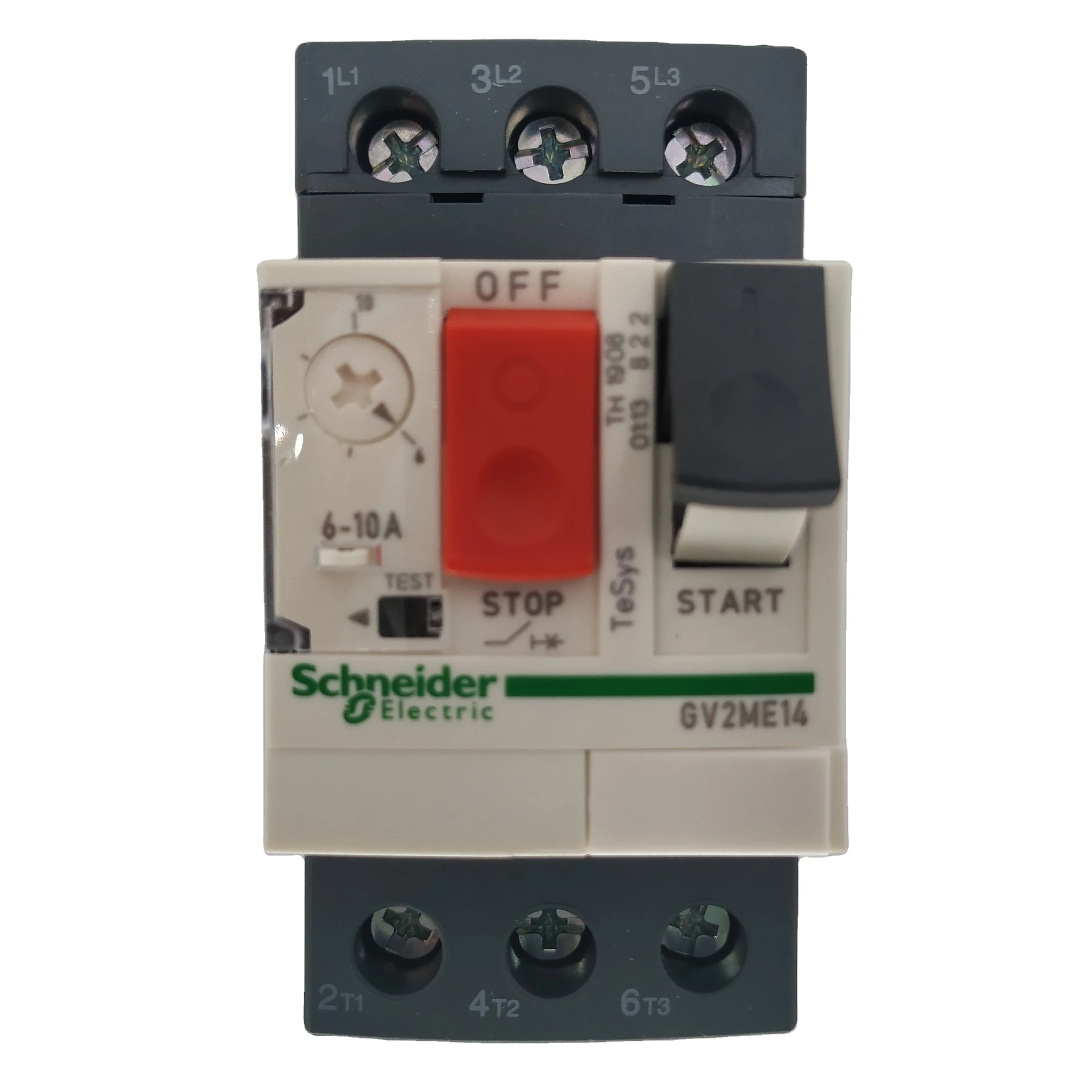

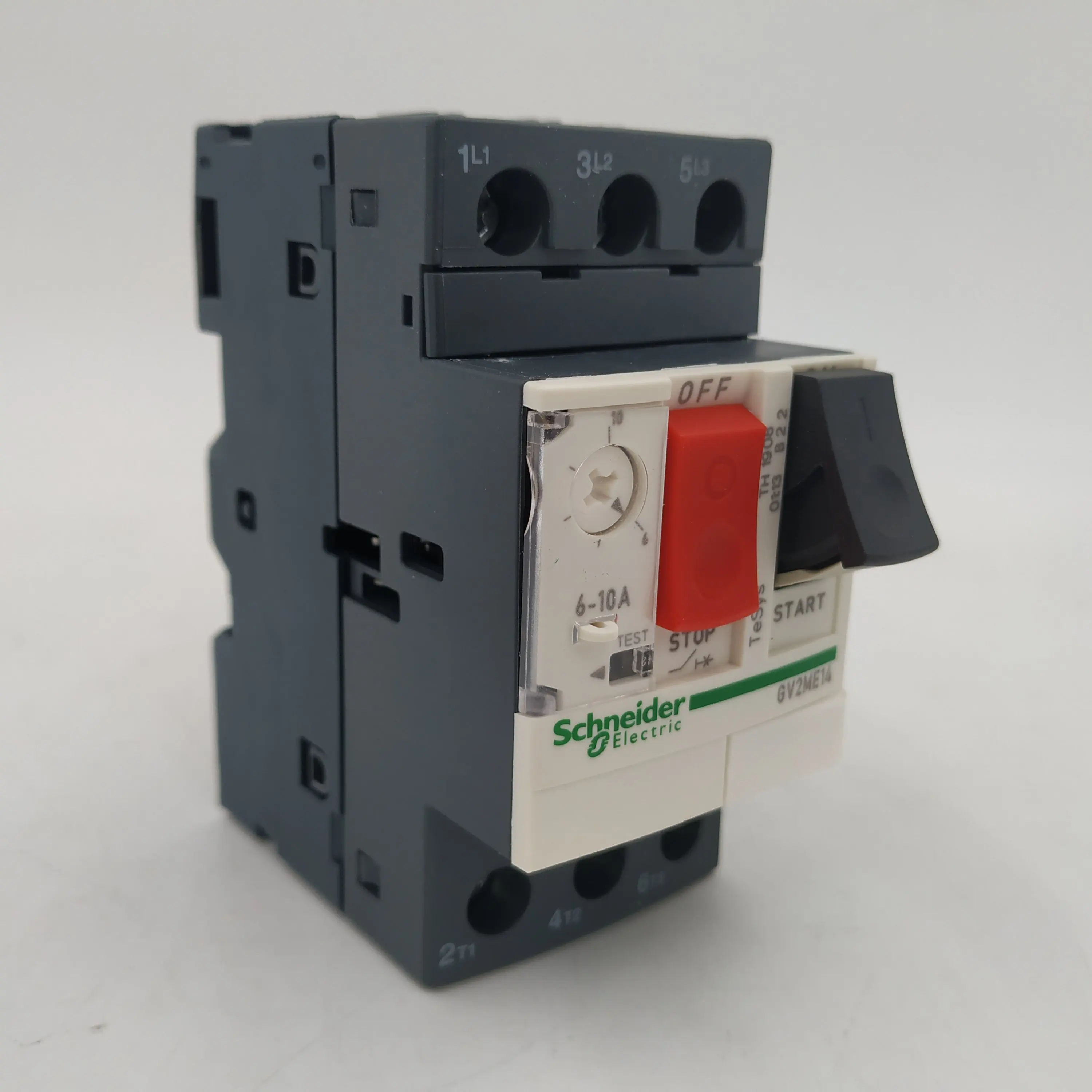

GV2-ME14 TeSys термомагнитные автоматические выключатели двигателя MPCB

GV2-ME14 TeSys термомагнитные автоматические выключатели двигателя MPCB

Категория: Circuit Breakers >>>
Поставщик: Simplybuy,(shanghai),Co.,Ltd.

Цена:39,30 $ - 43,66 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	50.88 $*	51.44 $*
Jul-18-2025	40.58 $*	41.58 $*
Jun-18-2025	49.53 $*	50.26 $*
May-18-2025	48.15 $*	49.76 $*
Apr-18-2025	39.32 $*	40.97 $*
Mar-18-2025	48.92 $*	49.26 $*
Feb-18-2025	47.27 $*	48.17 $*
Jan-18-2025	47.56 $*	48.72 $*

Характеристики

MPCB GV2 Moulded Case Circuit Breaker

GV2-ME14 TeSys thermal magnetic motor circuit breakers MPCB GV2ME14

Main

range	TeSys
product name	TeSys GV2
device short name	GV2ME
device application	Motor
trip unit technology	Thermal-magnetic

Complementary

poles description	3P
network type	AC
utilisation category	AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2
network frequency	50/60 Hz conforming to IEC 60947-4-1
fixing mode	Clipped on 35 mm symmetrical DIN rail Screwed on panel (with adaptor plate)
operating position	Any position
motor power kW	3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 7.5 kW at 690 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 5.5 kW at 690 V AC 50/60 Hz
breaking capacity	3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
control type	Push-button
[In] rated current	10 A
thermal protection adjustment range	6...10 A
magnetic tripping current	138 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
power dissipation per pole	2.5 W
mechanical durability	100000 cycles
electrical durability	100000 cycles for AC-3 at 440 V
operating rate	25 cyc/h
rated duty	Continuous conforming to IEC 60947-4-1
connections - terminals	Screw clamp terminals 2 cable(s) 1...6 mm² solid Screw clamp terminals 2 cable(s) 1.5...6 mm² flexible without cable end Screw clamp terminals 2 cable(s) 1...4 mm² flexible with cable end
tightening torque	1.7 N.m on screw clamp terminals
suitability for isolation	Yes conforming to IEC 60947-1
phase failure sensitivity	Yes conforming to IEC 60947-4-1
height	89 mm
width	45 mm
depth	78.2 mm
product weight	0.26 kg

Environment

standards	IEC 60947-1 IEC 60947-2 IEC 60947-4-1 CSA C22.2 VDE 0113 NF C 63-120 VDE 0660 UL 508 NF C 63-650 NF C 79-130 EN 60204
product certifications	SETI TSE CCC GL EZU RINA UL ATEX LROS (Lloyds register of shipping) DNV CSA CEBEC EAC BV
protective treatment	TH
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK04
ambient air temperature for operation	-20...60 °C
ambient air temperature for storage	-40...80 °C
fire resistance	960 °C conforming to IEC 60695-2-1
operating altitude	2000 m

Offer Sustainability

Sustainable offer status	Green Premium product
RoHS (date code: YYWW)	Compliant - since 0631 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACh	Reference contains SVHC above the threshold - Go to CaP for more details Go to CaP for more details
Product environmental profile	Available Product Environmental Profile
Product end of life instructions	Need no specific recycling operations
