Цифровой однофазный измеритель кВт/ч на Din-рейке с
- Категория: Счетчики электроэнергии >>>
- Поставщик: Shanghai,Fengyilong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.26 $* | 0.20 $* |
| Aug-18-2025 | 0.36 $* | 0.91 $* |
| Jul-18-2025 | 0.11 $* | 0.10 $* |
| Jun-18-2025 | 0.30 $* | 0.15 $* |
| May-18-2025 | 0.98 $* | 0.68 $* |
| Apr-18-2025 | 0.83 $* | 0.51 $* |
| Mar-18-2025 | 0.38 $* | 0.8 $* |
| Feb-18-2025 | 0.76 $* | 0.75 $* |
| Jan-18-2025 | 0.24 $* | 0.0 $* |
Характеристики

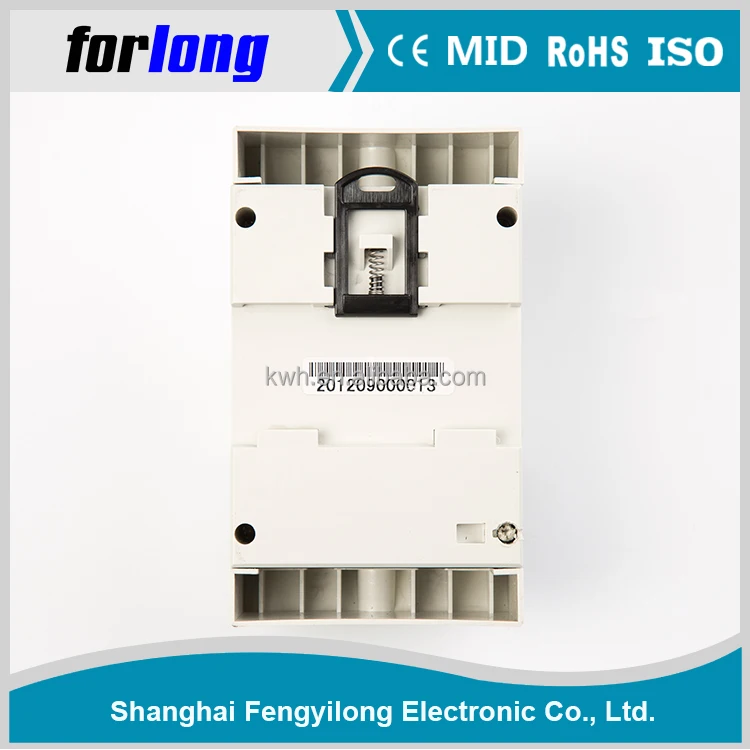

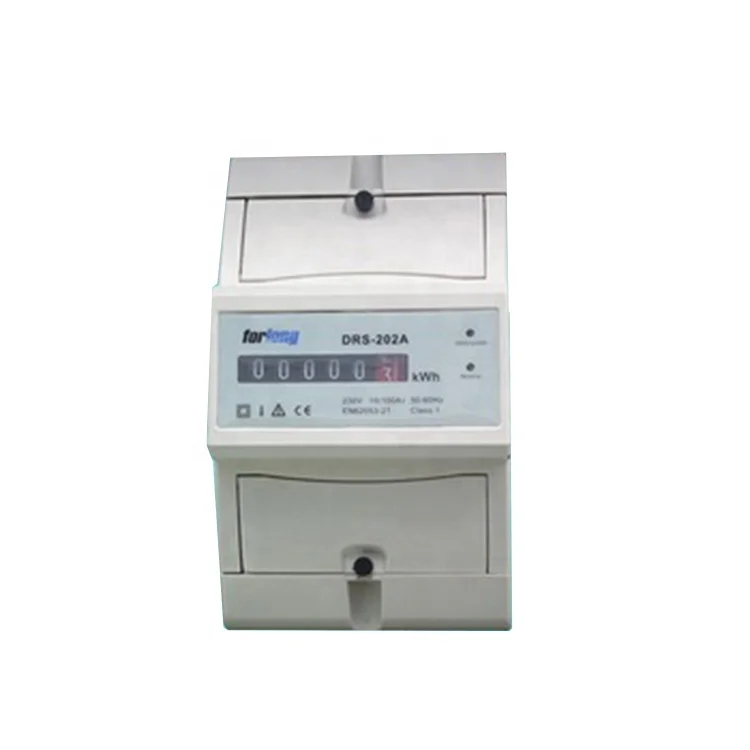

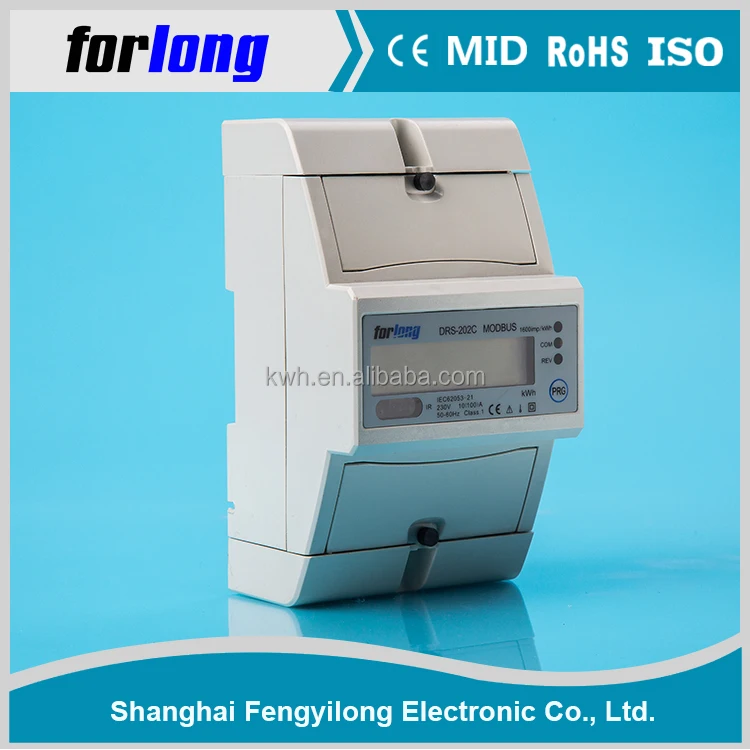

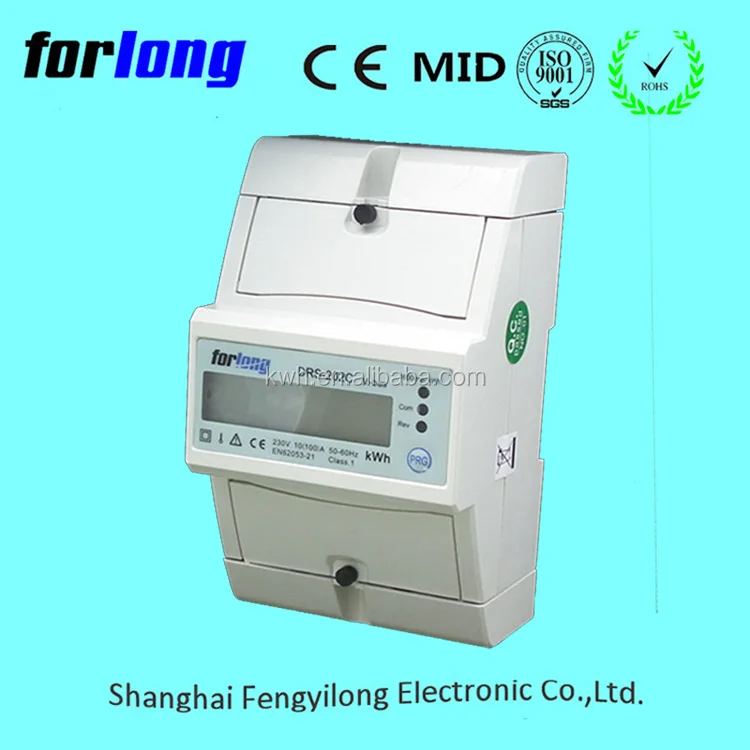

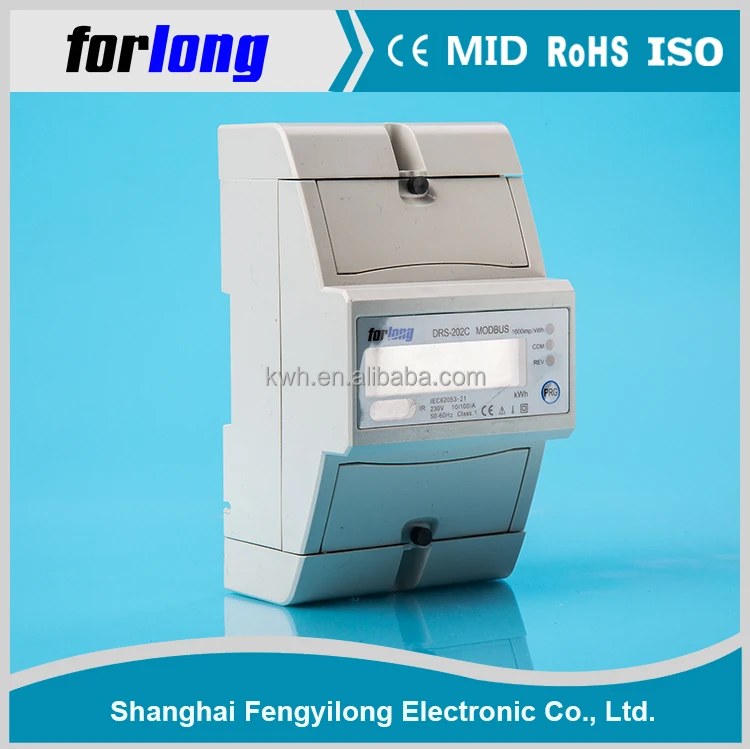

Electric Power Din Rail Digital Smart Energy Single Phase Kwh Meter
Product Description
| Meter type | DRS-202C (LCD display | |
| Digit length | 5+2/6+1 | |
| Nominal voltage(Un) | 110V/127V/133V AC | |
| 230/240V AC(option) | ||
| Operational voltage | (-15% ~ +10%)Un | |
| Insulation capabilities | - AC voltage withstand | 2KV for 1 minute |
| - Impulse voltage withstand | 6KV – 1.2µS waveform | |
| Rated current (Ib) | 10A | |
| Maximum rated current (Imax) | 60A/80A/100A(option) | |
| Operational current range | 0.4% Ib- Imax | |
| Over current withstand | 30Imax for 0.01s | |
| Operational frequency range | 50Hz ±10% | |
| Internal power consumption | ≤2W / 10VA | |
| Test output flash rate (RED LED) | 1600imp/kWh | |
| Pulse output rate | 1600imp/kWh | |
| reverse indicator (RED LED) | Current reverse | |
| Consumption indicator (RED LED) | Flashing at load running | |
| Communication indicator(GREEN LDE) | Flashing at communication running | |
| Data communication port | RS485 and far infrared | |
| Data store | The data can be stored for more than25 years without power | |
Realated Production
FAQ
1.Q: No light for the consumption indicator.
A: Only when there has current, this LED will flash. A2: Please contact your technical supporter to replace this meter.
2.Q: The register can’t run.
A: Check that the power supply
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
3.Q: No pulse output.
A: Check correct connecting: connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A2: Please contact your technical supporter to replace this meter.
4.Q: Pulse output rate wrong.
A1: Please contact your technical supporter to replace this meter.
