J30J-21ZKSP небольшого объема металлический корпус прямоугольные
- Категория: >>>
- Поставщик: Taixing,Hangjie,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.69 $* | 0.26 $* |
| Aug-20-2025 | 0.79 $* | 0.72 $* |
| Jul-20-2025 | 0.20 $* | 0.8 $* |
| Jun-20-2025 | 0.2 $* | 0.72 $* |
| May-20-2025 | 0.37 $* | 0.92 $* |
| Apr-20-2025 | 0.29 $* | 0.60 $* |
| Mar-20-2025 | 0.57 $* | 0.29 $* |
| Feb-20-2025 | 0.43 $* | 0.63 $* |
| Jan-20-2025 | 0.5 $* | 0.6 $* |
Характеристики
Product Description

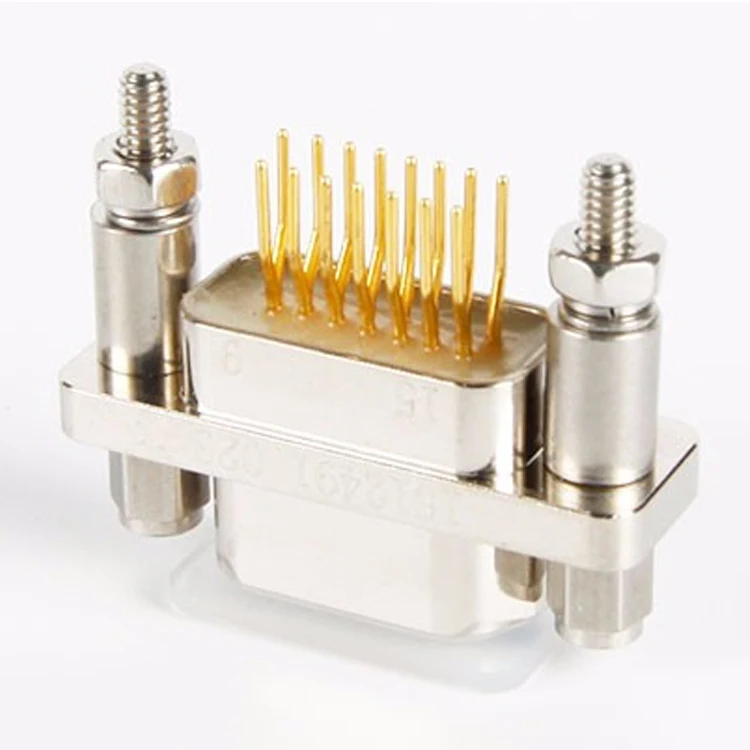

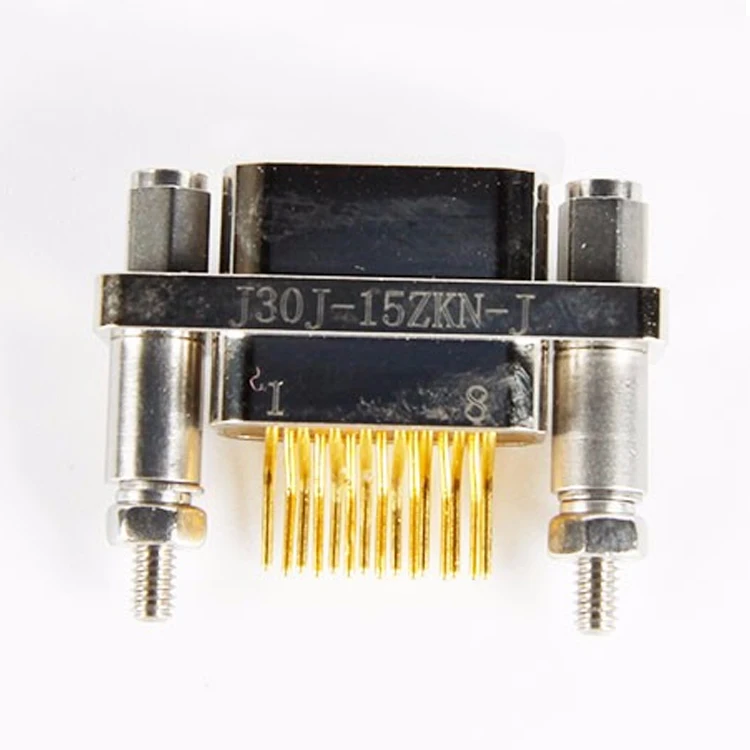

J30J series 21 Pins electric female rectangular connectors
The contact spacing of these connectors with wire twisting pin and high density contacts arrangment are 1.27*2.54mm,1.6*2.54mm and 2.54*2.54mm.There are plastic shell and metal shell. They are equvialent to the MD series and MDM series of USA and have the features of small volume ,quickly mating and unmating function. They are wildely used for the electric circuit connection of military electronic equipment,espically in the area of small install space and light weight.
Conditions of use environment
Relative temperature: -55 ° C ~ +125° C
Relative Humidity: At +40°C, 95%
Technical Features ( Under Normal Condition )
| Rated Current | 3 A |
| Contact Resistance | Less than 10MΩ |
| Insulation Resistance | Morn than 5000 MΩ |
| Dielectric Withstand Voltage | 600V |
How to order
Company Information
Our products are widely used in aviation,aerospace,boat,telecommunication,railway,medical
appar- atus, car, oil survey and so on. Parts of them are sold abroad. Having excellent
characteristics such as small size,high density,suitable for any circumstance,leakage,proof,
nice shielding performance,easy to operate,high reliability and high contents of technological,
our products have received good remarks from our clients all over the world.
1> Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
2> Q:How can I get samples?
A: It's my honor to offer you samples,but we can only give
you one free sample,and the freight should be paied by yourself.
3> Q:How does your factory do regarding quality control?
A:Quality is priority.New era people always attach great importance to
quality controlling from the very beginning to the very end.Our factory
has gained ISO9001,GJB9001,QPL lSO14001,certificates.
