Our factory is verified by Alibaba group and granted with USD 565,000 trade assurance credit ,that means ,Alibaba will offer you Maximum USD 565,000 return if there is any fraud during business .
Feature:
Suitable to press veneer ,fireproofing-board ,decorating-paper etc .

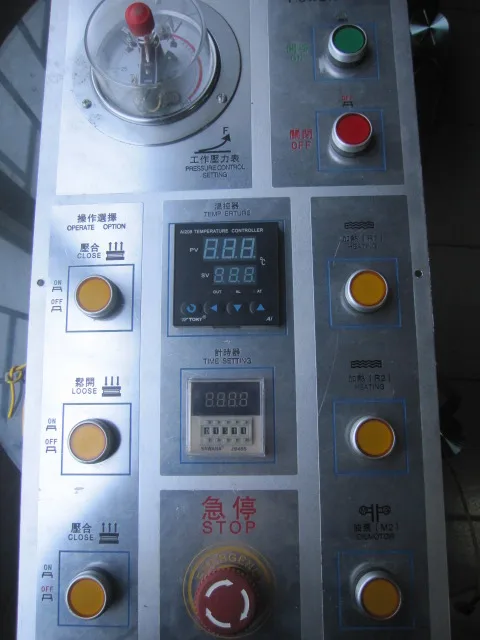

Adopt solid steel heat conduction board with deep-hole drilling technic ,configure with pedal emergency switch,quadric temperature protection device etc; Main hydraulic parts cylinders and composites are imported from Japan and Taiwan .
Heating type :
1.Electric heating with circulating heat-transmission oil (standard configuration );
2.Steam heating (optional)
3.With both electric and steam hearing ,suitable for shortage of steam area
Parameter:
Model | JY3848AX100 |
1LAYER 2LAYERS 3LAYERS | |
Press platen dimensions | 1300x2500x42mm |
Max.total thrust | 100t(3.0kg/cm²) |
Pressure of hydraulic system | 265kg/cm² |
Max.platen opening | 380mm 100mm 100mm |
Oil cylinder | Φ90x6pcs |
Hydraulic motor power | 4kw |
Hot oil pump power | 1.5kw |
Overall dimension(LXWXH) | 370x166x204/206/209mm |
Net weight | 5000kg 6000kg 7000kg |
For the JY3848AX100 Hydraulic Hot Press Price machine is:
One year guarantee from the delivery date of this machine under the normal operation of one shift per day. We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
