Заводской рулон PMMA 3 мм RGB теплого белого света пластиковый необработанный волоконно-оптический
- Категория: Communication Cables >>>
- Поставщик: Jiangsu,Tx,Plastic,Optical,Fibers,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.29 $* | 0.92 $* |
| Aug-20-2025 | 0.20 $* | 0.13 $* |
| Jul-20-2025 | 0.65 $* | 0.86 $* |
| Jun-20-2025 | 0.13 $* | 0.34 $* |
| May-20-2025 | 0.2 $* | 0.67 $* |
| Apr-20-2025 | 0.38 $* | 0.1 $* |
| Mar-20-2025 | 0.71 $* | 0.23 $* |
| Feb-20-2025 | 0.94 $* | 0.73 $* |
| Jan-20-2025 | 0.76 $* | 0.61 $* |
Характеристики
Product Description
Specifications

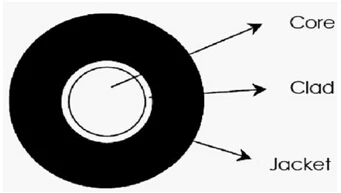

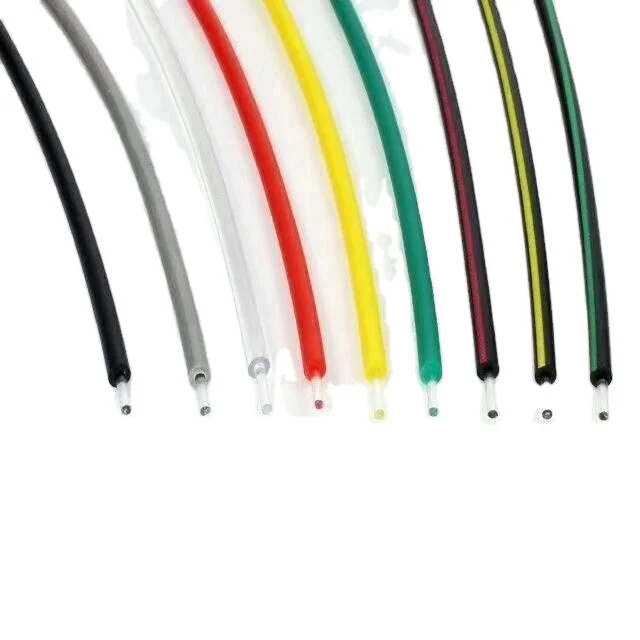

1. Product name:Plastic optical cable
2.Fiber core material: PMMA
3. Fiber cladding material: Fluorinated polymer
4. Core refractive index: 1.492
5. Numerical aperture: 0.5
6. Number of fiber: 1
7. Outer jacket material(color): PE(Black)
8. Minimum bend radius: 25mm
9. Core OD: 0.5mm-3.0mm
Item | Code | Cable outer diameter(mm) | Jacket color and material | Attenuation (dB/km) | Temperature (°C) | Length (M) |
PMMA plastic optical fiber cable | TX-CC0500-1 | 1.0±0.07 | Black PE | ≤180 | -50~+85 | 1500 |
TX-CC0750-1 | 2.2±0.07 | Black PE | ≤180 | -50~+85 | 2500 | |
TX-CC1000-1 | 2.2±0.07 | Black PE | ≤180 | -50~+85 | 2500 | |
TX-CC1500-1 | 3.0±0.07 | Black PE | ≤180 | -50~+85 | 700 | |
TX-CC2000-1 | 3.8±0.07 | Black PE | ≤180 | -50~+85 | 350 | |
TX-CC3000-1 | 5.0±0.07 | Black PE | ≤180 | -50~+85 | 150 | |
TX-CC1000-2 | 2.2X4.4±0.10 | Black PE | ≥180 | -50~+85 | 1250 |
Applicaiton
1. FTTH (fiber to home)
2. Consumer electronics
3. Automobile intelligence
4. Industry control and monitor system
5. Military communication

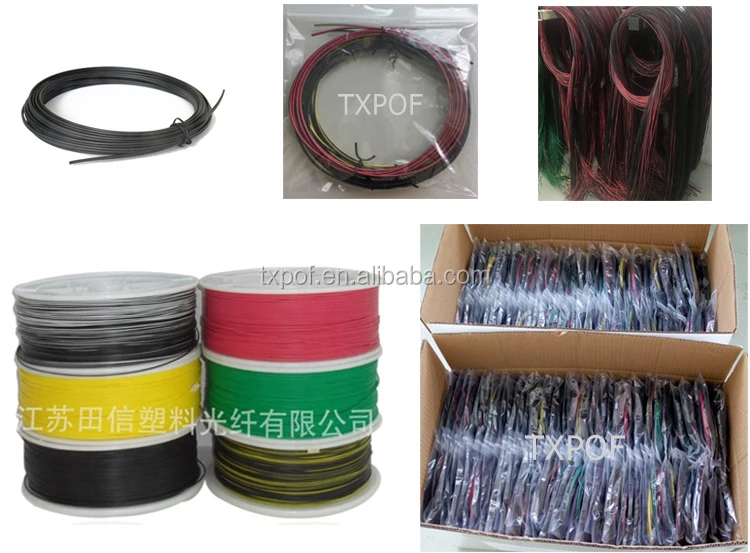

Packaging & Shipping
