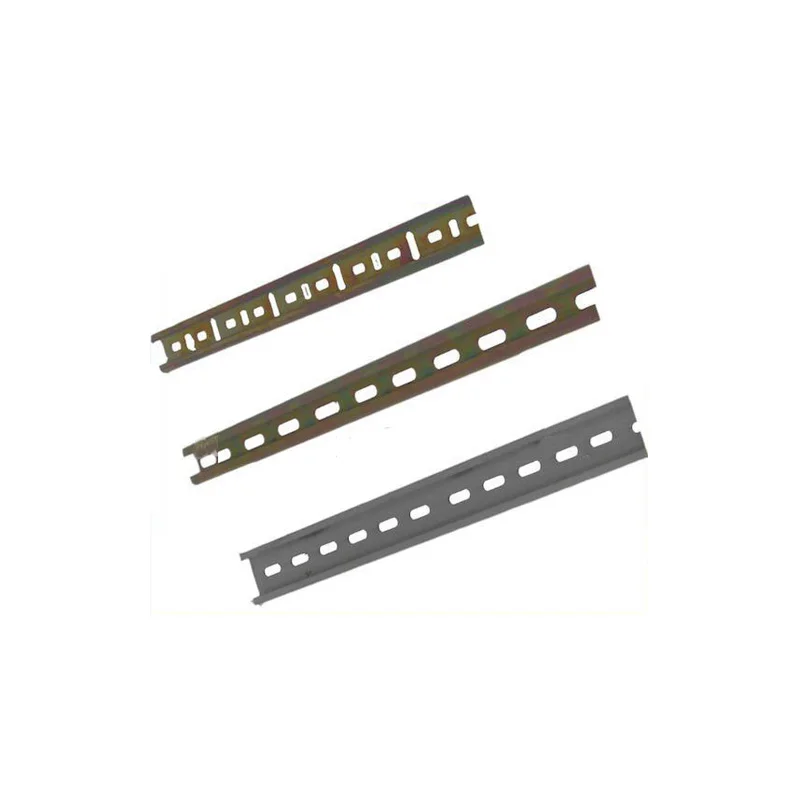

)It's made from carbon constructional steel plate and passivated by yellow chrome acid after zincification which led to a good rigidity and accurate size.

2)The standard lengths of 35x7.5 DIN Rail are 1m and 2m. customized length is also available.

3)35x7.5 DIN Rail is suitable to install breaker, contactor, surge protector, relay, connecting terminal, PLC, module socket, module electric appliance and favorable to circuit design of electric appliance and maintenance . It will improve the installation speed and lower the manufacturing cost and use-cost.

4)It can be installed in various jack boxes, control cabinets, and switch cabinets.

5)OEM/OBM/ODM services is available, we could also produce according to customer's special requests, like fixed size processing, customize slot and so on.


1.Product Data Sheet

Description	35 x 7.5, slotted, steel
RoHS Status	RoHS compliant
Size	35 mm x 7.5 mm (1.378” W x 0.295” H)
Length	1000.00 mm (39.370”) or 2000.00 (78.740”)
Thickness	1.00 mm (0.039”)
Slotted/Unslotted	Slotted
Length x Width of Slots	15 x 6.2 mm (0.591” x 0.244”)
Standard	EN60715
Surface Treatment	Passivated by trivalent chromium after zincification
Surface Color	Yellow
Weight	0.315 kg/meter approx
Standard Package	50pcs/carton

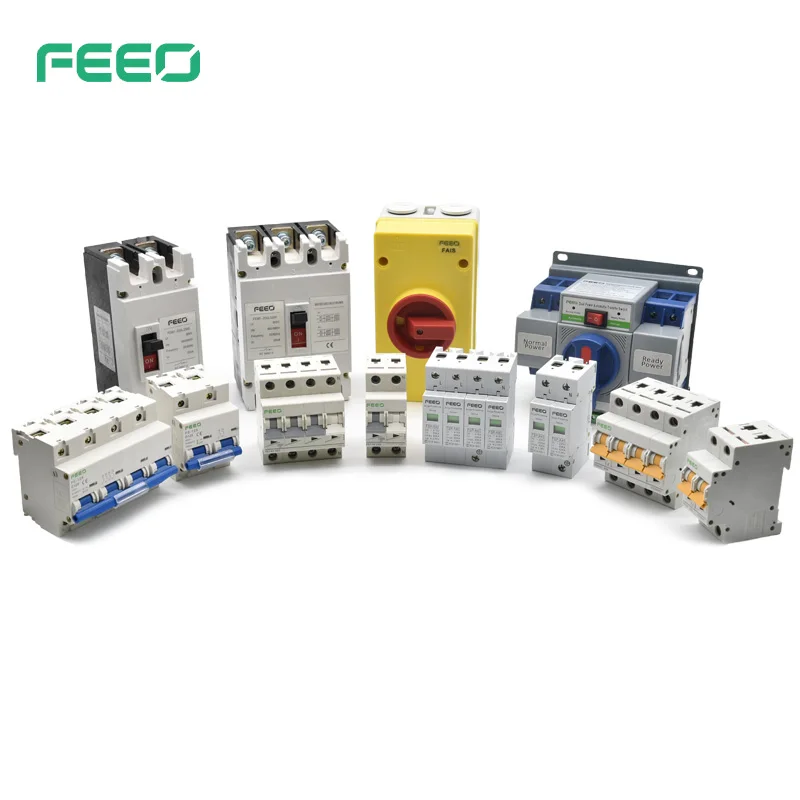

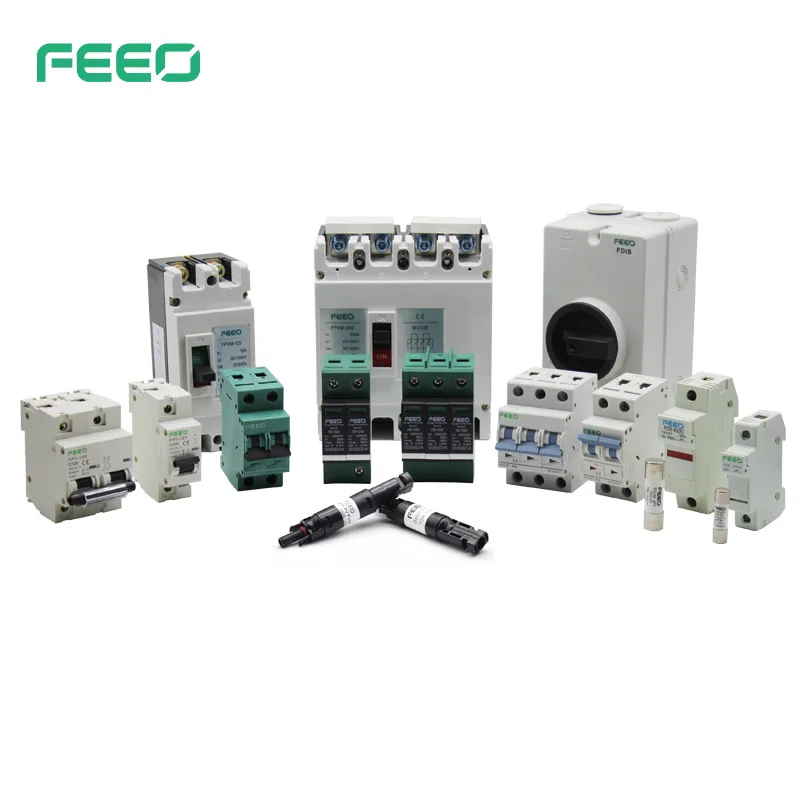

We also manufacture many kinds of Mini Circuit Breakers include C45 C45LE, C65, DPN, DZ30LE, NC100 MCB, and so on.
For more information, please log in our website for more information. FEEO is your sincere partner and be always selling high quality circuit protection
