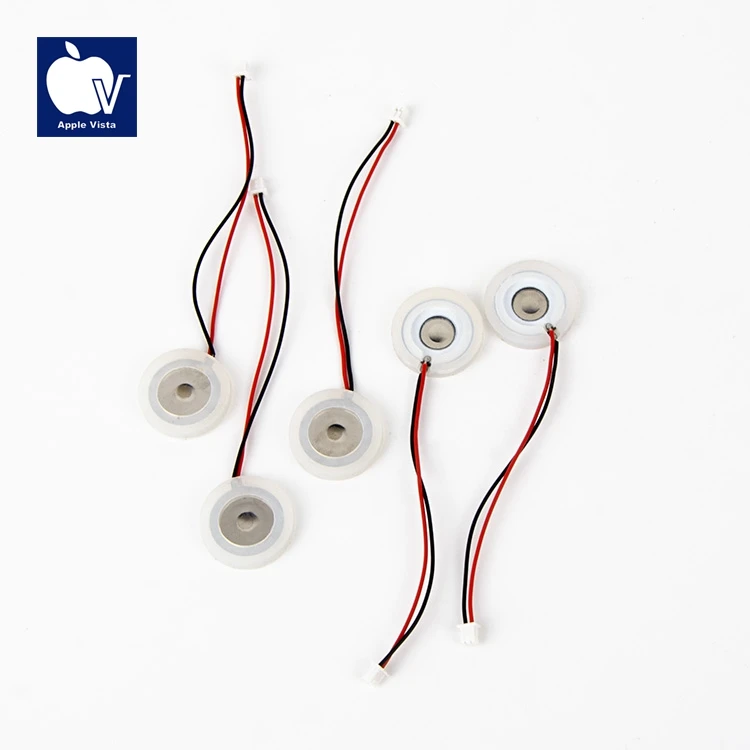

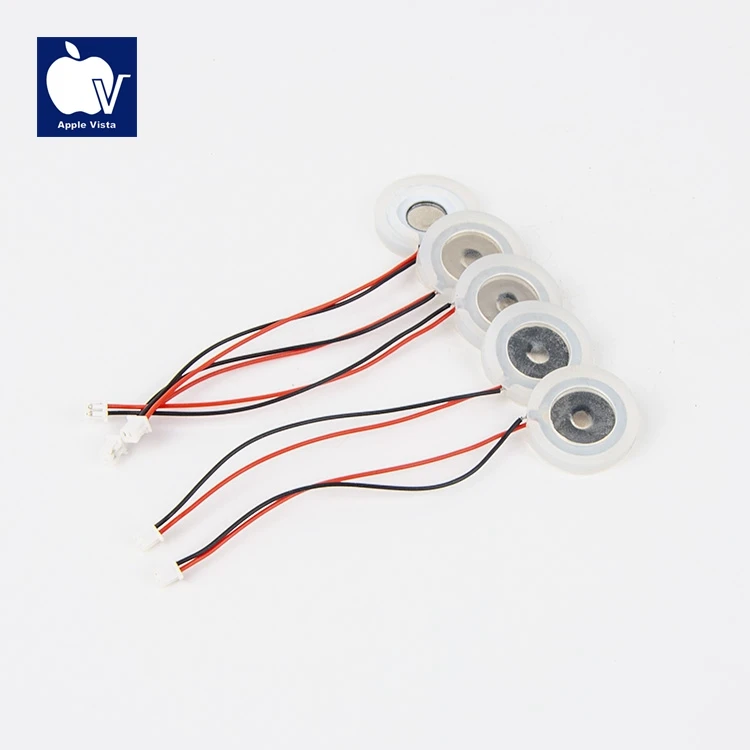

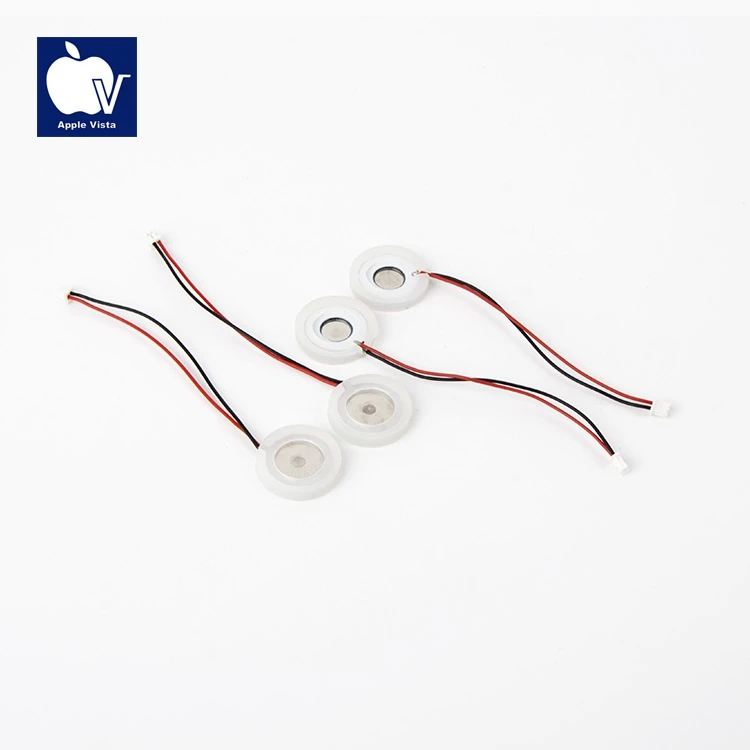

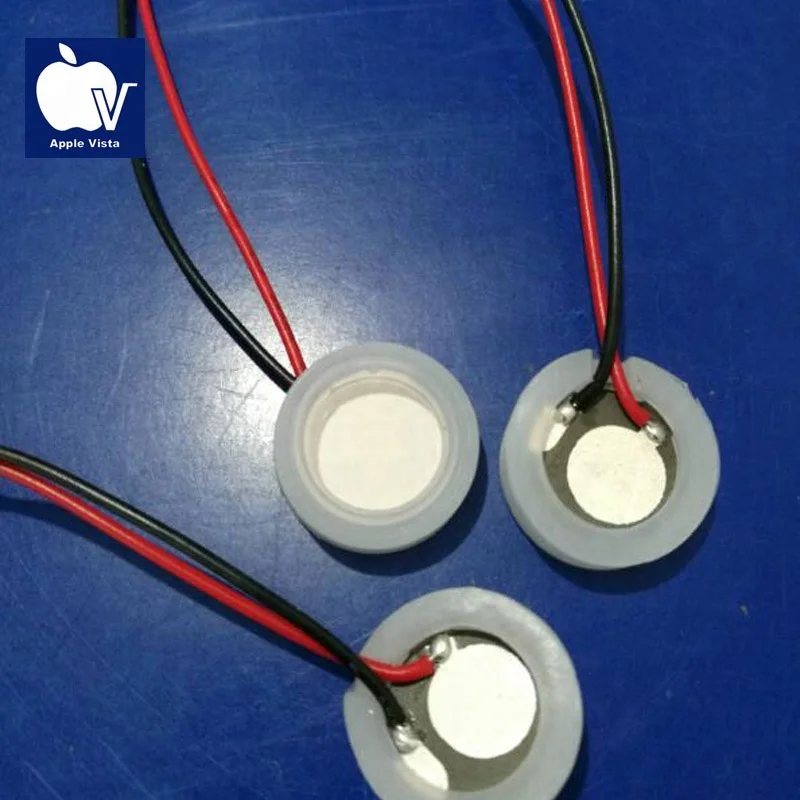

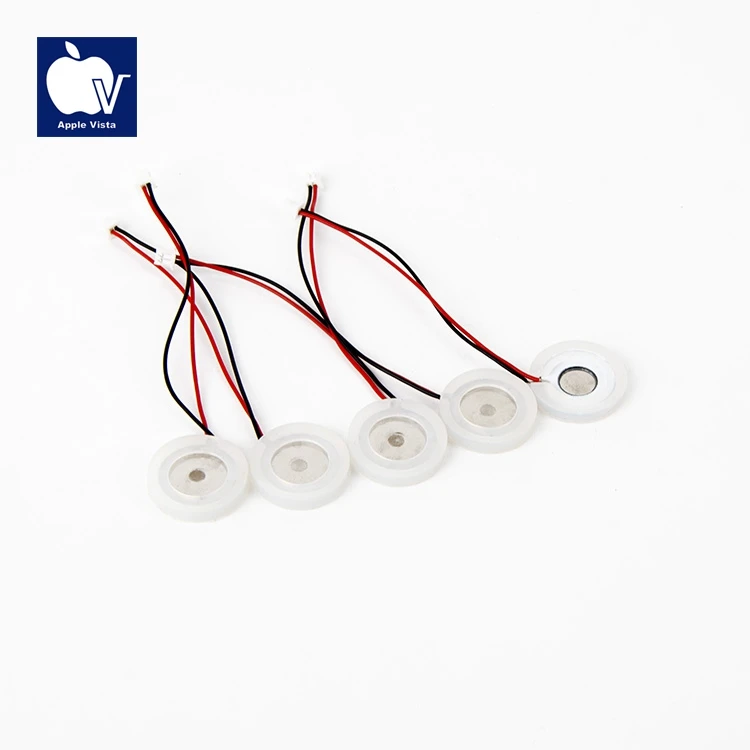

20 мм пьезокерамический диск для 2 4 МГц пьезоэлектрический ультразвуковой

Цена:0,90 $ - 1,10 $*

Количество:

Products Description

Product Display

Dimension （Outer DiometerInner Dimension Thickness)	Capacity (pF)	Dielectric Loss- tg δ (%)	Resonant Frequency -Fr(kHz)	Coupling Factor - Kp(%)	Quality Factor-Qm	Application
Φ10Φ52	330	0.3	145	≧0.4	800	For Small Power Transducers: 1) ultrasonic spot welding 2) ultrasonic polishing 3) ultrasonic physiotherapy 4) ultrasonic scaler 5) fine bubbles crushed 6) ultrasonic agitation
Φ25-Φ10*2	900	0.3	87.0	≧0.42	800
Φ28Φ103	1400	0.3	59.0	≧0.43	800
Φ30Φ105	1140	0.3	58.0	≧0.44	800
Φ32Φ105	1255	0.3	52.7	≧0.44	800
Φ3410.55	1350	0.3	50.2	≧0.45	800
Φ34Φ145	1390	0.3	48.5	≧0.45	800
Φ35Φ155	1425	0.3	46.4	≧0.45	800
Φ36Φ155	1500	0.3	41.5	≧0.45	800	For Medium Power Transducer: 1) Ultrasonic cleaning, 2) ultrasonic descaling 3) ultrasonic extraction 4) phacoemulsification
Φ38Φ155	1735	0.3	43.8	≧0.45	800
Φ40Φ125	2075	0.3	44.6	≧0.45	800
Φ40Φ155	1960	0.3	42.2	≧0.45	800
Φ45Φ155	2565	0.3	38.7	≧0.45	800
Φ50Φ175	3150	0.3	34.6	≧0.45	800
Φ49Φ236	2225	0.3	32.2	≧0.43	800
Φ50Φ176.5	2425	0.3	34.6	≧0.45	800	For High Power Transducer: 1) Ultrasonic Machining, 2) ultrasonic plastic welding, 3) ultrasonic drilling , 4) ultrasonic oil-water emulsions , 5) Spinneret powerful cleaning
Φ49Φ236	2340	0.3	31.8	≧0.43	800
Φ50Φ236.5	2170	0.3	31.8	≧0.43	800
Φ60Φ3010	1925	0.3	25.8	≧0.43	800
Φ70Φ3010	2850	0.3	22.7	≧0.43	800
